GRN280L-GKAGKA (2013)

Toyota 4runner

Production Aug 2013 - Aug 2019
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

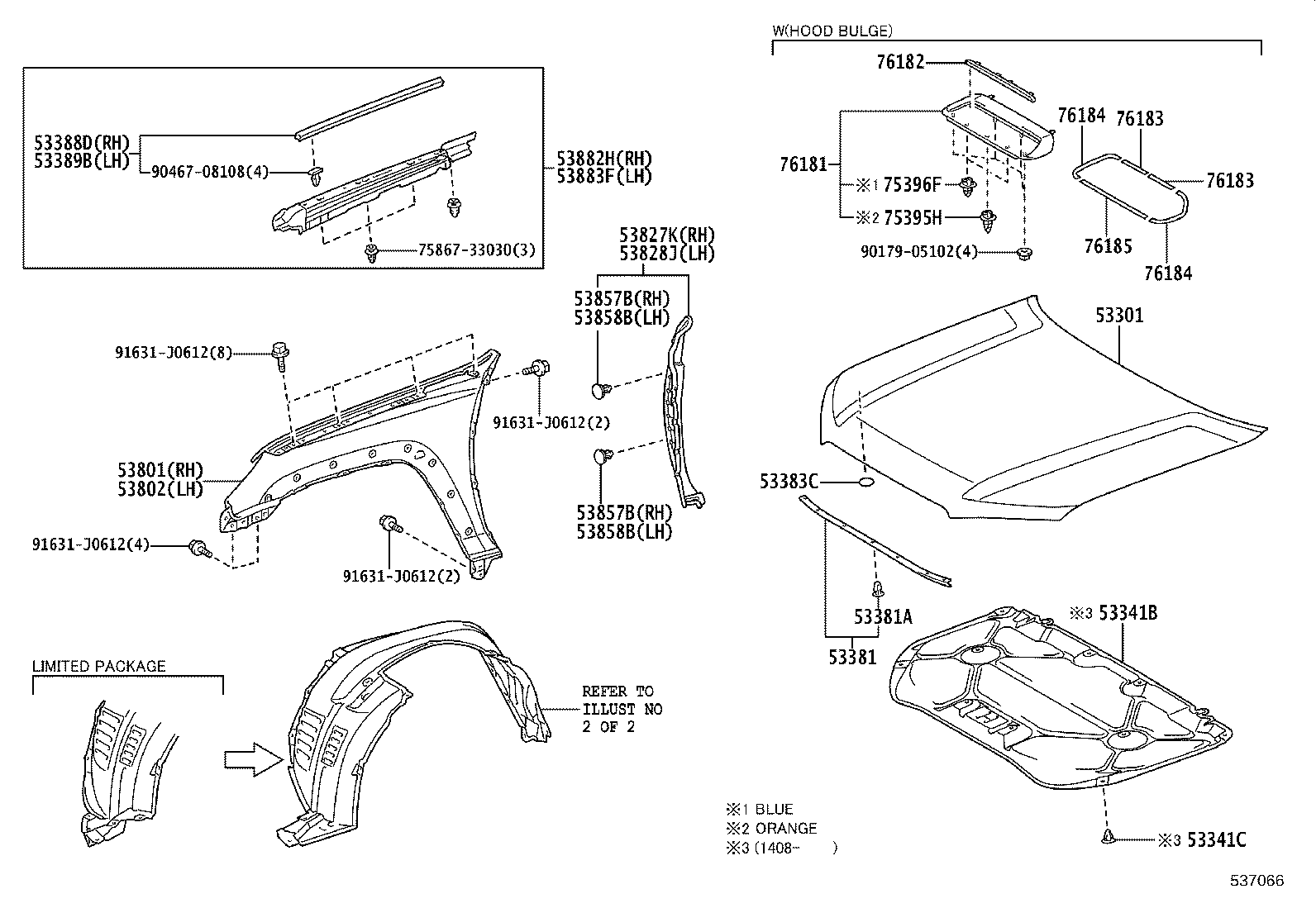

ILLUST NO. 1 OF 2(1308- )

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53383C 53388D 53389B 53801 53802 53827K 53828J 53857B 53857B 53858B 53858B 53882H 53883F 75395H 75396F 7586733030 76181 76182 76183 76183 76184 76184 76185 9017905102 9046708108 91631J0612 91631J0612 91631J0612 91631J0612
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-35200

GRN28#

 1
53341B - INSULATOR, HOOD
53341-35160

GRN28#

 1
53341-35161

GRN28#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

GRN28#

 10
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-60140

GRN28#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

GRN28#

 7
53383C - SEAL, HOOD TO COWL TOP
90950-06096

GRN28#

 2
90950-06124

GRN28#

 2
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-35020

GRN28#

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-35010

GRN28#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-35430

GRN28#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-35510

GRN28#

 1
53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-35050

GRN28#

 1
53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-35070

GRN28#

 1
53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-47011

GRN28#

 2
53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-47011

GRN28#

 2
53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-47011

GRN28#

 2
53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-47011

GRN28#

 2
53882H - SEAL, FRONT FENDER MAIN, RH
53807-35120

GRN28#

 1
53883F - SEAL, FRONT FENDER MAIN, LH
53808-35120

GRN28#

 1
Common parts
75867-33030
90179-05102
90467-08108
91631-J0612

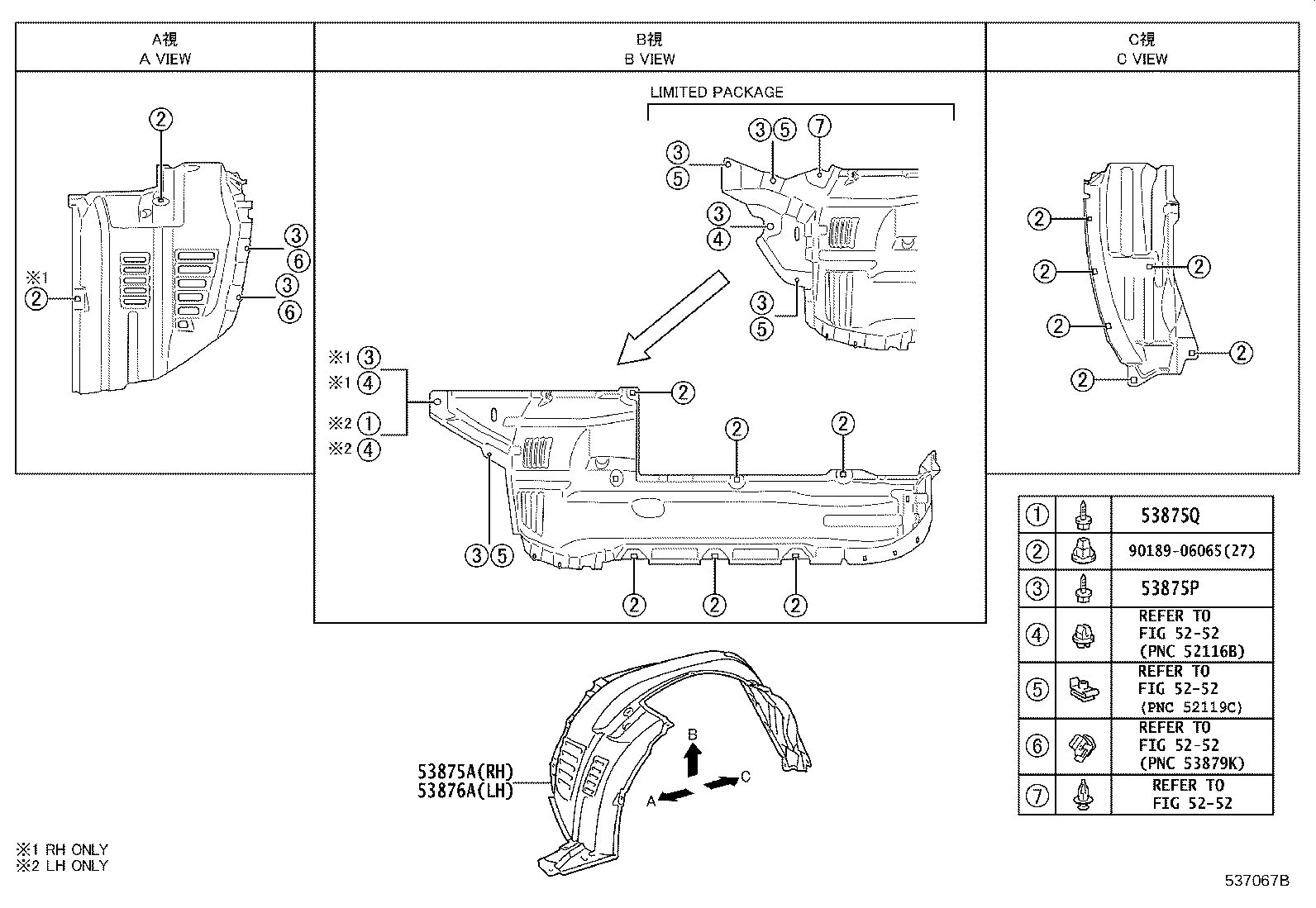

ILLUST NO. 2 OF 2(1308- )

Click highlighted areas on diagram

FENDER LINER

diagram 5252 5252 5252 5252 53875A 53875P 53875Q 53876A 9018906065
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53805-35030

GRN28#

LIMITED PACKAGE

 1
53805-35030

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
53875-35150

GRN28#

 1
53875P - SCREW, NO.1
90159-60440

GRN28#

 1
53875Q - SCREW, NO.2
90159-60440

GRN28#

 1
53876A - LINER, FRONT FENDER, LH
53806-35030

GRN28#

LIMITED PACKAGE

 1
53806-35030

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
53876-35150

GRN28#

 1
Common parts
90189-06065
Linked diagrams
5252
