GRN280L-GKAGKA (2013)

Toyota 4runner

Production Aug 2013 - Aug 2019
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1308-1908)

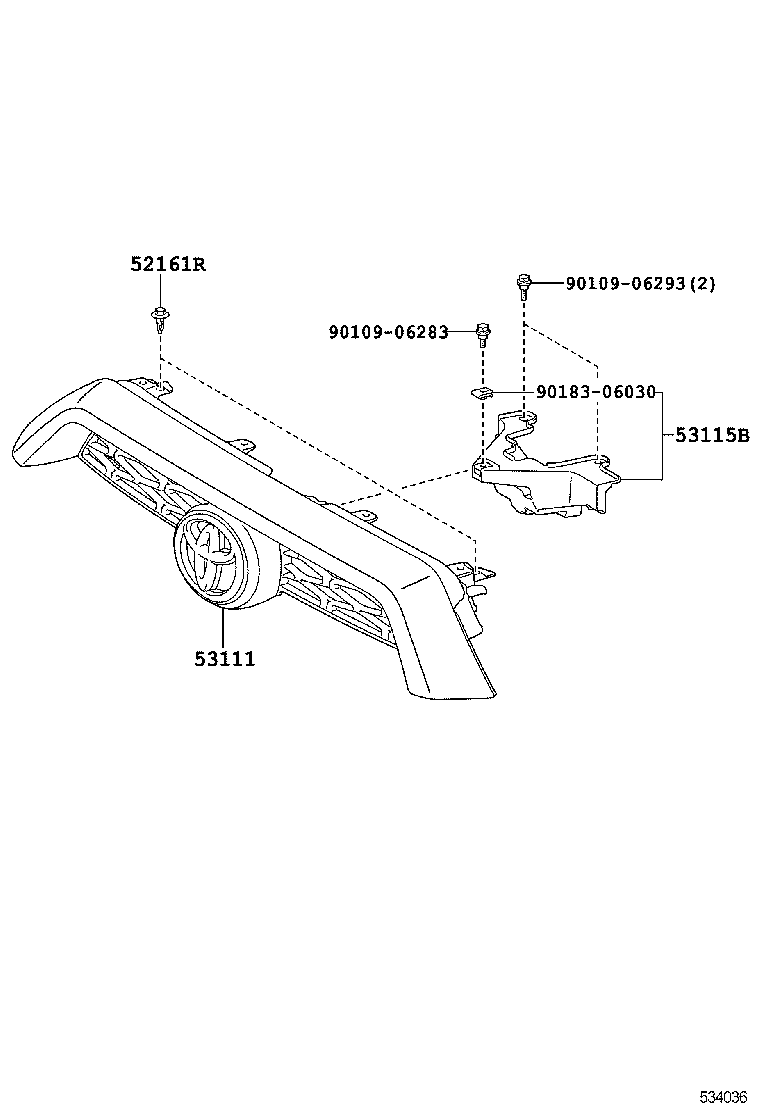

Click highlighted areas on diagram

diagram 52161R 53111 53115B 9010906283 9010906293 9018306030
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

GRN28#

 2
53111 - GRILLE, RADIATOR
53101-35080A0

GRN28#

SUPER WHITE 2,040

 1
53101-35080A1

GRN28#

WHITE PEARL CS.,070

 1
53101-35080C1

GRN28#

ATTITUDE BLACK MC.,218

 1
53101-35080J0

GRN28#

DK.BLUE MC.,8S6

 1
53101-35080D0

GRN28#

RED M.M.,3R3

 1
53101-35080C0

GRN28#

BLACK,202

 1
53101-35080B1

GRN28#

GRAY ME.,1G3

 1
53101-35080B0

GRN28#

SILVER ME.,1F7

 1
53101-35080J2

GRN28#

BLUE,8T6

 1
53115B - BRACKET, RADIATOR GRILLE
53115-35050

GRN28#

 1
Common parts
90109-06283
90109-06293
90183-06030
