Toyota 4runner GRN280 REAR BUMPER & BUMPER STAY

Manufacturers Home
Toyota
US
4RUNNER
GRN280L-GKAGKA (2013)
5253 - REAR BUMPER & BUMPER STAY

GRN280L-GKAGKA (2013)

Toyota 4runner

Production Aug 2013 - Aug 2019

Engine 1GRFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1308- )

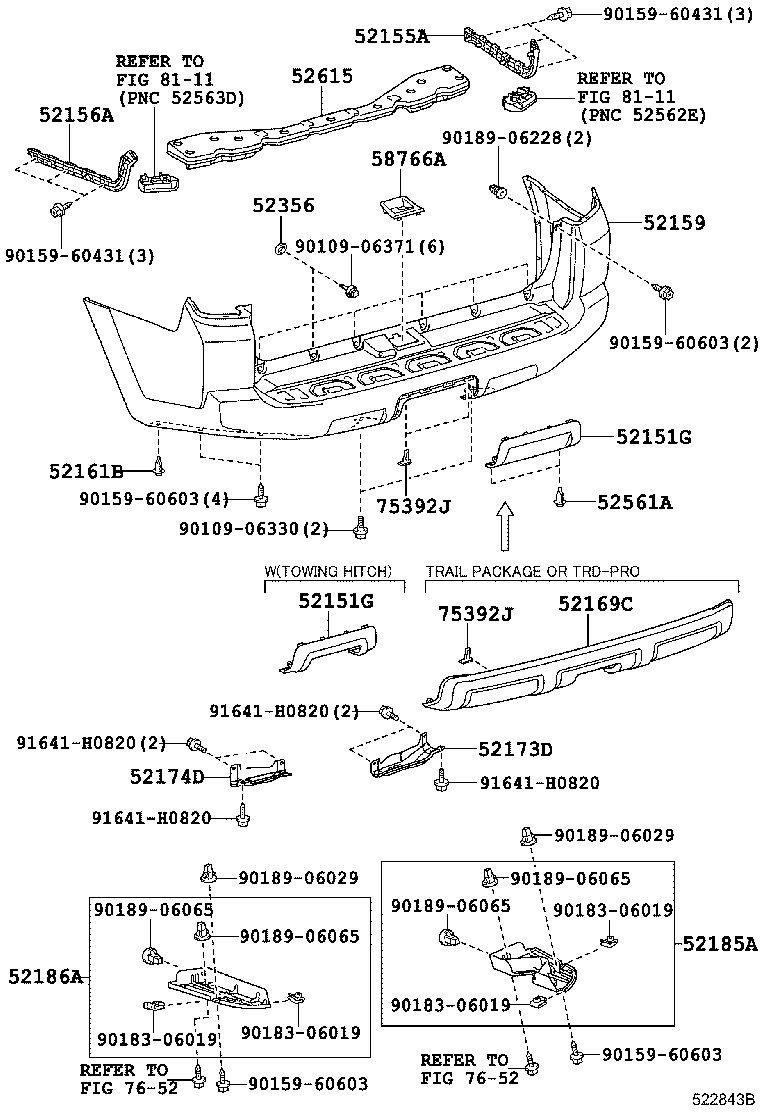

Click highlighted areas on diagram

Part #	Description	Period	Qty
52151G - EXTENSION, REAR BUMPER
52151-35901	GRN280 SR5 PACKAGE(FR VALANCE PANEL = BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	1
52151-35900	GRN28#	08/2013 - 08/2019	1
52151-35901	GRN28# SR5 PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	1
52151G - EXTENSION, REAR BUMPER
52151-35901	GRN280 SR5 PACKAGE(FR VALANCE PANEL = BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	1
52151-35900	GRN28#	08/2013 - 08/2019	1
52151-35901	GRN28# SR5 PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-35050	GRN28#	08/2013 - 08/2019	1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-35050	GRN28#	08/2013 - 08/2019	1
52159 - COVER, REAR BUMPER
52159-35919	GRN28# PAINT REQ.,LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	1
52159-35922	GRN28# PAINT REQ.	08/2013 - 08/2019	1
52159-35919	GRN28# PAINT REQ.,LIMITED PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	1
52161B - PIECE, REAR BUMPER
90467-09227	GRN28#	08/2013 - 08/2019	2
52173D - REINFORCEMENT, REAR BUMPER BAR, RH
52173-35090	GRN28#	08/2013 - 08/2019	1
52173-35100	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)	08/2018 - 08/2019	1
52173-35100	GRN28# LIMITED PACKAGE	08/2013 - 08/2019	1
52174D - REINFORCEMENT, REAR BUMPER BAR, LH
52174-35100	GRN28# LIMITED PACKAGE	08/2013 - 08/2019	1
52174-35090	GRN28#	08/2013 - 08/2019	1
52174-35100	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)	08/2018 - 08/2019	1
52185A - BRACKET, REAR BUMPER SIDE, RH
53723-35040	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)	08/2018 - 08/2019	1
53723-35040	GRN28# LIMITED PACKAGE	08/2013 - 08/2019	1
53723-35050	GRN28#	08/2013 - 08/2019	1
52186A - BRACKET, REAR BUMPER SIDE, LH
53724-35040	GRN28#	08/2013 - 08/2019	1
53724-35030	GRN28# LIMITED PACKAGE	08/2013 - 08/2019	1
53724-35030	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)	08/2018 - 08/2019	1
52356 - CUSHION, REAR BUMPER STEP
52356-60050	GRN28#	08/2013 - 08/2019	6
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-07201	GRN28#	08/2013 - 08/2019	2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-35050	GRN28#	08/2013 - 08/2019	1
58766A - COVER, JACK BOX HOLE
58766-35010	GRN28#	08/2013 - 08/2019	1
75392J - RETAINER, OUTSIDE MOULDING
75392-35200	GRN28#	08/2013 - 08/2019	2
75392-35200	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	10
75392-35200	GRN28# LIMITED PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	10
75392J - RETAINER, OUTSIDE MOULDING
75392-35200	GRN28#	08/2013 - 08/2019	2
75392-35200	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	10
75392-35200	GRN28# LIMITED PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	10
Common parts
90109-06330
90109-06371
90159-60431
90159-60603
90183-06019
90189-06029
90189-06065
90189-06228
91641-H0820
Linked diagrams
7652
8111

(1308- )

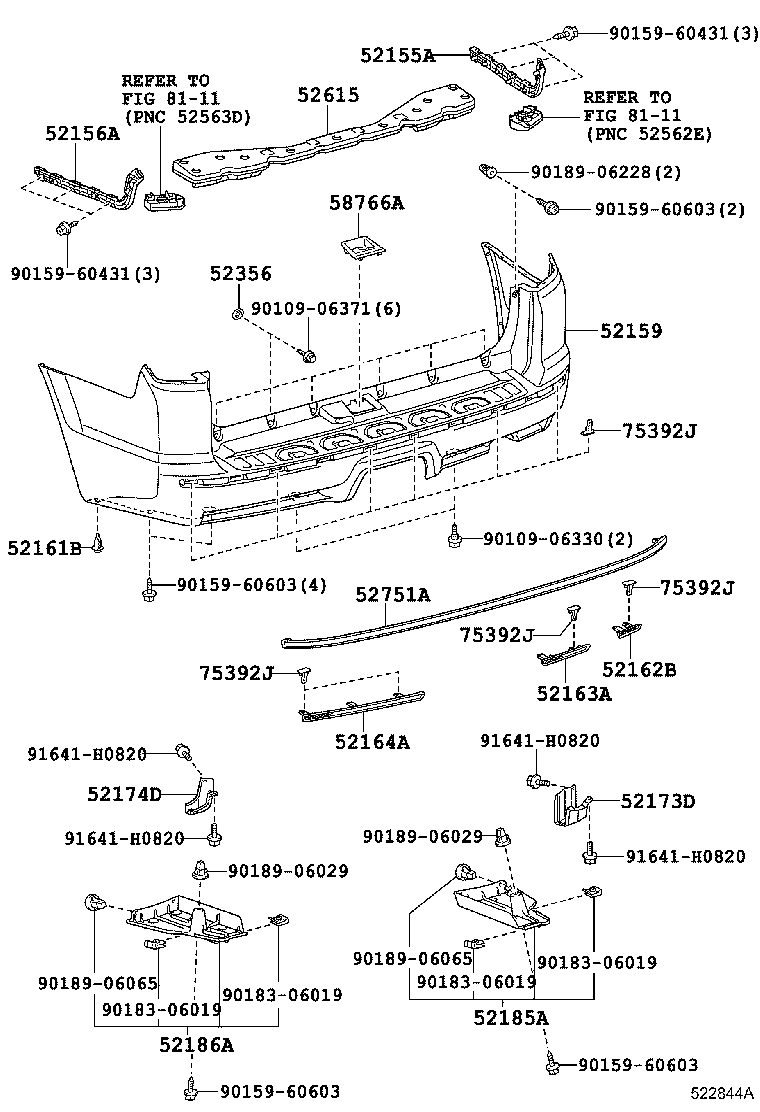

Click highlighted areas on diagram

LIMITED PACKAGE

Part #	Description	Period	Qty
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-35050	GRN28#	08/2013 - 08/2019	1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-35050	GRN28#	08/2013 - 08/2019	1
52159 - COVER, REAR BUMPER
52159-35919	GRN28# PAINT REQ.,LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	1
52159-35922	GRN28# PAINT REQ.	08/2013 - 08/2019	1
52159-35919	GRN28# PAINT REQ.,LIMITED PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	1
52161B - PIECE, REAR BUMPER
90467-09227	GRN28#	08/2013 - 08/2019	2
52162B - PLATE, REAR BUMPER, NO.1
52162-35030	GRN28# LIMITED PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	1
52162-35030	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	1
52163A - PLATE, REAR BUMPER, RH
52163-35050	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	1
52163-35050	GRN28# LIMITED PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	1
52164A - PLATE, REAR BUMPER, LH
52164-35050	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	1
52164-35050	GRN28# LIMITED PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	1
52173D - REINFORCEMENT, REAR BUMPER BAR, RH
52173-35090	GRN28#	08/2013 - 08/2019	1
52173-35100	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)	08/2018 - 08/2019	1
52173-35100	GRN28# LIMITED PACKAGE	08/2013 - 08/2019	1
52174D - REINFORCEMENT, REAR BUMPER BAR, LH
52174-35100	GRN28# LIMITED PACKAGE	08/2013 - 08/2019	1
52174-35090	GRN28#	08/2013 - 08/2019	1
52174-35100	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)	08/2018 - 08/2019	1
52185A - BRACKET, REAR BUMPER SIDE, RH
53723-35040	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)	08/2018 - 08/2019	1
53723-35040	GRN28# LIMITED PACKAGE	08/2013 - 08/2019	1
53723-35050	GRN28#	08/2013 - 08/2019	1
52186A - BRACKET, REAR BUMPER SIDE, LH
53724-35040	GRN28#	08/2013 - 08/2019	1
53724-35030	GRN28# LIMITED PACKAGE	08/2013 - 08/2019	1
53724-35030	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)	08/2018 - 08/2019	1
52356 - CUSHION, REAR BUMPER STEP
52356-60050	GRN28#	08/2013 - 08/2019	6
52615 - ABSORBER, REAR BUMPER ENERGY
52615-35050	GRN28#	08/2013 - 08/2019	1
52751A - MOULDING, REAR BUMPER, CENTER
52751-35020	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	1
52751-35010	GRN28# LIMITED PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	1
58766A - COVER, JACK BOX HOLE
58766-35010	GRN28#	08/2013 - 08/2019	1
75392J - RETAINER, OUTSIDE MOULDING
75392-35200	GRN28#	08/2013 - 08/2019	2
75392-35200	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	10
75392-35200	GRN28# LIMITED PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	10
75392J - RETAINER, OUTSIDE MOULDING
75392-35200	GRN28#	08/2013 - 08/2019	2
75392-35200	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	10
75392-35200	GRN28# LIMITED PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	10
75392J - RETAINER, OUTSIDE MOULDING
75392-35200	GRN28#	08/2013 - 08/2019	2
75392-35200	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	10
75392-35200	GRN28# LIMITED PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	10
75392J - RETAINER, OUTSIDE MOULDING
75392-35200	GRN28#	08/2013 - 08/2019	2
75392-35200	GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TOWING HITCH-WITH	08/2018 - 08/2019	10
75392-35200	GRN28# LIMITED PACKAGE&TOWING HITCH-WITH	08/2013 - 08/2019	10
Common parts
90109-06330
90109-06371
90159-60431
90159-60603
90183-06019
90189-06029
90189-06065
90189-06228
91641-H0820
Linked diagrams
8111
