GRN280L-GKAGKA (2013)

Toyota 4runner

Production Aug 2013 - Aug 2019
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

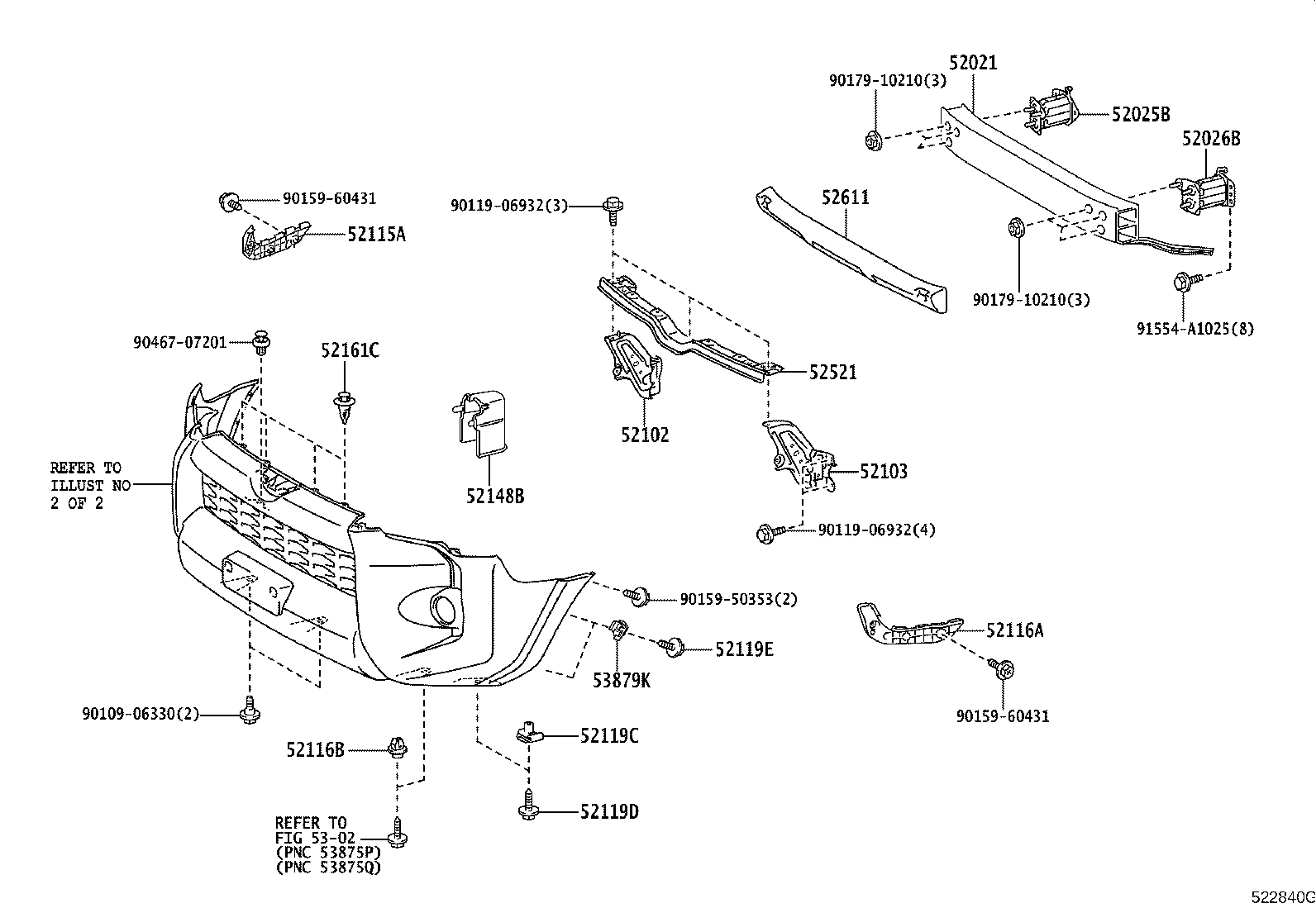

ILLUST NO. 1 OF 2(1308-1908)

Click highlighted areas on diagram

diagram 52021 52025B 52026B 52102 52103 52115A 52116A 52116B 52119C 52119D 52119E 52148B 52161C 52521 52611 5302 53879K 9010906330 9011906932 9011906932 9015950353 9015960431 9015960431 9017910210 9017910210 9046707201 91554A1025
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-35151

GRN28#

LIMITED PACKAGE

 1
52021-35150

GRN28#

LIMITED PACKAGE

 1
52021-35151

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52021-35140

GRN28#

 1
52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52025-60050

GRN28#

 1
52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52026-60050

GRN28#

 1
52102 - BRACKET SUB-ASSY, FRONT BUMPER, RH
52102-35100

GRN28#

 1
52103 - BRACKET SUB-ASSY, FRONT BUMPER, LH
52103-35110

GRN28#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-35151

GRN28#

 1
52115-35150

GRN28#

 1
52115-35152

GRN28#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-35151

GRN28#

 1
52116-35150

GRN28#

 1
52116-35152

GRN28#

 1
52116B - RETAINER, FRONT BUMPER
52116-35140

GRN28#

 2
52119C - CLIP, FRONT BUMPER COVER
90467-05138

GRN28#

 2
52119D - SCREW, NO.1
90159-60215

GRN28#

 2
52119E - SCREW, NO.2
90159-60603

GRN28#

 4
52148B - STOPPER, FR BUMPER REINFORCEMENT, RH
52148-35120

GRN28#

 1
52161C - PIECE, FRONT BUMPER
52161-16010

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 8
52161-16010

GRN28#

 4
52161-16010

GRN28#

LIMITED PACKAGE

 8
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-35060

GRN28#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-35040

GRN28#

 1
53879K - RETAINER, FRONT FENDER LINER
53879-58010

GRN28#

 4
Common parts
90109-06330
90119-06932
90159-50353
90159-60431
90179-10210
90467-07201
91554-A1025
Linked diagrams
5302

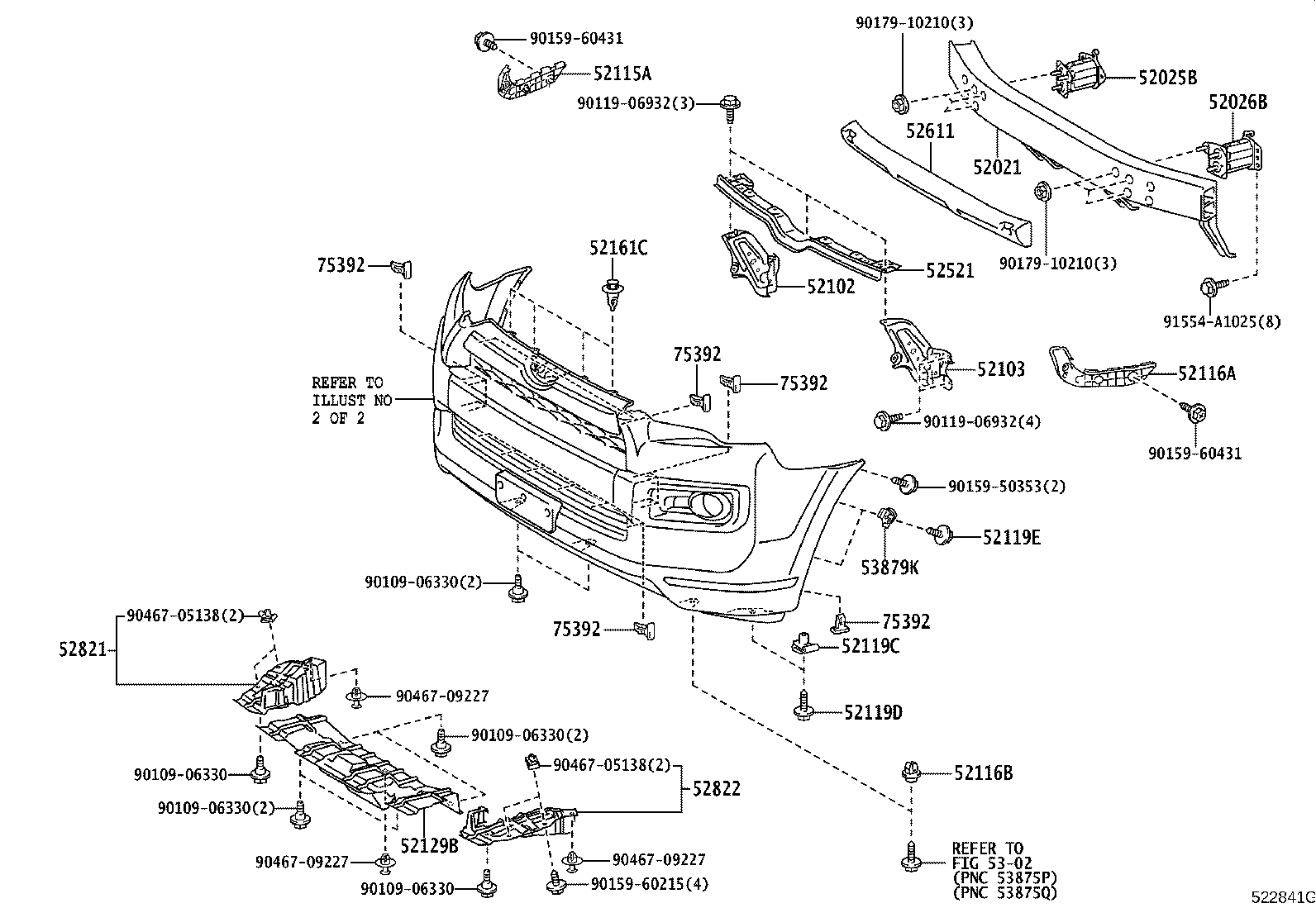

ILLUST NO. 1 OF 2(1308-1908)

Click highlighted areas on diagram

LIMITED PACKAGE

diagram 52021 52025B 52026B 52102 52103 52115A 52116A 52116B 52119C 52119D 52119E 52129B 52161C 52521 52611 52821 52822 5302 53879K 75392 75392 75392 75392 75392 9010906330 9010906330 9010906330 9010906330 9010906330 9011906932 9011906932 9015950353 9015960215 9015960431 9015960431 9017910210 9017910210 9046705138 9046705138 9046709227 9046709227 9046709227 91554A1025
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-35151

GRN28#

LIMITED PACKAGE

 1
52021-35150

GRN28#

LIMITED PACKAGE

 1
52021-35151

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52021-35140

GRN28#

 1
52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52025-60050

GRN28#

 1
52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52026-60050

GRN28#

 1
52102 - BRACKET SUB-ASSY, FRONT BUMPER, RH
52102-35100

GRN28#

 1
52103 - BRACKET SUB-ASSY, FRONT BUMPER, LH
52103-35110

GRN28#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-35151

GRN28#

 1
52115-35150

GRN28#

 1
52115-35152

GRN28#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-35151

GRN28#

 1
52116-35150

GRN28#

 1
52116-35152

GRN28#

 1
52116B - RETAINER, FRONT BUMPER
52116-35140

GRN28#

 2
52119C - CLIP, FRONT BUMPER COVER
90467-05138

GRN28#

 2
52119D - SCREW, NO.1
90159-60215

GRN28#

 2
52119E - SCREW, NO.2
90159-60603

GRN28#

 4
52129B - COVER, FRONT BUMPER, LOWER
52129-35030

GRN28#

 1
52129-35040

GRN280

LIMITED PACKAGE

 1
52129-35040

GRN280

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52161C - PIECE, FRONT BUMPER
52161-16010

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 8
52161-16010

GRN28#

 4
52161-16010

GRN28#

LIMITED PACKAGE

 8
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-35060

GRN28#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-35040

GRN28#

 1
52821 - DUCT, AIR INTAKE, RH
53286-35030

GRN28#

LIMITED PACKAGE

 1
53286-35030

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52822 - DUCT, AIR INTAKE, LH
53287-35030

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
53287-35030

GRN28#

LIMITED PACKAGE

 1
53879K - RETAINER, FRONT FENDER LINER
53879-58010

GRN28#

 4
75392 - RETAINER, OUTSIDE MOULDING
75392-35200

GRN28#

TYPE A:REFER ILLUST.

 2
75392-35220

GRN28#

TYPE B:REFER ILLUST.

 2
75392-35220

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 21
75392-35220

GRN28#

LIMITED PACKAGE

 21
75392 - RETAINER, OUTSIDE MOULDING
75392-35200

GRN28#

TYPE A:REFER ILLUST.

 2
75392-35220

GRN28#

TYPE B:REFER ILLUST.

 2
75392-35220

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 21
75392-35220

GRN28#

LIMITED PACKAGE

 21
75392 - RETAINER, OUTSIDE MOULDING
75392-35200

GRN28#

TYPE A:REFER ILLUST.

 2
75392-35220

GRN28#

TYPE B:REFER ILLUST.

 2
75392-35220

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 21
75392-35220

GRN28#

LIMITED PACKAGE

 21
75392 - RETAINER, OUTSIDE MOULDING
75392-35200

GRN28#

TYPE A:REFER ILLUST.

 2
75392-35220

GRN28#

TYPE B:REFER ILLUST.

 2
75392-35220

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 21
75392-35220

GRN28#

LIMITED PACKAGE

 21
75392 - RETAINER, OUTSIDE MOULDING
75392-35200

GRN28#

TYPE A:REFER ILLUST.

 2
75392-35220

GRN28#

TYPE B:REFER ILLUST.

 2
75392-35220

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 21
75392-35220

GRN28#

LIMITED PACKAGE

 21
Common parts
90109-06330
90119-06932
90159-50353
90159-60215
90159-60431
90179-10210
90467-05138
90467-09227
91554-A1025
Linked diagrams
5302

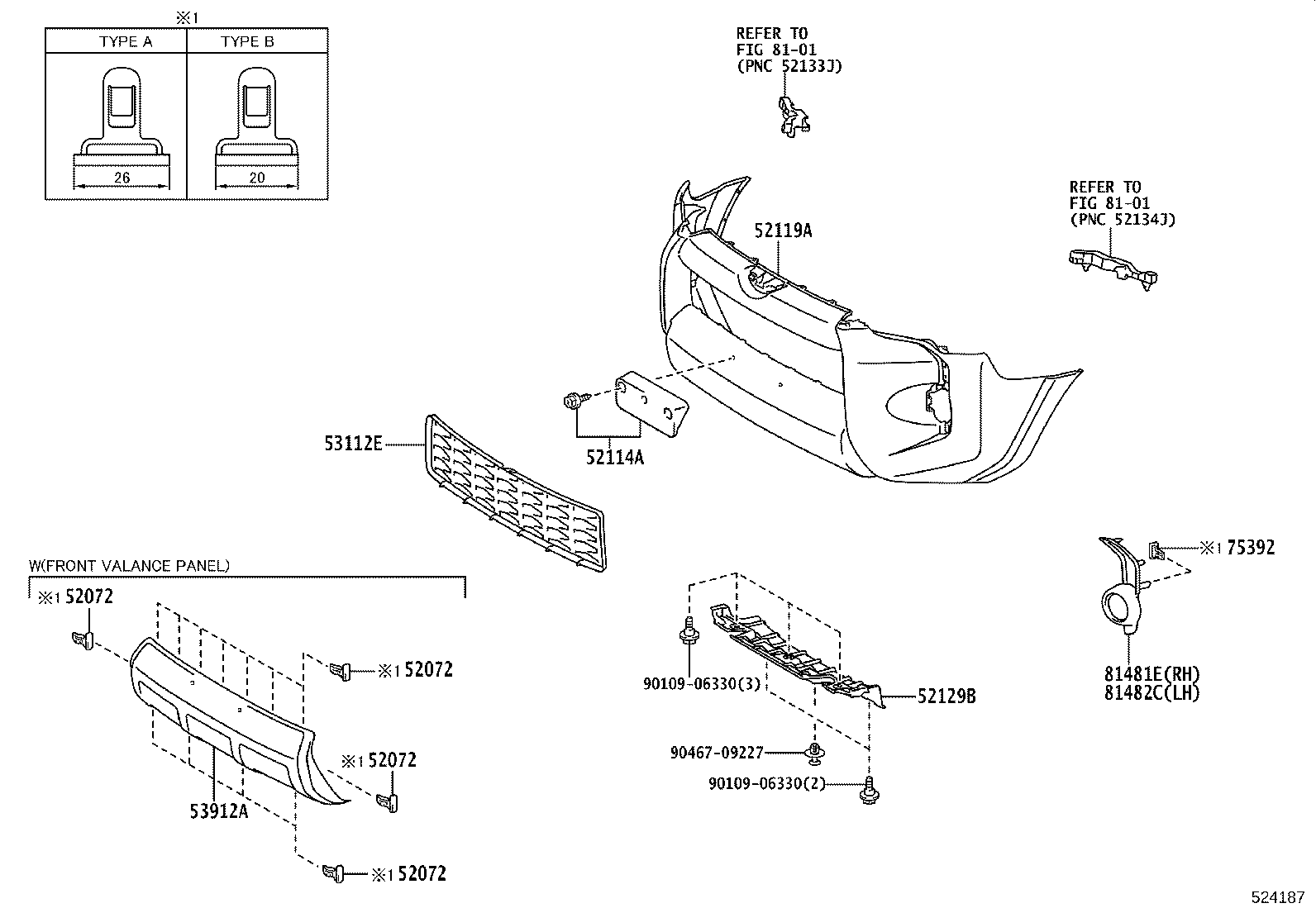

ILLUST NO. 2 OF 2(1308-1908)

Click highlighted areas on diagram

diagram 52072 52072 52072 52072 52114A 52119A 52129B 53112E 53912A 75392 8101 8101 81481E 81482C 9010906330 9010906330 9046709227
Part # Description Qty Price
52072 - RETAINER SUB-ASSY, FRONT BUMPER, LOWER
75392-35220

GRN280

HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK),TYPE B:REFER ILLUST.

 13
75392-35200

GRN280

HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK),TYPE A:REFER ILLUST.

 13
52072 - RETAINER SUB-ASSY, FRONT BUMPER, LOWER
75392-35220

GRN280

HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK),TYPE B:REFER ILLUST.

 13
75392-35200

GRN280

HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK),TYPE A:REFER ILLUST.

 13
52072 - RETAINER SUB-ASSY, FRONT BUMPER, LOWER
75392-35220

GRN280

HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK),TYPE B:REFER ILLUST.

 13
75392-35200

GRN280

HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK),TYPE A:REFER ILLUST.

 13
52072 - RETAINER SUB-ASSY, FRONT BUMPER, LOWER
75392-35220

GRN280

HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK),TYPE B:REFER ILLUST.

 13
75392-35200

GRN280

HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK),TYPE A:REFER ILLUST.

 13
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-35050

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52114-35050

GRN28#

LIMITED PACKAGE

 1
52114-35040

GRN28#

 1
52119A - COVER, FRONT BUMPER
52119-35913

GRN28#

PAINT REQ.,LIMITED PACKAGE

 1
52119-35914

GRN280

PAINT REQ.,HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)

 1
52119-35912

GRN28#

PAINT REQ.

 1
52119-35913

GRN28#

PAINT REQ.,LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-35030

GRN28#

 1
52129-35040

GRN280

LIMITED PACKAGE

 1
52129-35040

GRN280

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-35060

GRN28#

NO PAINT REQ.

 1
53912A - PANEL, FRONT VALANCE, LOWER
53901-35250

GRN280

HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)

 1
75392 - RETAINER, OUTSIDE MOULDING
75392-35200

GRN28#

TYPE A:REFER ILLUST.

 2
75392-35220

GRN28#

TYPE B:REFER ILLUST.

 2
75392-35220

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 21
75392-35220

GRN28#

LIMITED PACKAGE

 21
81481E - COVER, FOG LAMP, RH
52127-35100

GRN28#

 1
81482C - COVER, FOG LAMP, LH
52128-35080

GRN28#

 1
Common parts
90109-06330
90467-09227
Linked diagrams
8101

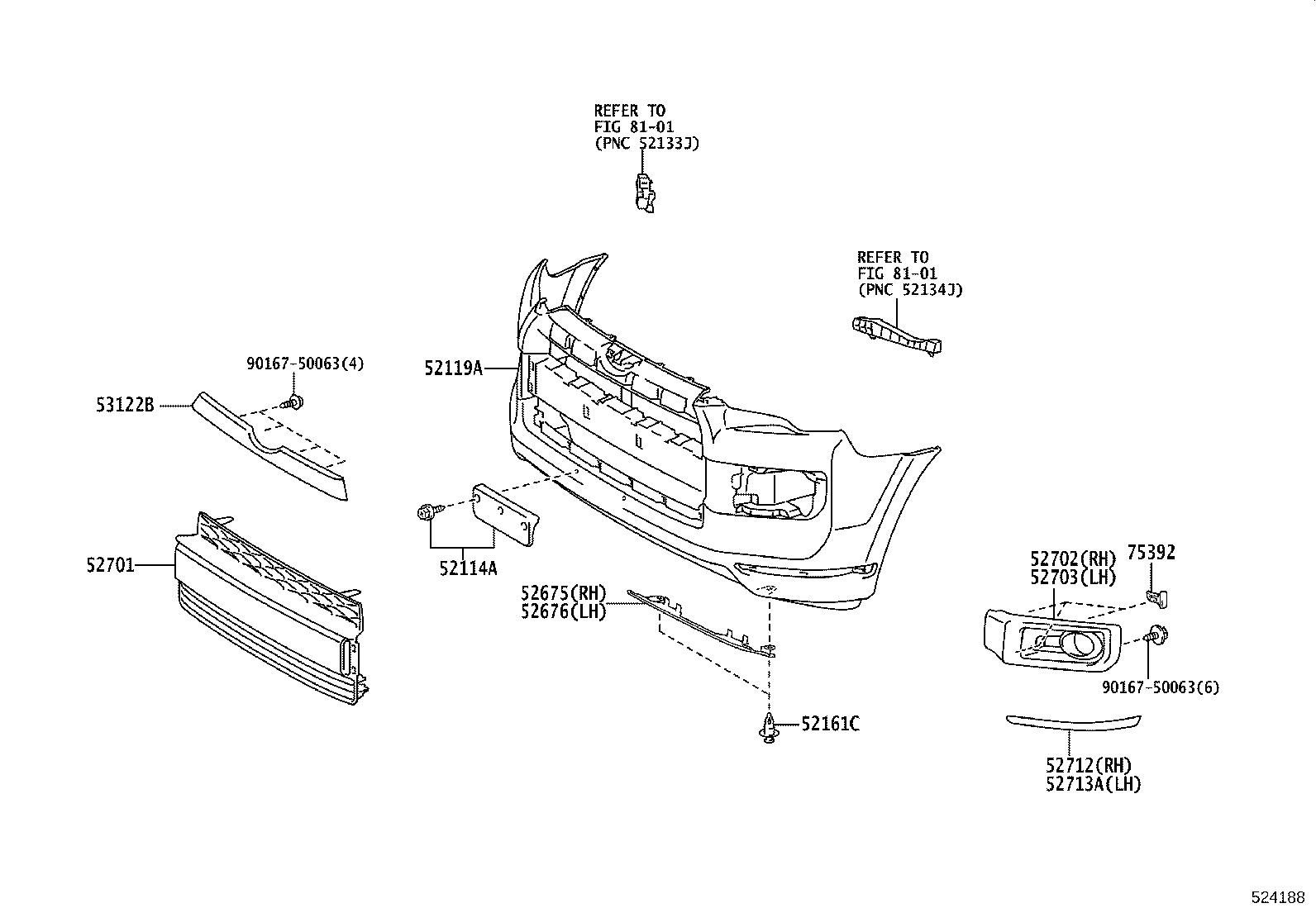

ILLUST NO. 2 OF 2(1308-1908)

Click highlighted areas on diagram

LIMITED PACKAGE

diagram 52114A 52119A 52161C 52675 52676 52701 52702 52703 52712 52713A 53122B 75392 8101 8101 9016750063 9016750063
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-35050

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52114-35050

GRN28#

LIMITED PACKAGE

 1
52114-35040

GRN28#

 1
52119A - COVER, FRONT BUMPER
52119-35913

GRN28#

PAINT REQ.,LIMITED PACKAGE

 1
52119-35914

GRN280

PAINT REQ.,HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)

 1
52119-35912

GRN28#

PAINT REQ.

 1
52119-35913

GRN28#

PAINT REQ.,LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52161C - PIECE, FRONT BUMPER
52161-16010

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 8
52161-16010

GRN28#

 4
52161-16010

GRN28#

LIMITED PACKAGE

 8
52675 - SUPPORT, FRONT BUMPER LOWER SIDE, RH
52675-35010

GRN28#

LIMITED PACKAGE

 1
52675-35010

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52676 - SUPPORT, FRONT BUMPER LOWER SIDE, LH
52676-35010

GRN28#

LIMITED PACKAGE

 1
52676-35010

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52701 - MOULDING SUB-ASSY, FRONT BUMPER
52701-35020

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52701-35010

GRN28#

LIMITED PACKAGE

 1
52702 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH
52702-35020

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52702-35010

GRN28#

LIMITED PACKAGE

 1
52703 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH
52703-35010

GRN28#

LIMITED PACKAGE

 1
52703-35020

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-35010

GRN28#

LIMITED PACKAGE

 1
52712-35010

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
52713A - MOULDING, FRONT BUMPER SIDE, LH
52713-35010

GRN28#

LIMITED PACKAGE

 1
52713-35010

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
53122B - MOULDING, RADIATOR GRILLE, NO.2
53122-35060

GRN28#

LIMITED PACKAGE

 1
53122-35080

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
75392 - RETAINER, OUTSIDE MOULDING
75392-35200

GRN28#

TYPE A:REFER ILLUST.

 2
75392-35220

GRN28#

TYPE B:REFER ILLUST.

 2
75392-35220

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 21
75392-35220

GRN28#

LIMITED PACKAGE

 21
Common parts
90167-50063
Linked diagrams
8101
