GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208-0508)

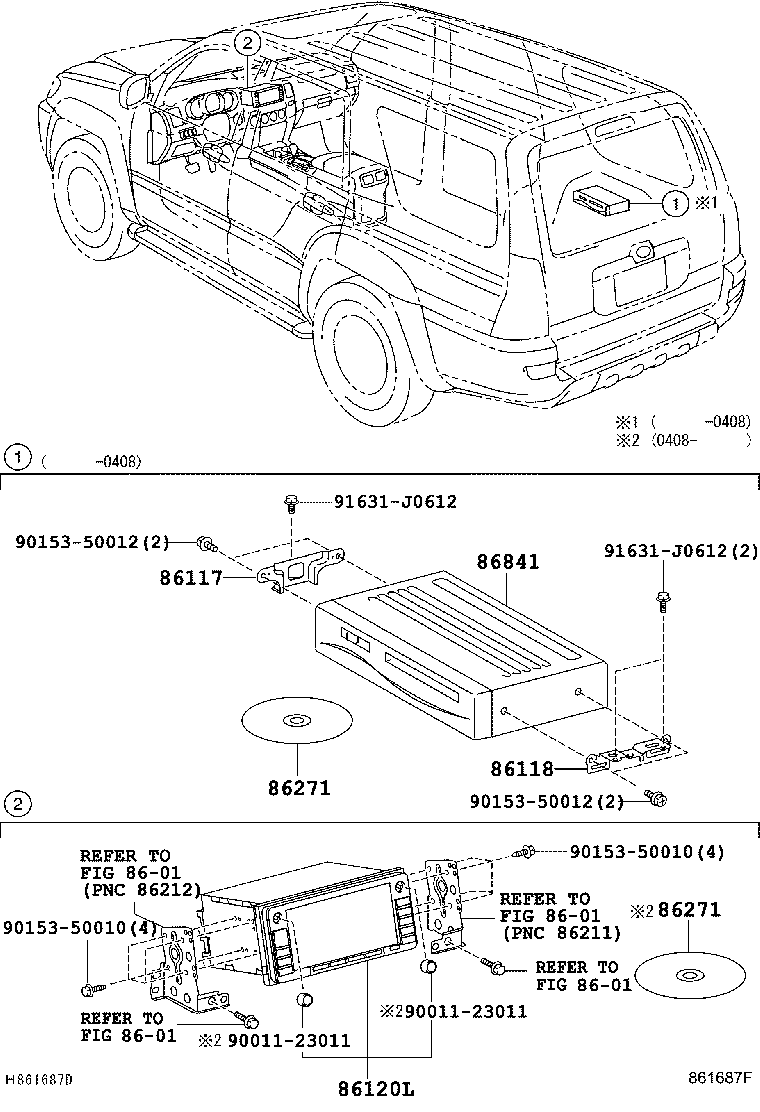

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86117 86118 86120L 86271 86271 86841 9001123011 9001123011 9015350010 9015350010 9015350012 9015350012 91631J0612 91631J0612
Part # Description Qty Price
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-35010

GRN21#,UZN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD)

 1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86118-35010

GRN21#,UZN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD)

 1
86120L - RECEIVER ASSY, NAVIGATION
86120-35240

GRN21#,UZN21#

FUJITSU TEN,ID=17006,AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD)

 1
86120-35241

GRN21#,UZN21#..SR5

FUJITSU TEN,ID=17010,AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD)

 1
86271 - DISC, DISC PLAYER
86271-33031

GRN21#,UZN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD)

 1
86271 - DISC, DISC PLAYER
86271-33031

GRN21#,UZN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD)

 1
86841 - COMPUTER, NAVIGATION
86841-33060

GRN21#,UZN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD)

 1
Common parts
90011-23011
90153-50010
90153-50012
91631-J0612
Linked diagrams
8601
