GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

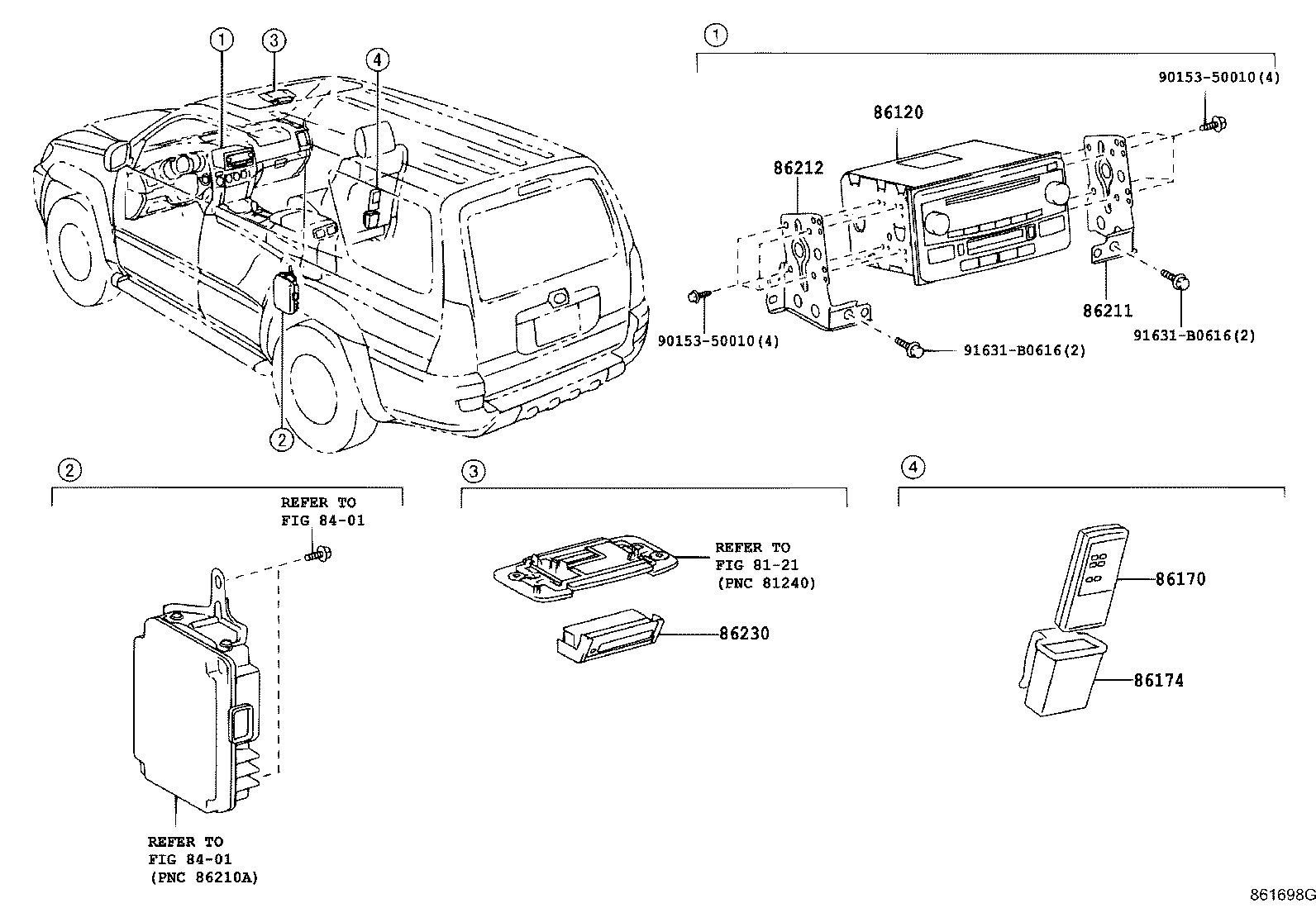

ILLUST NO. 1 OF 2(0208-0508)

Click highlighted areas on diagram

diagram 8121 8401 8401 86120 86170 86174 86211 86212 86230 9015350010 9015350010 91631B0616 91631B0616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-35280

GRN21#

FUJITSU TEN,ID=16850,TYPE B:REFER ILLUST.

 1
86120-35200

GRN21#,UZN21#

MATSUSHITA, ID=56827,AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),TYPE A:REFER ILLUST.

 1
86120-35290

GRN21#

FUJITSU TEN,ID=16851,AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),TYPE B:REFER ILLUST.

 1
86120-35280

GRN21#

FUJITSU TEN,ID=16850,TYPE B:REFER ILLUST.

 1
86120-35290

GRN21#

FUJITSU TEN,ID=16851,TYPE B:REFER ILLUST.

 1
86120-35200

GRN21#,UZN21#

MATSUSHITA, ID=56827,TYPE A:REFER ILLUST.

 1
86170 - SWITCH AND VOLUME ASSY, RADIO
86170-34010

GRN21#,UZN21#..SR5

REAR AUDIO-WITH(RSA)

 1
86170-34010

GRN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD)

 1
86170-34010

GRN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER)

 1
86174 - CASE, SWITCH & VOLUME
86174-60020A0

GRN21#,UZN21#..SR5

REAR AUDIO-WITH(RSA),IVORY,TRIM4#

 1
86174-60020A0

GRN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),IVORY,TRIM4#

 1
86174-60020B0

GRN21#,UZN21#..SR5

REAR AUDIO-WITH(RSA),MD.GRAY,TRIM12,13

 1
86174-60020B0

GRN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),MD.GRAY,TRIM12,13

 1
86174-60020A0

GRN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),IVORY,TRIM4#

 1
86174-60020B0

GRN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),MD.GRAY,TRIM12,13

 1
86211 - BRACKET, RADIO, NO.1
86211-35040

GRN21#

 1
86212 - BRACKET, RADIO, NO.2
86212-35040

GRN21#

 1
86230 - CONTROLLER ASSY, STEREO COMPONENT
86230-35020

GRN21#,UZN21#..SR5

REAR AUDIO-WITH(RSA)

 1
86230-35020

GRN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD)

 1
86230-35020

GRN21#..SR5

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER)

 1
Common parts
90153-50010
91631-B0616
Linked diagrams
8121
8401
