GRN215L-GKPGKA (2002)
Toyota 4runner
Production
Nov 2002
-
Aug 2004
Engine
1GRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0208-0408)

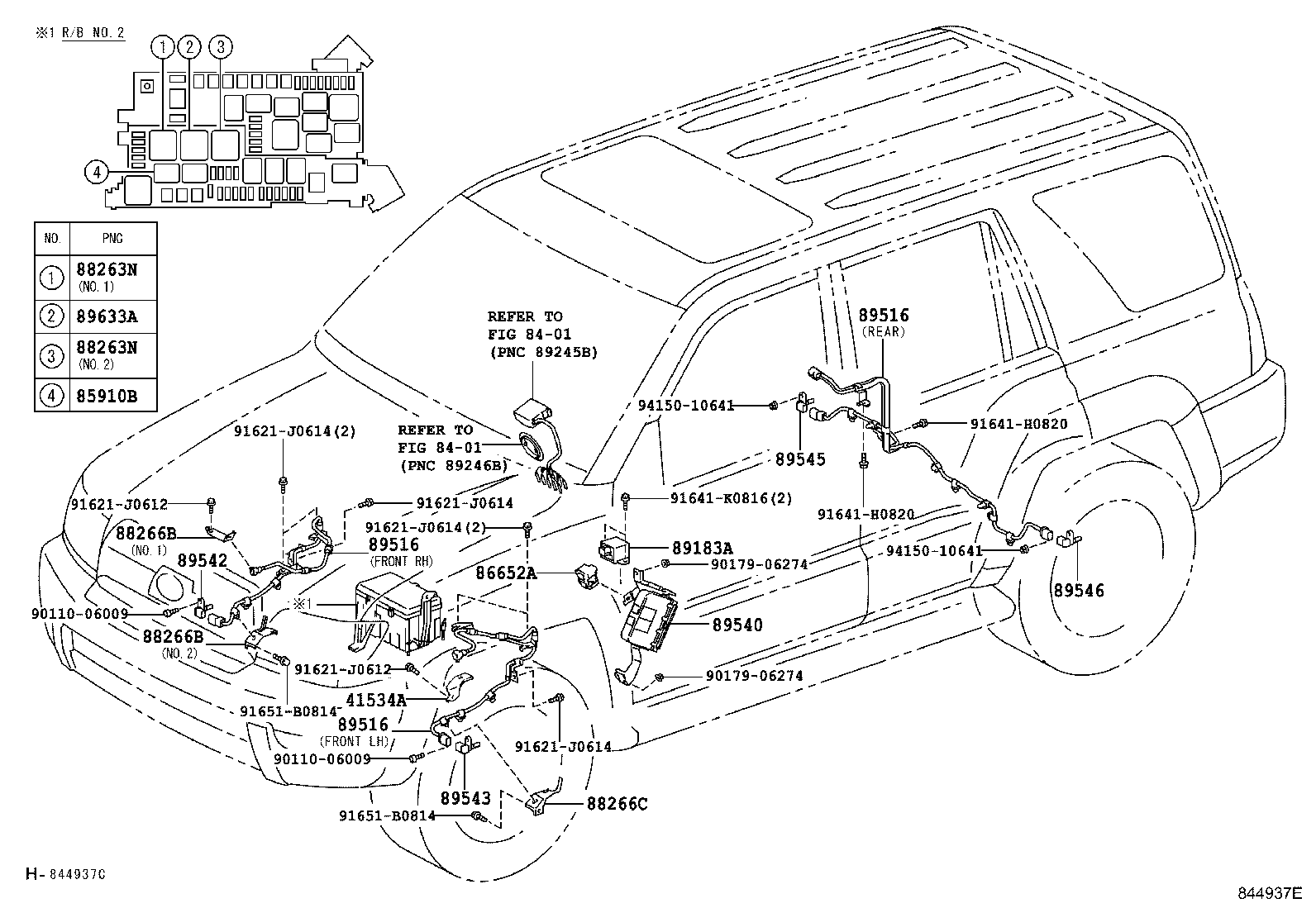

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41534A - BRACKET, FRONT DIFFERENTIAL BREATHER | ||||
| 41534-60020 |
GRN21# |
1 | ||
| 85910B - RELAY ASSY, CIRCUIT OPENING (FOR ESC) | ||||
| 90987-04004 |
GRN21# |
1 | ||
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-51010 |
GRN21# |
1 | ||
| 88263N - RELAY, ABS MOTOR | ||||
| 88263-24030 |
GRN21# NO.2 |
1 | ||
| 88263-24020 |
GRN21# NO.1 |
1 | ||
| 88263N - RELAY, ABS MOTOR | ||||
| 88263-24030 |
GRN21# NO.2 |
1 | ||
| 88263-24020 |
GRN21# NO.1 |
1 | ||
| 88266B - CLAMP, SKID CONTROL SENSOR, NO.1 | ||||
| 88266-60460 |
GRN21# NO.1 |
1 | ||
| 88266-60540 |
GRN21# NO.2 |
1 | ||
| 88266B - CLAMP, SKID CONTROL SENSOR, NO.1 | ||||
| 88266-60460 |
GRN21# NO.1 |
1 | ||
| 88266-60540 |
GRN21# NO.2 |
1 | ||
| 88266C - CLAMP, SKID CONTROL SENSOR, NO.2 | ||||
| 88266-60550 |
GRN21# |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89183-60010 |
GRN21#,UZN21# |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-60070 |
GRN21# FRONT RH |
1 | ||
| 89516-60090 |
GRN21# REAR |
1 | ||
| 89516-60080 |
GRN21# FRONT LH |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-60070 |
GRN21# FRONT RH |
1 | ||
| 89516-60090 |
GRN21# REAR |
1 | ||
| 89516-60080 |
GRN21# FRONT LH |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-60070 |
GRN21# FRONT RH |
1 | ||
| 89516-60090 |
GRN21# REAR |
1 | ||
| 89516-60080 |
GRN21# FRONT LH |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-35320 |
GRN21# |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-60050 |
GRN21# |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-60050 |
GRN21# |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89542-60050 |
GRN21# |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89543-60050 |
GRN21# |
1 | ||
| 89633A - RELAY, TRACTION CONTROL OR VSC | ||||
| 89633-24010 |
GRN21# |
1 | ||
| Common parts | ||||
| 90110-06009 | ||||
| 90179-06274 | ||||
| 91621-J0612 | ||||
| 91621-J0614 | ||||
| 91641-H0820 | ||||
| 91641-K0816 | ||||
| 91651-B0814 | ||||
| 94150-10641 | ||||
| Linked diagrams | ||||
| 8401 | ||||
