GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211-0408)GRN215

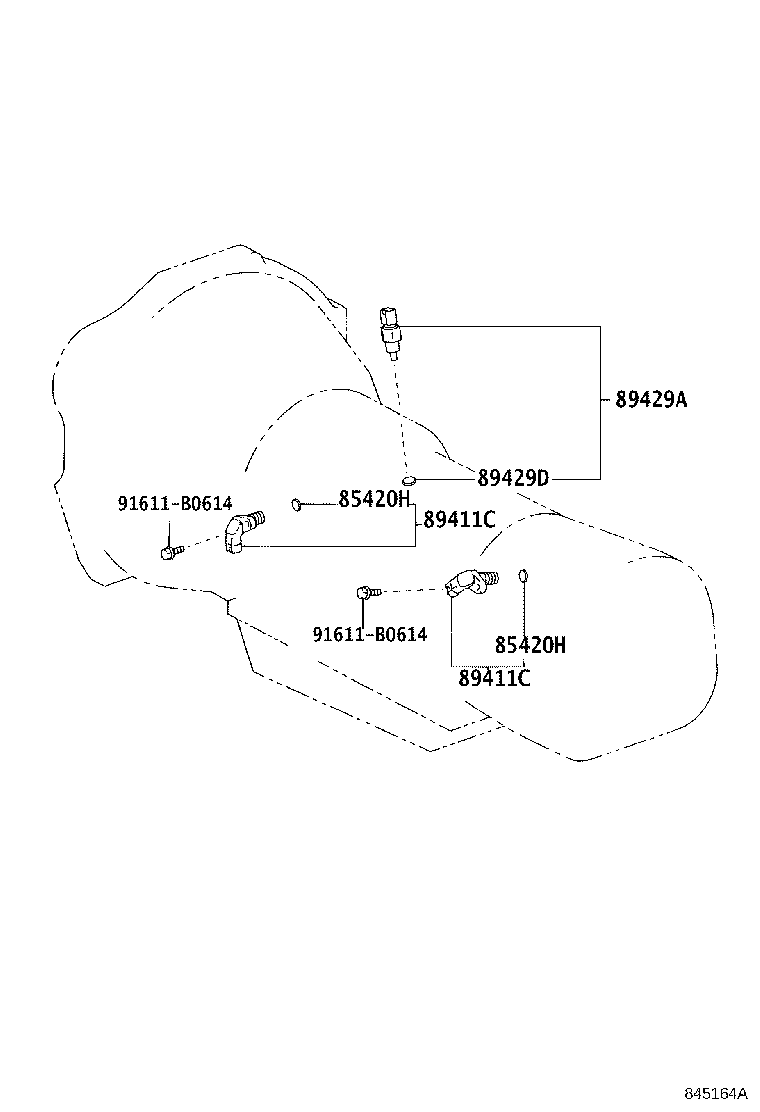

Click highlighted areas on diagram

diagram 85420H 85420H 89411C 89411C 89429A 89429D 91611B0614 91611B0614
Part # Description Qty Price
85420H - RING, O(FOR SPEED SENSOR)
90301-11008

GRN215

 2
85420H - RING, O(FOR SPEED SENSOR)
90301-11008

GRN215

 2
89411C - SENSOR, SPEED
89411-50010

GRN215

 2
89411C - SENSOR, SPEED
89411-50010

GRN215

 2
89429A - SENSOR, TEMPERATURE
89429-34010

GRN21#

 1
89429D - RING, O(FOR TEMPERATURE SENSOR)
90301-11006

GRN21#

 1
Common parts
91611-B0614
