GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )GRN21#

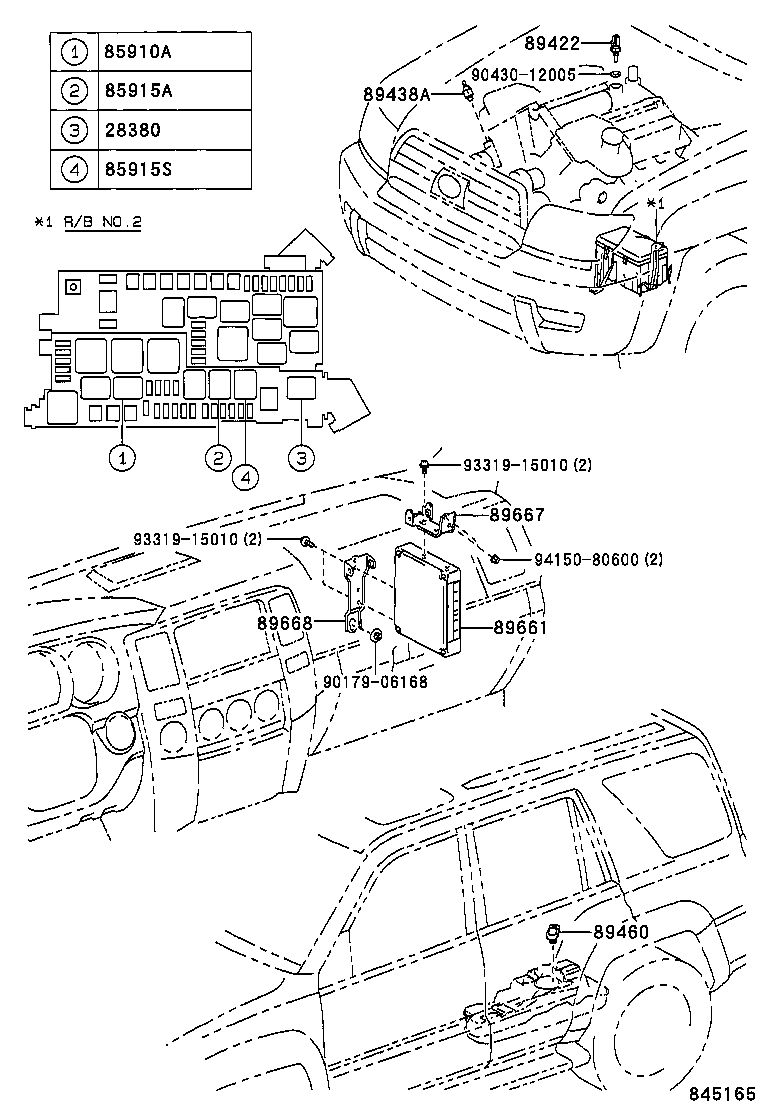

Click highlighted areas on diagram

diagram 28380 85910A 85915A 85915S 89422 89438A 89460 89661 89667 89668 9017906168 9043012005 9331915010 9331915010 9415080600
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
90987-04004

1GRFE..GRN21#

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02022

GRN21#,UZN21#

 1
85915A - RELAY, MAIN
90987-02022

GRN21#,UZN21#

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-02022

GRN21#

 1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

GRN21#

 1
89460 - SENSOR ASSY, VAPOR PRESSURE
89461-35010

GRN21#,UZN21#

 1
89661 - COMPUTER, ENGINE CONTROL
89666-35690

GRN215

 1
89661-35A30

GRN215

 1
89661-35A32

GRN215

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-60240

GRN21#,UZN215

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-60240

GRN21#,UZN215

 1
Common parts
90179-06168
90430-12005
93319-15010
94150-80600
