GRN215L-GKPGKA (2002)
Toyota 4runner
ILLUST NO. 5 OF 8(0208-0808)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-35030 |
GRN21# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-35070 |
GRN21# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
GRN21# 14V 0.91W |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-35020 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,PLANT NO.A51-A54 |
1 | ||
| 84415-35010 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,PLANT NO. P11 |
1 | ||
| 84415A - BULB, CURTAIN AIRBAG CUTOFF SWITCH | ||||
| 90010-01083 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-35070 |
GRN21#,UZN21# ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,MARK=KK,PLANT A51-54 |
1 | ||
| 84480-35070 |
GRN21# W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,MARK=KK,PLANT A51-54 |
1 | ||
| 84480-35060 |
GRN21#,UZN21# ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,PLANT.NO.P11 |
1 | ||
| 84480-35060 |
GRN21#,UZN21# W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,PLANT.NO.P11 |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
GRN21#,UZN21# 14V 0.91W,ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.1 |
2 | ||
| 84999-10310 |
GRN21# 14V 0.91W,W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.1 |
2 | ||
| 90010-01083 |
GRN21#,UZN21# 14V 0.91W,W(CAP),ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.2 |
2 | ||
| 90010-01083 |
GRN21# 14V 0.91W,W(CAP),W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.2 |
2 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
GRN21#,UZN21# 14V 0.91W,ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.1 |
2 | ||
| 84999-10310 |
GRN21# 14V 0.91W,W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.1 |
2 | ||
| 90010-01083 |
GRN21#,UZN21# 14V 0.91W,W(CAP),ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.2 |
2 | ||
| 90010-01083 |
GRN21# 14V 0.91W,W(CAP),W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.2 |
2 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-35020 |
GRN215 |
1 | ||
| 84724B - BULB, 4 WHEEL DRIVE CONTROL SWITCH | ||||
| 90010-01084 |
GRN215 |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-35050 |
GRN215,UZN215 PLANT NO.A51-A54 |
1 | ||
| 84725-35040 |
GRN215,UZN215 PLANT NO.P11 |
1 | ||
| 84725B - BLUB, DIFFERENTIAL LOCK SWITCH | ||||
| 90010-01083 |
GRN215,UZN215 14V 0.91W,W(CAP) |
1 | ||
| 84810B - BULB (FOR POWER WINDOW REGULATOR SWITCH) | ||||
| 90010-01088 |
GRN21# 14V 0.63W,W(CAP) |
1 | ||
| 84810E - SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR | ||||
| 84810-35050 |
GRN21# |
1 | ||
| 84988H - SWITCH, DOWNHILL ASSIST CONTROL | ||||
| 84988-35020 |
GRN215,UZN215 PLANT NO. P11 |
1 | ||
| 84988-35030 |
GRN215,UZN215 PLANT NO.A51-A54 |
1 | ||
| 84988J - BULB, DOWNHILL ASSIST CONTROL SWITCH | ||||
| 90010-01088 |
GRN215,UZN215 |
2 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50020 |
GRN21# W/ASH TRAY |
1 | ||
| 85500A - WIRE, CIGARETTE LIGHTER | ||||
| 82390-35010 |
GRN21# W/ASH TRAY |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11041 |
GRN21# 14V 1.4W,W/ASH TRAY |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
GRN21# W/ASH TRAY |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22040 |
GRN21# W/ASH TRAY |
1 | ||
| 85515B - BULB, CIGARETTE LIGHTER BEZEL STAY | ||||
| 90010-01030 |
GRN21# W/ASH TRAY |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-30200 |
GRN21# W/ASH TRAY |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-35040 |
GRN21# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-35040 |
GRN21# |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-35030 |
GRN21# ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1 |
1 | ||
| 85530-35030 |
GRN21# W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-35090B0 |
GRN21#,UZN21#..SR5 W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,DK.GRAY,TRIM12,13,42,TYPEA:REFER ILLUST. |
1 | ||
| 85535-42030C0 |
GRN21#..SR5 BLACK,TRIM12,13,4#,TYPE B:REFER ILLUST. |
1 | ||
| 85535-35090B0 |
GRN21#,UZN21#..SR5 W/ASH TRAY,DK.GRAY,TRIM12,13,42,TYPE A:REFER ILLUST. |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-35090B0 |
GRN21#,UZN21#..SR5 W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,DK.GRAY,TRIM12,13,42,TYPEA:REFER ILLUST. |
1 | ||
| 85535-42030C0 |
GRN21#..SR5 BLACK,TRIM12,13,4#,TYPE B:REFER ILLUST. |
1 | ||
| 85535-35090B0 |
GRN21#,UZN21#..SR5 W/ASH TRAY,DK.GRAY,TRIM12,13,42,TYPE A:REFER ILLUST. |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-41010B1 |
GRN21#..SR5 ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,DK.GRAY,TRIM12,13,4# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GRN21# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GRN21# |
1 | ||
| Linked diagrams | ||||
| 8419 | ||||

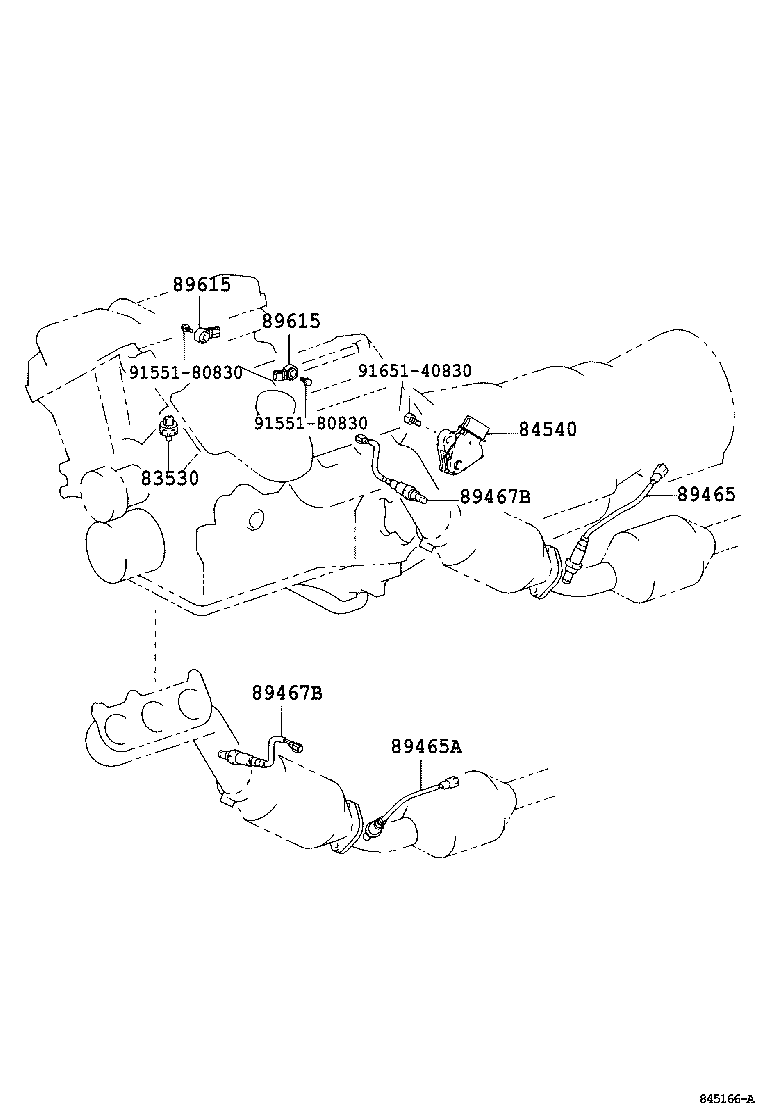

ILLUST NO. 1 OF 8(0211- )GRN21#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-51010 |
GRN21#,UZN21# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-60220 |
GRN21# |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-60230 |
GRN21# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-60010 |
GRN21# |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-60010 |
GRN21# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRN21# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRN21# |
2 | ||
| Common parts | ||||
| 91551-80830 | ||||
| 91651-40830 | ||||
