GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0208-0411) ; (0411- )GRN21#

Click highlighted areas on diagram

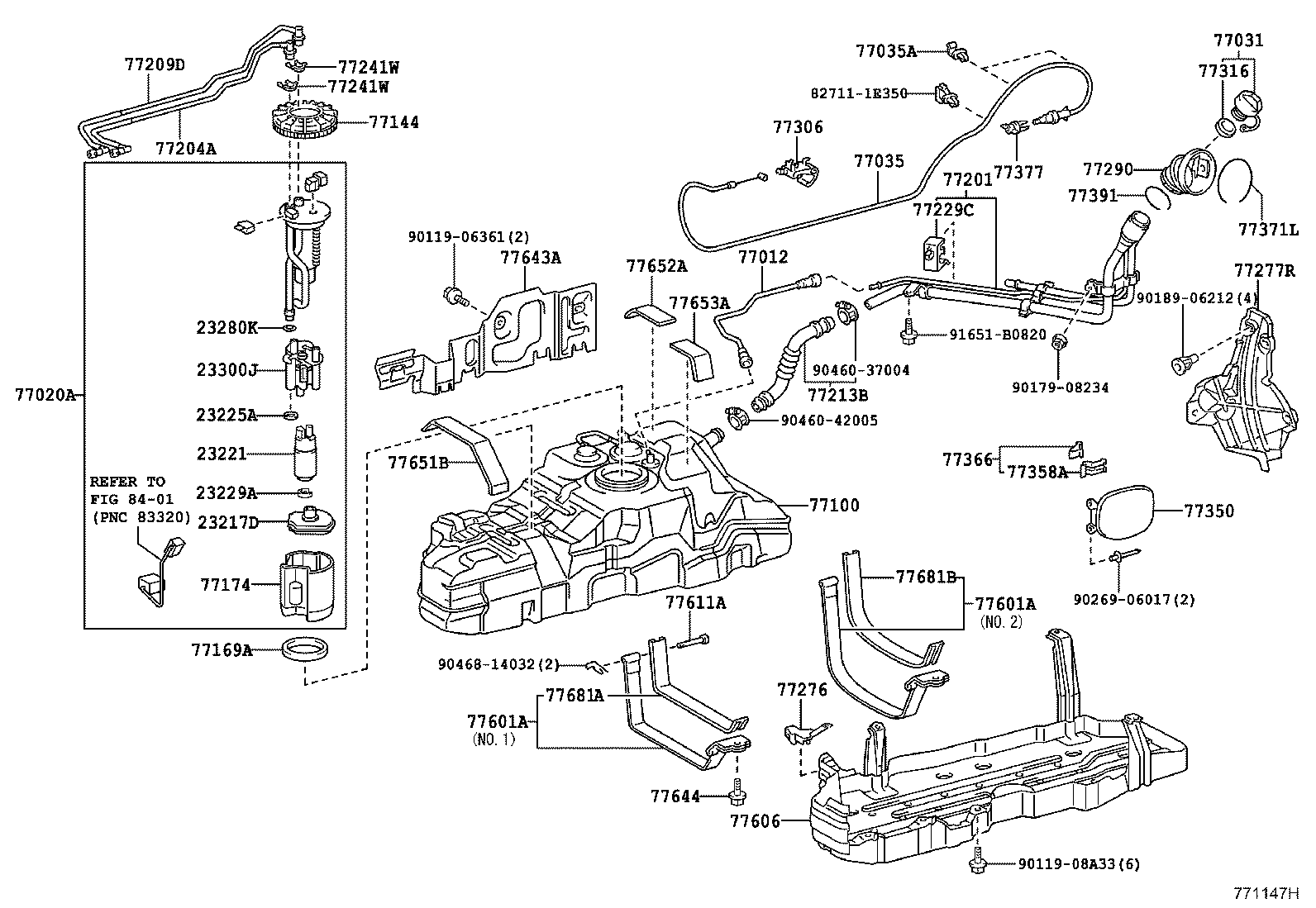

FUEL TANK

diagram 23217D 23221 23225A 23229A 23280K 23300J 77012 77020A 77031 77035 77035A 77100 77144 77169A 77174 77201 77204A 77209D 77213B 77229C 77241W 77241W 77276 77277R 77290 77306 77316 77350 77358A 77366 77371L 77377 77391 77601A 77601A 77606 77611A 77643A 77644 77651B 77652A 77653A 77681A 77681B 827111E350 8401 9011906361 9011908A33 9017908234 9018906212 9026906017 9046037004 9046042005 9046814032 91651B0820
Part # Description Qty Price
23217D - FILTER, FUEL PUMP
23217-50100

1GRFE..GRN21#

 1
23221 - PUMP, FUEL
23221-50100

1GRFE..GRN21#

 1
23225A - SPACER, FUEL PUMP
23225-50010

1GRFE..GRN21#

 2
23229A - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1GRFE..GRN21#

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-08019

1GRFE..GRN21#

 1
23300J - FILTER ASSY, FUEL
23300-50120

1GRFE..GRN21#

 1
77012 - TUBE SUB-ASSY, FUEL TANK BREATHER
77012-35070

GRN21#

 1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-35060

GRN21#,UZN21#

 1
77031 - CAP ASSY, FUEL TANK
77300-33070

GRN21#

 1
77300-33052

GRN21#,UZN21#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-35120

GRN21#

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

GRN21#

 2
77100 - TANK ASSY, FUEL
77001-3D510

GRN21#..4FC

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-35010

GRN21#..4FC

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-35010

GRN21#..4FC

 1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-35020

GRN21#,UZN21#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35720

GRN21#

 1
77204A - TUBE, FUEL TANK RETURN
77204-35030

GRN21#..4FC

 1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-35410

GRN21#..4FC

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35370

GRN21#

 1
77229C - CLAMP, BREATHER TUBE
77229-35060

GRN21#

 1
77241W - CLIP, TUBE JOINT
77241-60320

GRN21#..4FC

 2
77241W - CLIP, TUBE JOINT
77241-60320

GRN21#..4FC

 2
77276 - PROTECTOR, FUEL HOSE
77276-35040

GRN21#

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-60080

GRN21#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-35130

GRN21#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28050C0

GRN21#..SR5

BLACK,TRIM12,13,4#

 1
77316 - GASKET, FUEL TANK CAP
77316-33042

GRN21#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-35050

GRN21#

 1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-30060

GRN21#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-30080

GRN21#,UZN21#

 1
77371L - RING, FUEL TANK FILLER PIPE SHIELD
77371-35010

GRN21#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-35010

GRN21#

 1
77391 - RING, FUEL INLET BOX
77391-35020

GRN21#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-35090

GRN21#

NO.1

 1
77602-35030

GRN21#

NO.2

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-35090

GRN21#

NO.1

 1
77602-35030

GRN21#

NO.2

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-35060

GRN21#

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-35040

GRN21#

 2
77643A - PROTECTOR, FUEL TANK, NO.3
77643-35020

GRN21#..4FC

 1
77644 - BOLT, FUEL TANK
77644-35030

GRN21#

 2
77651B - CUSHION, FUEL TANK
77651-35070

GRN21#..4FC

 1
77652A - CUSHION, FUEL TANK, NO.2
77652-35060

GRN21#..4FC

 1
77653A - CUSHION, FUEL TANK, NO.3
77653-35050

GRN21#..4FC

 1
77681A - SEAT, FUEL TANK BAND
77681-35030

GRN21#

 1
77681B - SEAT, FUEL TANK BAND
77681-35040

GRN21#

 1
Common parts
82711-1E350
90119-06361
90119-08A33
90179-08234
90189-06212
90269-06017
90460-37004
90460-42005
90468-14032
91651-B0820
Linked diagrams
8401
