GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

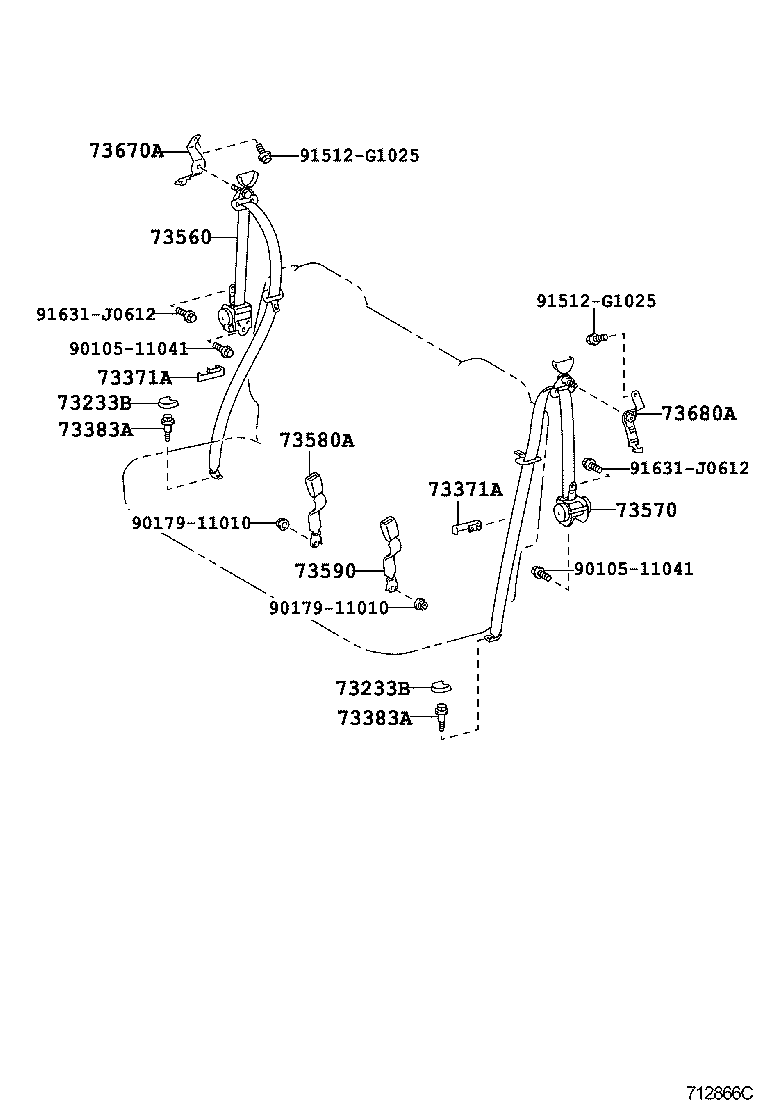

ILLUST NO. 3 OF 3(0308- )

Click highlighted areas on diagram

REAR NO.2 SEAT

diagram 73233B 73233B 73371A 73371A 73383A 73383A 73560 73570 73580A 73590 73670A 73680A 9010511041 9010511041 9017911010 9017911010 91512G1025 91512G1025 91631J0612 91631J0612
Part # Description Qty Price
73233B - COVER, LAP BELT OUTER ANCHOR, REAR NO.2 SEAT
73233-60010B0

GRN21#..SR5

W/3RD SEAT,STONE,TRIM12,13

 2
73233-60010E0

GRN21#

W/3RD SEAT,FAWN,TRIM4#

 2
73233B - COVER, LAP BELT OUTER ANCHOR, REAR NO.2 SEAT
73233-60010B0

GRN21#..SR5

W/3RD SEAT,STONE,TRIM12,13

 2
73233-60010E0

GRN21#

W/3RD SEAT,FAWN,TRIM4#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020E2

GRN21#

W/3RD SEAT,FAWN,TRIM4#

 2
73371-44020B5

GRN21#..SR5

W/3RD SEAT,STONE,TRIM12,13

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020E2

GRN21#

W/3RD SEAT,FAWN,TRIM4#

 2
73371-44020B5

GRN21#..SR5

W/3RD SEAT,STONE,TRIM12,13

 2
73383A - HOOK, RR SEAT BELT
73383-60010

GRN21#

W/3RD SEAT,REAR NO.2 SEAT,LH

 1
73383-60020

GRN21#

W/3RD SEAT,REAR NO.2 SEAT,RH

 1
73383-60010

GRN21#

REAR NO.1 SEAT

 2
73383A - HOOK, RR SEAT BELT
73383-60010

GRN21#

W/3RD SEAT,REAR NO.2 SEAT,LH

 1
73383-60020

GRN21#

W/3RD SEAT,REAR NO.2 SEAT,RH

 1
73383-60010

GRN21#

REAR NO.1 SEAT

 2
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-35030B0

GRN21#..SR5

W/3RD SEAT,GRAY,TRIM12

 1
73560-35030B1

GRN21#..SR5

W/3RD SEAT,GRAY,TRIM13

 1
73560-35030E0

GRN21#

W/3RD SEAT,FAWN,TRIM4#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-35010B0

GRN21#..SR5

W/3RD SEAT,GRAY,TRIM12

 1
73570-35010E0

GRN21#

W/3RD SEAT,FAWN,TRIM4#

 1
73570-35010B1

GRN21#..SR5

W/3RD SEAT,GRAY,TRIM13

 1
73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER
73580-35020E0

GRN21#

W/3RD SEAT,FAWN,TRIM4#

 1
73580-35020B1

GRN21#..SR5

W/3RD SEAT,GRAY,TRIM13

 1
73580-35020B0

GRN21#..SR5

W/3RD SEAT,GRAY,TRIM12

 1
73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH
73580-35020E0

GRN21#

W/3RD SEAT,FAWN,TRIM4#

 1
73580-35020B1

GRN21#..SR5

W/3RD SEAT,GRAY,TRIM13

 1
73580-35020B0

GRN21#..SR5

W/3RD SEAT,GRAY,TRIM12

 1
73670A - BRACKET ASSY, REAR SEAT BELT OUTER ANCHOR, RH
73670-35010

GRN21#,UZN21#

W/3RD SEAT

 1
73680A - BRACKET ASSY, REAR SEAT BELT OUTER ANCHOR, LH
73680-35010

GRN21#,UZN21#

W/3RD SEAT

 1
Common parts
90105-11041
90179-11010
91512-G1025
91631-J0612
