GRN215L-GKPGKA (2002)
Toyota 4runner

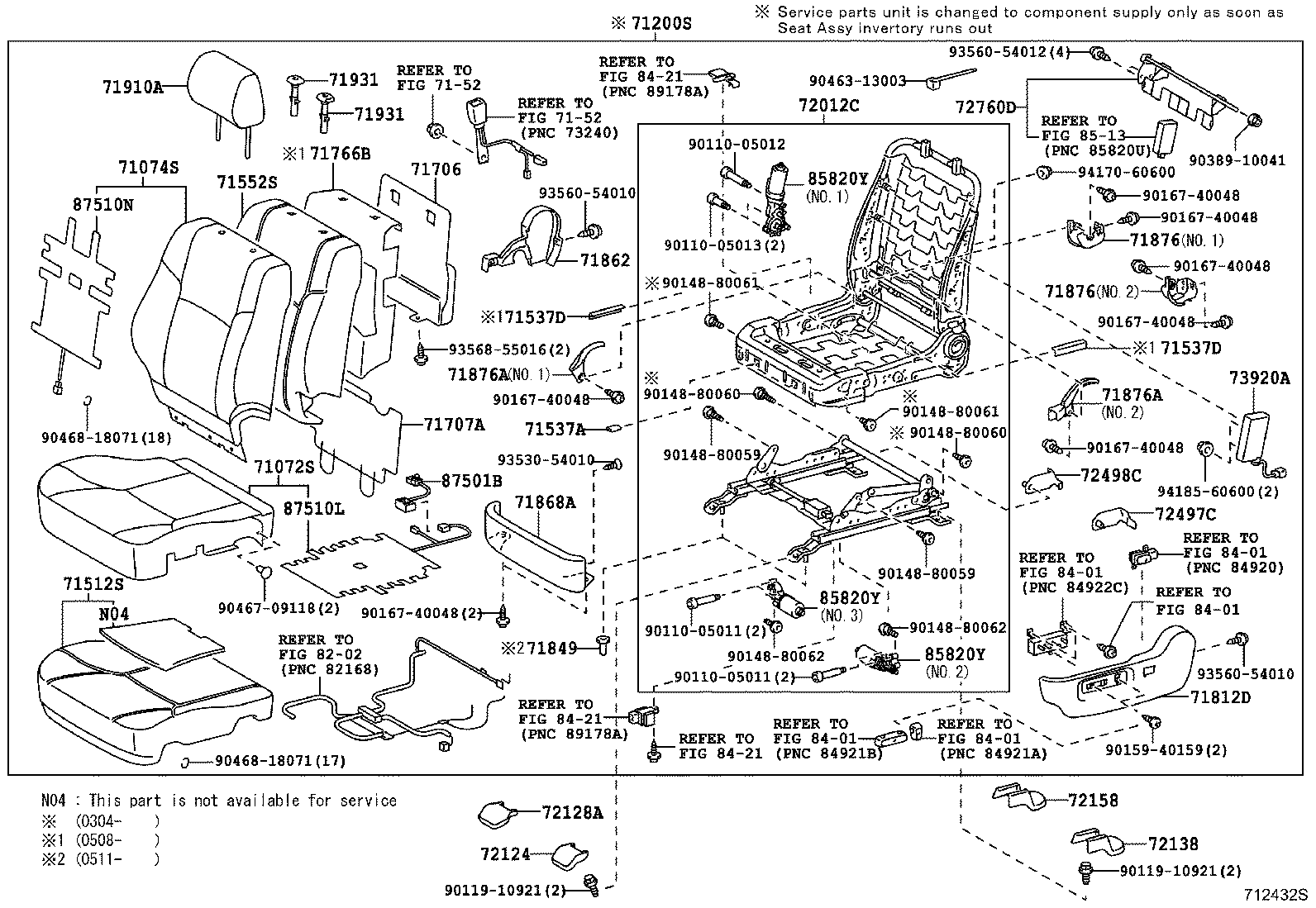

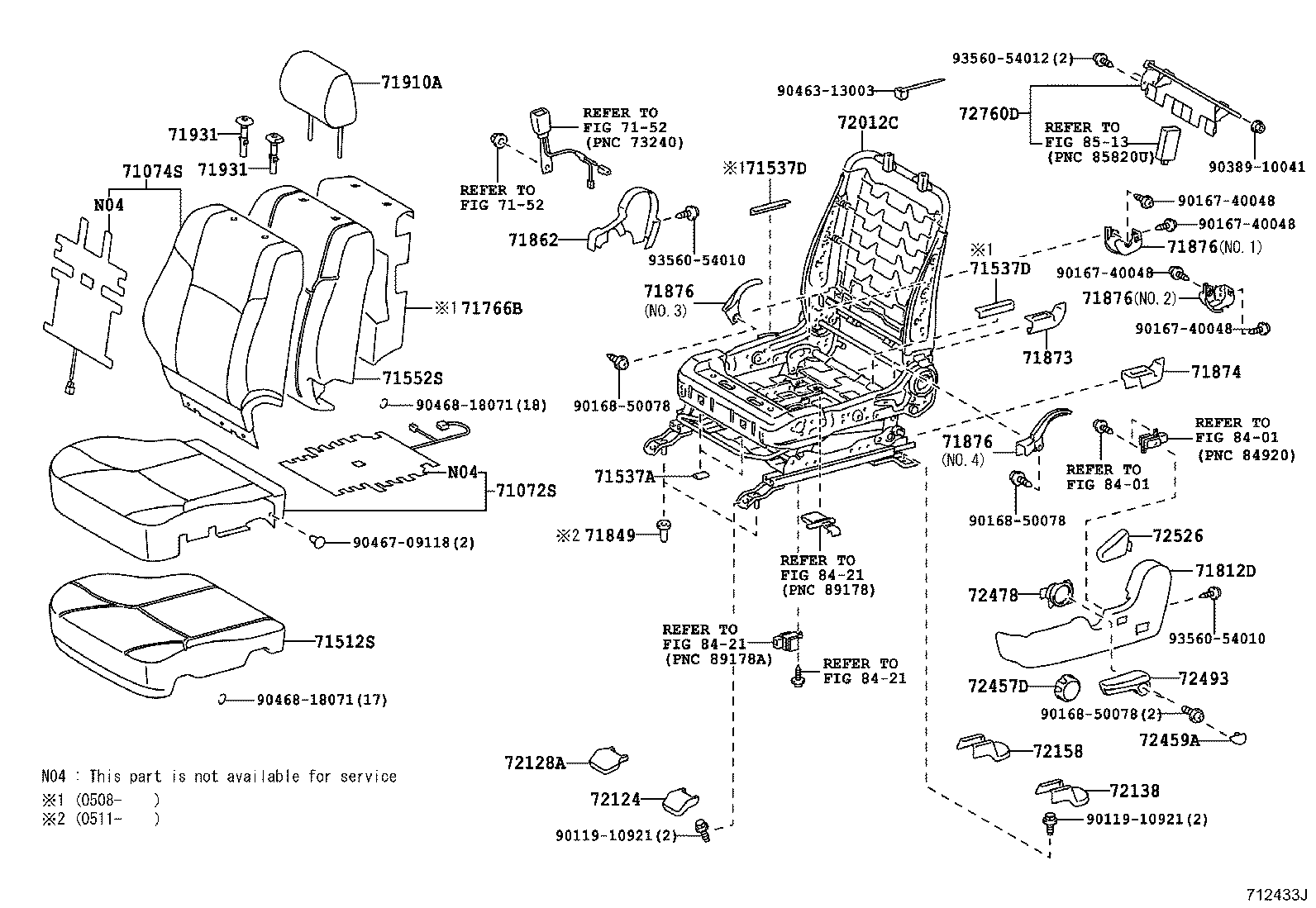

ILLUST NO. 1 OF 4(0208-0508)LIMD ; (0508- )
DRIVER SIDE-W(POWER & SRS SIDE A/B)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-35200E1 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71072-35200B3 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71072-35200B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3G220E1 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71073-3G220B3 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71073-3G220B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-3D780B4 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71200-3D780B5 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71200-3D780B6 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71200-3D780E2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71200-3D780E3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71200-3D781B3 |
GRN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13 |
1 | ||
| 71200-3D780B7 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-35100 |
GRN21#,UZN21#..SR5 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRN21#,UZN21# |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-35030 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71552-35030 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71551-35100 |
GRN21#,UZN21# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35180E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71812-35180B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71812-35180B1 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60110E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71862-60110B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71862-60110B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700B1 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
2 | ||
| 71910-35700B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
2 | ||
| 71910-35700E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-35070 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71120-35030 |
GRN21#,UZN21#..SR5 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72124-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72128-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-35050B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72138-35050E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72138-35050B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72138-35050E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-60050 |
GRN21#,UZN21# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58010 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| Common parts | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90119-10921 | ||||
| 90148-80059 | ||||
| 90148-80060 | ||||
| 90148-80061 | ||||
| 90148-80062 | ||||
| 90159-40159 | ||||
| 90167-40048 | ||||
| 90389-10041 | ||||
| 90463-13003 | ||||
| 90467-09118 | ||||
| 90468-18071 | ||||
| 93530-54010 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||

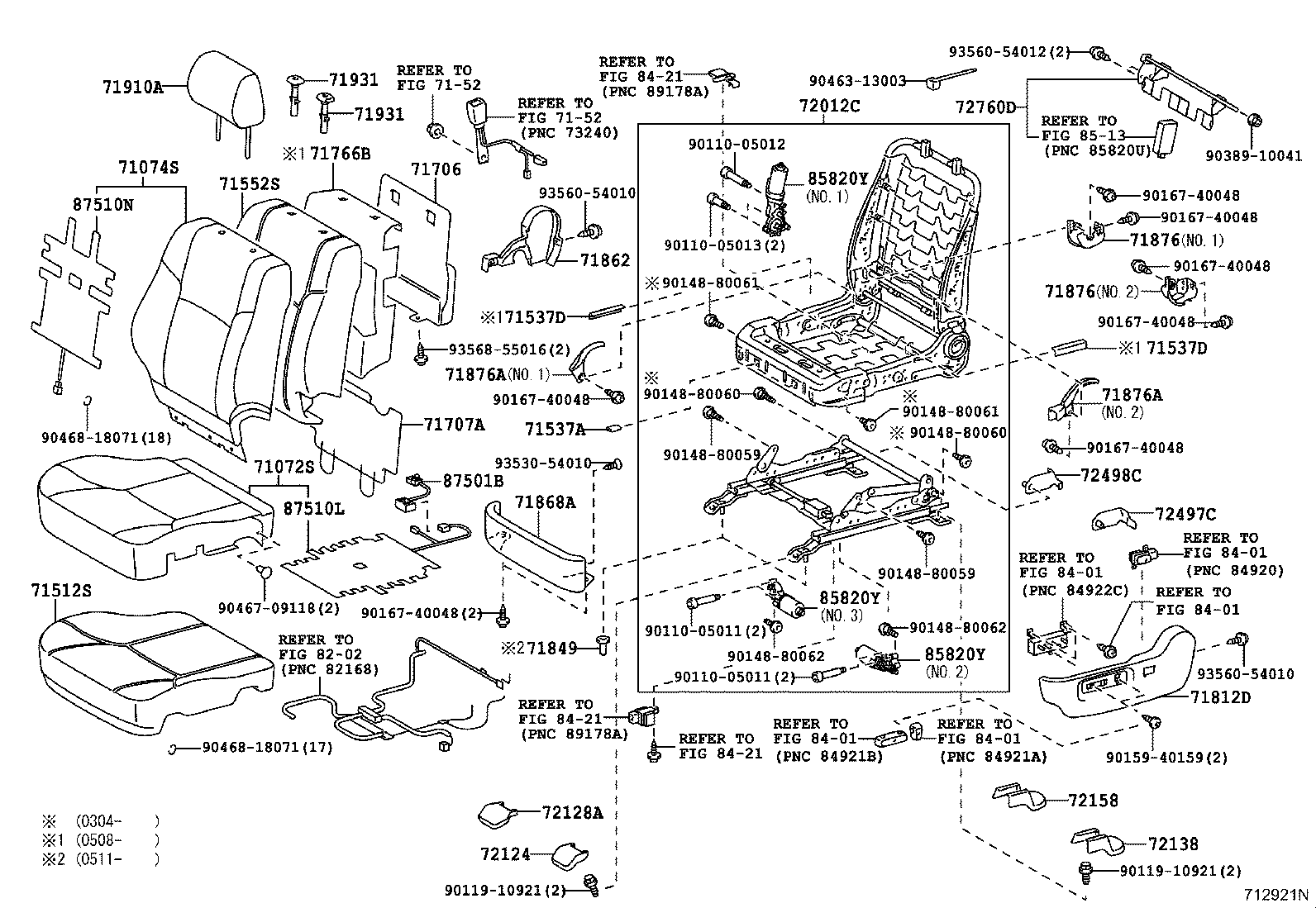

ILLUST NO. 1 OF 4(0208-0508)SR5 ; (0508- )SR5
DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-35200E1 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71072-35200B3 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71072-35200B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3G220E1 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71073-3G220B3 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71073-3G220B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-35100 |
GRN21#,UZN21#..SR5 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRN21#,UZN21# |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-35030 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71552-35030 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71551-35100 |
GRN21#,UZN21# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35180E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71812-35180B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71812-35180B1 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60110E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71862-60110B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71862-60110B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58020 |
GRN21#,UZN21#..SR5 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
GRN21#,UZN21#..SR5 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700B1 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
2 | ||
| 71910-35700B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
2 | ||
| 71910-35700E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-35070 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71120-35030 |
GRN21#,UZN21#..SR5 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72124-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72128-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-35050B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72138-35050E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72138-35050B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72138-35050E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-58010B0 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 72457-58010E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72457-58010B1 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-60010E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72459-60010B1 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 72459-60010B2 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-60010 |
GRN21#,UZN21#..SR5 |
1 | ||
| 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 | ||||
| 72493-60010B2 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 72493-60010B1 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 72493-60010E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-60050 |
GRN21#,UZN21# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40048 | ||||
| 90168-50078 | ||||
| 90389-10041 | ||||
| 90463-13003 | ||||
| 90467-09118 | ||||
| 90468-18071 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||
ILLUST NO. 1 OF 4(0208-0508)SR5 ; (0508- )SR5
DRIVER SIDE-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-35200E1 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71072-35200B3 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71072-35200B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3G220E1 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71073-3G220B3 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71073-3G220B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-3D780B4 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71200-3D780B5 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71200-3D780B6 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71200-3D780E2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71200-3D780E3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71200-3D781B3 |
GRN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13 |
1 | ||
| 71200-3D780B7 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-35100 |
GRN21#,UZN21#..SR5 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRN21#,UZN21# |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-35030 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71552-35030 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71551-35100 |
GRN21#,UZN21# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35180E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71812-35180B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71812-35180B1 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60110E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71862-60110B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71862-60110B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58020 |
GRN21#,UZN21#..SR5 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
GRN21#,UZN21#..SR5 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-35700B1 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
2 | ||
| 71910-35700B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-35070 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71120-35030 |
GRN21#,UZN21#..SR5 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72124-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72128-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-35050B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72138-35050E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72138-35050B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72138-35050E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-58010B0 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 72457-58010E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72457-58010B1 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-60010E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72459-60010B1 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 72459-60010B2 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-60010 |
GRN21#,UZN21#..SR5 |
1 | ||
| 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 | ||||
| 72493-60010B2 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 72493-60010B1 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 72493-60010E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-60050 |
GRN21#,UZN21# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58010 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40048 | ||||
| 90168-50078 | ||||
| 90389-10041 | ||||
| 90463-13003 | ||||
| 90467-09118 | ||||
| 90468-18071 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||

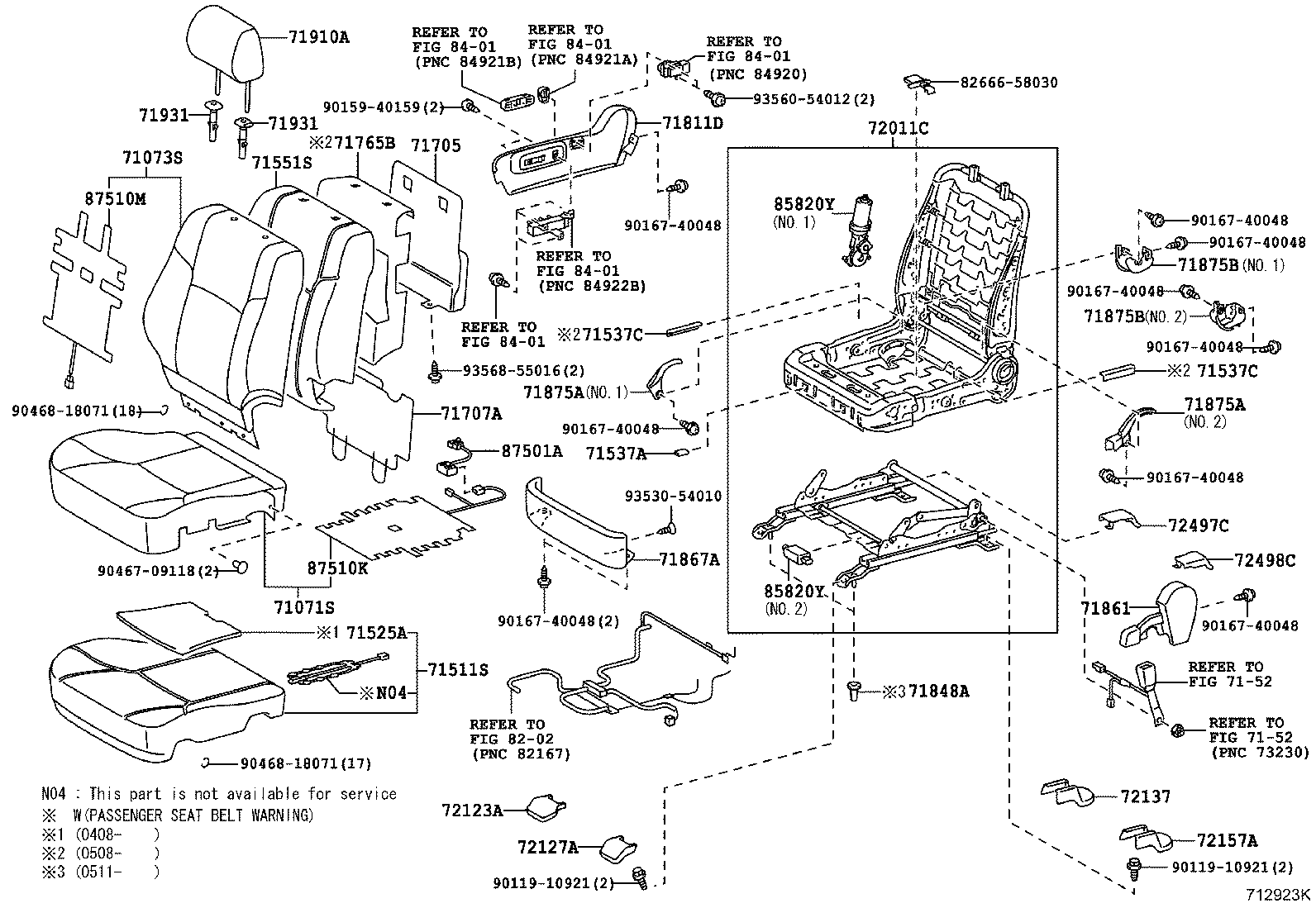

ILLUST NO. 2 OF 4(0208-0508)SR5 ; (0508- )SR5
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3G300B3 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71071-3G300E1 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71071-3G300B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71071-3G300B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71071-3G300B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71071-3G300E1 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3G440E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71073-3G220E1 |
UZN21#..SR5;GRN21#..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 71073-3G220B2 |
UZN21#..SR5;GRN21#..4FC..SR5 STONE,TRIM12 |
1 | ||
| 71073-3G220B3 |
UZN21#..SR5;GRN21#..4FC..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-35090 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
2 | ||
| 71501-35090 |
UZN21#..SR5;GRN21#..4FC..SR5 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRN21#,UZN21# |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35100 |
GRN21#,UZN21# |
1 | ||
| 71551-35110 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71551-35110 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35130B1 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71811-35130B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71811-35130E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60100B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71861-60100B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71861-60100E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58020 |
GRN21#,UZN21#..SR5 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
GRN21#,UZN21#..SR5 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.1 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.3 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.1 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.3 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.1 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.3 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.1 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.3 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700B1 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
2 | ||
| 71910-35700B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
2 | ||
| 71910-35700E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 71110-35090 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71110-35210 |
UZN21#..SR5;GRN21#..4FC..SR5 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72123-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72127-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-35070B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72137-35070E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72137-35070E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72137-35070B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13 |
1 | ||
| 72525-60100E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 72525-60100E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72525-60100B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 72525-60100B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 72525-60100B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90119-10921 | ||||
| 90167-40048 | ||||
| 90168-50078 | ||||
| 90467-09118 | ||||
| 90468-18071 | ||||
| Linked diagrams | ||||
| 7152 | ||||

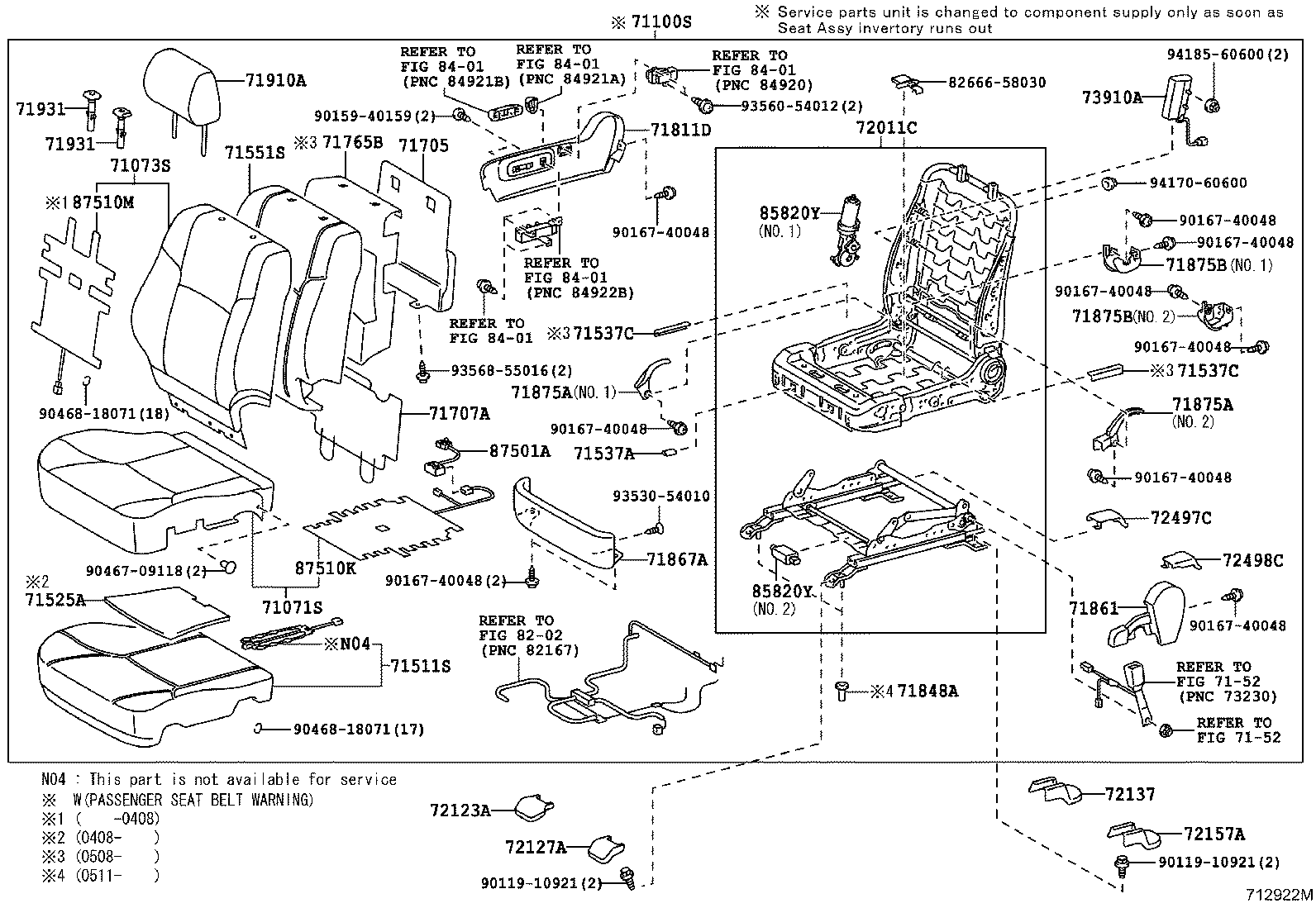

ILLUST NO. 2 OF 4(0208-0508)SR5 ; (0508- )SR5
PASSENGER SIDE-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3G300B3 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71071-3G300E1 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71071-3G300B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71071-3G300B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71071-3G300B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71071-3G300E1 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3G440E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71073-3G220E1 |
UZN21#..SR5;GRN21#..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 71073-3G220B2 |
UZN21#..SR5;GRN21#..4FC..SR5 STONE,TRIM12 |
1 | ||
| 71073-3G220B3 |
UZN21#..SR5;GRN21#..4FC..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-3G260E3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM42 |
1 | ||
| 71100-3G260B7 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71100-3G261B0 |
GRN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71100-3G260B7 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71100-3G261B1 |
GRN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71100-3G260B6 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71100-3G260B6 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71100-3G260E3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71100-3G261E0 |
GRN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-35090 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
2 | ||
| 71501-35090 |
UZN21#..SR5;GRN21#..4FC..SR5 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRN21#,UZN21# |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35100 |
GRN21#,UZN21# |
1 | ||
| 71551-35110 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71551-35110 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35130B1 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71811-35130B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71811-35130E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60100B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71861-60100B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71861-60100E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58020 |
GRN21#,UZN21#..SR5 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
GRN21#,UZN21#..SR5 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.1 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.3 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.1 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.3 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.1 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.3 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.1 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.3 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700B1 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
2 | ||
| 71910-35700B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
2 | ||
| 71910-35700E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 71110-35090 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71110-35210 |
UZN21#..SR5;GRN21#..4FC..SR5 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72123-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72127-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-35070B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72137-35070E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72137-35070E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72137-35070B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13 |
1 | ||
| 72525-60100E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 72525-60100E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72525-60100B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 72525-60100B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 72525-60100B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58010 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90119-10921 | ||||
| 90167-40048 | ||||
| 90168-50078 | ||||
| 90467-09118 | ||||
| 90468-18071 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 4(0208-0508)LIMD ; (0508- )
DRIVER SIDE - W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-35200E1 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71072-35200B3 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71072-35200B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3G220E1 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71073-3G220B3 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71073-3G220B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-35100 |
GRN21#,UZN21#..SR5 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRN21#,UZN21# |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-35030 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71552-35030 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71551-35100 |
GRN21#,UZN21# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35180E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71812-35180B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71812-35180B1 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60110E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71862-60110B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71862-60110B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700B1 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
2 | ||
| 71910-35700B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
2 | ||
| 71910-35700E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-35070 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71120-35030 |
GRN21#,UZN21#..SR5 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72124-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72128-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-35050B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72138-35050E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72138-35050B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72138-35050E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-60050 |
GRN21#,UZN21# |
1 | ||
| Common parts | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90119-10921 | ||||
| 90148-80059 | ||||
| 90148-80060 | ||||
| 90148-80061 | ||||
| 90148-80062 | ||||
| 90159-40159 | ||||
| 90167-40048 | ||||
| 90389-10041 | ||||
| 90463-13003 | ||||
| 90467-09118 | ||||
| 90468-18071 | ||||
| 93530-54010 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||
ILLUST NO. 2 OF 4(0208-0508)LIMD ; (0508- )
PASSENGER - W(POWER & SRS SIDE A/B)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3G300B3 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71071-3G300E1 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71071-3G300B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71071-3G300B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71071-3G300B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71071-3G300E1 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3G440E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71073-3G220E1 |
UZN21#..SR5;GRN21#..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 71073-3G220B2 |
UZN21#..SR5;GRN21#..4FC..SR5 STONE,TRIM12 |
1 | ||
| 71073-3G220B3 |
UZN21#..SR5;GRN21#..4FC..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-3G260E3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM42 |
1 | ||
| 71100-3G260B7 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71100-3G261B0 |
GRN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71100-3G260B7 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71100-3G261B1 |
GRN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71100-3G260B6 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71100-3G260B6 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71100-3G260E3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71100-3G261E0 |
GRN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-35090 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
2 | ||
| 71501-35090 |
UZN21#..SR5;GRN21#..4FC..SR5 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRN21#,UZN21# |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35100 |
GRN21#,UZN21# |
1 | ||
| 71551-35110 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71551-35110 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35130B1 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71811-35130B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71811-35130E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60100B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71861-60100B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71861-60100E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.1 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.3 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.1 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.3 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-35700B1 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
2 | ||
| 71910-35700B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 71110-35090 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71110-35210 |
UZN21#..SR5;GRN21#..4FC..SR5 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72123-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72127-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-35070B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72137-35070E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72137-35070E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72137-35070B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58010 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90119-10921 | ||||
| 90159-40159 | ||||
| 90167-40048 | ||||
| 90467-09118 | ||||
| 90468-18071 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 4(0208-0508)LIMD ; (0508- )
PASSENGER SIDE - W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3G300B3 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71071-3G300E1 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71071-3G300B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DARK GRAY,TRIM13 |
1 | ||
| 71071-3G300B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| 71071-3G300B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71071-3G300E1 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3G440E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 71073-3G220E1 |
UZN21#..SR5;GRN21#..4FC..SR5 FAWN,TRIM4# |
1 | ||
| 71073-3G220B2 |
UZN21#..SR5;GRN21#..4FC..SR5 STONE,TRIM12 |
1 | ||
| 71073-3G220B3 |
UZN21#..SR5;GRN21#..4FC..SR5 DARK GRAY,TRIM13 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-35090 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
2 | ||
| 71501-35090 |
UZN21#..SR5;GRN21#..4FC..SR5 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GRN21#,UZN21# |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35100 |
GRN21#,UZN21# |
1 | ||
| 71551-35110 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71551-35110 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35130B1 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71811-35130B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71811-35130E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60100B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 71861-60100B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 71861-60100E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.1 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.3 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.1 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-58060 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,NO.3 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060C0 |
GRN21#,UZN21#..SR5 BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4#,NO.4 |
1 | ||
| 71876-60160B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12,NO.2 |
1 | ||
| 71875-60160B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-35700B1 |
GRN21#,UZN21#..SR5 DARK GRAY,TRIM13 |
2 | ||
| 71910-35700B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
2 | ||
| 71930-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
GRN21#,UZN21# W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020E0 |
GRN21#,UZN21# W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B3 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
GRN21#,UZN21#..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 71110-35090 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 71110-35210 |
UZN21#..SR5;GRN21#..4FC..SR5 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72123-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-35010B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72127-35010E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-35070B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| 72137-35070E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72137-35070E0 |
GRN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72137-35070B0 |
GRN21#..SR5 STONE,TRIM12,13 |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90119-10921 | ||||
| 90159-40159 | ||||
| 90167-40048 | ||||
| 90467-09118 | ||||
| 90468-18071 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 4(0308- )
3RD SEAT - LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71647G - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60250 |
GRN21# W/3RD SEAT |
2 | ||
| 71696A - PROTECTOR, REAR SEAT, NO.2 LH | ||||
| 71696-35010 |
GRN21# W/3RD SEAT |
2 | ||
| 71844D - COVER, REAR SEAT RECLINING, LH (FOR LH SEAT) | ||||
| 71844-60070B1 |
GRN21# W/3RD SEAT,STONE,TRIM1# |
1 | ||
| 71844-60070E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71970-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM1# |
2 | ||
| 71970-35010E0 |
GRN21#..SR5 W/3RD SEAT,FAWN,TRIM4# |
2 | ||
| 72329B - COVER, SEAT ADJUSTER BOLT, NO.1 | ||||
| 72329-60030E1 |
GRN21#,UZN21# W/3RD SEAT,FAWN,TRIM42 |
2 | ||
| 72329-60030B2 |
GRN21#,UZN21# W/3RD SEAT,STONE,TRIM12 |
2 | ||
| 72329-60030B5 |
GRN21#..SR5 W/3RD SEAT,DK.GRAY,TRIM13 |
2 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72525-60090B2 |
GRN21#..SR5 W/3RD SEAT,DK.GRAY,TRIM13 |
1 | ||
| 72525-60090B1 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12 |
1 | ||
| 72525-60090E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 72660H - LOCK ASSY, REAR NO.2 SEAT, LH | ||||
| 72660-60161 |
GRN21# W/3RD SEAT |
1 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60070 |
GRN21# W/3RD SEAT |
4 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60070 |
GRN21# W/3RD SEAT |
4 | ||
| 78960A - BAND ASSY, NO.2 FOLD SEAT STOPPER, NO.2 | ||||
| 78960-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
2 | ||
| 78960-35010B0 |
GRN21# W/3RD SEAT,STONE,TRIM1# |
2 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79032-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM1# |
1 | ||
| 79032-35010E0 |
GRN21#..SR5 W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79034-35010E0 |
GRN21#..SR5 W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 79034-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM1# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79345-35010 |
GRN21# W/3RD SEAT |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79385-35010 |
GRN21# W/3RD SEAT |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 71140-60010B1 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12 |
1 | ||
| 71140-60010B2 |
GRN21#..SR5 W/3RD SEAT,DK.GRAY,TRIM13 |
1 | ||
| 71140-60010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 79117C - COVER, NO.1 SEAT CUSHION, LH | ||||
| 79117-60050 |
GRN21# W/3RD SEAT |
2 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-60070B1 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13,NO.1 |
1 | ||
| 79236-60090E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,NO.2 |
1 | ||
| 79236-60070E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,NO.1 |
1 | ||
| 79236-60090B1 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13,NO.2 |
1 | ||
| 79236B - COVER, NO.2 SEAT LEG, LH | ||||
| 79236-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13,NO.1 |
1 | ||
| 79236-35020B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13,NO.2 |
1 | ||
| 79236-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,NO.1 |
1 | ||
| 79236-35020E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,NO.2 |
1 | ||
| 79347 - CARPET, NO.2 SEAT CUSHION UNDER, LH | ||||
| 79347-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12 |
1 | ||
| 79347-35010B1 |
GRN21#..SR5 W/3RD SEAT,DK.GRAY,TRIM13 |
1 | ||
| 79347-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-60051E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,RH |
1 | ||
| 79367-60051B1 |
GRN21# W/3RD SEAT,STONE,TRIM1#,RH |
1 | ||
| 79367-60061B1 |
GRN21# W/3RD SEAT,STONE,TRIM1#,LH |
1 | ||
| 79367-60061E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,LH |
1 | ||
| 79393 - CUSHION, REAR NO.2 SEAT BACK | ||||
| 71324-35010B0 |
GRN21# W/3RD SEAT,STONE,TRIM1# |
2 | ||
| 71324-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
2 | ||
| Common parts | ||||
| 71769-60010B2 | ||||
| 71769-60010E1 | ||||
| 72702-60050 | ||||
| 90105-10523 | ||||
| 90468-14018 | ||||
| 90468-18071 | ||||
| 91615-61050 | ||||
| 93210-56020 | ||||
| 93240-56025 | ||||
| 93560-54012 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 4 OF 4(0308- )
3RD SEAT - RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71206A - BRACKET SUB-ASSY, REAR SEAT STOPPER, RH | ||||
| 71206-60020 |
GRN21# W/3RD SEAT |
1 | ||
| 71615C - COVER, REAR SEAT LOCK STRIKER | ||||
| 72615-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
4 | ||
| 72615-35010B0 |
GRN21# W/3RD SEAT,STONE,TRIM1# |
4 | ||
| 71647G - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-60250 |
GRN21# W/3RD SEAT |
2 | ||
| 71696A - PROTECTOR, REAR SEAT, NO.2 LH | ||||
| 71696-35010 |
GRN21# W/3RD SEAT |
2 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-60070B2 |
GRN21#..SR5 W/3RD SEAT,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71843-60070E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,NO.2 |
1 | ||
| 71843-60070B1 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,NO.2 |
1 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-35020B0 |
GRN21# W/3RD SEAT,STONE,TRIM1# |
1 | ||
| 71844-35020E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71970-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM1# |
2 | ||
| 71970-35010E0 |
GRN21#..SR5 W/3RD SEAT,FAWN,TRIM4# |
2 | ||
| 72329B - COVER, SEAT ADJUSTER BOLT, NO.1 | ||||
| 72329-60030E1 |
GRN21#,UZN21# W/3RD SEAT,FAWN,TRIM42 |
2 | ||
| 72329-60030B2 |
GRN21#,UZN21# W/3RD SEAT,STONE,TRIM12 |
2 | ||
| 72329-60030B5 |
GRN21#..SR5 W/3RD SEAT,DK.GRAY,TRIM13 |
2 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72526-60060E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 72526-60060B2 |
GRN21#..SR5 W/3RD SEAT,DK.GRAY,TRIM13 |
1 | ||
| 72526-60060B1 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12 |
1 | ||
| 72650G - LOCK ASSY, REAR NO.2 SEAT, RH | ||||
| 72650-60161 |
GRN21# W/3RD SEAT |
1 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60070 |
GRN21# W/3RD SEAT |
4 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60070 |
GRN21# W/3RD SEAT |
4 | ||
| 78960A - BAND ASSY, NO.2 FOLD SEAT STOPPER, NO.2 | ||||
| 78960-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
2 | ||
| 78960-35010B0 |
GRN21# W/3RD SEAT,STONE,TRIM1# |
2 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79031-35010E0 |
GRN21#..SR5 W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 79031-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79033-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM1# |
1 | ||
| 79033-35010E0 |
GRN21#..SR5 W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79375-35010 |
GRN21# W/3RD SEAT |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 71130-60020B2 |
GRN21#..SR5 W/3RD SEAT,DK.GRAY,TRIM13 |
1 | ||
| 71130-60020B1 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12 |
1 | ||
| 71130-60020E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 79117C - COVER, NO.1 SEAT CUSHION, LH | ||||
| 79117-60050 |
GRN21# W/3RD SEAT |
2 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79335-35010 |
GRN21# W/3RD SEAT |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-60070B1 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13,NO.1 |
1 | ||
| 79236-60090E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,NO.2 |
1 | ||
| 79236-60070E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,NO.1 |
1 | ||
| 79236-60090B1 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13,NO.2 |
1 | ||
| 79236B - COVER, NO.2 SEAT LEG, LH | ||||
| 79236-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13,NO.1 |
1 | ||
| 79236-35020B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13,NO.2 |
1 | ||
| 79236-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,NO.1 |
1 | ||
| 79236-35020E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,NO.2 |
1 | ||
| 79337 - CARPET, NO.2 SEAT CUSHION UNDER, RH | ||||
| 79337-35010B1 |
GRN21#..SR5 W/3RD SEAT,DK.GRAY,TRIM13 |
1 | ||
| 79337-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 79337-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12 |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-60051E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,RH |
1 | ||
| 79367-60051B1 |
GRN21# W/3RD SEAT,STONE,TRIM1#,RH |
1 | ||
| 79367-60061B1 |
GRN21# W/3RD SEAT,STONE,TRIM1#,LH |
1 | ||
| 79367-60061E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,LH |
1 | ||
| 79393 - CUSHION, REAR NO.2 SEAT BACK | ||||
| 71324-35010B0 |
GRN21# W/3RD SEAT,STONE,TRIM1# |
2 | ||
| 71324-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
2 | ||
| Common parts | ||||
| 71769-60010B2 | ||||
| 71769-60010E1 | ||||
| 72702-60050 | ||||
| 90105-10523 | ||||
| 90468-14018 | ||||
| 90468-18071 | ||||
| 91615-61050 | ||||
| 93210-56020 | ||||
| 93240-56025 | ||||
| 93560-54012 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 4(0308- )
2ND SEAT W(3RD SEAT) - LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-35110 |
UZN21#;GRN21#..4FC |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-35490B0 |
GRN21#,UZN21#..SR5 STONE,TRIM1# |
1 | ||
| 71076-35490E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71076-35510B0 |
GRN21#,UZN21#..SR5 SPORT PACKAGE,DARK GRAY,TRIM1# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 71293-35030 |
UZN21#;GRN21#..4FC |
4 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-35690E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71078-35710B0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,DARK GRAY,TRIM1# |
1 | ||
| 71078-35710B0 |
GRN21#,UZN21#..SR5 SPORT PACKAGE,DARK GRAY,TRIM1# |
1 | ||
| 71078-35720E0 |
GRN21#,UZN21#..SR5 W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 71078-35720B0 |
GRN21#,UZN21#..SR5 W/3RD SEAT,STONE,TRIM1# |
1 | ||
| 71078-35690B0 |
GRN21#,UZN21#..SR5 STONE,TRIM1# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-35060 |
GRN21#,UZN21# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-35030 |
GRN21#,UZN21# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-35040 |
UZN21#;GRN21#..4FC |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13 |
4 | ||
| 71691-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
4 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13 |
4 | ||
| 71691-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
4 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
2 | ||
| 71692-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13 |
2 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13 |
1 | ||
| 71694-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-60070B2 |
GRN21#..SR5 W/3RD SEAT,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71843-60070E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4#,NO.2 |
1 | ||
| 71843-60070B1 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,NO.2 |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60130 |
GRN21#,UZN21# W/3RD SEAT,NO.2 |
1 | ||
| 71878E - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60130 |
GRN21#,UZN21# W/3RD SEAT |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
3 | ||
| 71930-42020E0 |
UZN21#;GRN21#..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
UZN21#;GRN21#..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931-42020B3 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
3 | ||
| 71931-42020B4 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
3 | ||
| 71930-42020E0 |
UZN21#;GRN21#..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
UZN21#;GRN21#..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931-42020B3 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
3 | ||
| 71931-42020B4 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
3 | ||
| 71930-42020E0 |
UZN21#;GRN21#..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
UZN21#;GRN21#..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931-42020B3 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
3 | ||
| 71931-42020B4 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
3 | ||
| 71930-42020E0 |
UZN21#;GRN21#..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
UZN21#;GRN21#..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931-42020B3 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
3 | ||
| 71931-42020B4 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-35440B0 |
GRN21#,UZN21#..SR5 SPORT PACKAGE,DARK GRAY,TRIM1# |
2 | ||
| 71940-35420B0 |
GRN21#,UZN21#..SR5 STONE,TRIM1# |
2 | ||
| 71940-35420E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
2 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-35010E0 |
UZN21#;GRN21#..4FC FAWN,TRIM4# |
1 | ||
| 72806-35010B0 |
UZN21#;GRN21#..4FC STONE,TRIM1# |
1 | ||
| 72806-35010B1 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90105-11036 | ||||
| 90105-12285 | ||||
| 90109-11031 | ||||
| 90119-08970 | ||||
| 90126-10019 | ||||
| 90179-05011 | ||||
| 90179-10015 | ||||
| 90386-12005 | ||||
| 90463-12014 | ||||
| 90468-18071 | ||||
| 91515-81025 | ||||
| 91611-B0812 | ||||
| 93240-56025 | ||||
| 93240-56030 | ||||
| 93560-54014 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 4(0308- )
2ND SEAT W(3RD SEAT) - RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-35170 |
UZN21#;GRN21#..4FC |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-3D010B0 |
GRN21#,UZN21#..SR5 SPORT PACKAGE,DARK GRAY,TRIM1# |
1 | ||
| 71075-35880B0 |
GRN21#,UZN21#..SR5 STONE,TRIM1# |
1 | ||
| 71075-35880E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-35A00B0 |
GRN21#,UZN21#..SR5 W/3RD SEAT,STONE,TRIM1# |
1 | ||
| 71077-3D460E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 71077-3D460B0 |
GRN21#,UZN21#..SR5 STONE,TRIM1# |
1 | ||
| 71077-35A00E0 |
GRN21#,UZN21#..SR5 W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 71077-3D480B0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,DARK GRAY,TRIM1# |
1 | ||
| 71077-3D480B0 |
GRN21#,UZN21#..SR5 SPORT PACKAGE,DARK GRAY,TRIM1# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 71293-35030 |
UZN21#;GRN21#..4FC |
4 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-35070 |
GRN21#,UZN21# |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-35030B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12,13 |
4 | ||
| 71629-35030E0 |
GRN21#,UZN21# FAWN,TRIM4# |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-35030B0 |
GRN21#,UZN21#..SR5 STONE,TRIM12,13 |
4 | ||
| 71629-35030E0 |
GRN21#,UZN21# FAWN,TRIM4# |
4 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-35060 |
UZN21#;GRN21#..4FC |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13 |
4 | ||
| 71691-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
4 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13 |
4 | ||
| 71691-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
4 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13 |
2 | ||
| 71692-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
2 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-35010E0 |
GRN21# W/3RD SEAT,FAWN,TRIM4# |
1 | ||
| 71693-35010B0 |
GRN21#..SR5 W/3RD SEAT,STONE,TRIM12,13 |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60130 |
GRN21#,UZN21# W/3RD SEAT,NO.2 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
3 | ||
| 71930-42020E0 |
UZN21#;GRN21#..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
UZN21#;GRN21#..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931-42020B3 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
3 | ||
| 71931-42020B4 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W(BUTTON),DK.GRAY,TRIM13 |
3 | ||
| 71930-42020E0 |
UZN21#;GRN21#..4FC W(LOCK)&W(BUTTON),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W(BUTTON),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
UZN21#;GRN21#..4FC W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
3 | ||
| 71931-42020B3 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W/O(BUTTON),STONE,TRIM12 |
3 | ||
| 71931-42020B4 |
UZN21#..SR5;GRN21#..4FC..SR5 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM13 |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-35440B0 |
GRN21#,UZN21#..SR5 SPORT PACKAGE,DARK GRAY,TRIM1# |
2 | ||
| 71940-35420B0 |
GRN21#,UZN21#..SR5 STONE,TRIM1# |
2 | ||
| 71940-35420E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100B3 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM13 |
1 | ||
| 72525-60100E0 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,FAWN,TRIM4# |
1 | ||
| 72525-60100E0 |
GRN21#,UZN21#..SR5 FAWN,TRIM4# |
1 | ||
| 72525-60100B2 |
GRN21#,UZN21#..SR5 STONE,TRIM12 |
1 | ||
| 72525-60100B3 |
GRN21#,UZN21#..SR5 DK.GRAY,TRIM13 |
1 | ||
| 72525-60100B2 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,STONE,TRIM12 |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90126-10019 | ||||
| 90179-10015 | ||||
| 90179-11010 | ||||
| 90468-18071 | ||||
| 91515-81025 | ||||
| 93240-56025 | ||||
| 93560-54014 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
