GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

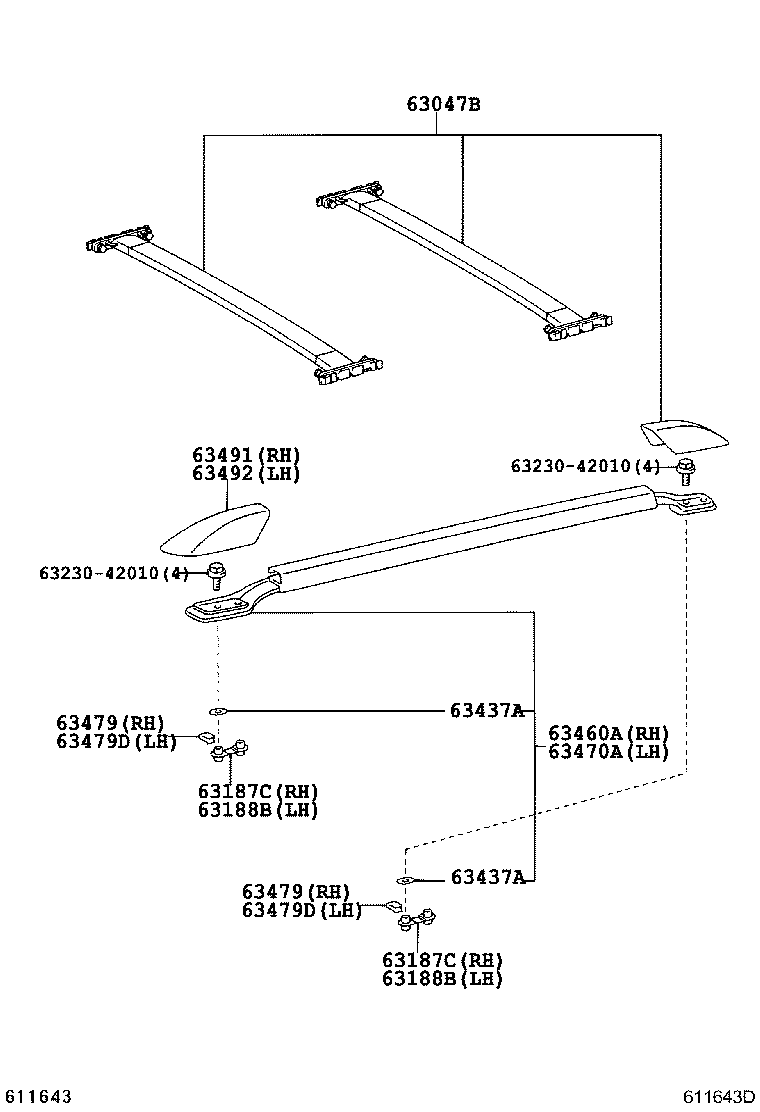

ILLUST NO. 3 OF 3(0208-0305)

Click highlighted areas on diagram

ROOF RACK

diagram 63047B 63187C 63187C 63188B 63188B 6323042010 6323042010 63437A 63437A 63460A 63470A 63479 63479 63479D 63479D 63491 63492
Part # Description Qty Price
63047B - BAR & COVER SET, ROOF RACK
63047-35010

GRN21#,UZN21#

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63047-35020

GRN21#,UZN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63187C - BRACKET, ROOF RACK, NO.1 REAR RH
63187-35020

GRN21#

 2
63187C - BRACKET, ROOF RACK, NO.1 REAR RH
63187-35020

GRN21#

 2
63188B - BRACKET, ROOF RACK, NO.1 REAR LH
63187-35020

GRN21#

 2
63188B - BRACKET, ROOF RACK, NO.1 REAR LH
63187-35020

GRN21#

 2
63437A - SEAL, ROOF CARRIER, NO.2
63437-60020

GRN21#..4FC..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 8
63437-60020

GRN21#..4FC

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 8
63437A - SEAL, ROOF CARRIER, NO.2
63437-60020

GRN21#..4FC..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 8
63437-60020

GRN21#..4FC

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 8
63460A - RACK ASSY, ROOF, RH
63460-35020

GRN21#,UZN21#

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63460-35021

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63460-35031

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63460-35030

GRN21#,UZN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63470A - RACK ASSY, ROOF, LH
63470-35021

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63470-35011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63470-35010

GRN21#,UZN21#

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63470-35020

GRN21#,UZN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63479 - RETAINER, ROOF INNER RACK
63479-42010

GRN21#

 2
63479 - RETAINER, ROOF INNER RACK
63479-42010

GRN21#

 2
63479D - RETAINER, ROOF INNER RACK, LH
63479-42010

GRN21#

 2
63479D - RETAINER, ROOF INNER RACK, LH
63479-42010

GRN21#

 2
63491 - COVER, ROOF RACK LEG, FRONT RH
63491-35011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63491-35020

GRN21#,UZN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63491-35010

GRN21#,UZN21#

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63491-35021

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63492 - COVER, ROOF RACK LEG, FRONT LH
63492-35020

GRN21#,UZN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63492-35010

GRN21#,UZN21#

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63492-35011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63492-35021

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
Common parts
63230-42010

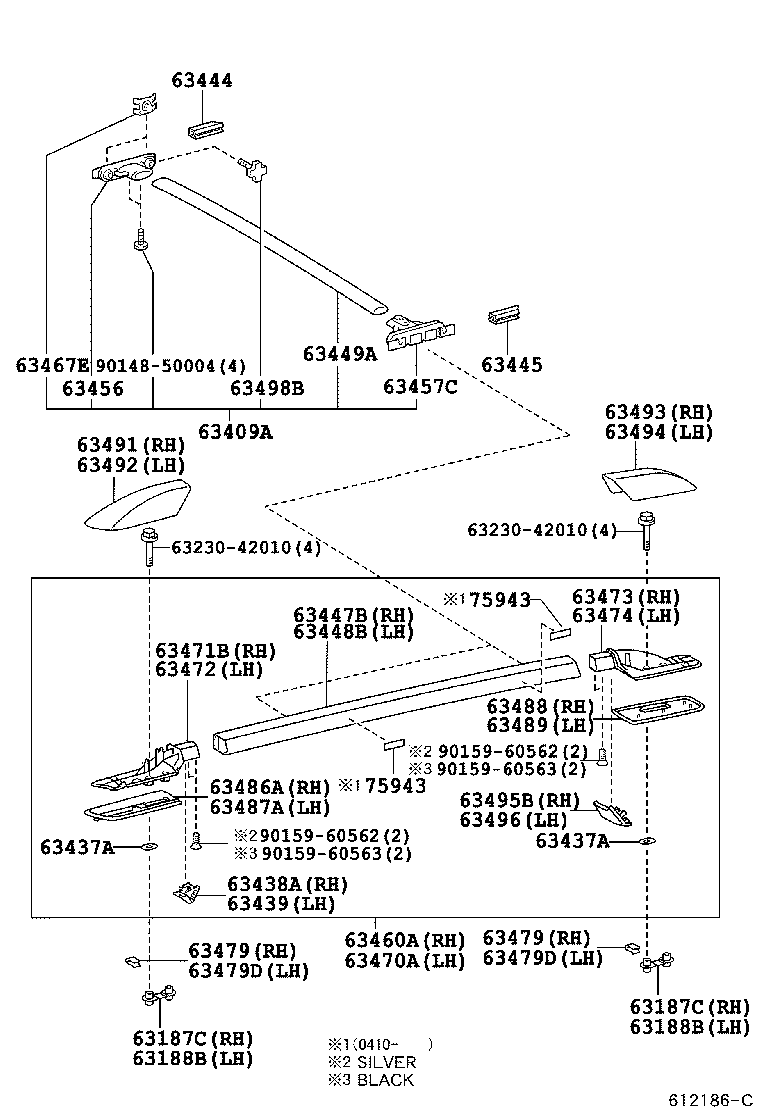

ILLUST NO. 3 OF 3(0305- )

Click highlighted areas on diagram

ROOF RACK

diagram 63187C 63187C 63188B 63188B 6323042010 6323042010 63409A 63437A 63437A 63438A 63439 63444 63445 63447B 63448B 63449A 63456 63457C 63460A 63467E 63470A 63471B 63472 63473 63474 63479 63479 63479D 63479D 63486A 63487A 63488 63489 63491 63492 63493 63494 63495B 63496 63498B 75943 75943 9014850004 9015960563 9015960563
Part # Description Qty Price
63187C - BRACKET, ROOF RACK, NO.1 REAR RH
63187-35020

GRN21#

 2
63187C - BRACKET, ROOF RACK, NO.1 REAR RH
63187-35020

GRN21#

 2
63188B - BRACKET, ROOF RACK, NO.1 REAR LH
63187-35020

GRN21#

 2
63188B - BRACKET, ROOF RACK, NO.1 REAR LH
63187-35020

GRN21#

 2
63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER
63409-35010

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 2
63409-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 2
63437A - SEAL, ROOF CARRIER, NO.2
63437-60020

GRN21#..4FC..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 8
63437-60020

GRN21#..4FC

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 8
63437A - SEAL, ROOF CARRIER, NO.2
63437-60020

GRN21#..4FC..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 8
63437-60020

GRN21#..4FC

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 8
63438A - COVER, ROOF RACK END, NO.1
63438-35030

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63438-35030

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63439 - COVER, ROOF RACK END, NO.2
63439-35030

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63439-35020

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63444 - PROTECTOR, ROOF CARRIER, NO.1
63444-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 2
63444-35010

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 2
63445 - PROTECTOR, ROOF CARRIER, NO.2
63445-35010

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 2
63445-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 2
63447B - BAR, ROOF CARRIER, RH
63447-35021

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63447-35021

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63448B - BAR, ROOF CARRIER, LH
63448-35011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63448-35021

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63449A - BAR, ROOF RACK, FRONT
63449-35010

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 2
63449-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 2
63456 - JOINT, ROOF RACK BAR
63456-42011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 2
63456-42011

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 2
63457C - JOINT, ROOF RACK BAR, NO.2
63457-42011

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 2
63457-42011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 2
63460A - RACK ASSY, ROOF, RH
63460-35020

GRN21#,UZN21#

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63460-35021

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63460-35031

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63460-35030

GRN21#,UZN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63467E - PLATE, ROOF RACK, REAR
63467-42011

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 8
63467-42011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 8
63470A - RACK ASSY, ROOF, LH
63470-35021

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63470-35011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63470-35010

GRN21#,UZN21#

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63470-35020

GRN21#,UZN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63471B - LEG, ROOF RACK, FRONT RH
63471-35010

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63471-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63472 - LEG, ROOF RACK, FRONT LH
63472-35010

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63472-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63473 - LEG, ROOF RACK, REAR RH
63473-35010

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63473-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63474 - LEG, ROOF RACK, REAR LH
63474-35010

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63474-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63479 - RETAINER, ROOF INNER RACK
63479-42010

GRN21#

 2
63479 - RETAINER, ROOF INNER RACK
63479-42010

GRN21#

 2
63479D - RETAINER, ROOF INNER RACK, LH
63479-42010

GRN21#

 2
63479D - RETAINER, ROOF INNER RACK, LH
63479-42010

GRN21#

 2
63486A - CUSHION, ROOF RACK LEG, FRONT RH
63486-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63486-35010

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63487A - CUSHION, ROOF RACK LEG, FRONT LH
63487-35010

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63487-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63488 - CUSHION, ROOF RACK LEG, REAR RH
63488-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63488-35010

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63489 - CUSHION, ROOF RACK LEG, REAR LH
63489-35010

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63489-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63491 - COVER, ROOF RACK LEG, FRONT RH
63491-35011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63491-35020

GRN21#,UZN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63491-35010

GRN21#,UZN21#

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63491-35021

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63492 - COVER, ROOF RACK LEG, FRONT LH
63492-35020

GRN21#,UZN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63492-35010

GRN21#,UZN21#

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63492-35011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63492-35021

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63493 - COVER, ROOF RACK LEG, REAR RH
63493-35020

GRN21#,UZN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63493-35021

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63493-35011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63493-35010

GRN21#,UZN21#

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63494 - COVER, ROOF RACK LEG, REAR LH
63494-35010

GRN21#,UZN21#

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63494-35011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63494-35020

GRN21#,UZN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63494-35021

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63495B - COVER, ROOF RACK LEG, CENTER RH
63495-35020

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63495-35020

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63496 - COVER, ROOF RACK LEG, CENTER LH
63496-35010

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 1
63496-35020

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 1
63498B - CAP, ROOF CARRIER
63498-42011

GRN21#;UZN21#..LIMD

ROOF RAIL-WITH(SILVER) & WITH(CROSS BAR)

 8
63498-42011

GRN21#..SR5

ROOF RAIL-WITH(BLACK) & WITH(CROSS BAR)

 8
Common parts
63230-42010
90148-50004
90159-60563
