GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208-0508)

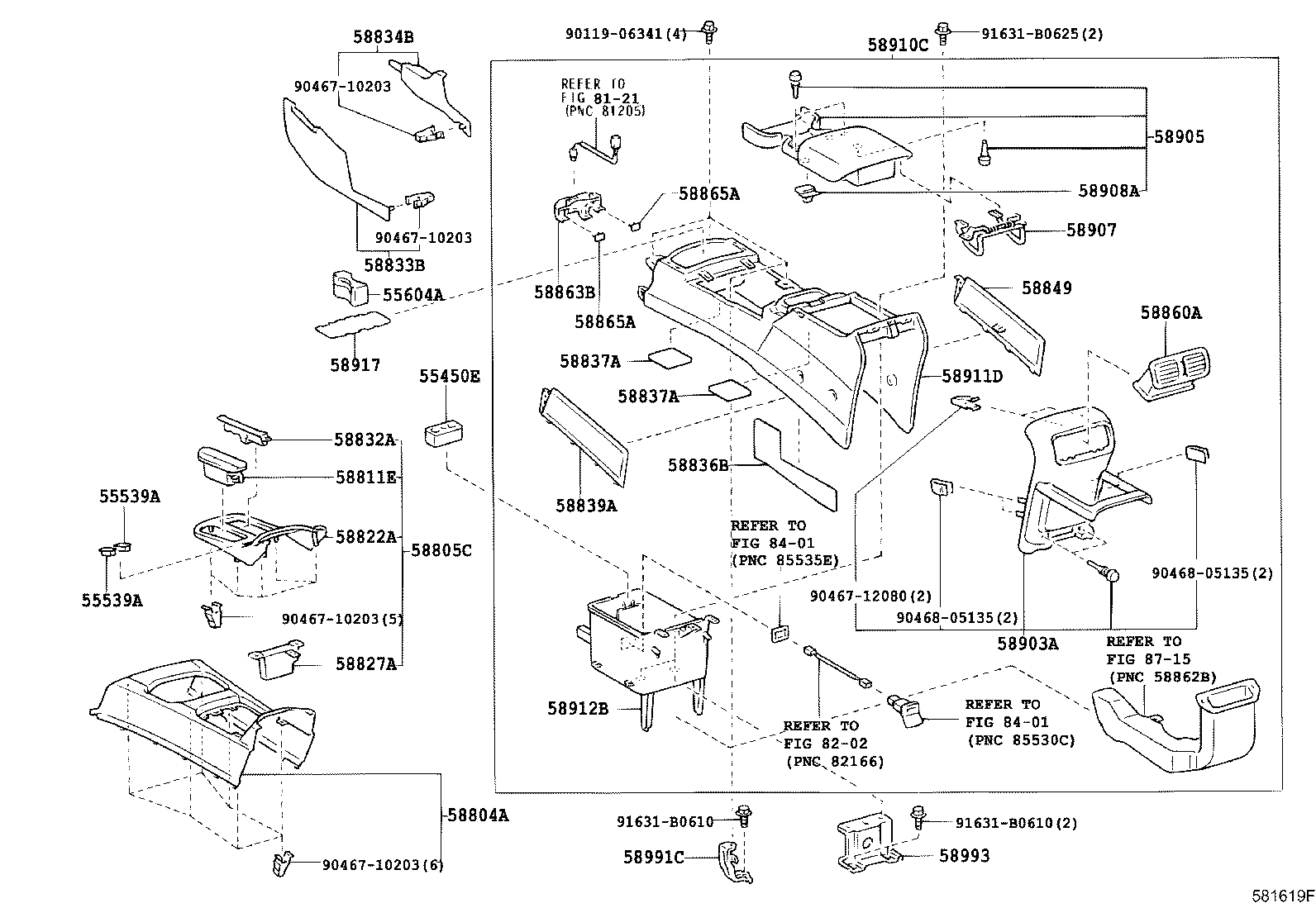

Click highlighted areas on diagram

diagram 55450E 55539A 55539A 55604A 58804A 58805C 58811E 58822A 58827A 58832A 58833B 58834B 58836B 58837A 58837A 58839A 58849 58860A 58863B 58865A 58865A 58903A 58905 58907 58908A 58910C 58911D 58912B 58917 58991C 58993 8121 8202 8401 8401 8715 9011906341 9046710203 9046710203 9046710203 9046710203 9046712080 9046805135 9046805135 91631B0610 91631B0610 91631B0625
Part # Description Qty Price
55450E - BOX ASSY, COIN
55450-0C010

GRN21#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-51020C0

GRN21#..SR5

BLACK,TRIM12,13,4#

 2
55539A - COVER, SPARE SWITCH HOLE
55539-51020C0

GRN21#..SR5

BLACK,TRIM12,13,4#

 2
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-35050

GRN21#..SR5

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-35340

GRN21#..SR5

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-35060

GRN21#..SR5

 1
58811E - BOX, CONSOLE, UPPER
58810-35010

GRN21#

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-35030

GRN21#..SR5

 1
58827A - GARNISH, CONSOLE BOX POCKET
58827-35010

GRN21#

 1
58832A - GARNISH, CONSOLE UPPER PANEL, REAR
58832-35010

GRN21#

 1
58833B - GARNISH, CONSOLE UPPER PANEL, NO.1
58833-35030E0

GRN21#

FAWN,TRIM4#

 1
58833-35030B0

GRN21#..SR5

STONE,TRIM12,13

 1
58834B - GARNISH, CONSOLE UPPER PANEL, NO.2
58834-35030E0

GRN21#

FAWN,TRIM4#

 1
58834-35030B0

GRN21#..SR5

STONE,TRIM12,13

 1
58836B - PAD, CONSOLE BOX SILENCER, NO.1
58836-35010

GRN21#

 1
58837A - PAD, CONSOLE BOX SILENCER, NO.2
58837-35010

GRN21#

 1
58837A - PAD, CONSOLE BOX SILENCER, NO.2
58837-35010

GRN21#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-35010

GRN21#

 1
58849 - COVER, CONSOLE BOX HOLE, NO.2
58849-35010

GRN21#

 1
58860A - REGISTER ASSY, CONSOLE BOX
58860-35010

GRN21#..SR5

 1
58863B - SUPPORT, CONSOLE BOX, NO.3
58863-35010

GRN21#

 1
58865A - LENS, FRONT CONSOLE BOX, NO.1
58865-35010

GRN21#

 2
58865A - LENS, FRONT CONSOLE BOX, NO.1
58865-35010

GRN21#

 2
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-35040B0

GRN21#..SR5

DK.GRAY,TRIM12,13,4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-35090B0

GRN21#,UZN21#..SR5

DK.GRAY,TRIM12,13,4#

 1
58905-35091B0

GRN21#..SR5

DK.GRAY,TRIM12,13,4#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-35020

GRN21#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32050

GRN21#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-35010E0

GRN21#..SR5

FAWN,TRIM4#

 1
58910-35040E0

GRN21#..SR5

ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,FAWN,TRIM4#

 1
58910-35010B0

GRN21#..SR5

STONE,TRIM12,13

 1
58910-35040B0

GRN21#..SR5

ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,STONE,TRIM12,13

 1
58911D - BOX, REAR CONSOLE, UPPER
58911-35070E0

GRN21#

FAWN,TRIM4#

 1
58911-35070B0

GRN21#..SR5

STONE,TRIM12,13

 1
58912B - BOX, REAR CONSOLE, LOWER
58912-35030

GRN21#

 1
58912-35040

GRN21#..SR5

ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1

 1
58917 - MAT, BOX BOTTOM, NO.2
58917-35040

GRN21#

 1
58991C - BRACKET, CONSOLE BOX MOUNTING, FRONT
58991-35050

GRN21#

 1
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-35060

GRN21#

 1
Common parts
90119-06341
90467-10203
90467-12080
90468-05135
91631-B0610
91631-B0625
Linked diagrams
8121
8202
8401
8715
