GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

Click highlighted areas on diagram

W(3RD SEAT)

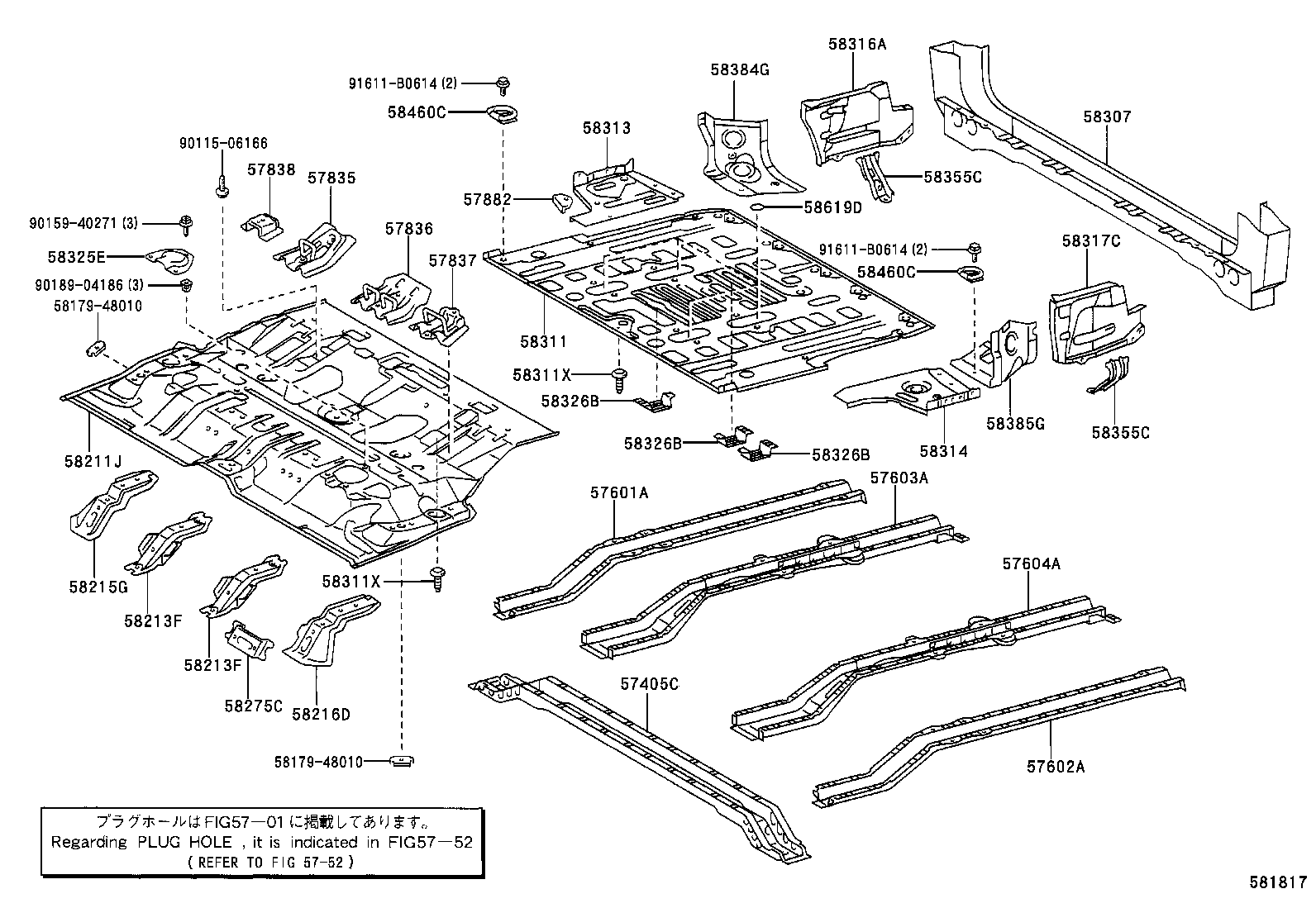

diagram 57405C 5752 57601A 57602A 57603A 57604A 57835 57836 57837 57838 57882 5817948010 5817948010 58211J 58213F 58213F 58215G 58216D 58275C 58307 58311 58311X 58311X 58313 58314 58316A 58317C 58325E 58326B 58326B 58326B 58355C 58355C 58384G 58385G 58460C 58460C 58619D 9011506166 9015940271 9018904186 91611B0614 91611B0614
Part # Description Qty Price
57405C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57405-35010

GRN21#

 1
57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-60150

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
57601-35020

GRN21#

TRUNK & DECK CARPET & MAT-DOUBLE DECK

 1
57601-35010

GRN21#

 1
57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57601-35010

GRN21#

 1
57601-60150

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
57601-35020

GRN21#

TRUNK & DECK CARPET & MAT-DOUBLE DECK

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-35010

GRN21#

 1
57603-60110

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-60040

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
57604-35010

GRN21#

 1
57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57835-35010

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57836-35010

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
57837 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57837-35010

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
57838 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
57838-35010

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
57882 - REINFORCEMENT, BELT ANCHOR, NO.4
57882-60020

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
58211J - PAN, CENTER FLOOR
58211-35020

GRN21#

 1
58211-35030

GRN21#

TRUNK & DECK CARPET & MAT-DOUBLE DECK

 1
58211-60070

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
58213F - REINFORCEMENT, CENTER FLOOR PANEL
58205-60020

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 2
58213F - REINFORCEMENT, CENTER FLOOR PANEL
58205-60020

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 2
58215G - BRACKET, REAR SEAT MOUNTING, NO.1
58215-35020

GRN21#

 1
58216D - BRACKET, REAR SEAT MOUNTING, LH
58216-35020

GRN21#

 1
58275C - BRACKET, WIRE HARNESS PROTECTOR
58275-35020

GRN21#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-35011

GRN21#

 1
58307-35020

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
58307-35010

GRN21#,UZN21#

 1
58311 - PAN, REAR FLOOR
58311-35080

GRN21#,UZN21#

 1
58311-60600

GRN21#,UZN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
58311X - BOLT, REAR FLOOR WELD
90115-06166

GRN21#

 1
58311X - BOLT, REAR FLOOR WELD
90115-06166

GRN21#

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-35090

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
58313-35070

GRN21#

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-35040

GRN21#

 1
58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58316-35040

GRN21#

 1
58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58317-35030

GRN21#

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-35010

GRN21#

 1
58326B - BRACKET, FLEXIBLE HOSE MOUNTING
58326-35010

GRN21#

 3
58326B - BRACKET, FLEXIBLE HOSE MOUNTING
58326-35010

GRN21#

 3
58326B - BRACKET, FLEXIBLE HOSE MOUNTING
58326-35010

GRN21#

 3
58355C - BRACKET, REAR BUMPER ARM
58355-35020

GRN21#

 2
58355C - BRACKET, REAR BUMPER ARM
58355-35020

GRN21#

 2
58384G - GUSSET, LOWER BACK, UPPER RH
58384-35010

GRN21#,UZN21#

 1
58384-35011

GRN21#

 1
58384-35030

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
58385G - GUSSET, LOWER BACK, UPPER LH
58385-35010

GRN21#,UZN21#

 1
58385-35011

GRN21#

 1
58385-35030

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 1
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-35012

GRN21#

 2
58460-35012

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 4
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-35012

GRN21#

 2
58460-35012

GRN21#

TRUNK & DECK CARPET & MAT-FOR 3RD SEAT

 4
58619D - SHEET, CENTER FLOOR SILENCER SUB
58619-35010

GRN21#

NO.1

 2
58619-60010

GRN21#

NO.2

 4
Common parts
58179-48010
90115-06166
90159-40271
90189-04186
91611-B0614
Linked diagrams
5752
