GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208-0508)

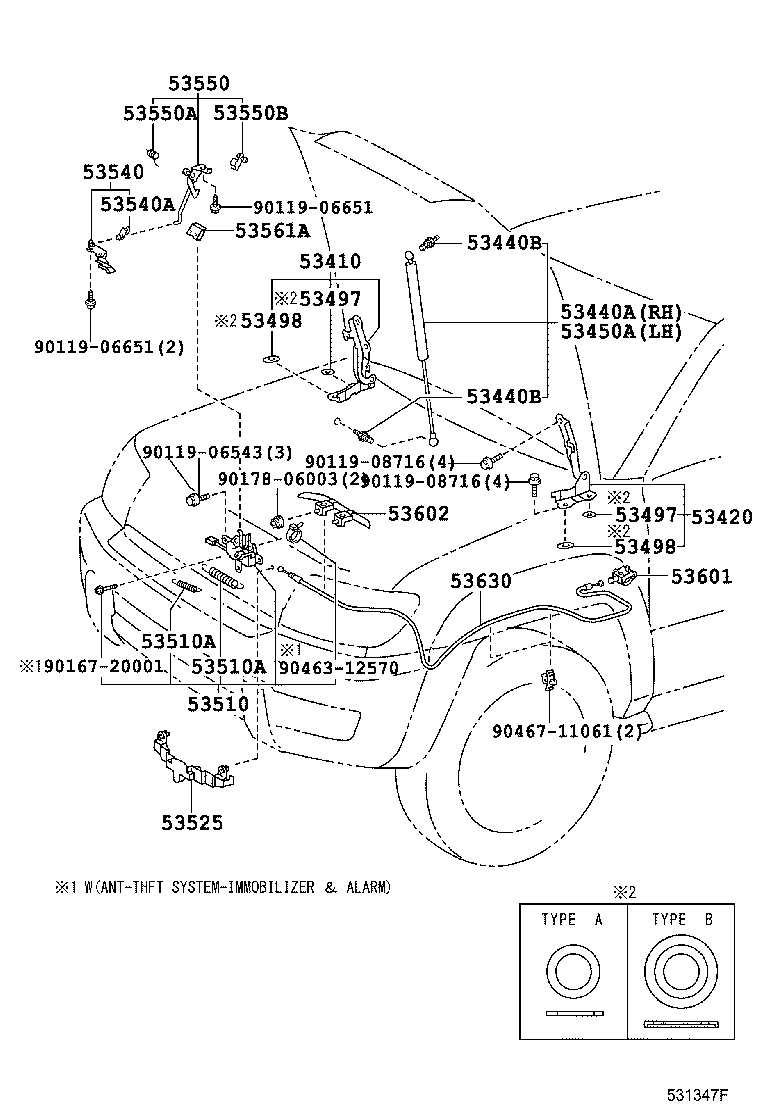

Click highlighted areas on diagram

diagram 53410 53420 53440A 53440B 53440B 53450A 53497 53497 53498 53498 53510 53510A 53510A 53525 53540 53540A 53550 53550A 53550B 53561A 53601 53602 53630 9011906543 9011906651 9011906651 9011908716 9011908716 9016720001 9017806003 9046312570 9046711061
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-35060

GRN21#

TYPE A:REFER ILLUST.

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-69055

GRN21#,UZN21#

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-30020

GRN21#

 4
53440B - BOLT, HOOD SUPPORT, NO.1
68961-30020

GRN21#

 4
53450A - SUPPORT ASSY, HOOD, LH
53450-69055

GRN21#,UZN21#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-12070

GRN21#

T=0.5,TYPE A:REFER ILLUST.

 2
53497-50020

GRN21#

T=1.0,TYPE B:REFER ILLUST.

 2
53497 - PAD, HOOD HINGE, NO.1
53497-12070

GRN21#

T=0.5,TYPE A:REFER ILLUST.

 2
53497-50020

GRN21#

T=1.0,TYPE B:REFER ILLUST.

 2
53498 - PAD, HOOD HINGE, NO.2
53497-12070

GRN21#

TYPE A:REFER ILLUST.

 2
53497-50020

GRN21#

TYPE B:REFER ILLUST.

 2
53498 - PAD, HOOD HINGE, NO.2
53497-12070

GRN21#

TYPE A:REFER ILLUST.

 2
53497-50020

GRN21#

TYPE B:REFER ILLUST.

 2
53510 - LOCK ASSY, HOOD
53510-60160

GRN21#..SR5

 1
53510-60170

GRN21#..SR5

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20065

GRN21#

WD=2.0,CW=16.0

 1
90506-09050

GRN21#..SR5

WD=0.9,CW=20.5

 1
90506-09055

GRN21#..SR5

WD=0.9,CW=21,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20065

GRN21#

WD=2.0,CW=16.0

 1
90506-09050

GRN21#..SR5

WD=0.9,CW=20.5

 1
90506-09055

GRN21#..SR5

WD=0.9,CW=21,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

 1
53525 - PROTECTOR, HOOD LOCK RELEASE LEVER
53525-33040

GRN21#

 1
53540 - LEVER ASSY, AUXILIARY CATCH RELEASE
53540-60010

GRN21#

 1
53540A - SNAP, AUXILIARY CATCH RELEASE LEVER CONTROL LINK
69759-20110

GRN21#

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-35010

GRN21#

 1
53550A - SPRING, TORSION(FOR HOOD LOCK HOOK)
90508-18102

GRN21#

 1
53550B - SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK
69759-20110

GRN21#

 1
53561A - GUIDE, HOOD AUXILIARY CATCH HOOK
53561-30010

GRN21#

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010B2

GRN21#..SR5

STONE,TRIM12,13

 1
53601-52010E0

GRN21#

FAWN,TRIM4#

 1
53602 - PROTECTOR SUB-ASSY, HOOD LOCK CONTROL CABLE
53602-60020

GRN21#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-35070

GRN21#

 1
Common parts
90119-06543
90119-06651
90119-08716
90167-20001
90178-06003
90463-12570
90467-11061
