GRN215L-GKPGKA (2002)
Toyota 4runner

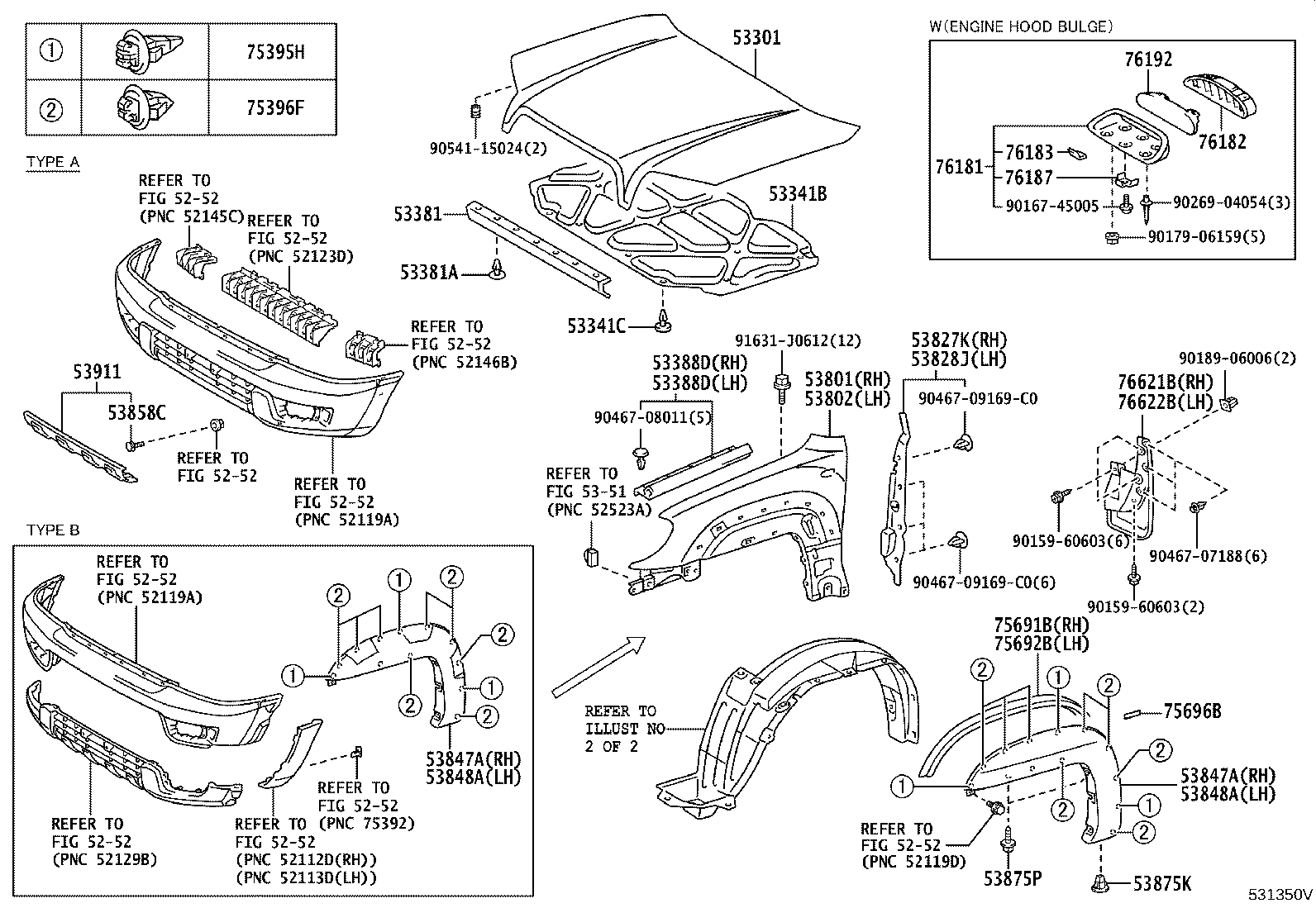

ILLUST NO. 1 OF 2(0208-0508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-35140 |
GRN21#,UZN21# |
1 | ||
| 53301-35150 |
GRN21#,UZN21#..SR5 SPORT PACKAGE |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-35140 |
GRN21#..SR5 APPEARANCE PACKAGE SPORT |
1 | ||
| 53341-35130 |
GRN21# |
1 | ||
| 53341-35140 |
GRN21#,UZN21#..SR5 SPORT PACKAGE |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
GRN21#..SR5 APPEARANCE PACKAGE SPORT |
13 | ||
| 90467-09050 |
GRN21# |
11 | ||
| 90467-09050 |
GRN21#,UZN21#..SR5 SPORT PACKAGE |
13 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-35060 |
GRN21# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GRN21# |
7 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-35010 |
GRN21# |
2 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-35010 |
GRN21# |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-35530 |
GRN21#,UZN21# |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-35620 |
GRN21#,UZN21# |
1 | ||
| 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-35030 |
GRN21#,UZN21# |
1 | ||
| 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-35050 |
GRN21#,UZN21# |
1 | ||
| 53847A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH | ||||
| 53847-35100A1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,WHITE,056 |
1 | ||
| 53847-35110 |
GRN21#,UZN21#..SR5 NO PAINT REQ. |
1 | ||
| 53847-35100B0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,SILVER ME.,1D4 |
1 | ||
| 53847-35100A1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,WHITE,056 |
1 | ||
| 53847-35100C0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,BLACK,202 |
1 | ||
| 53847-35100C0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,BLACK,202 |
1 | ||
| 53847-35100B1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,DK.GRAY M.M.,1E9 |
1 | ||
| 53847-35100B0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,SILVER ME.,1D4 |
1 | ||
| 53847-35100J0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,DK.BLUE MC.,8Q0 |
1 | ||
| 53847-35100B1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,DK.GRAY M.M.,1E9 |
1 | ||
| 53847-35100F0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,CHAMPAGNE M.M.,587 |
1 | ||
| 53847-35100J0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,DK.BLUE MC.,8Q0 |
1 | ||
| 53847-35100F0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,CHAMPAGNE M.M.,587 |
1 | ||
| 53847-35100J1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,GRAYISH BLUE ME.,8R3 |
1 | ||
| 53847-35100J1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,GRAYISH BLUE ME.,8R3 |
1 | ||
| 53847A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH | ||||
| 53847-35100A1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,WHITE,056 |
1 | ||
| 53847-35110 |
GRN21#,UZN21#..SR5 NO PAINT REQ. |
1 | ||
| 53847-35100B0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,SILVER ME.,1D4 |
1 | ||
| 53847-35100A1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,WHITE,056 |
1 | ||
| 53847-35100C0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,BLACK,202 |
1 | ||
| 53847-35100C0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,BLACK,202 |
1 | ||
| 53847-35100B1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,DK.GRAY M.M.,1E9 |
1 | ||
| 53847-35100B0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,SILVER ME.,1D4 |
1 | ||
| 53847-35100J0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,DK.BLUE MC.,8Q0 |
1 | ||
| 53847-35100B1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,DK.GRAY M.M.,1E9 |
1 | ||
| 53847-35100F0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,CHAMPAGNE M.M.,587 |
1 | ||
| 53847-35100J0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,DK.BLUE MC.,8Q0 |
1 | ||
| 53847-35100F0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,CHAMPAGNE M.M.,587 |
1 | ||
| 53847-35100J1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,GRAYISH BLUE ME.,8R3 |
1 | ||
| 53847-35100J1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,GRAYISH BLUE ME.,8R3 |
1 | ||
| 53848A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH | ||||
| 53848-35100A1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,WHITE,056 |
1 | ||
| 53848-35100B0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,SILVER ME.,1D4 |
1 | ||
| 53848-35110 |
GRN21#,UZN21#..SR5 NO PAINT REQ. |
1 | ||
| 53848-35100F0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,CHAMPAGNE M.M.,587 |
1 | ||
| 53848-35100A1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,WHITE,056 |
1 | ||
| 53848-35100J0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,DK.BLUE MC.,8Q0 |
1 | ||
| 53848-35100C0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,BLACK,202 |
1 | ||
| 53848-35100F0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,CHAMPAGNE M.M.,587 |
1 | ||
| 53848-35100B0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,SILVER ME.,1D4 |
1 | ||
| 53848-35100B1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,DK.GRAY M.M.,1E9 |
1 | ||
| 53848-35100B1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,DK.GRAY M.M.,1E9 |
1 | ||
| 53848-35100J0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,DK.BLUE MC.,8Q0 |
1 | ||
| 53848-35100C0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,BLACK,202 |
1 | ||
| 53848-35100J1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,GRAYISH BLUE ME.,8R3 |
1 | ||
| 53848-35100J1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,GRAYISH BLUE ME.,8R3 |
1 | ||
| 53848A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH | ||||
| 53848-35100A1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,WHITE,056 |
1 | ||
| 53848-35100B0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,SILVER ME.,1D4 |
1 | ||
| 53848-35110 |
GRN21#,UZN21#..SR5 NO PAINT REQ. |
1 | ||
| 53848-35100F0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,CHAMPAGNE M.M.,587 |
1 | ||
| 53848-35100A1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,WHITE,056 |
1 | ||
| 53848-35100J0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,DK.BLUE MC.,8Q0 |
1 | ||
| 53848-35100C0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,BLACK,202 |
1 | ||
| 53848-35100F0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,CHAMPAGNE M.M.,587 |
1 | ||
| 53848-35100B0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,SILVER ME.,1D4 |
1 | ||
| 53848-35100B1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,DK.GRAY M.M.,1E9 |
1 | ||
| 53848-35100B1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,DK.GRAY M.M.,1E9 |
1 | ||
| 53848-35100J0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,DK.BLUE MC.,8Q0 |
1 | ||
| 53848-35100C0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,BLACK,202 |
1 | ||
| 53848-35100J1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,GRAYISH BLUE ME.,8R3 |
1 | ||
| 53848-35100J1 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,GRAYISH BLUE ME.,8R3 |
1 | ||
| 53858C - BOLT, WHEEL OPENING | ||||
| 53858-60050 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5 |
5 | ||
| 53858-60050 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT |
5 | ||
| 53875K - GROMMET, SCREW | ||||
| 90189-06028 |
GRN21#,UZN21# |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60476 |
GRN21#,UZN21# |
4 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53901-35150B0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,SILVER ME.,056 ,1D4 ,1E9 ,202 ,3Q3 ,587 ,8Q0 ,8R3 |
1 | ||
| 53901-35150F0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,CHAMPAGNE M.M.,587 |
1 | ||
| 53901-35150B0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,SILVER ME.,056 ,1D4 ,1E9 ,202 ,3Q3 ,587 ,8Q0 ,8R3 |
1 | ||
| 53901-35150F0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SR5,CHAMPAGNE M.M.,587 |
1 | ||
| 75395H - CLIP, OUTSIDE MOULDING, NO.1 | ||||
| 75395-35070 |
GRN21# |
6 | ||
| 75396F - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-35020 |
GRN21# |
16 | ||
| 75691B - PAD, FRONT FENDER OUTSIDE MOULDING, RH | ||||
| 75691-35020 |
GRN21#,UZN21# |
1 | ||
| 75692B - PAD, FRONT FENDER OUTSIDE MOULDING, LH | ||||
| 75691-35020 |
GRN21#,UZN21# |
1 | ||
| 75696B - PAD, BODY OUTSIDE MOULDING, RH | ||||
| 75696-35050 |
GRN21# |
2 | ||
| 76181 - BULGE, HOOD | ||||
| 76181-35050C0 |
GRN21#,UZN21#..SR5 SPORT PACKAGE,BLACK,202 |
1 | ||
| 76181-35050B1 |
GRN21#,UZN21#..SR5 SPORT PACKAGE,DK.GRAY M.M.,1E9 |
1 | ||
| 76181-35050B0 |
GRN21#,UZN21#..SR5 SPORT PACKAGE,SILVER ME.,1D4 |
1 | ||
| 76181-35050G0 |
GRN21#,UZN21#..SR5 SPORT PACKAGE,DK.GREEN MC.,6Q7 |
1 | ||
| 76181-35050A0 |
GRN21#,UZN21#..SR5 SPORT PACKAGE,WHITE,056 |
1 | ||
| 76181-35050J0 |
GRN21#,UZN21#..SR5 SPORT PACKAGE,DK.BLUE MC.,8Q0 |
1 | ||
| 76181-35050G0 |
GRN21#,UZN21#..SR5 APPEARANCE PACKAGE SPORT,DK.GREEN MC.,6Q7 |
1 | ||
| 76182 - GUIDE, HOOD AIR INTAKE | ||||
| 76182-35060 |
GRN21#,UZN21#..SR5 SPORT PACKAGE |
1 | ||
| 76182-35060 |
GRN21#..SR5 APPEARANCE PACKAGE SPORT |
1 | ||
| 76183 - PROTECTOR, HOOD BULGE, NO.1 | ||||
| 76183-12030 |
GRN21#,UZN21#..SR5 SPORT PACKAGE |
5 | ||
| 76187 - RETAINER, HOOD AIR INTAKE GUIDE, NO.1 | ||||
| 76187-35010 |
GRN21#,UZN21#..SR5 SPORT PACKAGE |
1 | ||
| 76192 - PLATE, HOOD BULGE | ||||
| 76192-35020 |
GRN21#,UZN21#..SR5 SPORT PACKAGE |
1 | ||
| 76192-35020 |
GRN21#..SR5 APPEARANCE PACKAGE SPORT |
1 | ||
| 76621B - MUDGUARD, FRONT BODY, RH | ||||
| 76621-35060 |
GRN21# |
1 | ||
| 76622B - MUDGUARD, FRONT BODY, LH | ||||
| 76622-35060 |
GRN21# |
1 | ||
| Common parts | ||||
| 90159-60603 | ||||
| 90167-45005 | ||||
| 90179-06159 | ||||
| 90189-06006 | ||||
| 90269-04054 | ||||
| 90467-07188 | ||||
| 90467-08011 | ||||
| 90467-09169C0 | ||||
| 90541-15024 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5351 | ||||
