GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208-0508)

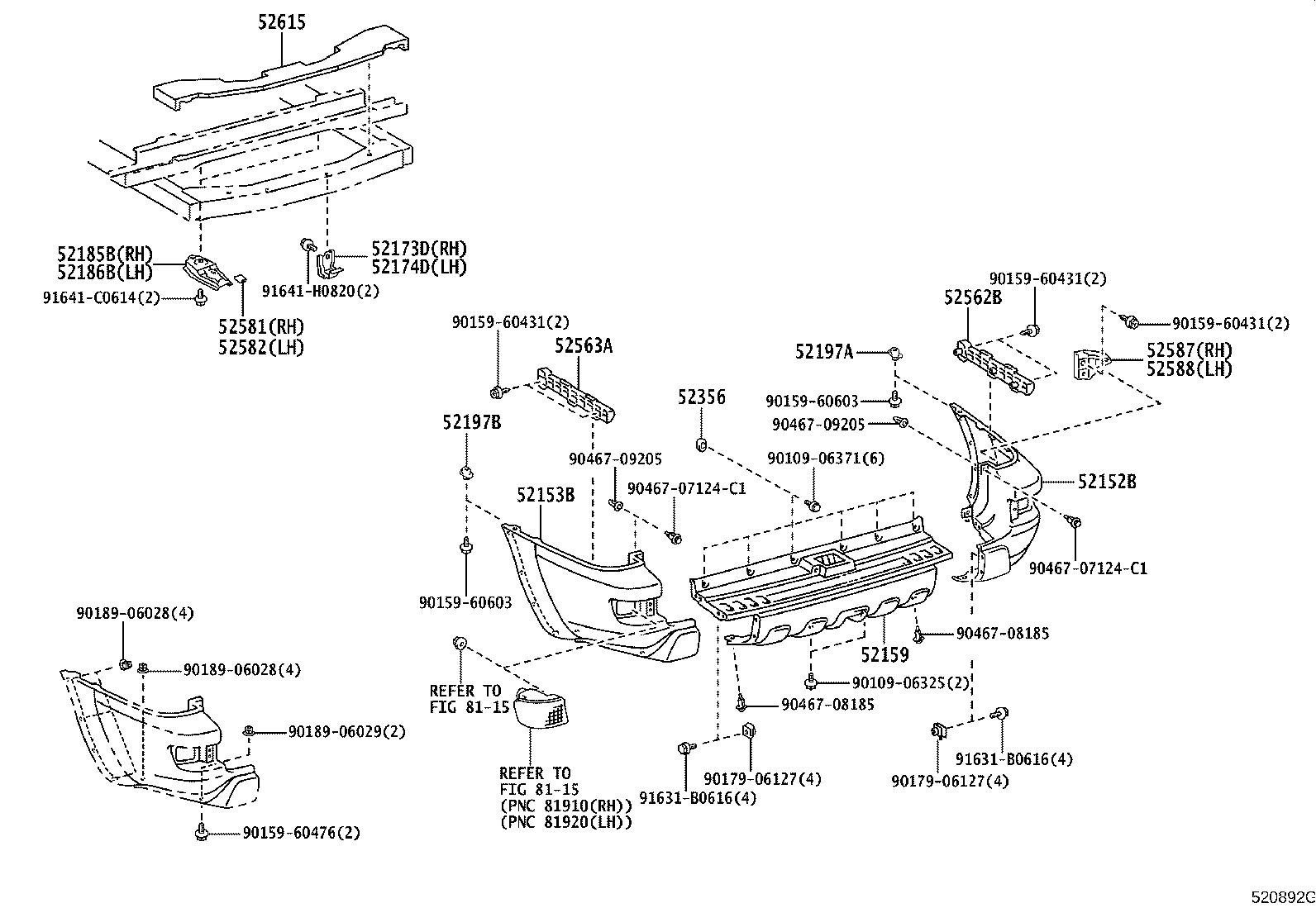

Click highlighted areas on diagram

diagram 52152B 52153B 52159 52173D 52174D 52185B 52186B 52197A 52197B 52356 52562B 52563A 52581 52582 52587 52588 52615 8115 8115 9010906325 9010906371 9015960431 9015960431 9015960431 9015960476 9015960603 9015960603 9017906127 9017906127 9018906028 9018906028 9018906029 9046707124C1 9046707124C1 9046708185 9046708185 9046709205 9046709205 91631B0616 91631B0616 91641C0614 91641H0820
Part # Description Qty Price
52152B - EXTENSION, REAR BUMPER, RH
52152-35900

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 1
52152-35900

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 1
52152-35120

GRN21#,UZN21#..SR5

 1
52153B - EXTENSION, REAR BUMPER, LH
52153-35120

GRN21#,UZN21#..SR5

 1
52153-35900

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 1
52153-35900

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 1
52159 - COVER, REAR BUMPER
52159-35100

GRN21#,UZN21#

 1
52173D - REINFORCEMENT, REAR BUMPER BAR, RH
52173-35050

GRN21#,UZN21#

 1
52174D - REINFORCEMENT, REAR BUMPER BAR, LH
52174-35050

GRN21#,UZN21#

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-60090

GRN21#,UZN21#

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-60090

GRN21#,UZN21#

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-35020

GRN21#,UZN21#

 1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-35020

GRN21#,UZN21#

 1
52356 - CUSHION, REAR BUMPER STEP
52356-60050

GRN21#,UZN21#

 6
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-35010

GRN21#,UZN21#

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-35010

GRN21#,UZN21#

 1
52581 - PROTECTOR, REAR BUMPER, RH
52581-35020

GRN21#,UZN21#

 1
52582 - PROTECTOR, REAR BUMPER, LH
52581-35020

GRN21#,UZN21#

 1
52587 - RETAINER, REAR BUMPER END, RH
52587-35010

GRN21#,UZN21#

 1
52588 - RETAINER, REAR BUMPER END, LH
52588-35010

GRN21#,UZN21#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-35010

GRN21#,UZN21#

 1
Common parts
90109-06325
90109-06371
90159-60431
90159-60476
90159-60603
90179-06127
90189-06028
90189-06029
90467-07124C1
90467-08185
90467-09205
91631-B0616
91641-C0614
91641-H0820
Linked diagrams
8115
