GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

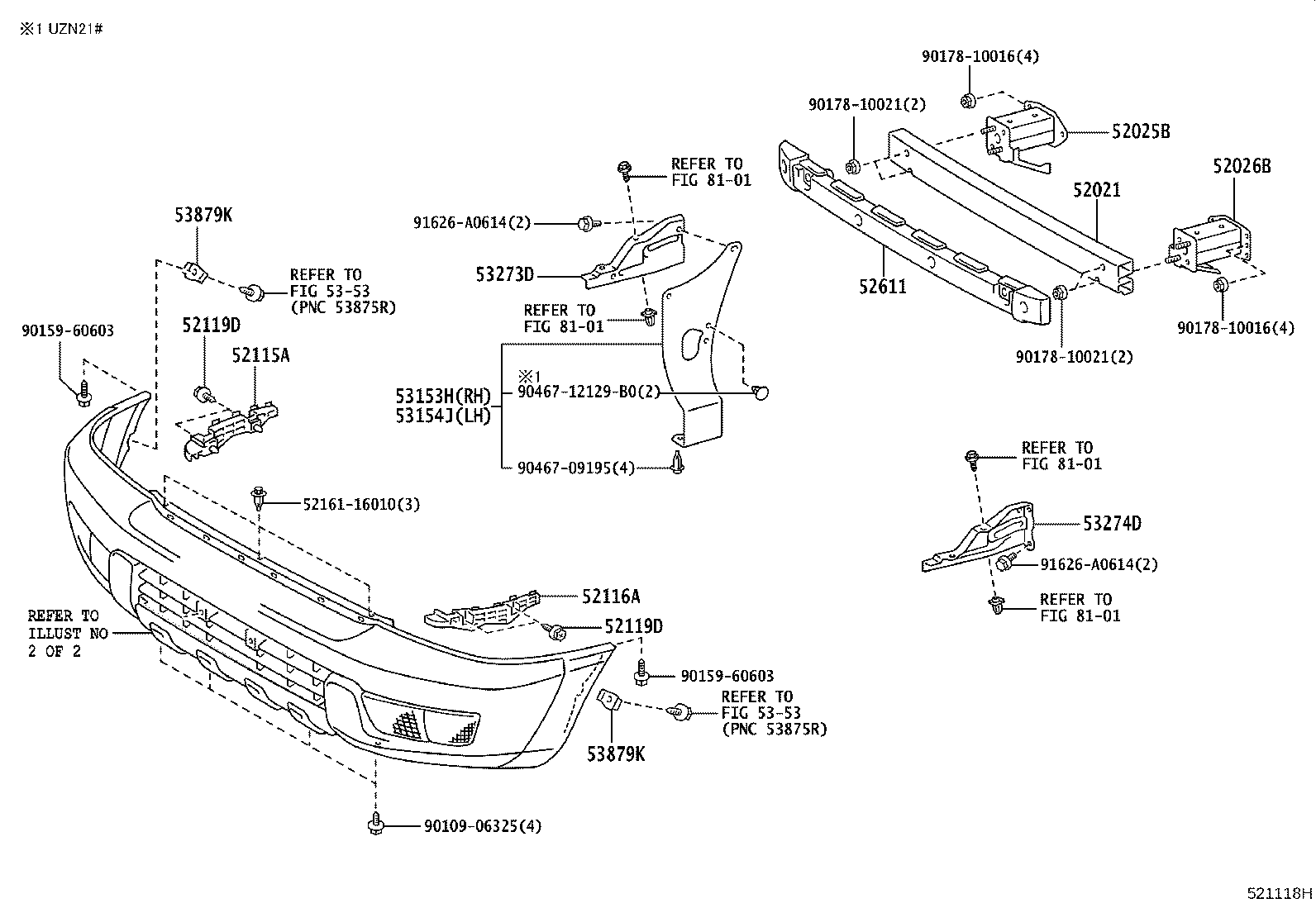

ILLUST NO. 1 OF 2(0208-0408)UZN21#..SR5 ; (0211-0508)4FC..SR5

Click highlighted areas on diagram

diagram 52021 52025B 52026B 52115A 52116A 52119D 52119D 5216116010 52611 53153H 53154J 53273D 53274D 5353 5353 53879K 53879K 8101 8101 9010906325 9015960603 9015960603 9017810016 9017810016 9017810021 9017810021 9046709195 9046712129B0 91626A0614
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-35050

GRN21#,UZN21#

 1
52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52025-35050

GRN21#,UZN21#

 1
52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52026-35050

GRN21#,UZN21#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-35100

GRN21#,UZN21#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-35090

GRN21#,UZN21#

 1
52119D - SCREW, NO.1
90159-60431

GRN21#,UZN21#

 4
52119D - SCREW, NO.1
90159-60431

GRN21#,UZN21#

 4
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-35010

GRN21#,UZN21#

 1
53153H - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-35010

GRN21#

 1
53154J - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-35030

GRN21#

 1
53273D - BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273-35070

GRN21#,UZN21#

 1
53274D - BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274-35050

GRN21#,UZN21#

 1
53879K - RETAINER, FRONT FENDER LINER
53879-58010

GRN21#,UZN21#

 2
53879-58010

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 2
53879-58010

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 2
53879K - RETAINER, FRONT FENDER LINER
53879-58010

GRN21#,UZN21#

 2
53879-58010

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 2
53879-58010

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 2
Common parts
52161-16010
90109-06325
90159-60603
90178-10016
90178-10021
90467-09195
90467-12129B0
91626-A0614
Linked diagrams
5353
8101

ILLUST NO. 1 OF 2(0208-0508)4FC..LIMD ; (0208-0508)UZN21#..LIMD ;(0408-0508)GRN21# ; (0408-0508)UZN

Click highlighted areas on diagram

diagram 52021 52025B 52026B 52115A 52116A 52119D 52119D 5216116010 52611 53153H 53154J 53273D 53274D 5353 5353 53879K 53879K 8101 8101 8101 8101 9010906325 9015960603 9015960603 9017810016 9017810016 9017810021 9017810021 9046709195 9046712129B0 91626A0614 91626A0614
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-35050

GRN21#,UZN21#

 1
52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52025-35050

GRN21#,UZN21#

 1
52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52026-35050

GRN21#,UZN21#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-35100

GRN21#,UZN21#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-35090

GRN21#,UZN21#

 1
52119D - SCREW, NO.1
90159-60431

GRN21#,UZN21#

 4
52119D - SCREW, NO.1
90159-60431

GRN21#,UZN21#

 4
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-35010

GRN21#,UZN21#

 1
53153H - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-35010

GRN21#

 1
53154J - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-35030

GRN21#

 1
53273D - BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273-35070

GRN21#,UZN21#

 1
53274D - BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274-35050

GRN21#,UZN21#

 1
53879K - RETAINER, FRONT FENDER LINER
53879-58010

GRN21#,UZN21#

 2
53879-58010

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 2
53879-58010

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 2
53879K - RETAINER, FRONT FENDER LINER
53879-58010

GRN21#,UZN21#

 2
53879-58010

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 2
53879-58010

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 2
Common parts
52161-16010
90109-06325
90159-60603
90178-10016
90178-10021
90467-09195
90467-12129B0
91626-A0614
Linked diagrams
5353
8101

ILLUST NO. 1 OF 2(0301-0408)UZN21#..SR5 ; (0301-0508)4FC..SR5

Click highlighted areas on diagram

APPEARANCE PACKAGE SPORT OR SR5

diagram 52021 52025B 52026B 52115A 52116A 52119D 52119D 5216116010 52611 53153H 53154J 53273D 53274D 5353 5353 53879K 53879K 8101 8101 8101 8101 9010906325 9015960603 9015960603 9017810016 9017810016 9017810021 9017810021 9046709195 9046712129B0 91626A0614 91626A0614
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-35050

GRN21#,UZN21#

 1
52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52025-35050

GRN21#,UZN21#

 1
52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52026-35050

GRN21#,UZN21#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-35100

GRN21#,UZN21#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-35090

GRN21#,UZN21#

 1
52119D - SCREW, NO.1
90159-60431

GRN21#,UZN21#

 4
52119D - SCREW, NO.1
90159-60431

GRN21#,UZN21#

 4
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-35010

GRN21#,UZN21#

 1
53153H - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-35010

GRN21#

 1
53154J - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-35030

GRN21#

 1
53273D - BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273-35070

GRN21#,UZN21#

 1
53274D - BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274-35050

GRN21#,UZN21#

 1
53879K - RETAINER, FRONT FENDER LINER
53879-58010

GRN21#,UZN21#

 2
53879-58010

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 2
53879-58010

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 2
53879K - RETAINER, FRONT FENDER LINER
53879-58010

GRN21#,UZN21#

 2
53879-58010

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 2
53879-58010

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 2
Common parts
52161-16010
90109-06325
90159-60603
90178-10016
90178-10021
90467-09195
90467-12129B0
91626-A0614
Linked diagrams
5353
8101

ILLUST NO. 2 OF 2(0208-0508)4FC..LIMD ; (0208-0508)UZN21#..LIMD ;(0408-0508)GRN21# ; (0408-0508)UZN

Click highlighted areas on diagram

diagram 52119A 52123D 52127D 52128B 52145C 52146B 5351 5353 5353 5353 5353 8102 8102 8103 8103 9015960500 9017906274 9018306027 9046705138 9046705138
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-35050

GRN21#,UZN21#..SR5

 1
52119-35901

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 1
52119-35901

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 1
52123D - PLATE, FRONT BUMPER REINFORCEMENT
52123-35150

GRN21#,UZN21#

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-35030

GRN21#..SR5

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-35020

GRN21#..SR5

 1
52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH
52145-35050

GRN21#,UZN21#

 1
52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-35050

GRN21#,UZN21#

 1
Common parts
90159-60500
90179-06274
90183-06027
90467-05138
Linked diagrams
5351
5353
8102
8103

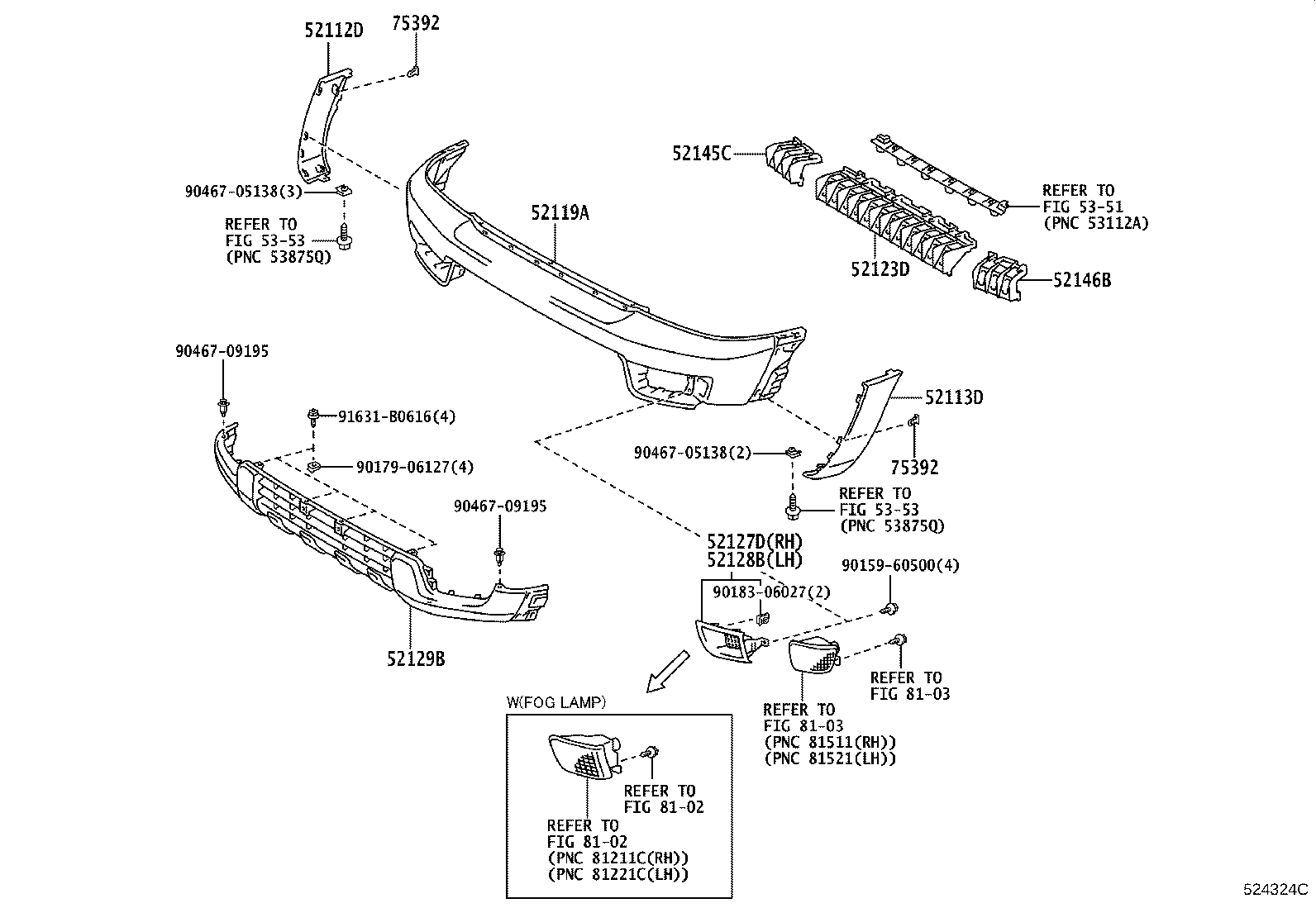

ILLUST NO. 2 OF 2(0208-0408)UZN21#..SR5 ; (0211-0508)4FC..SR5

Click highlighted areas on diagram

diagram 52112D 52113D 52119A 52123D 52127D 52128B 52129B 52145C 52146B 5351 5353 5353 75392 75392 8102 8102 8103 8103 9015960500 9017906127 9018306027 9046705138 9046705138 9046709195 9046709195 91631B0616
Part # Description Qty Price
52112D - EXTENSION, FRONT BUMPER, RH
52112-35140

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 1
52112-35140

GRN21#,UZN21#..SR5

 1
52112-35140

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-35130

GRN21#,UZN21#..SR5

 1
52113-35130

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 1
52113-35130

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 1
52119A - COVER, FRONT BUMPER
52119-35050

GRN21#,UZN21#..SR5

 1
52119-35901

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 1
52119-35901

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 1
52123D - PLATE, FRONT BUMPER REINFORCEMENT
52123-35150

GRN21#,UZN21#

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-35030

GRN21#..SR5

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-35020

GRN21#..SR5

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-35020

GRN21#,UZN21#..SR5

 1
52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH
52145-35050

GRN21#,UZN21#

 1
52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-35050

GRN21#,UZN21#

 1
75392 - RETAINER, OUTSIDE MOULDING
75392-35200

GRN21#,UZN21#..SR5

 12
75392-35200

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 12
75392-35200

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 12
75392 - RETAINER, OUTSIDE MOULDING
75392-35200

GRN21#,UZN21#..SR5

 12
75392-35200

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 12
75392-35200

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 12
Common parts
90159-60500
90179-06127
90183-06027
90467-05138
90467-09195
91631-B0616
Linked diagrams
5351
5353
8102
8103

ILLUST NO. 2 OF 2(0301-0408)UZN21#..SR5 ; (0301-0508)4FC..SR5

Click highlighted areas on diagram

APPEARANCE PACKAGE SPORT OR SR5

diagram 52119A 52123D 52145C 52146B 5351 5353 5353 5353 5353 8102 8102 8103 8103 9017906274 9046705138 9046705138
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-35050

GRN21#,UZN21#..SR5

 1
52119-35901

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SPORT

 1
52119-35901

GRN21#,UZN21#..SR5

APPEARANCE PACKAGE SR5

 1
52123D - PLATE, FRONT BUMPER REINFORCEMENT
52123-35150

GRN21#,UZN21#

 1
52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH
52145-35050

GRN21#,UZN21#

 1
52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-35050

GRN21#,UZN21#

 1
Common parts
90179-06274
90467-05138
Linked diagrams
5351
5353
8102
8103
