GRN215L-GKPGKA (2002)
Toyota 4runner
Production
Nov 2002
-
Aug 2004
Engine
1GRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

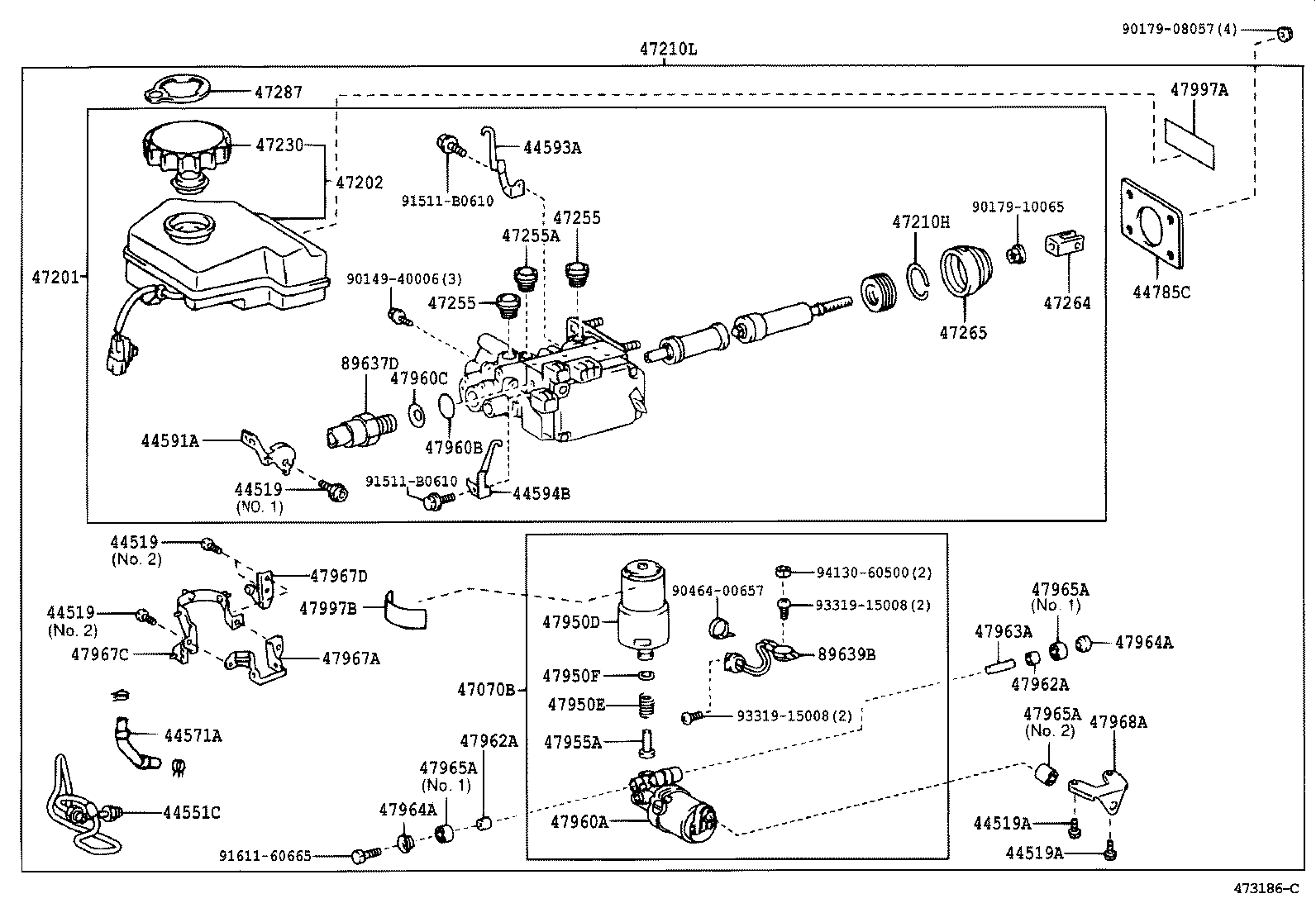

ILLUST NO. 1 OF 2(0208-0410)UZN21# ; (0211-0408)GRN21#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-30010 |
GRN21# NO.2 |
3 | ||
| 44519-24020 |
GRN21# NO.1 |
1 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-30010 |
GRN21# NO.2 |
3 | ||
| 44519-24020 |
GRN21# NO.1 |
1 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-30010 |
GRN21# NO.2 |
3 | ||
| 44519-24020 |
GRN21# NO.1 |
1 | ||
| 44519A - BOLT(FOR BRAKE BOOSTER PUMP) | ||||
| 44519-24020 |
GRN21# |
2 | ||
| 44519A - BOLT(FOR BRAKE BOOSTER PUMP) | ||||
| 44519-24020 |
GRN21# |
2 | ||
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-51010 |
GRN21# |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-30080 |
GRN21# |
1 | ||
| 44591A - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-60050 |
GRN21# |
1 | ||
| 44593A - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-60010 |
GRN21# |
1 | ||
| 44594B - BRACKET, BRAKE ACTUATOR, NO.4 | ||||
| 44594-60010 |
GRN21# |
1 | ||
| 44785C - GASKET, BRAKE BOOSTER | ||||
| 44785-60020 |
GRN21# |
1 | ||
| 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR | ||||
| 47070-30060 |
GRN21# |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47025-60080 |
GRN21#,UZN21# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-60190 |
GRN21#,UZN21# |
1 | ||
| 47210H - RING, SNAP(FOR BRAKE MASTER CYLINDER) | ||||
| 90520-32012 |
GRN21# |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-60080 |
GRN21#,UZN21# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-30130 |
GRN21# |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GRN21# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GRN21# |
2 | ||
| 47255A - GROMMET, MASTER CYLINDER RESERVOIR, NO.2 | ||||
| 31417-35010 |
GRN21# |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-60020 |
GRN21# |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 90029-70001 |
GRN21#,UZN21# |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20020 |
GRN21# |
1 | ||
| 47950D - ACCUMULATOR ASSY, BRAKE BOOSTER | ||||
| 47950-30010 |
GRN21# |
1 | ||
| 47950E - SPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90501-16160 |
GRN21# |
1 | ||
| 47950F - RING, O(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90301-13014 |
GRN21#,UZN21# |
1 | ||
| 47955A - PIPE, BRAKE BOOSTER ACCUMULATOR | ||||
| 47955-30010 |
GRN21# |
1 | ||
| 47960A - PUMP ASSY, BRAKE BOOSTER | ||||
| 47960-30030 |
GRN21# |
1 | ||
| 47960B - RING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) | ||||
| 90301-15014 |
GRN21# |
1 | ||
| 47960C - SPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) | ||||
| 90561-16009 |
GRN21# |
1 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-24010 |
GRN21# |
2 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-24010 |
GRN21# |
2 | ||
| 47963A - SHAFT, BRAKE BOOSTER PUMP | ||||
| 47963-24010 |
GRN21# |
1 | ||
| 47964A - WASHER, BRAKE BOOSTER PUMP | ||||
| 47964-24010 |
GRN21# |
2 | ||
| 47964A - WASHER, BRAKE BOOSTER PUMP | ||||
| 47964-24010 |
GRN21# |
2 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
GRN21#,UZN21# NO.1 |
2 | ||
| 47965-30010 |
GRN21#,UZN21# NO.2 |
1 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
GRN21#,UZN21# NO.1 |
2 | ||
| 47965-30010 |
GRN21#,UZN21# NO.2 |
1 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
GRN21#,UZN21# NO.1 |
2 | ||
| 47965-30010 |
GRN21#,UZN21# NO.2 |
1 | ||
| 47967A - BRACKET, BRAKE BOOSTER PUMP, NO.1 | ||||
| 47967-30020 |
GRN21# |
1 | ||
| 47967C - BRACKET, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47967-30030 |
GRN21# |
1 | ||
| 47967D - BRACKET, BRAKE BOOSTER PUMP, NO.3 | ||||
| 47967-30040 |
GRN21# |
1 | ||
| 47968A - BRACKET, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47968-30020 |
GRN21# |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-60010 |
GRN21# |
1 | ||
| 47997B - LABEL, ACCUMULATOR CAUTION, NO,2 | ||||
| 47997-60030 |
GRN21# |
1 | ||
| 89637D - SENSOR, OIL PRESSURE | ||||
| 89637-60020 |
GRN21#,UZN21# |
1 | ||
| 89639B - WIRE, BRAKE CONTROL | ||||
| 89639-30100 |
GRN21# |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08057 | ||||
| 90179-10065 | ||||
| 90464-00657 | ||||
| 91511-B0610 | ||||
| 91611-60665 | ||||
| 93319-15008 | ||||
| 94130-60500 | ||||
ILLUST NO. 2 OF 2(0208-0410)UZN21# ; (0211-0408)GRN21#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-60350 |
GRN21#,UZN21# |
1 | ||
