GRN215L-GKPGKA (2002)
Toyota 4runner

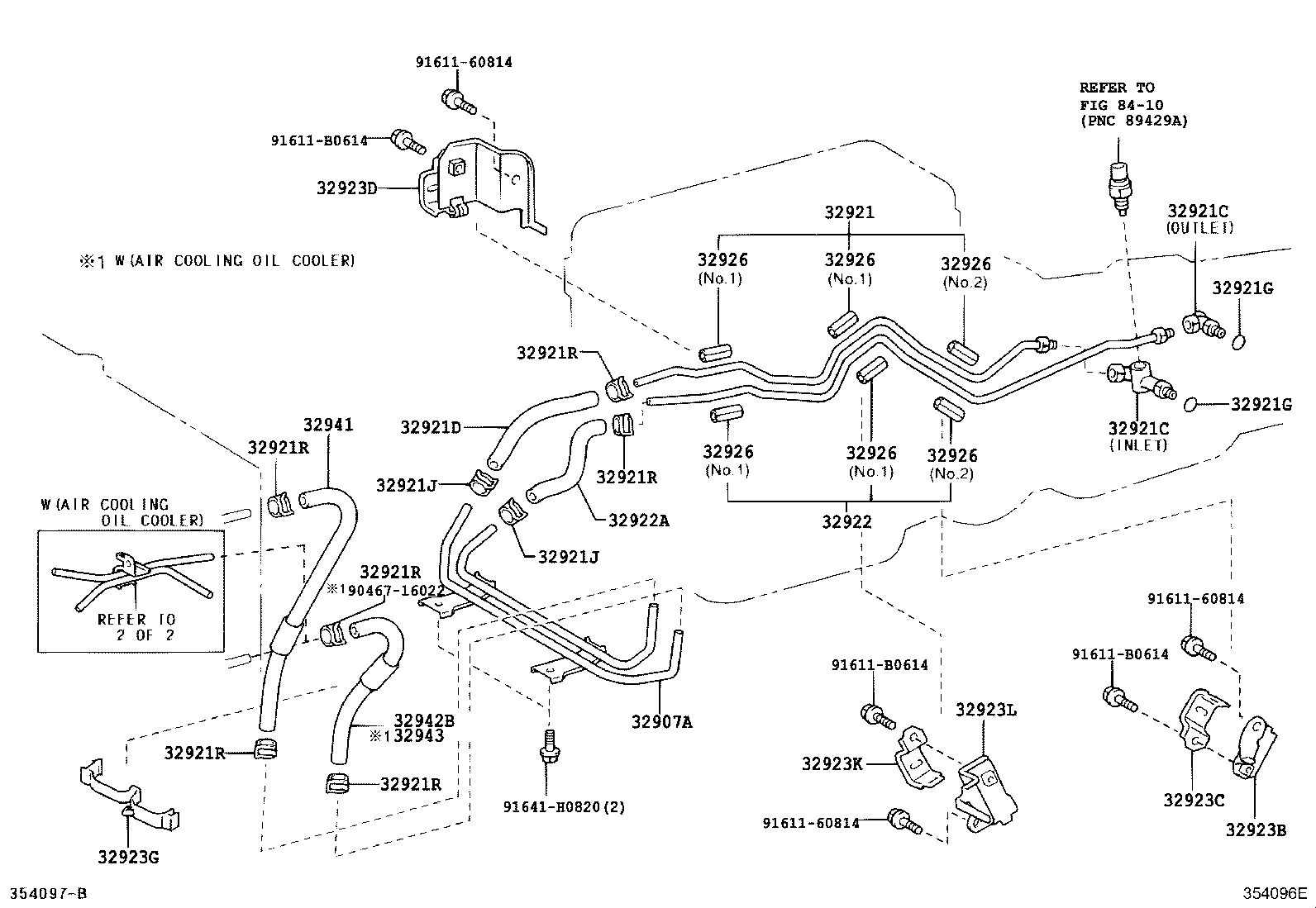

ILLUST NO. 1 OF 2(0211-0408)GRN21#
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907A - TUBE, OIL COOLER | ||||
| 32907-60070 |
GRN21# |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-60300 |
GRN21# |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
GRN21# INLET |
1 | ||
| 90904-07001 |
GRN21# OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
GRN21# INLET |
1 | ||
| 90904-07001 |
GRN21# OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17176 |
GRN21# |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
GRN21# |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
GRN21# |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GRN21#,UZN21# |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GRN21#,UZN21# |
2 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GRN21# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GRN21# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GRN21# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GRN21# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GRN21# |
6 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GRN21# |
6 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-60320 |
GRN21# |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-60400 |
GRN21# |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-60100 |
GRN21# |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32929-50010 |
GRN21# |
1 | ||
| 32923D - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5 | ||||
| 32909-60130 |
GRN21# |
1 | ||
| 32923G - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.8 | ||||
| 32928-60100 |
GRN21# |
1 | ||
| 32923K - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2 | ||||
| 32929-50010 |
GRN21# |
1 | ||
| 32923L - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3 | ||||
| 32924-60130 |
GRN21# |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GRN21# L=35,ID=10,NO.1 |
4 | ||
| 32926-30030 |
UZN21#;GRN21#..4FC L=35,ID=10,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GRN21# L=35,ID=10,NO.1 |
4 | ||
| 32926-30030 |
UZN21#;GRN21#..4FC L=35,ID=10,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GRN21# L=35,ID=10,NO.1 |
4 | ||
| 32926-30030 |
UZN21#;GRN21#..4FC L=35,ID=10,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GRN21# L=35,ID=10,NO.1 |
4 | ||
| 32926-30030 |
UZN21#;GRN21#..4FC L=35,ID=10,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GRN21# L=35,ID=10,NO.1 |
4 | ||
| 32926-30030 |
UZN21#;GRN21#..4FC L=35,ID=10,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GRN21# L=35,ID=10,NO.1 |
4 | ||
| 32926-30030 |
UZN21#;GRN21#..4FC L=35,ID=10,NO.2 |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-60280 |
GRN21# |
1 | ||
| 32942B - HOSE, OIL COOLER OUTLET, NO.3 | ||||
| 32942-60390 |
GRN21# |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-60270 |
GRN21# TOWING PACKAGE-WITH |
1 | ||
| 32943-60270 |
GRN21# TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH |
1 | ||
| Common parts | ||||
| 90467-16022 | ||||
| 91611-60814 | ||||
| 91611-B0614 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 8410 | ||||

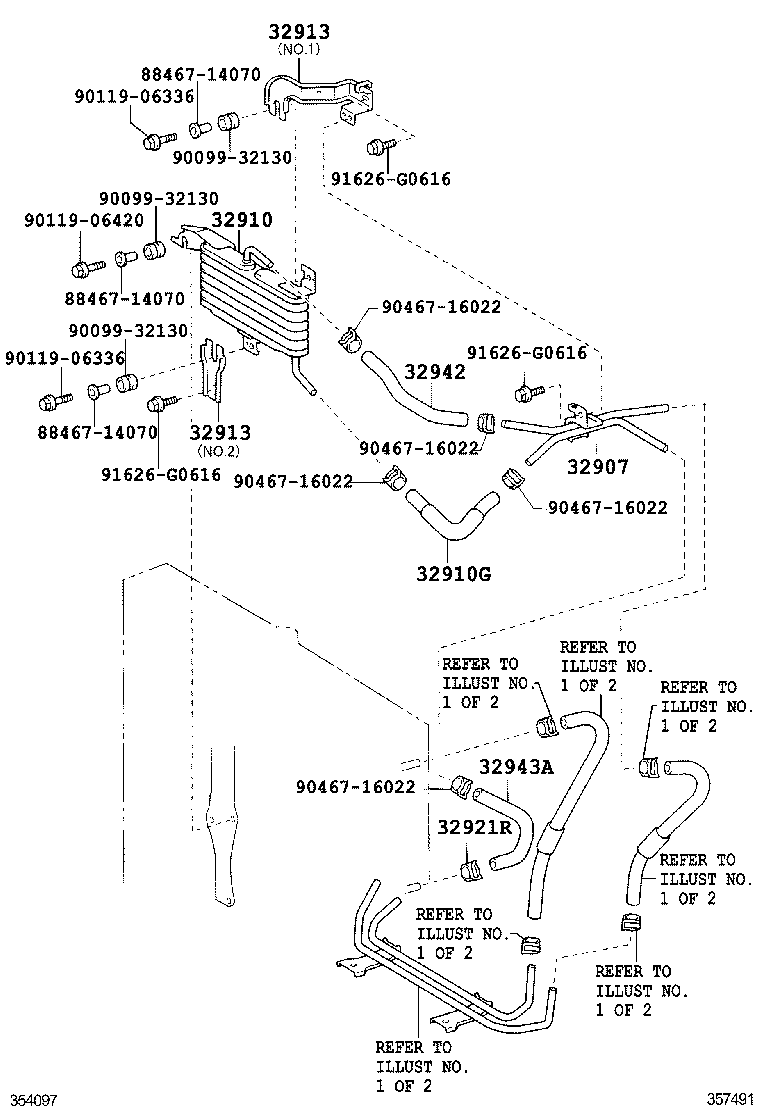

ILLUST NO. 2 OF 2(0211-0308)GRN21# ; (0408-0508)GRN21#
A340E,A340F AIR COOLING OIL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-60090 |
GRN21# TOWING PACKAGE-WITH |
1 | ||
| 32907-60090 |
GRN21# TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-60150 |
GRN21# TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH |
1 | ||
| 32910-60150 |
GRN21# TOWING PACKAGE-WITH |
1 | ||
| 32910G - HOSE, OIL COOLER OUTLET | ||||
| 32943-60320 |
GRN21# TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH |
1 | ||
| 32943-60320 |
GRN21# TOWING PACKAGE-WITH |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60250 |
GRN21# TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,NO.2 |
1 | ||
| 32913-60240 |
GRN21# TOWING PACKAGE-WITH,NO.1 |
1 | ||
| 32913-60240 |
GRN21# TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,NO.1 |
1 | ||
| 32913-60250 |
GRN21# TOWING PACKAGE-WITH,NO.2 |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60250 |
GRN21# TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,NO.2 |
1 | ||
| 32913-60240 |
GRN21# TOWING PACKAGE-WITH,NO.1 |
1 | ||
| 32913-60240 |
GRN21# TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,NO.1 |
1 | ||
| 32913-60250 |
GRN21# TOWING PACKAGE-WITH,NO.2 |
1 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GRN21# |
6 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-60410 |
GRN21# TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH |
1 | ||
| 32942-60410 |
GRN21# TOWING PACKAGE-WITH |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32943-60280 |
GRN21# TOWING PACKAGE-WITH |
1 | ||
| 32943-60280 |
GRN21# TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90119-06420 | ||||
| 90467-16022 | ||||
| 91626-G0616 | ||||
