GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211-0408)GRN21#

Click highlighted areas on diagram

A340E,A340F

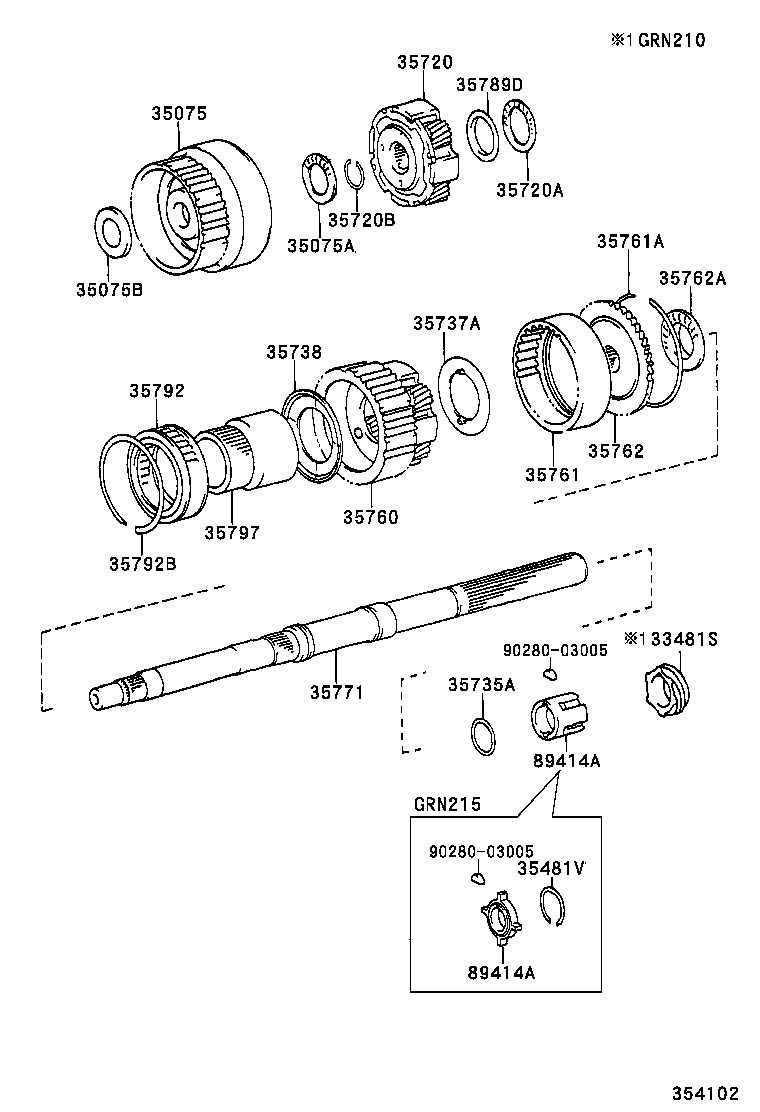

diagram 33481S 35075 35075A 35075B 35481V 35720 35720A 35720B 35735A 35737A 35738 35760 35761 35761A 35762 35762A 35771 35789D 35792 35792B 35797 89414A 89414A 9028003005 9028003005
Part # Description Qty Price
35075 - GEAR SUB-ASSY, FRONT PLANETARY RING
35075-60010

GRN21#

 1
35075A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING
90374-49004

GRN21#

 1
35075B - RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRO
35789-30210

GRN21#

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-29004

GRN215

T=1.50,OD=34.8

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-30100

GRN21#

 1
35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR
90374-35005

GRN21#

 1
35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)
90520-24026

GRN21#

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-30020

GRN21#

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-30030

GRN21#

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35739-30030

GRN21#

 1
35760 - GEAR ASSY, REAR PLANETARY
35705-14010

GRN21#

 1
35761 - GEAR, REAR PLANETARY RING
35761-30020

GRN21#

 1
35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
90521-99024

GRN21#

 1
35762 - FLANGE, REAR PLANETARY RING GEAR
35762-30040

GRN21#

 1
35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG
90374-38003

GRN21#

 1
35771 - SHAFT, OUTPUT
35073-34010

GRN215

 1
35789D - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)
35789-30200

GRN21#

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-14020

GRN21#

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-87001

GRN21#

 1
35797 - RACE, 1 WAY CLUTCH INNER
35797-50010

GRN21#

 1
89414A - ROTOR, SENSOR
35736-34010

GRN215

 1
89414A - ROTOR, SENSOR
35736-34010

GRN215

 1
Common parts
90280-03005
