GRN215L-GKPGKA (2002)
Toyota 4runner
Production
Nov 2002
-
Aug 2004
Engine
1GRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0211-0408)GRN215

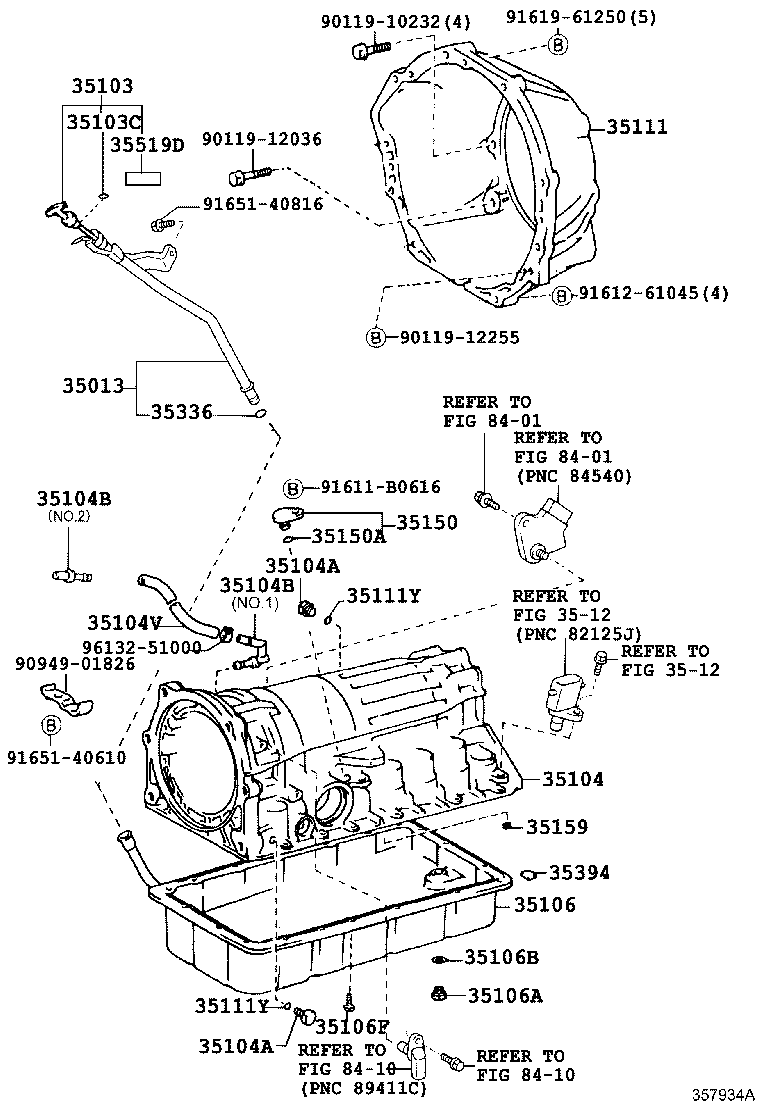

Click highlighted areas on diagram
A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-60260 |
GRN21# |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-60190 |
GRN21# |
1 | ||
| 35103C - RING, O | ||||
| 90301-09009 |
GRN21# |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26060 |
GRN21# |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GRN21# |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GRN21# |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03168 |
GRN215 NO.2 |
1 | ||
| 90930-03098 |
GRN215 NO.1 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03168 |
GRN215 NO.2 |
1 | ||
| 90930-03098 |
GRN215 NO.1 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11118 |
GRN215 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-60140 |
GRN21# |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
GRN21# |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-50010 |
GRN21# |
1 | ||
| 35178-30010 |
GRN21# |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
GRN21# |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-35100 |
GRN21# |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GRN21# |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GRN21# |
2 | ||
| 35150 - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-30010 |
GRN21# |
1 | ||
| 35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) | ||||
| 90301-09012 |
GRN21# |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
GRN21# |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09011 |
GRN21# |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GRN21# |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20030 |
GRN21# |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 90119-12255 | ||||
| 90949-01826 | ||||
| 91611-B0616 | ||||
| 91612-61045 | ||||
| 91619-61250 | ||||
| 91651-40610 | ||||
| 91651-40816 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3512 | ||||
| 8401 | ||||
| 8410 | ||||
