GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

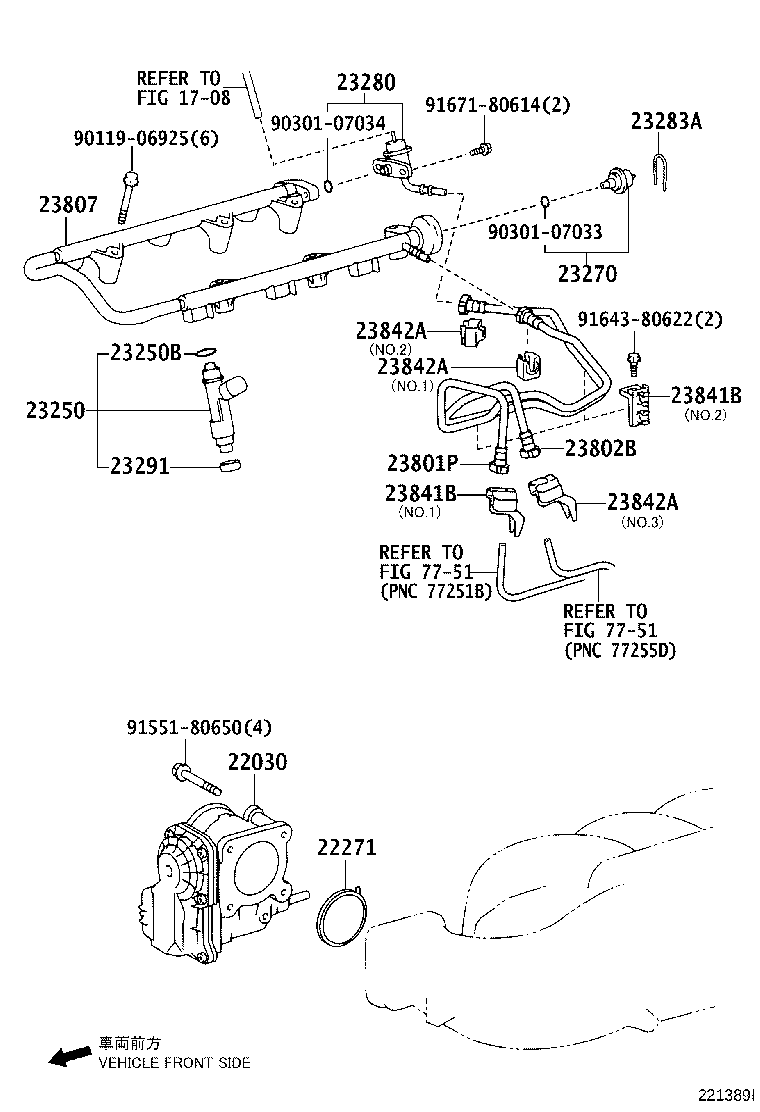

ILLUST NO. 1 OF 2(0211- )1GRFE

Click highlighted areas on diagram

diagram 1708 22030 22271 23250 23250B 23270 23280 23283A 23291 23801P 23802B 23807 23841B 23841B 23842A 23842A 23842A 7751 7751 9011906925 9030107033 9030107034 9155180650 9164380622 9167180614
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-31010

1GRFE..GRN21#

 1
22271 - GASKET, THROTTLE BODY
22271-31011

1GRFE..GRN21#

 1
23250B - RING, O(FOR FUEL INJECTOR)
90301-07033

1GRFE..GRN21#

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-31010

1GRFE..GRN21#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-31010

1GRFE..GRN21#

 1
23283A - HOLDER, FUEL PRESSURE REGULATOR
23283-31010

1GRFE..GRN21#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

1GRFE..GRN21#

 6
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-31070

1GRFE..GRN21#

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-31020

1GRFE..GRN21#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-31010

1GRFE..GRN21#

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-31030

1GRFE..GRN21#

NO.2

 2
23841-28010

1GRFE..GRN21#

NO.1

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-31030

1GRFE..GRN21#

NO.2

 2
23841-28010

1GRFE..GRN21#

NO.1

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-31020

1GRFE..GRN21#

NO.1

 1
23842-50010

1GRFE..GRN21#

NO.3

 1
23842-31030

1GRFE..GRN21#

NO.2

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-31020

1GRFE..GRN21#

NO.1

 1
23842-50010

1GRFE..GRN21#

NO.3

 1
23842-31030

1GRFE..GRN21#

NO.2

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-31020

1GRFE..GRN21#

NO.1

 1
23842-50010

1GRFE..GRN21#

NO.3

 1
23842-31030

1GRFE..GRN21#

NO.2

 1
Common parts
90119-06925
90301-07033
90301-07034
91551-80650
91643-80622
91671-80614
Linked diagrams
1708
7751

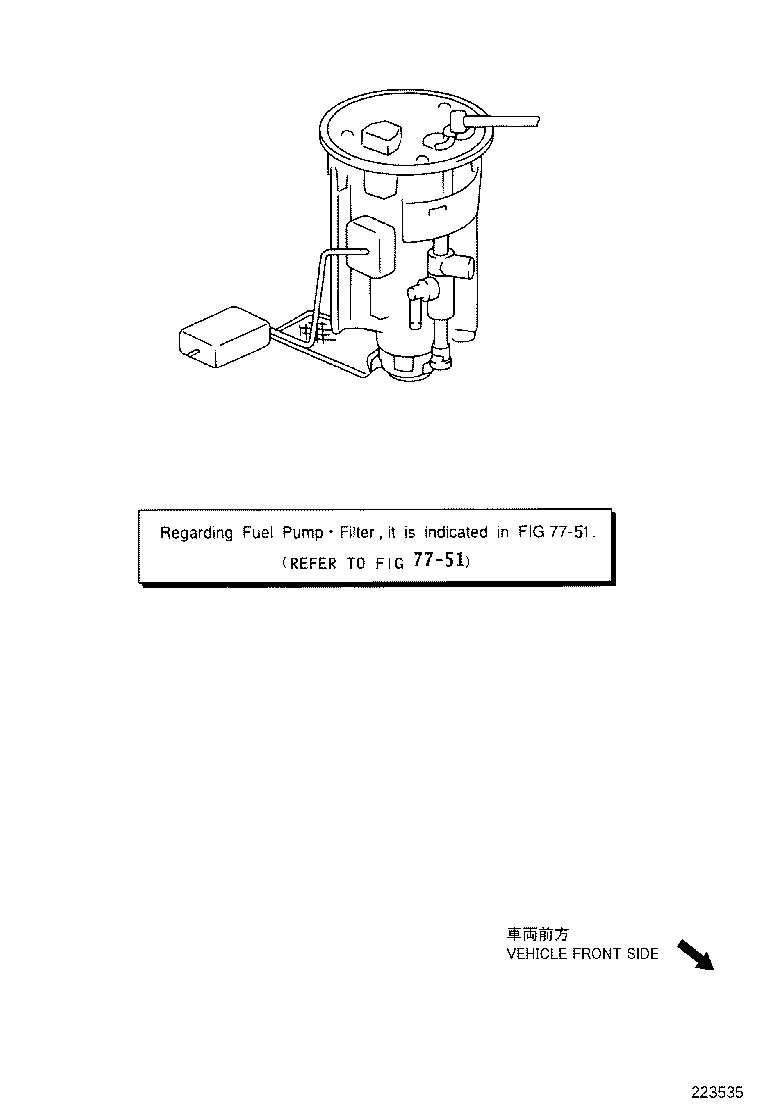

ILLUST NO. 2 OF 2(0211- )1GRFE
