GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )1GRFE

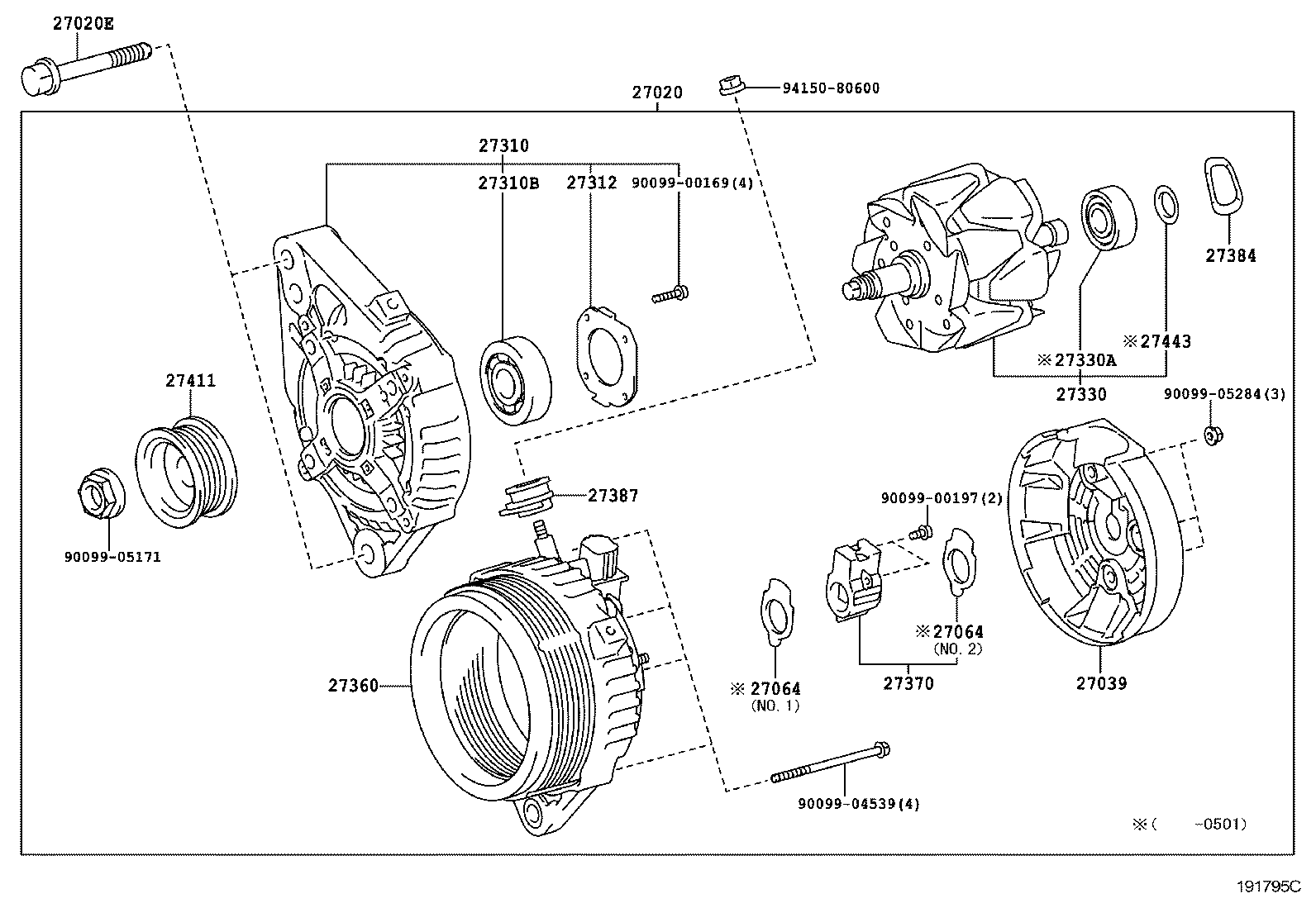

Click highlighted areas on diagram

12V 130A

diagram 27020 27020E 27039 27064 27064 27310 27310B 27312 27330 27330A 27360 27370 27384 27387 27411 27443 9009900169 9009900197 9009904539 9009905171 9009905284 9415080600
Part # Description Qty Price
27020E - BOLT(FOR ALTERNATOR)
91642-81065

1GRFE..GRN21#

 2
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1GRFE..GRN21#

NO.1

 1
27064-20130

1GRFE..GRN21#

NO.2

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1GRFE..GRN21#

NO.1

 1
27064-20130

1GRFE..GRN21#

NO.2

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-31210

1GRFE..GRN21#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

1GRFE,2UZFE..GRN21#,UZN21#

 1
27312 - PLATE, RETAINER
27312-72100

1GRFE..GRN21#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1GRFE..GRN21#

 1
27384 - WASHER
27384-50030

1GRFE..GRN21#

 1
27387 - INSULATOR, TERMINAL
27387-20130

1GRFE..GRN21#

 1
27411 - PULLEY, ALTERNATOR
27411-31210

1GRFE..GRN21#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1GRFE..GRN21#

 1
Common parts
90099-00169
90099-00197
90099-04539
90099-05171
90099-05284
94150-80600
