GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )1GRFE

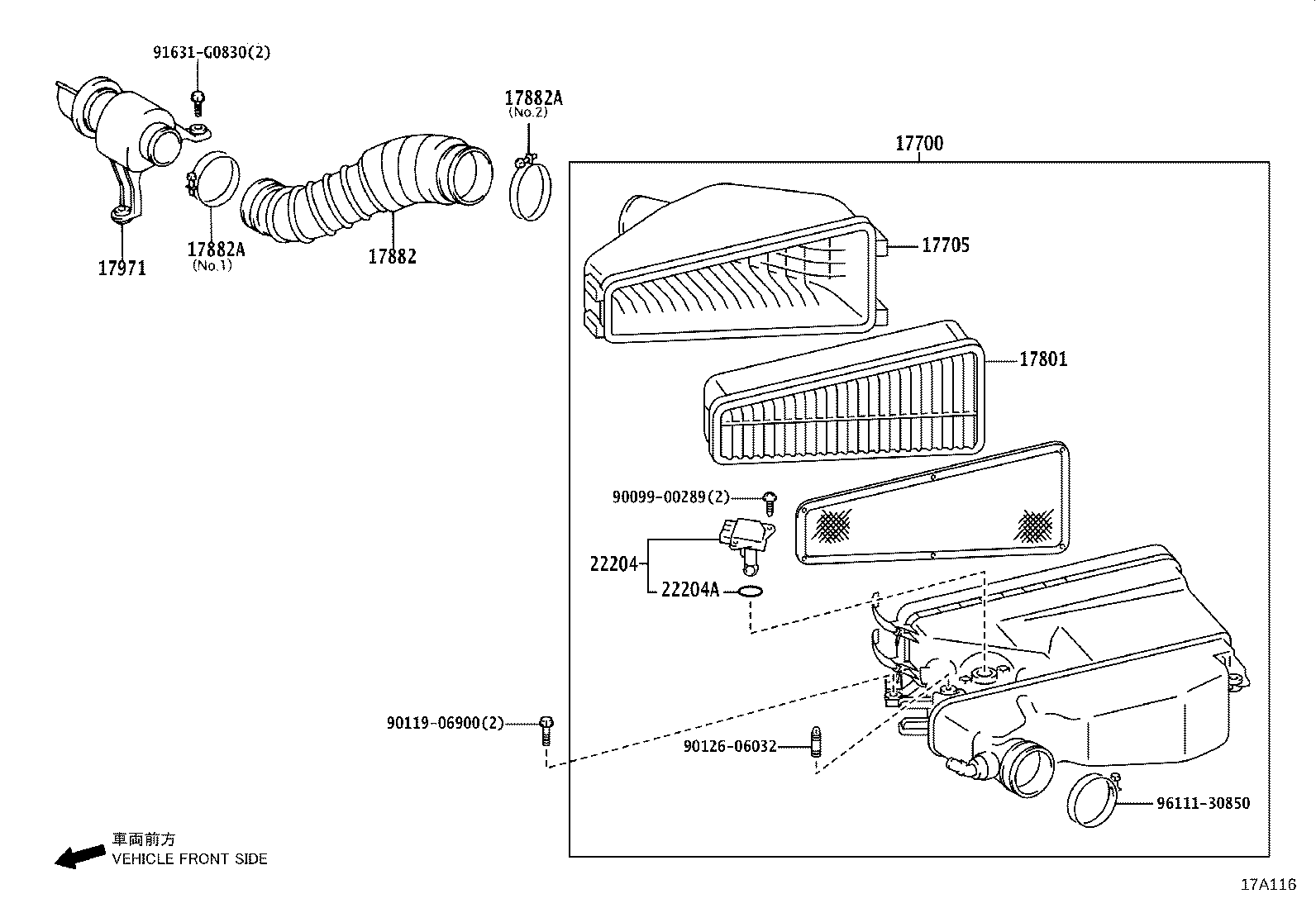

Click highlighted areas on diagram

diagram 17700 17705 17801 17882 17882A 17882A 17971 22204 22204A 9009900289 9011906900 9012606032 91631G0830 9611130850
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-31530

1GRFE..GRN21#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31090

1GRFE..GRN21#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31090

1GRFE..GRN21#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-31080

1GRFE..GRN21#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-31120

1GRFE..GRN21#

NO.2

 1
96111-30980

1GRFE..GRN21#

NO.1

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-31120

1GRFE..GRN21#

NO.2

 1
96111-30980

1GRFE..GRN21#

NO.1

 1
17971 - INLET, COOL AIR, NO.1
17971-31010

1GRFE..GRN21#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010

1GRFE..GRN21#

 1
22204A - RING, O(FOR INTAKE AIR FLOW METER)
90099-14141

1GRFE..GRN21#

 1
Common parts
90099-00289
90119-06900
90126-06032
91631-G0830
96111-30850
