GRN215L-GKPGKA (2002)

Toyota 4runner

Production Nov 2002 - Aug 2004
Engine 1GRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )1GRFE

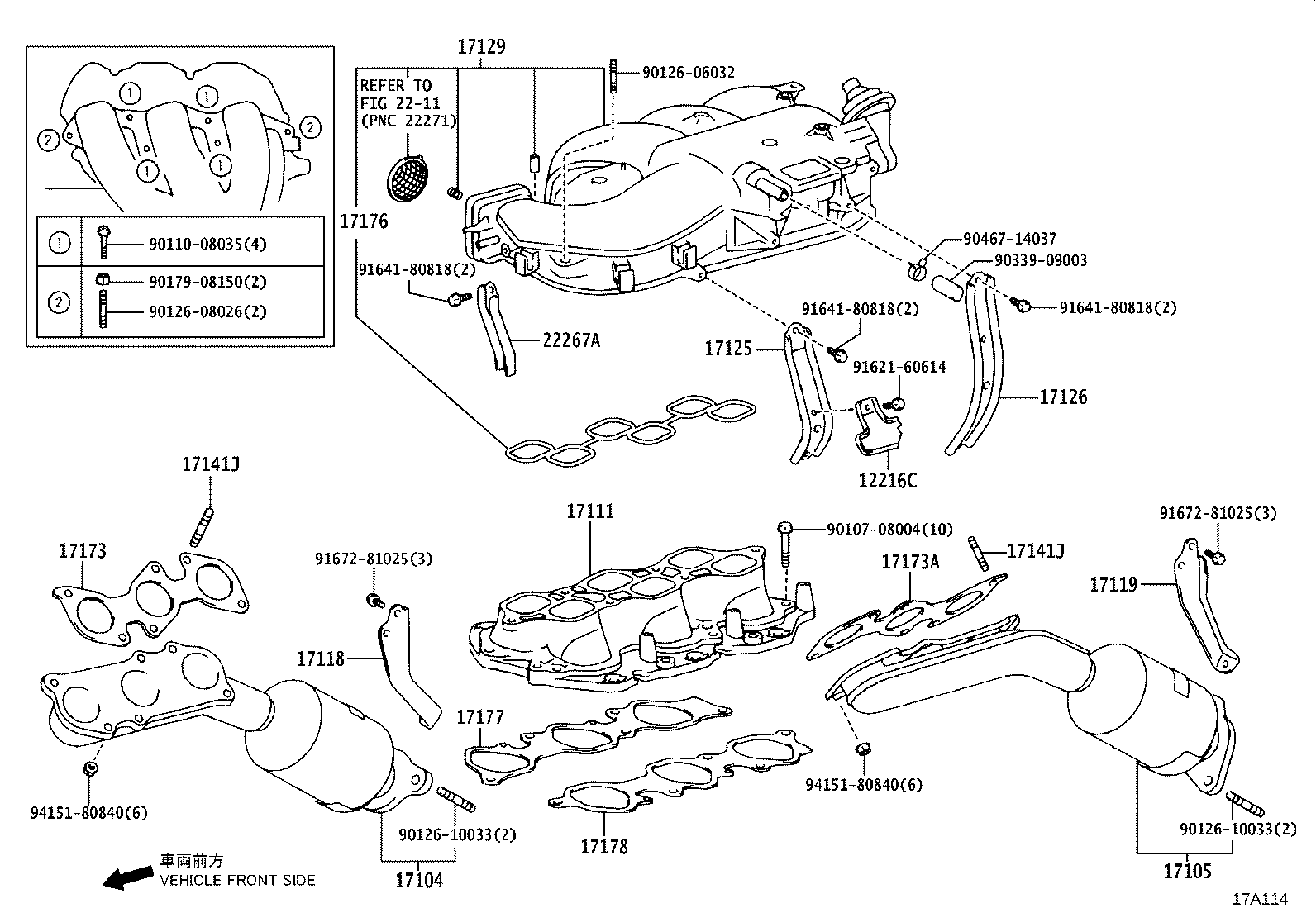

Click highlighted areas on diagram

diagram 12216C 17104 17105 17111 17118 17119 17125 17126 17129 17141J 17141J 17173 17173A 17176 17177 17178 2211 22267A 9010708004 9011008035 9012606032 9012608026 9012610033 9012610033 9017908150 9033909003 9046714037 9162160614 9164180818 9164180818 9164180818 9167281025 9167281025 9415180840 9415180840
Part # Description Qty Price
12216C - PLATE, OIL BAFFLE
12216-31010

1GRFE..GRN21#

 1
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-31010

1GRFE..GRN21#

*115=TOYOTA/03-/Y

 1
17140-31011

1GRFE..GRN21#

*115=TOYOTA/03-/Y

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-31011

1GRFE..GRN21#

*115=TOYOTA/03-/Y

 1
17150-31010

1GRFE..GRN21#

*115=TOYOTA/03-/Y

 1
17111 - MANIFOLD, INTAKE
17101-31010

1GRFE..GRN21#

 1
17118 - STAY, MANIFOLD
17118-31010

1GRFE..GRN21#

 1
17119 - STAY, MANIFOLD, NO.2
17119-31010

1GRFE..GRN21#

 1
17125 - STAY, SURGE TANK, NO.1
17125-31010

1GRFE..GRN21#

 1
17126 - STAY, SURGE TANK, NO.2
17126-31010

1GRFE..GRN21#

 1
17129 - TANK, INTAKE AIR SURGE
17109-31010

1GRFE..GRN21#

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-08052

1GRFE..GRN21#

 12
90126-08037

1GRFE..GRN21#

 12
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-08052

1GRFE..GRN21#

 12
90126-08037

1GRFE..GRN21#

 12
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-31010

1GRFE..GRN21#

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-31010

1GRFE..GRN21#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31010

1GRFE..GRN21#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31010

1GRFE..GRN21#

 1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-31010

1GRFE..GRN21#

 1
22267A - BRACKET, THROTTLE BODY
22267-31010

1GRFE..GRN21#

 1
Common parts
90107-08004
90110-08035
90126-06032
90126-08026
90126-10033
90179-08150
90339-09003
90467-14037
91621-60614
91641-80818
91672-81025
94151-80840
Linked diagrams
2211
