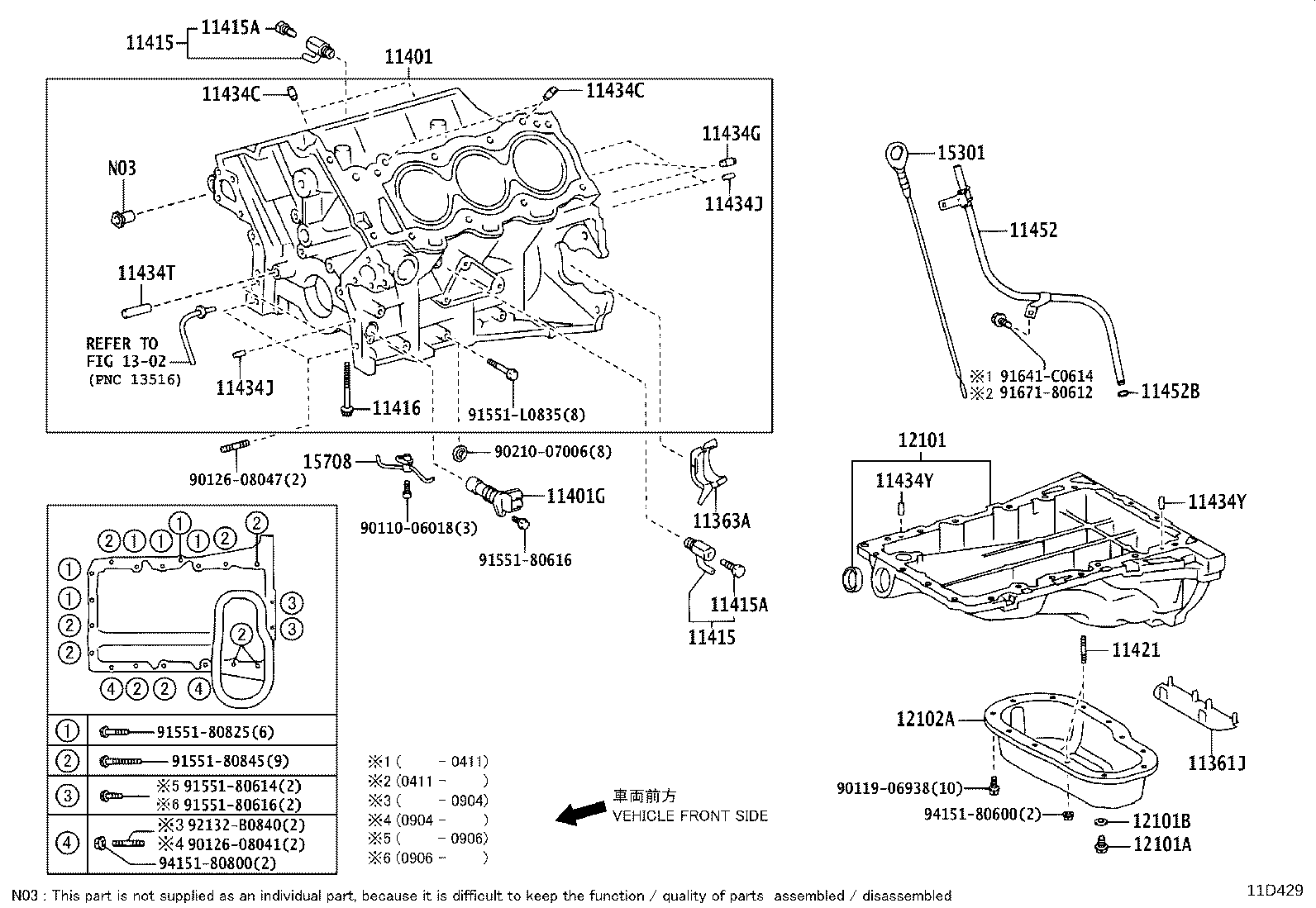

GRN215L-GKPGKA (2002)
Toyota 4runner
(0211-0406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-31040 |
1GRFE..GRN21# |
1 | ||
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-31020 |
1GRFE..GRN21# |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-39575 |
1GRFE..GRN21# |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09125 |
1GRFE..GRN21# |
2 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09125 |
1GRFE..GRN21# |
2 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1GRFE..GRN21# |
2 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1GRFE..GRN21# |
2 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02072 |
1GRFE..GRN21# |
16 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90126-06028 |
1GRFE..GRN21# |
2 | ||
| 90126-06015 |
1GRFE..GRN21# |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
1GRFE..GRN21# L=18,OD=8 |
4 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
1GRFE..GRN21# L=18,OD=8 |
4 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10113 |
1GRFE..GRN21# |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90250-04097 |
1GRFE..GRN21# |
4 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90250-04097 |
1GRFE..GRN21# |
4 | ||
| 11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET) | ||||
| 90250-10030 |
1GRFE..GRN21# |
1 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-04097 |
1GRFE..GRN21# |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-04097 |
1GRFE..GRN21# |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-31030 |
1GRFE..GRN21# |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1GRFE..GRN21# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-31070 |
1GRFE..GRN21# |
1 | ||
| 12101-31071 |
1GRFE..GRN21# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1GRFE..GRN21# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1GRFE..GRN21# |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-31010 |
1GRFE..GRN21# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-31060 |
1GRFE..GRN21# |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-31020 |
1GRFE..GRN21# |
3 | ||
| Common parts | ||||
| 90110-06018 | ||||
| 90119-06938 | ||||
| 90126-06015 | ||||
| 90126-08047 | ||||
| 90210-07006 | ||||
| 91511-K0840 | ||||
| 91551-80614 | ||||
| 91551-80616 | ||||
| 91551-80825 | ||||
| 91551-L0835 | ||||
| 91641-C0614 | ||||
| 92122-60845 | ||||
| 92132-B0840 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1302 | ||||
(0406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-31040 |
1GRFE..GRN21# |
1 | ||
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-31020 |
1GRFE..GRN21# |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-39575 |
1GRFE..GRN21# |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09125 |
1GRFE..GRN21# |
2 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09125 |
1GRFE..GRN21# |
2 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1GRFE..GRN21# |
2 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1GRFE..GRN21# |
2 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02072 |
1GRFE..GRN21# |
16 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90126-06028 |
1GRFE..GRN21# |
2 | ||
| 90126-06015 |
1GRFE..GRN21# |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
1GRFE..GRN21# L=18,OD=8 |
4 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
1GRFE..GRN21# L=18,OD=8 |
4 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10113 |
1GRFE..GRN21# |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90250-04097 |
1GRFE..GRN21# |
4 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90250-04097 |
1GRFE..GRN21# |
4 | ||
| 11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET) | ||||
| 90250-10030 |
1GRFE..GRN21# |
1 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-04097 |
1GRFE..GRN21# |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-04097 |
1GRFE..GRN21# |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-31030 |
1GRFE..GRN21# |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1GRFE..GRN21# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-31070 |
1GRFE..GRN21# |
1 | ||
| 12101-31071 |
1GRFE..GRN21# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1GRFE..GRN21# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1GRFE..GRN21# |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-31010 |
1GRFE..GRN21# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-31060 |
1GRFE..GRN21# |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-31020 |
1GRFE..GRN21# |
3 | ||
| Common parts | ||||
| 90110-06018 | ||||
| 90119-06938 | ||||
| 90126-08041 | ||||
| 90126-08047 | ||||
| 90210-07006 | ||||
| 91551-80614 | ||||
| 91551-80616 | ||||
| 91551-80825 | ||||
| 91551-80845 | ||||
| 91551-L0835 | ||||
| 91641-C0614 | ||||
| 91671-80612 | ||||
| 92132-B0840 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1302 | ||||
