GRN215L-GKAZKA (2005)

Toyota 4runner

Production Aug 2005 - Aug 2009
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )

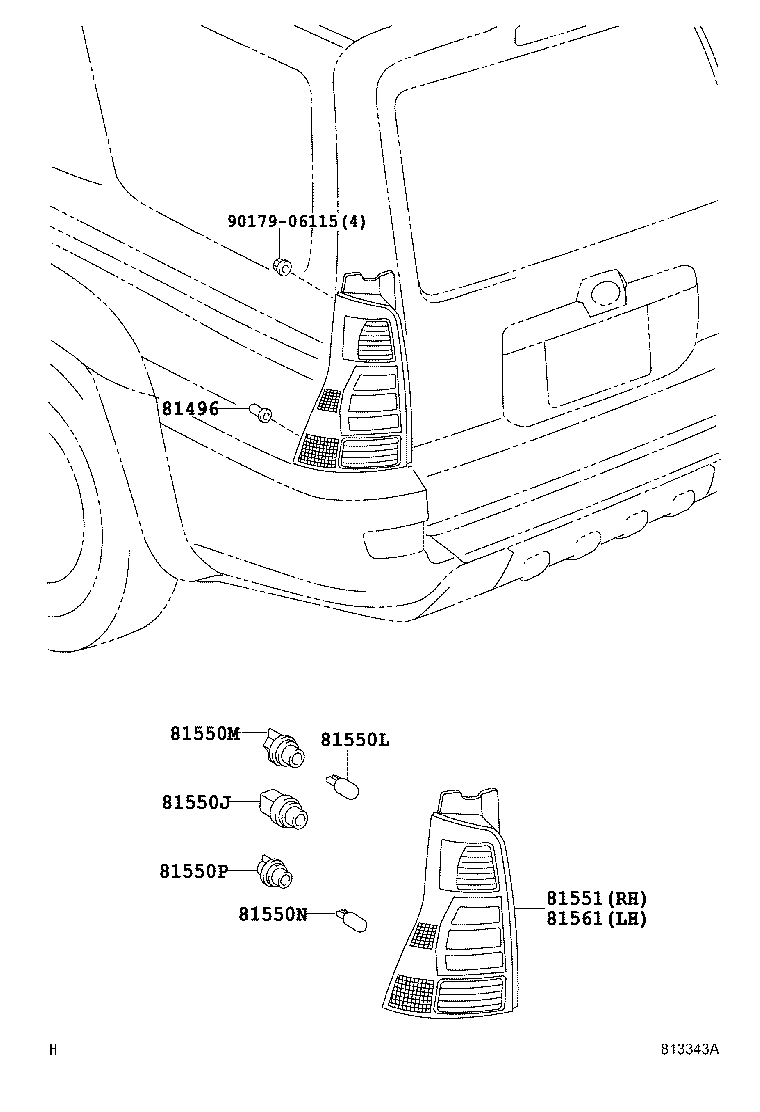

Click highlighted areas on diagram

diagram 81496 81550J 81550L 81550M 81550N 81550P 81551 81561 9017906115
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-12020

GRN21#,UZN21#..5FC

 2
81496-12020

GRN21#

 2
81496-12020

GRN21#,UZN21#

 2
81550J - SOCKET, TAIL & STOP LAMP
90075-60018

GRN21#,UZN21#

 2
90075-60018

GRN21#,UZN21#

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021

GRN21#,UZN21#

12V 21W,AMBER

 2
90981-15011

GRN21#,UZN21#

12V 21W,AMBER

 2
81550M - SOCKET, REAR TURN SIGNAL LAMP
90075-60057

GRN21#,UZN21#

 2
90075-60057

GRN21#,UZN21#

 2
81550N - BULB, BACK UP LAMP
90981-11059

GRN21#,UZN21#

12V 16W

 2
90981-11059

GRN21#,UZN21#

12V 16W

 2
81550P - SOCKET, BACK UP LAMP
90075-60035

GRN21#,UZN21#

 2
90075-60035

GRN21#,UZN21#

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-35310

GRN21#,UZN21#..5FC

 1
81551-35310

GRN21#

 1
81551-35320

GRN21#,UZN21#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-35270

GRN21#

 1
81561-35270

GRN21#,UZN21#..5FC

 1
81561-35280

GRN21#,UZN21#

 1
Common parts
90179-06115
