GRN215L-GKAZKA (2005)
Toyota 4runner

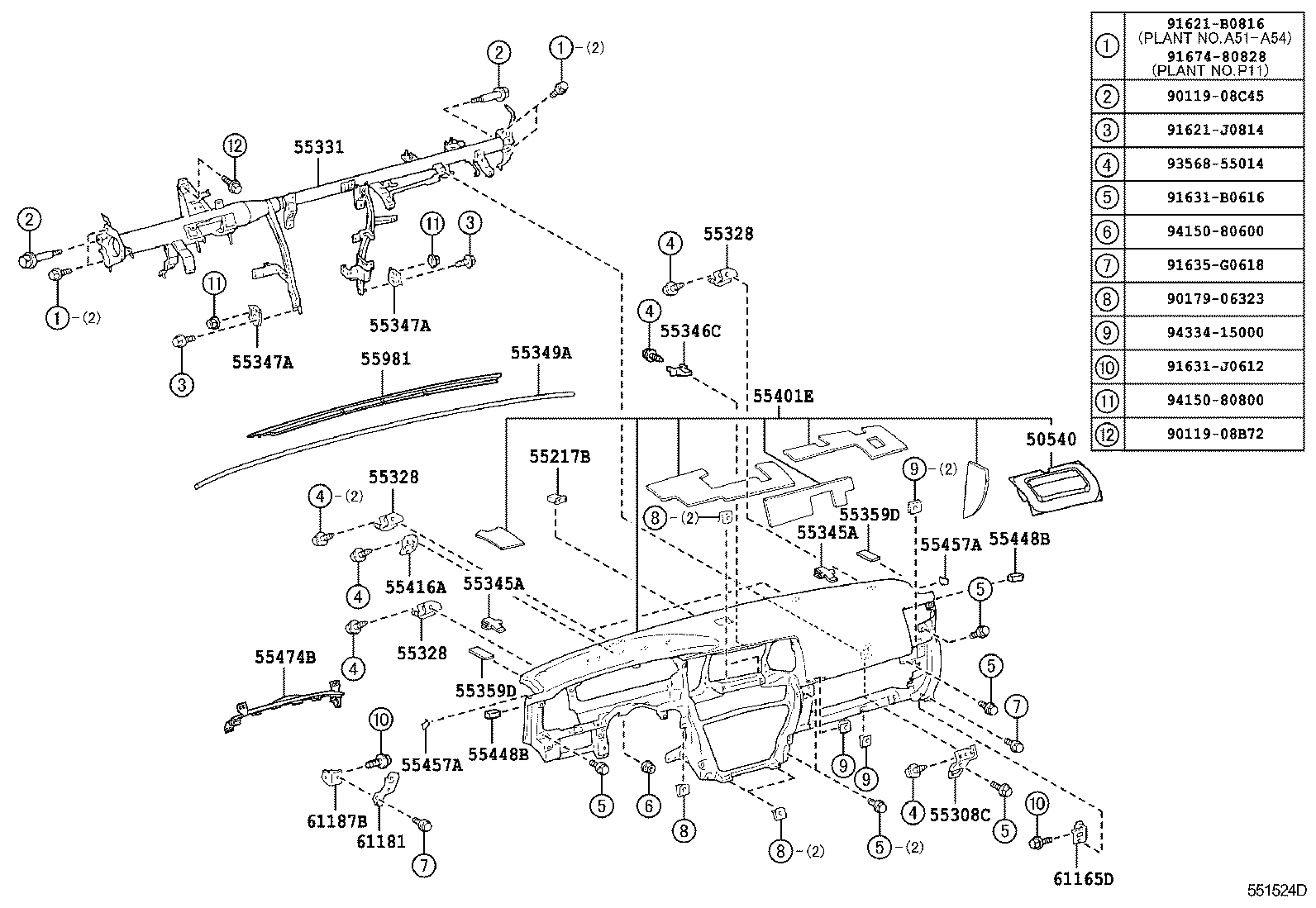

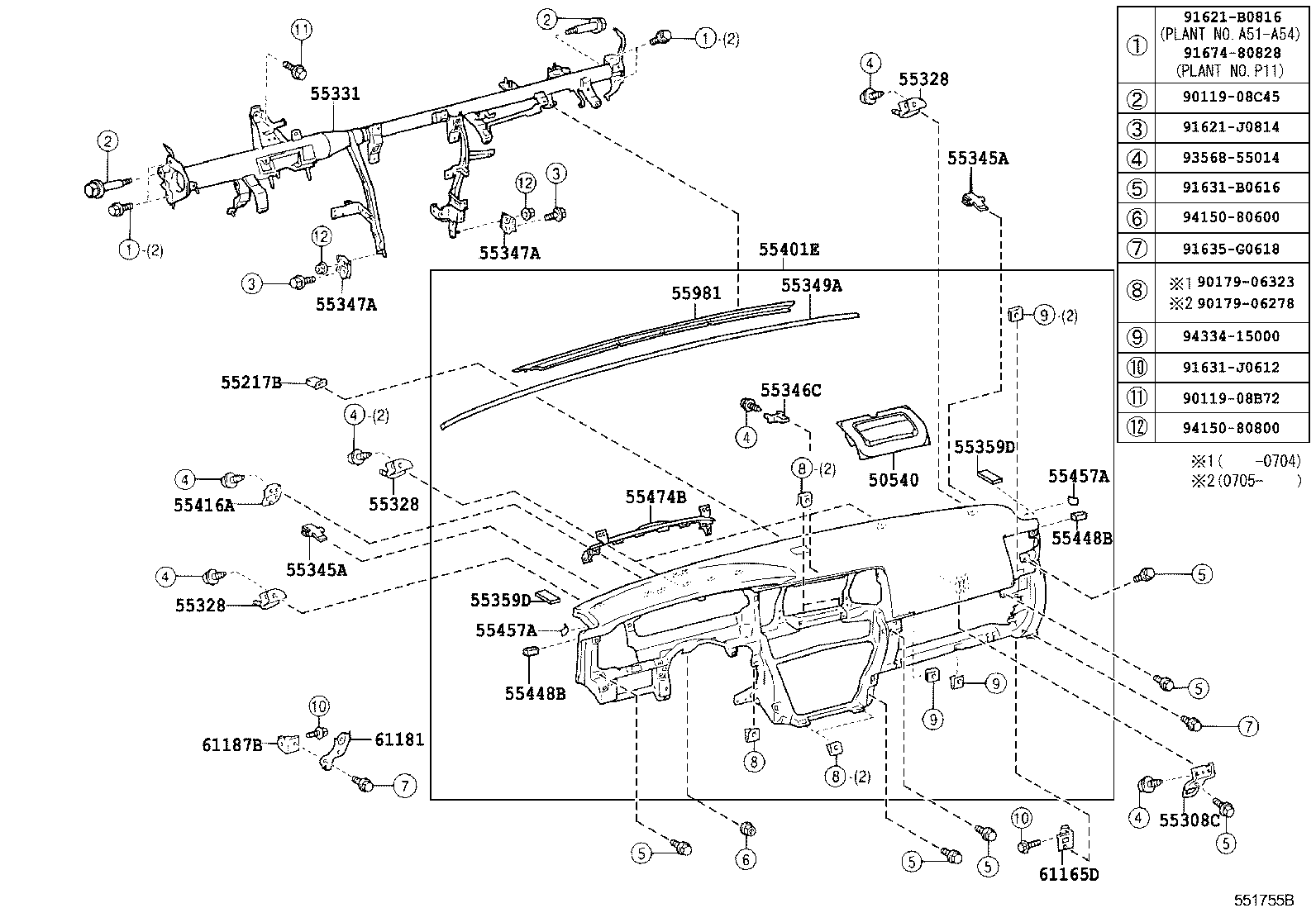

ILLUST NO. 1 OF 2(0508-0605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 50540-35050 |
GRN21#,UZN21# |
1 | ||
| 50540-35070 |
GRN21#,UZN21# |
1 | ||
| 55217B - RETAINER, DASH PANEL SILENCER | ||||
| 55217-35020 |
GRN21#,UZN21# |
5 | ||
| 55217-35020 |
GRN21#,UZN21# |
5 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-35030 |
GRN21# |
1 | ||
| 55308-35030 |
GRN21#,UZN21#..5FC |
1 | ||
| 55308-35050 |
GRN21#,UZN21# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-35060 |
GRN21#,UZN21# |
4 | ||
| 55328-35050 |
GRN21#,UZN21# NO.2 |
2 | ||
| 55328-35030 |
GRN21#,UZN21# NO.1 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-35060 |
GRN21#,UZN21# |
4 | ||
| 55328-35050 |
GRN21#,UZN21# NO.2 |
2 | ||
| 55328-35030 |
GRN21#,UZN21# NO.1 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-35060 |
GRN21#,UZN21# |
4 | ||
| 55328-35050 |
GRN21#,UZN21# NO.2 |
2 | ||
| 55328-35030 |
GRN21#,UZN21# NO.1 |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-35160 |
GRN21#,UZN21# |
1 | ||
| 55330-35190 |
GRN21#,UZN21# |
1 | ||
| 55330-35140 |
GRN21#,UZN21#..5FC |
1 | ||
| 55330-35140 |
GRN21# |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-35020 |
GRN21#,UZN21# |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-35020 |
GRN21#,UZN21# |
1 | ||
| 55346C - PIN, INSTRUMENT PANEL | ||||
| 55346-35010 |
GRN21#,UZN21# |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-35050 |
GRN21# |
2 | ||
| 55347-35050 |
GRN21#,UZN21#..5FC |
2 | ||
| 55347-35050 |
GRN21#,UZN21# |
2 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-35050 |
GRN21# |
2 | ||
| 55347-35050 |
GRN21#,UZN21#..5FC |
2 | ||
| 55347-35050 |
GRN21#,UZN21# |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-35040 |
GRN21#,UZN21# |
1 | ||
| 55349-35040 |
GRN21#,UZN21# |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-35020 |
GRN21#,UZN21# |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-35020 |
GRN21#,UZN21# |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-35900B0 |
GRN21#,UZN21#..LIMD STONE,TRIM1# |
1 | ||
| 55401-35901B0 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),STONE,TRIM1# |
1 | ||
| 55401-35901B0 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),STONE,TRIM1# |
1 | ||
| 55401-35901B1 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD),FAWN,TRIM4# |
1 | ||
| 55401-35900B1 |
GRN21#,UZN21# FAWN,TRIM4# |
1 | ||
| 55401-35901B1 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),FAWN,TRIM4# |
1 | ||
| 55401-35901B1 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),FAWN,TRIM4# |
1 | ||
| 55401-35901B0 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD),STONE,TRIM1# |
1 | ||
| 55401-35912B0 |
GRN21#,UZN21# STONE,TRIM1# |
1 | ||
| 55401-35912B1 |
GRN21#,UZN21# FAWN,TRIM42 |
1 | ||
| 55401-35913B0 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH),STONE,TRIM12 |
1 | ||
| 55401-35070B0 |
GRN21#,UZN21#..LIMD STONE,TRIM12 |
1 | ||
| 55401-35913B0 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-05AVN(AM/FM,CD 8SP(JBL)),STONE,TRIM12 |
1 | ||
| 55401-35913B1 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-05AVN(AM/FM,CD 8SP(JBL)),FAWN,TRIM4# |
1 | ||
| 55401-35080B0 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH),STONE,TRIM1# |
1 | ||
| 55401-35080B0 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-05AVN(AM/FM,CD 8SP(JBL)),STONE,TRIM1# |
1 | ||
| 55401-35913B1 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH),FAWN,TRIM4# |
1 | ||
| 55401-35080B1 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH),FAWN,TRIM42 |
1 | ||
| 55401-35070B1 |
GRN21#,UZN21#..LIMD FAWN,TRIM4# |
1 | ||
| 55401-35080B1 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-05AVN(AM/FM,CD 8SP(JBL)),FAWN,TRIM42 |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-35010 |
GRN21# |
1 | ||
| 55416-35010 |
GRN21#,UZN21# |
1 | ||
| 55416-35010 |
GRN21#,UZN21#..5FC |
1 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-35020 |
GRN21#,UZN21# |
2 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-35020 |
GRN21#,UZN21# |
2 | ||
| 55457A - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-35010 |
GRN21#,UZN21# |
2 | ||
| 55457-35010 |
GRN21#,UZN21# |
2 | ||
| 55457A - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-35010 |
GRN21#,UZN21# |
2 | ||
| 55457-35010 |
GRN21#,UZN21# |
2 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-35020B1 |
GRN21#,UZN21# DK.GRAY,TRIM1#,4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-35010B1 |
GRN21#,UZN21# DK.GRAY,TRIM1#,4# |
1 | ||
| 61165D - BRACKET, INSTRUMENT PANEL TO COWL SIDE | ||||
| 61165-35020 |
GRN21#,UZN21# |
1 | ||
| 61165-35020 |
GRN21#,UZN21# |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-35030 |
GRN21#,UZN21# |
1 | ||
| 61181-35030 |
GRN21#,UZN21# |
1 | ||
| 61187B - BRACKET, INSTRUMENT PANEL SIDE, NO.4 | ||||
| 61187-35010 |
GRN21#,UZN21# |
1 | ||
| 61187-35010 |
GRN21#,UZN21# |
1 | ||
| Common parts | ||||
| 90119-08B72 | ||||
| 90119-08C45 | ||||
| 90179-06323 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91631-B0616 | ||||
| 91631-J0612 | ||||
| 91635-G0618 | ||||
| 91674-80828 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| 94150-80800 | ||||
| 94334-15000 | ||||

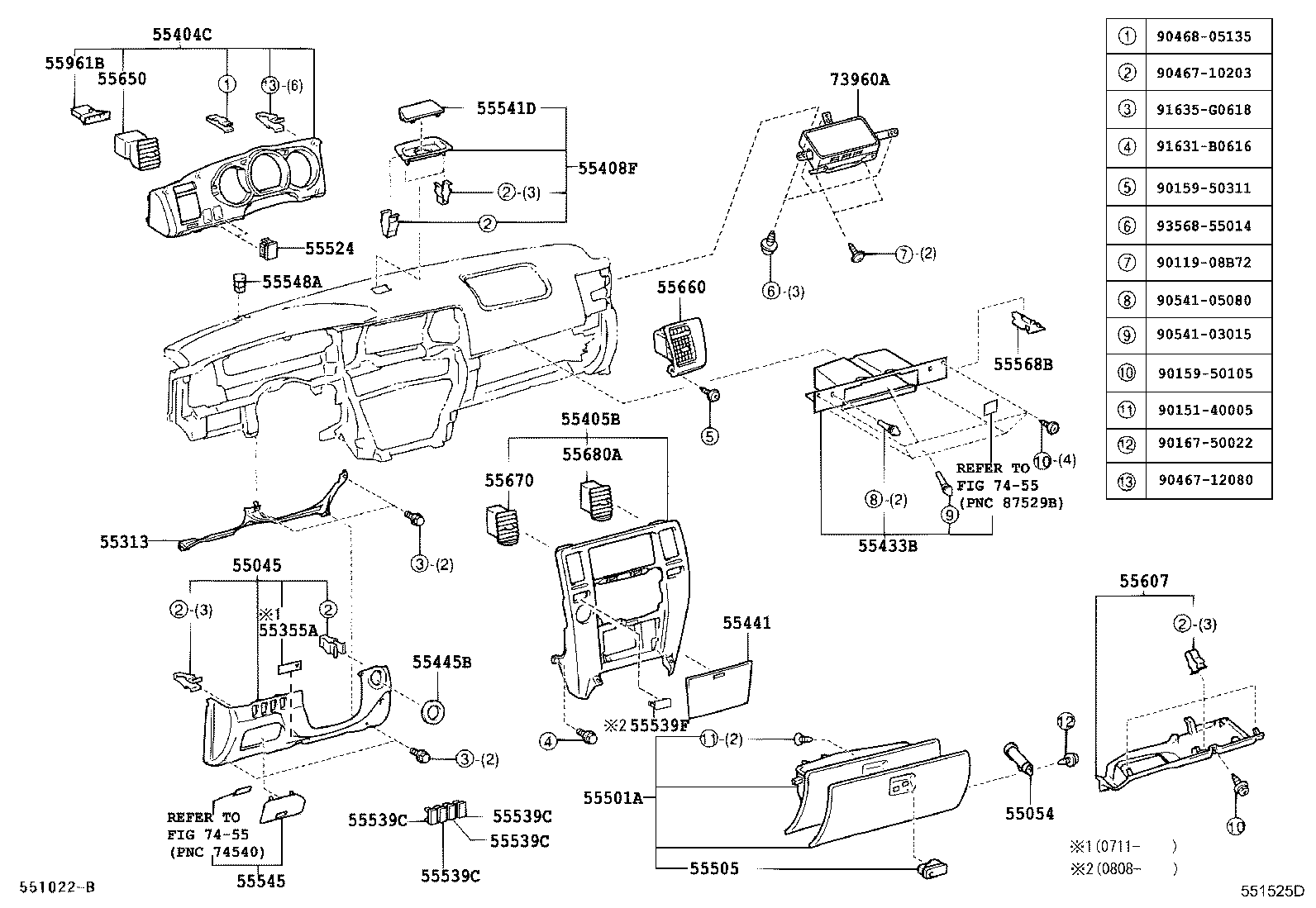

ILLUST NO. 2 OF 2(0508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-35110E0 |
GRN21#,UZN21# FAWN,TRIM4# |
1 | ||
| 55045-35110B0 |
GRN21#,UZN21#..LIMD STONE,TRIM1# |
1 | ||
| 55045-35111B0 |
GRN21#,UZN21# STONE,TRIM1# |
1 | ||
| 55045-35112E0 |
GRN21#,UZN21# FAWN,TRIM4# |
1 | ||
| 55045-35111E0 |
GRN21#,UZN21# FAWN,TRIM4# |
1 | ||
| 55045-35112B0 |
GRN21#,UZN21# STONE,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-35010 |
GRN21#,UZN21# |
1 | ||
| 55054-35010 |
GRN21#,UZN21# |
1 | ||
| 55313 - PANEL, INSTRUMENT, LOWER LH | ||||
| 55313-35020 |
GRN21# |
1 | ||
| 55313-35020 |
GRN21#,UZN21# |
1 | ||
| 55313-35020 |
GRN21#,UZN21#..5FC |
1 | ||
| 55355A - PLATE, INSTRUMENT PANEL | ||||
| 55355-35080 |
GRN21#,UZN21# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-35280B0 |
GRN21#,UZN21#..LIMD DK.GRAY,TRIM1#,4# |
1 | ||
| 55404-35300B0 |
GRN21#,UZN21# DK.GRAY,TRIM1#,4# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-35340 |
GRN215 |
1 | ||
| 55405-35340 |
GRN215,UZN215 |
1 | ||
| 55405-35340 |
GRN215,UZN215..5FC |
1 | ||
| 55405-35400 |
GRN215 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 55405-35400 |
GRN215,UZN215 AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH) |
1 | ||
| 55405-35400 |
GRN215,UZN215..5FC AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-35160B0 |
GRN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),DK.GRAY,TRIM1#,4# |
1 | ||
| 55408-35160B0 |
GRN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),DK.GRAY,TRIM1#,4# |
1 | ||
| 55408-35160B0 |
GRN21#,UZN21#..5FC..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),DK.GRAY,TRIM1#,4# |
1 | ||
| 55408-35180B0 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-05AVN(AM/FM,CD 8SP(JBL)),DK.GRAY,TRIM1#,4# |
1 | ||
| 55408-35160B0 |
GRN21#,UZN21#..5FC..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),DK.GRAY,TRIM1#,4# |
1 | ||
| 55408-35160B0 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD),DK.GRAY,TRIM1#,4# |
1 | ||
| 55408-35180B0 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH),DK.GRAY,TRIM1#,4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55046-35040 |
GRN21#,UZN21# W(CD PLAYER & CD AUTO CHANGER) |
1 | ||
| 55046-35020 |
GRN21#,UZN21#..5FC |
1 | ||
| 55046-35060 |
GRN21#,UZN21# |
1 | ||
| 55046-35020 |
GRN21# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-35030 |
GRN21#,UZN21#..LIMD |
1 | ||
| 55440-35100 |
GRN21#..LIMD |
1 | ||
| 55440-35100 |
GRN21#,UZN21#..5FC..LIMD |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-60100B0 |
GRN21#,UZN21#..5FC..LIMD STONE,TRIM1# |
1 | ||
| 55445-60100B0 |
GRN21#..LIMD STONE,TRIM1# |
1 | ||
| 55445-60100E0 |
GRN21#,UZN21# FAWN,TRIM4# |
1 | ||
| 55445-60100E0 |
GRN21#,UZN21#..5FC FAWN,TRIM4# |
1 | ||
| 55445-60100B0 |
GRN21#,UZN21# STONE,TRIM1# |
1 | ||
| 55445-60100E0 |
GRN21# FAWN,TRIM4# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55550-35060B0 |
GRN21#,UZN21#..LIMD STONE,TRIM1# |
1 | ||
| 55550-35060E0 |
GRN21#,UZN21# FAWN,TRIM4# |
1 | ||
| 55550-35060B0 |
GRN21#,UZN21# STONE,TRIM1# |
1 | ||
| 55550-35060E0 |
GRN21#,UZN21# FAWN,TRIM4# |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-35020B0 |
GRN21#,UZN21# STONE,TRIM1# |
1 | ||
| 55506-35020E0 |
GRN21#,UZN21# FAWN,TRIM4# |
1 | ||
| 55506-35020B0 |
GRN21#,UZN21#..LIMD STONE,TRIM1# |
1 | ||
| 55506-35020E0 |
GRN21#,UZN21# FAWN,TRIM4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020C0 |
GRN21#,UZN21#..5FC..LIMD BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#,UZN21# BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#,UZN21# ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT,BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#,UZN21# SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,BLACK,TRIM1#,4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020C0 |
GRN21#,UZN21#..5FC..LIMD BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#,UZN21# BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#,UZN21# ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT,BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#,UZN21# SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,BLACK,TRIM1#,4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020C0 |
GRN21#,UZN21#..5FC..LIMD BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#,UZN21# BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#,UZN21# ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT,BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#,UZN21# SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,BLACK,TRIM1#,4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020C0 |
GRN21#,UZN21#..5FC..LIMD BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#..LIMD BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#,UZN21# BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#,UZN21# ACCESSORY CONNECTOR-DC12V=FRONT,REAR AC115V=FRONT,BLACK,TRIM1#,4# |
1 | ||
| 55539-51020C0 |
GRN21#,UZN21# SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,BLACK,TRIM1#,4# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-35030 |
GRN21#,UZN21# |
1 | ||
| 55541D - RETAINER, STEREO OPENING COVER, NO.1 | ||||
| 55541-35010B0 |
GRN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),DK.GRAY,TRIM1#,4# |
1 | ||
| 55541-35010B0 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD),DK.GRAY,TRIM1#,4# |
1 | ||
| 55541-35030B0 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH),DK.GRAY,TRIM1#,4# |
1 | ||
| 55541-35010B0 |
GRN21#,UZN21#..5FC..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),DK.GRAY,TRIM1#,4# |
1 | ||
| 55541-35030B0 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-05AVN(AM/FM,CD 8SP(JBL)),DK.GRAY,TRIM1#,4# |
1 | ||
| 55541-35010B0 |
GRN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),DK.GRAY,TRIM1#,4# |
1 | ||
| 55541-35010B0 |
GRN21#,UZN21#..5FC..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),DK.GRAY,TRIM1#,4# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-35020E0 |
GRN21# FAWN,TRIM4# |
1 | ||
| 55545-35020B0 |
GRN21#..LIMD STONE,TRIM1# |
1 | ||
| 55545-35020B0 |
GRN21#,UZN21#..5FC..LIMD STONE,TRIM1# |
1 | ||
| 55545-35020E0 |
GRN21#,UZN21# FAWN,TRIM4# |
1 | ||
| 55545-35020E0 |
GRN21#,UZN21#..5FC FAWN,TRIM4# |
1 | ||
| 55545-35020B0 |
GRN21#,UZN21# STONE,TRIM1# |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-35030 |
GRN21# |
1 | ||
| 55568-35030 |
GRN21#,UZN21#..5FC |
1 | ||
| 55568-35030 |
GRN21#,UZN21# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-35050 |
GRN21#,UZN21# |
1 | ||
| 55607-35050 |
GRN21# |
1 | ||
| 55607-35050 |
GRN21#,UZN21#..5FC |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-35070B0 |
GRN21#,UZN21#..LIMD DK.GRAY,TRIM1#,4# |
1 | ||
| 55650-35070B0 |
GRN21#,UZN21# DK.GRAY,TRIM1#,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-35090B0 |
GRN21#,UZN21#..5FC..LIMD DK.GRAY,TRIM1#,4# |
1 | ||
| 55660-35090B0 |
GRN21#..LIMD DK.GRAY,TRIM1#,4# |
1 | ||
| 55660-35090B0 |
GRN21#,UZN21# DK.GRAY,TRIM1#,4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-35090 |
GRN21# |
1 | ||
| 55670-35090 |
GRN21#,UZN21#..5FC |
1 | ||
| 55670-35090 |
GRN21#,UZN21# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-35070 |
GRN21#,UZN21#..5FC |
1 | ||
| 55680-35070 |
GRN21# |
1 | ||
| 55680-35070 |
GRN21#,UZN21# |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-35010C0 |
GRN21#,UZN21# BLACK |
1 | ||
| 55961-35010C0 |
GRN21#,UZN21# BLACK |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-35050 |
GRN21# |
1 | ||
| 73960-35090 |
GRN21#,UZN21# |
1 | ||
| 73960-35050 |
GRN21#,UZN21#..5FC |
1 | ||
| Common parts | ||||
| 90119-08B72 | ||||
| 90151-40005 | ||||
| 90159-50105 | ||||
| 90159-50311 | ||||
| 90167-50022 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 90541-03015 | ||||
| 90541-05080 | ||||
| 91631-B0616 | ||||
| 91635-G0618 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7455 | ||||
ILLUST NO. 1 OF 2(0605- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 50540-35050 |
GRN21#,UZN21# |
1 | ||
| 50540-35070 |
GRN21#,UZN21# |
1 | ||
| 55217B - RETAINER, DASH PANEL SILENCER | ||||
| 55217-35020 |
GRN21#,UZN21# |
5 | ||
| 55217-35020 |
GRN21#,UZN21# |
5 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-35030 |
GRN21# |
1 | ||
| 55308-35030 |
GRN21#,UZN21#..5FC |
1 | ||
| 55308-35050 |
GRN21#,UZN21# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-35060 |
GRN21#,UZN21# |
4 | ||
| 55328-35050 |
GRN21#,UZN21# NO.2 |
2 | ||
| 55328-35030 |
GRN21#,UZN21# NO.1 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-35060 |
GRN21#,UZN21# |
4 | ||
| 55328-35050 |
GRN21#,UZN21# NO.2 |
2 | ||
| 55328-35030 |
GRN21#,UZN21# NO.1 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-35060 |
GRN21#,UZN21# |
4 | ||
| 55328-35050 |
GRN21#,UZN21# NO.2 |
2 | ||
| 55328-35030 |
GRN21#,UZN21# NO.1 |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-35160 |
GRN21#,UZN21# |
1 | ||
| 55330-35190 |
GRN21#,UZN21# |
1 | ||
| 55330-35140 |
GRN21#,UZN21#..5FC |
1 | ||
| 55330-35140 |
GRN21# |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-35020 |
GRN21#,UZN21# |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-35020 |
GRN21#,UZN21# |
1 | ||
| 55346C - PIN, INSTRUMENT PANEL | ||||
| 55346-35010 |
GRN21#,UZN21# |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-35050 |
GRN21# |
2 | ||
| 55347-35050 |
GRN21#,UZN21#..5FC |
2 | ||
| 55347-35050 |
GRN21#,UZN21# |
2 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-35050 |
GRN21# |
2 | ||
| 55347-35050 |
GRN21#,UZN21#..5FC |
2 | ||
| 55347-35050 |
GRN21#,UZN21# |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-35040 |
GRN21#,UZN21# |
1 | ||
| 55349-35040 |
GRN21#,UZN21# |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-35020 |
GRN21#,UZN21# |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-35020 |
GRN21#,UZN21# |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-35900B0 |
GRN21#,UZN21#..LIMD STONE,TRIM1# |
1 | ||
| 55401-35901B0 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),STONE,TRIM1# |
1 | ||
| 55401-35901B0 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),STONE,TRIM1# |
1 | ||
| 55401-35901B1 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD),FAWN,TRIM4# |
1 | ||
| 55401-35900B1 |
GRN21#,UZN21# FAWN,TRIM4# |
1 | ||
| 55401-35901B1 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),FAWN,TRIM4# |
1 | ||
| 55401-35901B1 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),FAWN,TRIM4# |
1 | ||
| 55401-35901B0 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD),STONE,TRIM1# |
1 | ||
| 55401-35912B0 |
GRN21#,UZN21# STONE,TRIM1# |
1 | ||
| 55401-35912B1 |
GRN21#,UZN21# FAWN,TRIM42 |
1 | ||
| 55401-35913B0 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH),STONE,TRIM12 |
1 | ||
| 55401-35070B0 |
GRN21#,UZN21#..LIMD STONE,TRIM12 |
1 | ||
| 55401-35913B0 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-05AVN(AM/FM,CD 8SP(JBL)),STONE,TRIM12 |
1 | ||
| 55401-35913B1 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-05AVN(AM/FM,CD 8SP(JBL)),FAWN,TRIM4# |
1 | ||
| 55401-35080B0 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH),STONE,TRIM1# |
1 | ||
| 55401-35080B0 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-05AVN(AM/FM,CD 8SP(JBL)),STONE,TRIM1# |
1 | ||
| 55401-35913B1 |
GRN21#,UZN21#..LIMD AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH),FAWN,TRIM4# |
1 | ||
| 55401-35080B1 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH),FAWN,TRIM42 |
1 | ||
| 55401-35070B1 |
GRN21#,UZN21#..LIMD FAWN,TRIM4# |
1 | ||
| 55401-35080B1 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-05AVN(AM/FM,CD 8SP(JBL)),FAWN,TRIM42 |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-35010 |
GRN21# |
1 | ||
| 55416-35010 |
GRN21#,UZN21# |
1 | ||
| 55416-35010 |
GRN21#,UZN21#..5FC |
1 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-35020 |
GRN21#,UZN21# |
2 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-35020 |
GRN21#,UZN21# |
2 | ||
| 55457A - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-35010 |
GRN21#,UZN21# |
2 | ||
| 55457-35010 |
GRN21#,UZN21# |
2 | ||
| 55457A - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-35010 |
GRN21#,UZN21# |
2 | ||
| 55457-35010 |
GRN21#,UZN21# |
2 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-35020B1 |
GRN21#,UZN21# DK.GRAY,TRIM1#,4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-35010B1 |
GRN21#,UZN21# DK.GRAY,TRIM1#,4# |
1 | ||
| 61165D - BRACKET, INSTRUMENT PANEL TO COWL SIDE | ||||
| 61165-35020 |
GRN21#,UZN21# |
1 | ||
| 61165-35020 |
GRN21#,UZN21# |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-35030 |
GRN21#,UZN21# |
1 | ||
| 61181-35030 |
GRN21#,UZN21# |
1 | ||
| 61187B - BRACKET, INSTRUMENT PANEL SIDE, NO.4 | ||||
| 61187-35010 |
GRN21#,UZN21# |
1 | ||
| 61187-35010 |
GRN21#,UZN21# |
1 | ||
| Common parts | ||||
| 90119-08B72 | ||||
| 90119-08C45 | ||||
| 90179-06278 | ||||
| 90179-06323 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91631-B0616 | ||||
| 91631-J0612 | ||||
| 91635-G0618 | ||||
| 91674-80828 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| 94150-80800 | ||||
| 94334-15000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
