VZN100L-TRMDEAB (1992)
Toyota 4-Runner Truck (Nap)
Production
Feb 1992
-
Jan 1995
Engine
3VZE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9202- )RN101,VZN100

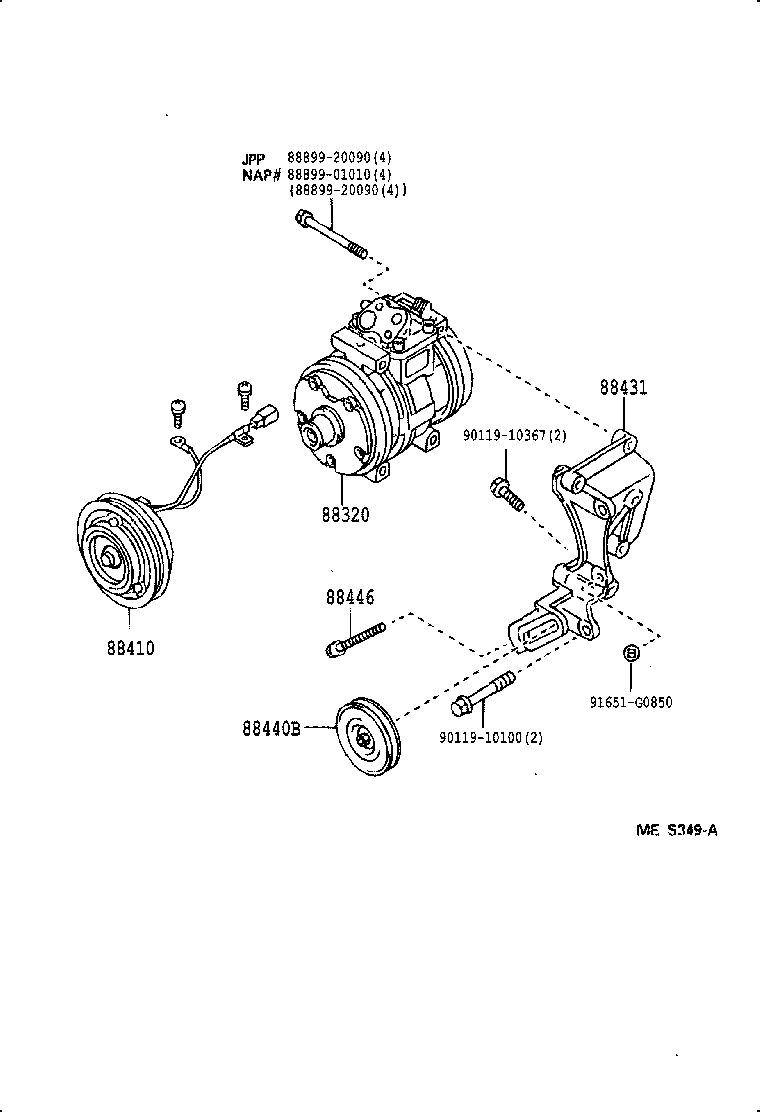

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-34010 |
VZN100,110 |
1 | ||
| 88320-35300 |
VZN100,110 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-35010 |
VZN100,110 |
1 | ||
| 88410-34010 |
VZN100,110 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-04020 |
VZN100,110 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-04020 |
VZN100,110 |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-04010 |
RN101,110,VZN100,110 |
1 | ||
| Common parts | ||||
| 88899-01010 | ||||
| 88899-20090 | ||||
| 90119-10100 | ||||
| 90119-10367 | ||||
| 91651-G0850 | ||||
