Toyota 4-runner truck (nap) RN80 SWITCH & RELAY & COMPUTER

RN80L-TRSDEAB (1991)

Toyota 4-Runner Truck (Nap)

Production Sep 1991 - Jan 1995

Engine 22RE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

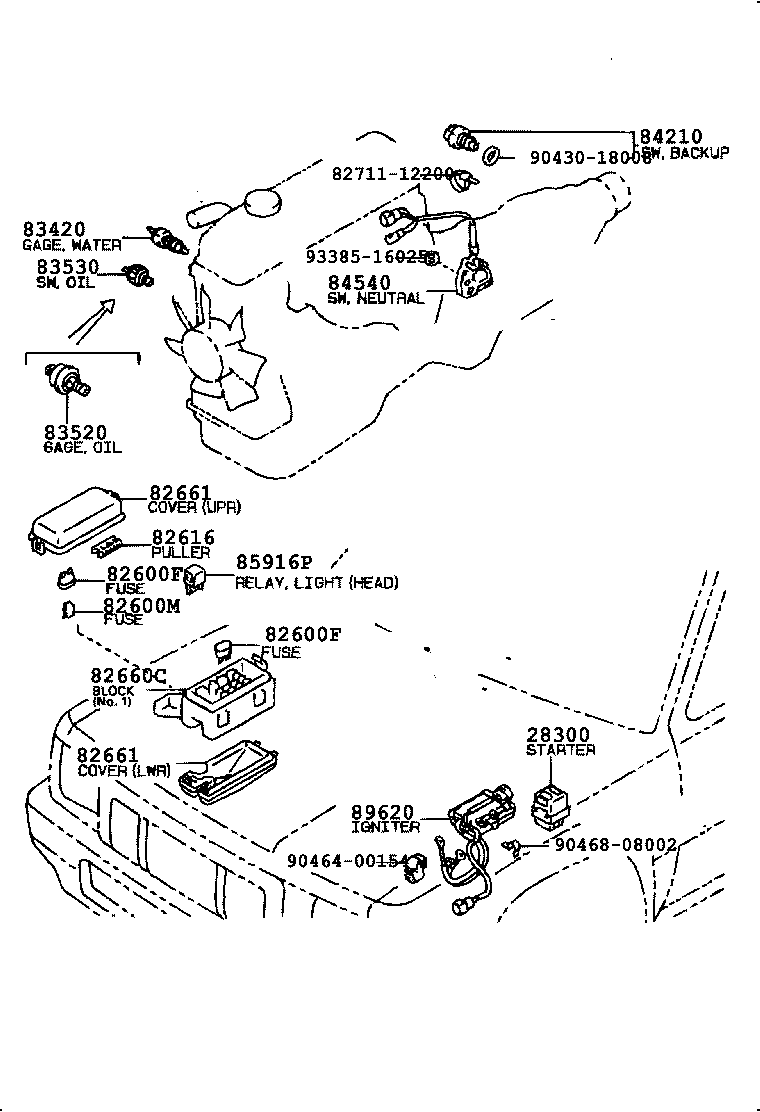

(9109- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
90987-02009	22RE..RN80	09/1991 - 06/1992	1
28300-10020	22RE..RN80,90	06/1992 - 01/1995	1
82600F - FUSE, FUSE BLOCK
90080-82013	RN80,90 15A,BLUE,(L)	09/1991 - 01/1995	1
90080-82012	RN80,90 10A,RED,(L)	09/1991 - 01/1995	1
90982-09005	RN80,90 7.5A,(J)	09/1991 - 01/1995	1
90080-82014	RN80,90 20A,YELLOW,(L)	09/1991 - 01/1995	1
90982-09002	RN80,90 10A,(J)	09/1991 - 01/1995	1
90080-82015	RN80,90 7.5A,BROWN,(L)	09/1991 - 01/1995	1
90982-09004	RN80,90 20A,YELLOW,(J)	09/1991 - 01/1995	1
90982-09003	RN80,90 15A,(J)	09/1991 - 01/1995	1
82600F - FUSE, FUSE BLOCK
90080-82013	RN80,90 15A,BLUE,(L)	09/1991 - 01/1995	1
90080-82012	RN80,90 10A,RED,(L)	09/1991 - 01/1995	1
90982-09005	RN80,90 7.5A,(J)	09/1991 - 01/1995	1
90080-82014	RN80,90 20A,YELLOW,(L)	09/1991 - 01/1995	1
90982-09002	RN80,90 10A,(J)	09/1991 - 01/1995	1
90080-82015	RN80,90 7.5A,BROWN,(L)	09/1991 - 01/1995	1
90982-09004	RN80,90 20A,YELLOW,(J)	09/1991 - 01/1995	1
90982-09003	RN80,90 15A,(J)	09/1991 - 01/1995	1
82600M - FUSE, MEDIUM CURRENT
90982-10001	RN80 30A,PINK	09/1991 - 03/1992	2
82616 - PULLER, FUSE
82616-89102	RN80,90	09/1991 - 01/1995	1
82660C - BLOCK ASSY, RELAY
82660-35030	RN80	03/1992 - 05/1992	1
82660-35090	RN80,90	05/1992 - 01/1995	1
82661 - COVER, RELAY BLOCK, NO.1
82663-35010	RN80,90 LWR	09/1991 - 01/1995	1
82662-35010	RN80,90 UPR	09/1991 - 01/1995	1
82661 - COVER, RELAY BLOCK, NO.1
82663-35010	RN80,90 LWR	09/1991 - 01/1995	1
82662-35010	RN80,90 UPR	09/1991 - 01/1995	1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020	RN80	09/1991 - 09/1992	1
83420-20030	RN80,90 YAZAKI	09/1992 - 01/1995	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14030	RN80	09/1991 - 09/1992	1
83530-14070	RN80,90	09/1992 - 01/1995	1
84540 - SWITCH ASSY, NEUTRAL START
84540-28021	RN80..4HC	09/1991 - 09/1993	1
84540-30290	RN80..4HC MATUSITA	09/1993 - 01/1995	1
85916P - RELAY, HEADLAMP
90987-02006	RN80,90	09/1991 - 01/1995	1
89620 - IGNITER ASSY
89620-35280	RN80	09/1991 - 09/1992	1
89620-35310	RN80,90	09/1992 - 01/1995	1
Common parts
82711-12200
90430-18008
90464-00154
90468-08002
93385-16025

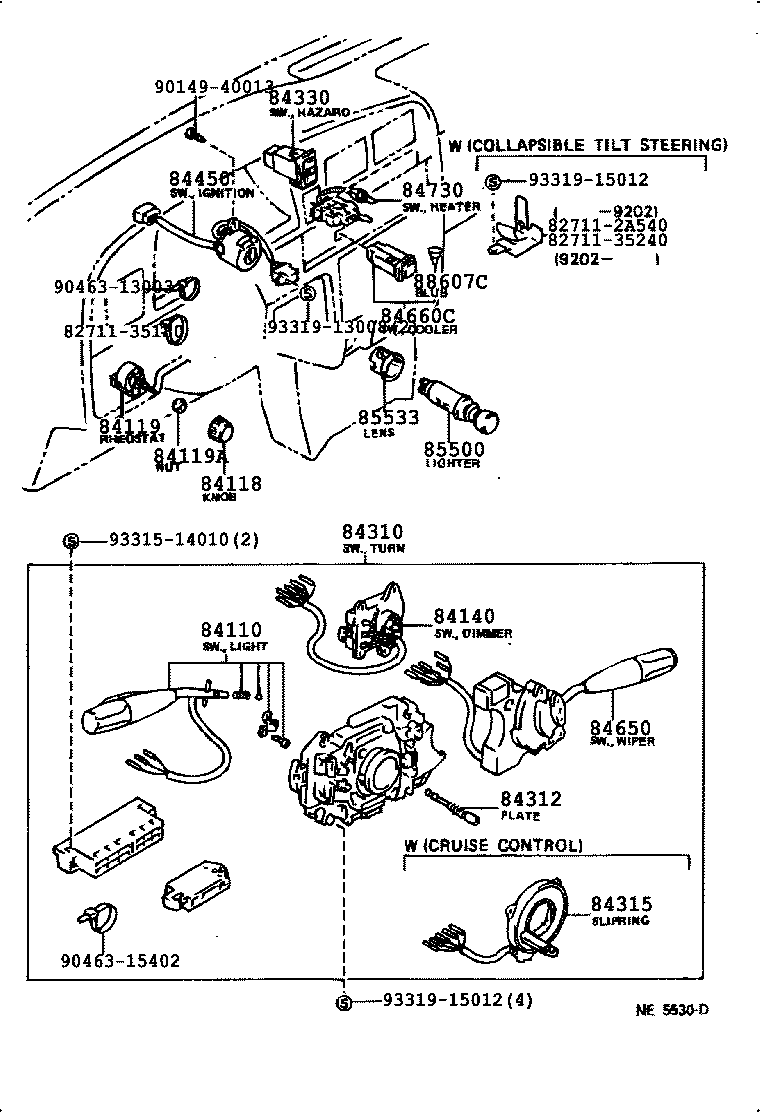

(9109- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-09030	RN80,90	09/1991 - 01/1995	1
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-04010	RN80,90	09/1991 - 01/1995	1
84119 - RHEOSTAT, LIGHT CONTROL
84119-03010	RN80..4HC	09/1991 - 01/1995	1
84119A - BOLT OR NUT, RHEOSTAT CONTROL SET
90170-09167	RN80,90	09/1991 - 01/1995	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-04010	RN80,90	09/1991 - 01/1995	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-04020	RN80,90..DLX W(TILT STEERING)	09/1991 - 01/1995	1
84310-04010	RN80,90	09/1991 - 01/1995	1
84310-04030	RN80,90..DLX W(CRUISE CONTROL)	09/1991 - 01/1995	1
84312 - PLATE, HORN CONTACT
84312-03010	RN80,90	09/1991 - 01/1995	1
84315 - SLIPRING, HORN CONTACT
84315-04010	RN80,90..DLX	09/1991 - 01/1995	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-04010	RN80,90	09/1991 - 01/1995	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-35080	RN80,90	09/1991 - 01/1995	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-04020	RN80,90..DLX W(TILT STEERING)	09/1991 - 01/1995	1
84652-04010	RN80,90	09/1991 - 01/1995	1
84652-04030	RN80,90..DLX W(CRUISE CONTROL)	09/1991 - 01/1995	1
84660C - SWITCH, COOLER
84660-89105	RN80,90	09/1991 - 08/1994	1
84660-35010	RN80,90	08/1994 - 01/1995	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-89113	RN80,90	09/1991 - 01/1995	1
85500 - LIGHTER ASSY, CIGARETTE
85500-89106	RN80,90	09/1991 - 01/1995	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-10010	RN80,90	09/1991 - 01/1995	1
88607C - LAMP SUB-ASSY, INDICATOR
88607-16010	RN80,90 14V 0.065A,14V 0.91W	08/1994 - 01/1995	1
Common parts
82711-2A540
82711-35130
82711-35240
90149-40013
90463-13003
90463-15402
93315-14010
93319-13008
93319-15012

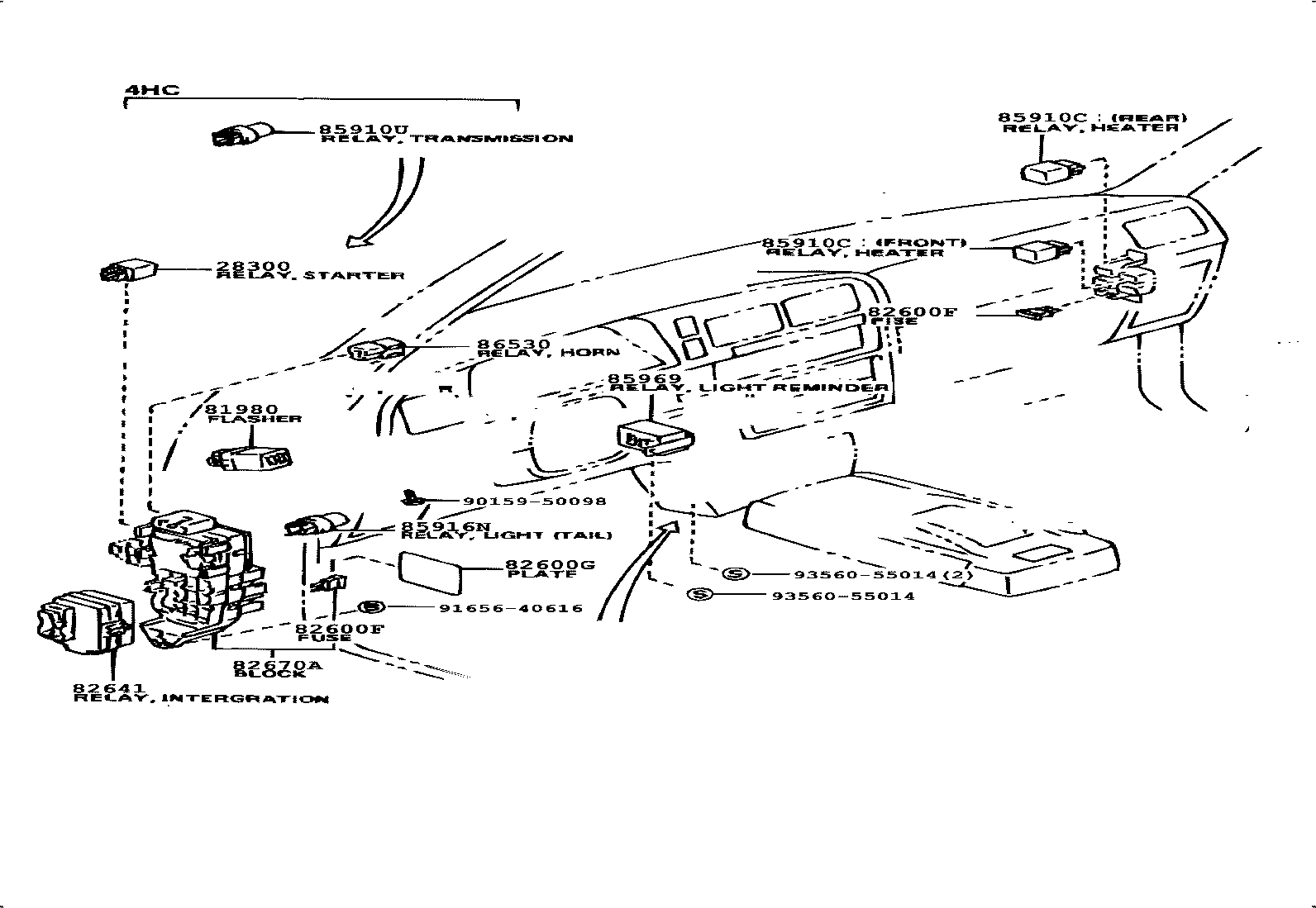

(9109- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
90987-02009	22RE..RN80	09/1991 - 06/1992	1
28300-10020	22RE..RN80,90	06/1992 - 01/1995	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-12070	RN80,90	09/1991 - 01/1995	1
82600F - FUSE, FUSE BLOCK
90080-82013	RN80,90 15A,BLUE,(L)	09/1991 - 01/1995	1
90080-82012	RN80,90 10A,RED,(L)	09/1991 - 01/1995	1
90982-09005	RN80,90 7.5A,(J)	09/1991 - 01/1995	1
90080-82014	RN80,90 20A,YELLOW,(L)	09/1991 - 01/1995	1
90982-09002	RN80,90 10A,(J)	09/1991 - 01/1995	1
90080-82015	RN80,90 7.5A,BROWN,(L)	09/1991 - 01/1995	1
90982-09004	RN80,90 20A,YELLOW,(J)	09/1991 - 01/1995	1
90982-09003	RN80,90 15A,(J)	09/1991 - 01/1995	1
82600F - FUSE, FUSE BLOCK
90080-82013	RN80,90 15A,BLUE,(L)	09/1991 - 01/1995	1
90080-82012	RN80,90 10A,RED,(L)	09/1991 - 01/1995	1
90982-09005	RN80,90 7.5A,(J)	09/1991 - 01/1995	1
90080-82014	RN80,90 20A,YELLOW,(L)	09/1991 - 01/1995	1
90982-09002	RN80,90 10A,(J)	09/1991 - 01/1995	1
90080-82015	RN80,90 7.5A,BROWN,(L)	09/1991 - 01/1995	1
90982-09004	RN80,90 20A,YELLOW,(J)	09/1991 - 01/1995	1
90982-09003	RN80,90 15A,(J)	09/1991 - 01/1995	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-89109	RN80,90	09/1991 - 01/1995	1
82641 - RELAY, INTEGRATION NO.1
82641-89101	RN80	09/1991 - 09/1992	1
82641-35090	RN80,90	09/1992 - 01/1995	1
82670A - BLOCK ASSY, JUNCTION, NO.1
82670-89108	RN80	09/1991 - 03/1992	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002	RN80,90	09/1991 - 01/1995	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002	RN80,90	09/1991 - 01/1995	1
85910U - RELAY, TRANSMISSION INDICATOR
90987-02009	RN80..4HC	09/1991 - 01/1995	1
85916N - RELAY, TAIL LAMP
90987-01003	RN80,90	09/1991 - 01/1995	1
85969 - RELAY, LIGHT REMINDER
85969-89102	RN80,90	09/1992 - 01/1995	1
86530 - RELAY ASSY, HORN
86530-20070	RN80,90	09/1991 - 01/1995	1
Common parts
90159-50098
91656-40616
93560-55014

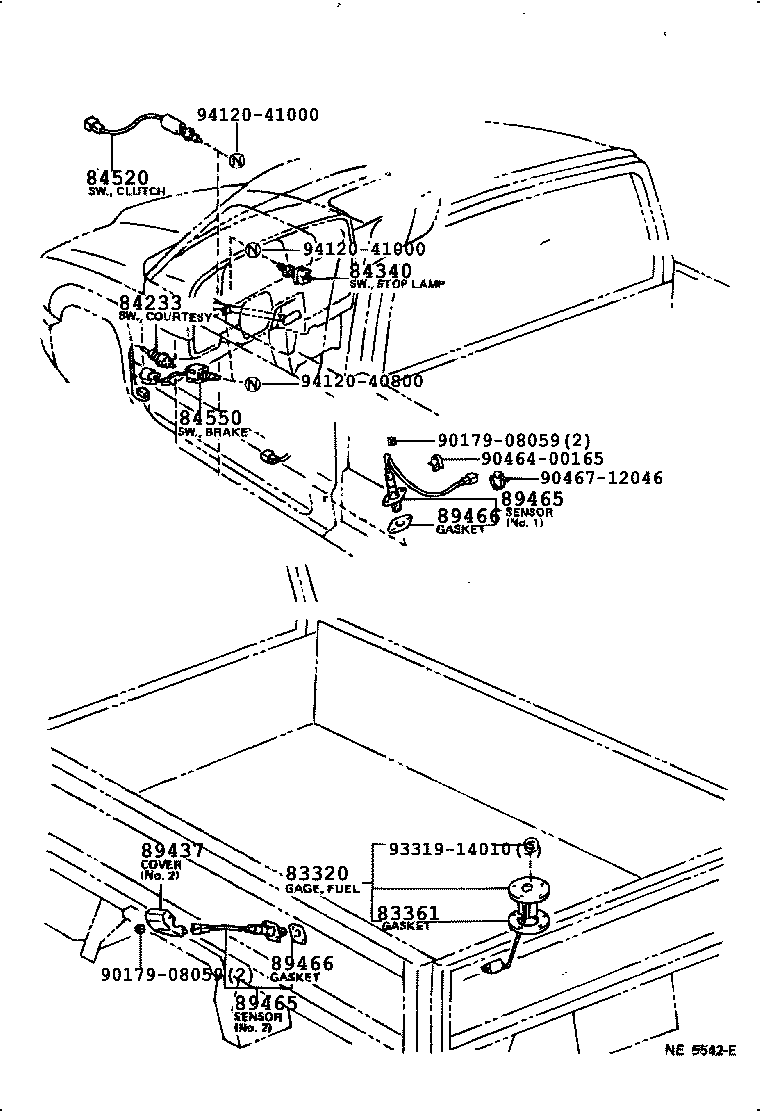

(9109- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-80174	RN80	09/1991 - 01/1995	1
83361 - GASKET, FUEL SENDER GAGE
83361-20030	RN80,90	09/1991 - 01/1995	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-04010	RN80,90	09/1991 - 01/1995	2
84340 - SWITCH ASSY, STOP LAMP
84340-32050	RN80,90	09/1991 - 01/1995	1
84340-32070	RN80,90..DLX W(CRUISE CONTROL)	09/1991 - 01/1995	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-35010	RN80,90	09/1991 - 01/1995	1
89437 - COVER, SENSOR
89437-35010	RN80 NO.2	09/1991 - 09/1992	1
89437-35020	RN80,90 NO.2	09/1992 - 01/1995	1
89465 - SENSOR, OXYGEN
89465-39455	RN80 CALIFORNIA SPEC,FRONT	09/1991 - 09/1992	1
89465-39445	RN80,90	09/1991 - 01/1995	1
89465-39465	RN80 CALIFORNIA SPEC,REAR	09/1991 - 09/1992	1
89465-39655	RN80,90 CALIFORNIA SPEC,REAR	09/1992 - 01/1995	1
89465-39645	RN80,90 CALIFORNIA SPEC,FRONT	09/1992 - 01/1995	1
89465 - SENSOR, OXYGEN
89465-39455	RN80 CALIFORNIA SPEC,FRONT	09/1991 - 09/1992	1
89465-39445	RN80,90	09/1991 - 01/1995	1
89465-39465	RN80 CALIFORNIA SPEC,REAR	09/1991 - 09/1992	1
89465-39655	RN80,90 CALIFORNIA SPEC,REAR	09/1992 - 01/1995	1
89465-39645	RN80,90 CALIFORNIA SPEC,FRONT	09/1992 - 01/1995	1
89466 - GASKET, OXYGEN SENSOR
89466-20020	RN80,90	09/1991 - 01/1995	1
89466-20020	RN80,90 CALIFORNIA SPEC	09/1991 - 01/1995	2
89466 - GASKET, OXYGEN SENSOR
89466-20020	RN80,90	09/1991 - 01/1995	1
89466-20020	RN80,90 CALIFORNIA SPEC	09/1991 - 01/1995	2
Common parts
90179-08059
90464-00165
90467-12046
93319-14010
94120-40800
94120-41000
