RN80L-TRMREAB (1991)
Toyota 4-Runner Truck (Nap)

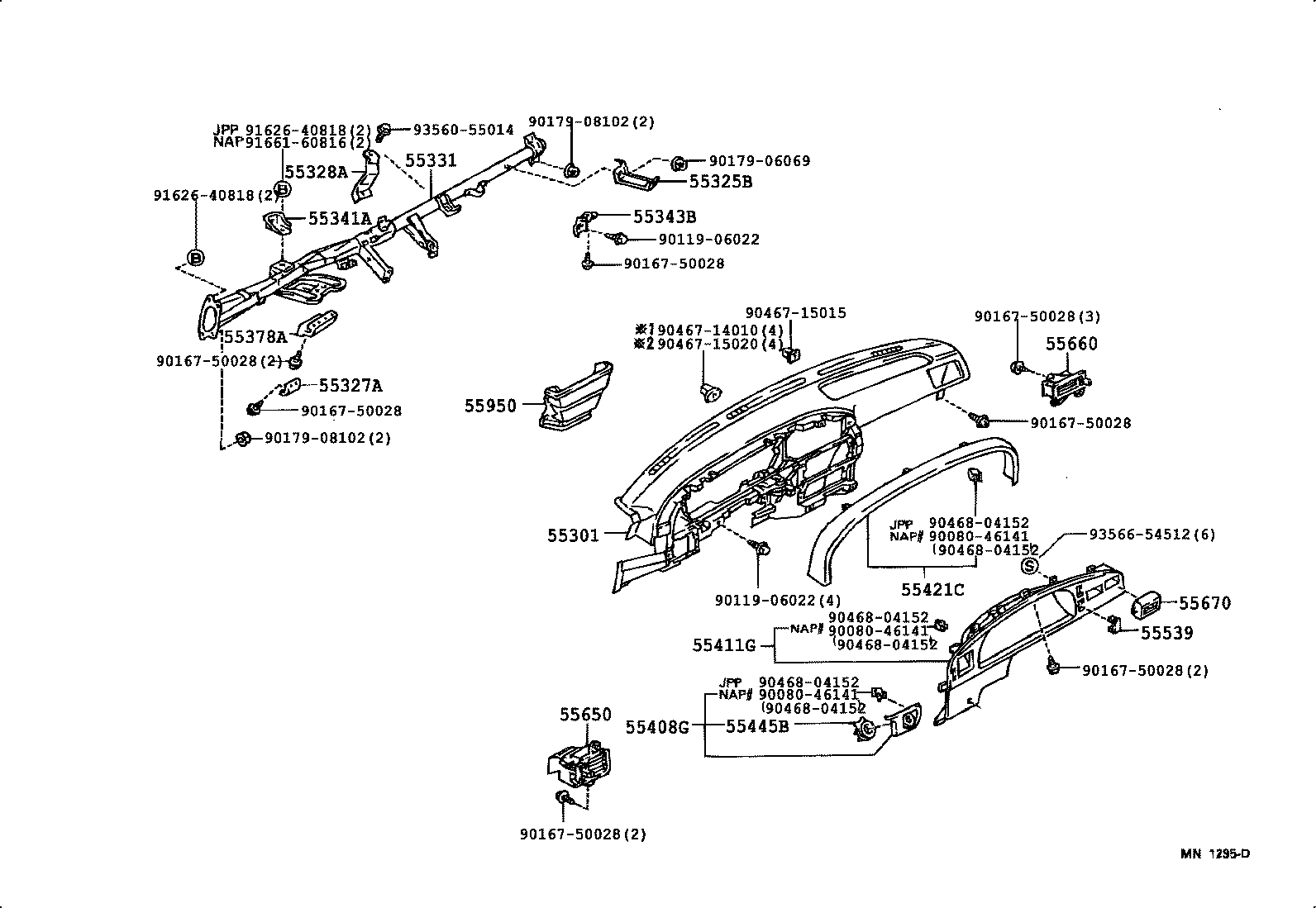

ILLUST NO. 1 OF 2(9109-9501)RN80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-04010B0 |
RN80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55301-35010B0 |
RN80 GRAY,TRIM1# |
1 | ||
| 55301-04010B0 |
RN80,90 MEDIUM GRAY,TRIM1# |
1 | ||
| 55301-04010J0 |
RN80 MEDIUM BLUE,TRIM8# |
1 | ||
| 55301-04010J0 |
RN80,90 MEDIUM BLUE,TRIM8# |
1 | ||
| 55301-35010J0 |
RN80 BLUE,TRIM8# |
1 | ||
| 55325B - BRACKET, INSTRUMENT PANEL, NO.5 | ||||
| 55325-35020 |
RN80 |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-89104 |
RN80 (J) |
1 | ||
| 55327-04010 |
RN80,90 |
1 | ||
| 55327-04010 |
RN80 (L) |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-35010 |
RN80 |
1 | ||
| 55328-35020 |
RN80,90 |
1 | ||
| 55328-35020 |
RN80 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-04010 |
RN80 (L) |
1 | ||
| 55330-35020 |
RN80 (J) |
1 | ||
| 55330-04010 |
RN80,90 |
1 | ||
| 55341A - BRACE, INSTRUMENT PANEL TO COWL, UPPER | ||||
| 55341-04010 |
RN80,90 (L) |
1 | ||
| 55341-89103 |
RN80 (J) |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-04010 |
RN80,90 (L) |
1 | ||
| 55343-89101 |
RN80 (J) |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-89102 |
RN80 (J) |
1 | ||
| 55378-04010 |
RN80 (L) |
1 | ||
| 55378-04010 |
RN80,90 |
1 | ||
| 55408G - BEZEL SUB-ASSY, STARTER SWITCH | ||||
| 55408-89101 |
RN80..W |
1 | ||
| 55408-04010 |
RN80,90..W |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-89111 |
RN80..W |
1 | ||
| 55411-04010 |
RN80..W (L) |
1 | ||
| 55411-04010 |
RN80,90..W |
1 | ||
| 55411-35040 |
RN80..W (J) |
1 | ||
| 55421C - HOOD, METER | ||||
| 55421-04010J0 |
RN80,90 MEDIUM BLUE,TRIM8# |
1 | ||
| 55421-89108B0 |
RN80..STD MEDIUM GRAY,TRIM1# |
1 | ||
| 55421-04010B0 |
RN80,90 MEDIUM GRAY,TRIM1# |
1 | ||
| 55421-89108J0 |
RN80 MEDIUM BLUE,TRIM8#,(J) |
1 | ||
| 55421-89108B0 |
RN80 MEDIUM GRAY,TRIM1#,(J) |
1 | ||
| 55421-04010J0 |
RN80 MEDIUM BLUE,TRIM8#,(L) |
1 | ||
| 55421-04010B0 |
RN80 MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-89103 |
RN80..W |
1 | ||
| 55445-04010 |
RN80,90..W |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-89105 |
RN80 (J) |
1 | ||
| 55539-04020 |
RN80,90 (L) |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-89112 |
RN80 (J) |
1 | ||
| 55650-04010 |
RN80,90 (L) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-89107B0 |
RN80 MEDIUM GRAY,TRIM1#,(J) |
1 | ||
| 55660-89107J0 |
RN80 MEDIUM BLUE,TRIM8#,(J) |
1 | ||
| 55660-04010J0 |
RN80,90 MEDIUM BLUE,TRIM8#,(L) |
1 | ||
| 55660-04010B0 |
RN80,90 MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-04010 |
RN80 (L) |
2 | ||
| 55670-04010 |
RN80,90 |
2 | ||
| 55670-89115 |
RN80 (J) |
2 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-89108 |
RN80 (J) |
1 | ||
| 55950-04010 |
RN80 (L) |
1 | ||
| 55950-04010 |
RN80,90 |
1 | ||
| Common parts | ||||
| 90080-46141 | ||||
| 90119-06022 | ||||
| 90167-50028 | ||||
| 90179-06069 | ||||
| 90179-08102 | ||||
| 90467-14010 | ||||
| 90467-15015 | ||||
| 90467-15020 | ||||
| 90468-04152 | ||||
| 91626-40818 | ||||
| 91661-60816 | ||||
| 93560-55014 | ||||
| 93566-54512 | ||||

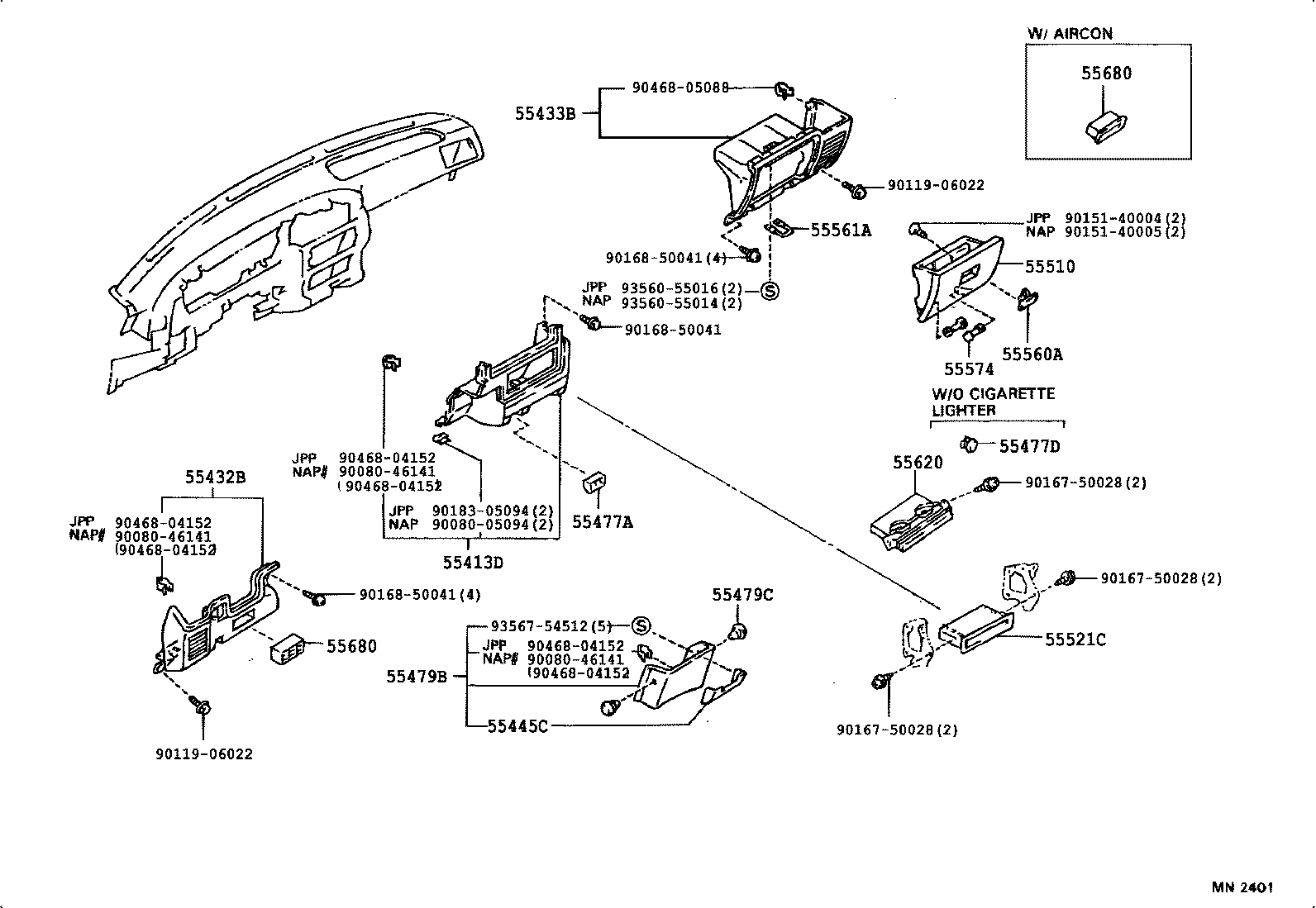

ILLUST NO. 2 OF 2(9109-9501)RN80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-35070J0 |
RN80 BLUE,TRIM8# |
1 | ||
| 55413-35070B0 |
RN80 GRAY,TRIM1# |
1 | ||
| 55413-04010J0 |
RN80 MEDIUM BLUE,TRIM8# |
1 | ||
| 55413-04010B0 |
RN80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55413-04010J0 |
RN80,90 MEDIUM BLUE,TRIM8# |
1 | ||
| 55413-04010B0 |
RN80,90 MEDIUM GRAY,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-35020B0 |
RN80..W W(AIR CONDITIONER),GRAY,TRIM1# |
1 | ||
| 55432-04010B0 |
RN80..W MEDIUM GRAY,TRIM1# |
1 | ||
| 55432-04010J0 |
RN80..W MEDIUM BLUE,TRIM8# |
1 | ||
| 55432-35020J0 |
RN80..W W(AIR CONDITIONER),BLUE,TRIM8# |
1 | ||
| 55432-04020B0 |
RN80..W W(AIR CONDITIONER),MEDIUM GRAY,TRIM1# |
1 | ||
| 55432-35010B0 |
RN80..W GRAY,TRIM1# |
1 | ||
| 55432-04020J0 |
RN80,90..W W(AIR CONDITIONER),MEDIUM BLUE,TRIM8# |
1 | ||
| 55432-04020J0 |
RN80..W W(AIR CONDITIONER),MEDIUM BLUE,TRIM8# |
1 | ||
| 55432-35010J0 |
RN80..W BLUE,TRIM8# |
1 | ||
| 55432-04020B0 |
RN80,90..W W(AIR CONDITIONER),MEDIUM GRAY,TRIM1# |
1 | ||
| 55432-04010B0 |
RN80,90..W MEDIUM GRAY,TRIM1# |
1 | ||
| 55432-04010J0 |
RN80,90..W MEDIUM BLUE,TRIM8# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-04010B0 |
RN80 MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 55433-89108B0 |
RN80 MEDIUM GRAY,TRIM1#,(J) |
1 | ||
| 55433-89108J0 |
RN80 MEDIUM BLUE,TRIM8#,(J) |
1 | ||
| 55433-04010J0 |
RN80 MEDIUM BLUE,TRIM8#,(L) |
1 | ||
| 55433-04010B0 |
RN80,90 MEDIUM GRAY,TRIM1# |
1 | ||
| 55433-04010J0 |
RN80,90 MEDIUM BLUE,TRIM8# |
1 | ||
| 55445C - PLATE, INSTRUMENT PANEL BOX | ||||
| 55445-35010J0 |
RN80 BLUE,TRIM8# |
1 | ||
| 55445-35010B0 |
RN80 GRAY,TRIM1# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-89105 |
RN80..STD W(CIGAR LIGHTER),(J) |
1 | ||
| 55477-04010 |
RN80..STD W(CIGAR LIGHTER),(L) |
1 | ||
| 55477-89105 |
RN80 |
1 | ||
| 55477-04010 |
RN80 |
1 | ||
| 55477-04010 |
RN80,90 |
1 | ||
| 55477D - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-10050J0 |
RN80..STD BLUE,TRIM8# |
1 | ||
| 55477-04020J0 |
RN80..STD MEDIUM BLUE,TRIM8# |
1 | ||
| 55477-04020B0 |
RN80..STD MEDIUM GRAY,TRIM1# |
1 | ||
| 55477-10050B0 |
RN80..STD GRAY,TRIM1# |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-04010J0 |
RN80 MEDIUM BLUE,TRIM8# |
1 | ||
| 55479-04010B0 |
RN80 MEDIUM GRAY,TRIM1# |
1 | ||
| 55407-35010B0 |
RN80 GRAY,TRIM1# |
1 | ||
| 55479-04010B0 |
RN80,90 MEDIUM GRAY,TRIM1# |
1 | ||
| 55407-35010J0 |
RN80 BLUE,TRIM8# |
1 | ||
| 55479-04010J0 |
RN80,90 MEDIUM BLUE,TRIM8# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07041B2 |
RN80,90 MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-07041J1 |
RN80,90 MEDIUM BLUE,TRIM8# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-04020B0 |
RN80 MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 55550-89101J0 |
RN80 MEDIUM BLUE,TRIM8#,(J) |
1 | ||
| 55550-04020J0 |
RN80 MEDIUM BLUE,TRIM8#,(L) |
1 | ||
| 55550-89101B0 |
RN80 MEDIUM GRAY,TRIM1#,(J) |
1 | ||
| 55550-04020J0 |
RN80,90 MEDIUM BLUE,TRIM8# |
1 | ||
| 55550-04020B0 |
RN80,90 MEDIUM GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-04010 |
RN80,90 |
1 | ||
| 55521-04010 |
RN80 (L) |
1 | ||
| 55521-89102 |
RN80 (J) |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-04010J0 |
RN80,90 MEDIUM BLUE,TRIM8# |
1 | ||
| 55560-04010B0 |
RN80,90 MEDIUM GRAY,TRIM1# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-04010 |
RN80,90 |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
RN80 |
2 | ||
| 55574-01010 |
RN80 |
2 | ||
| 55574-01010 |
RN80,90 |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-35010 |
RN80,90..W |
1 | ||
| 55620-89101 |
RN80..W |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-89101 |
RN80 |
1 | ||
| 55680-04010 |
RN80 (L) |
1 | ||
| 55680-89101 |
RN80 (J) |
1 | ||
| 55680-04010 |
RN80,90 |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-89101 |
RN80 |
1 | ||
| 55680-04010 |
RN80 (L) |
1 | ||
| 55680-89101 |
RN80 (J) |
1 | ||
| 55680-04010 |
RN80,90 |
1 | ||
| Common parts | ||||
| 90080-05094 | ||||
| 90080-46141 | ||||
| 90119-06022 | ||||
| 90151-40004 | ||||
| 90151-40005 | ||||
| 90167-50028 | ||||
| 90168-50041 | ||||
| 90183-05094 | ||||
| 90468-04152 | ||||
| 90468-05088 | ||||
| 93560-55014 | ||||
| 93560-55016 | ||||
| 93567-54512 | ||||
