RN80L-TRMREAB (1991)
Toyota 4-Runner Truck (Nap)
Production
Sep 1991
-
Jan 1995
Engine
22RE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

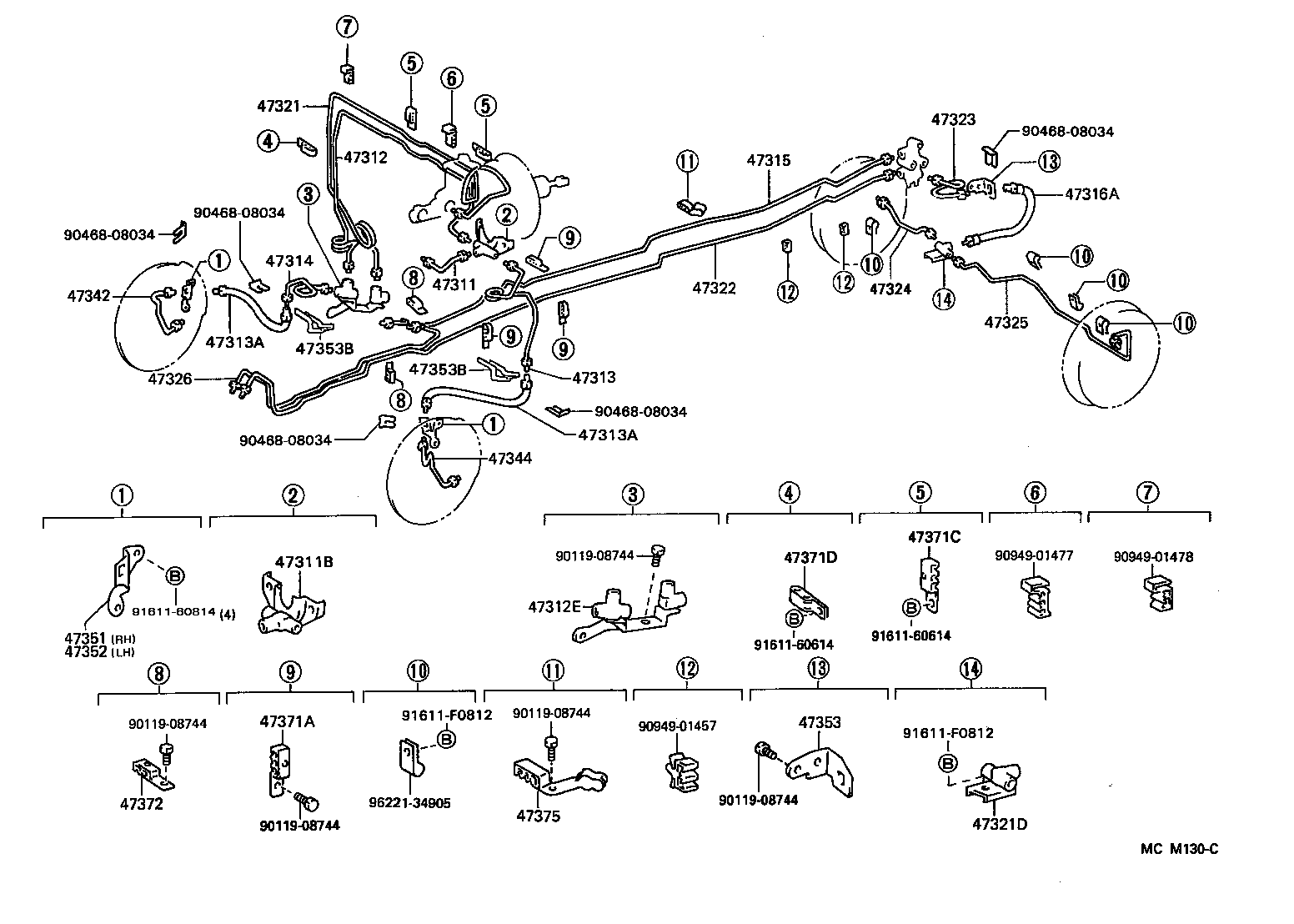

ILLUST NO. 1 OF 3(9109-9501)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35440 |
RN80,90 |
1 | ||
| 47311-35440 |
RN80..STD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10111 |
RN80,90 |
1 | ||
| 90413-10111 |
RN80..STD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-04020 |
RN80,90 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90415-10006 |
RN80,90 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-04020 |
RN80,90 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02581 |
RN80,90 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02581 |
RN80,90 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-04010 |
RN80,90 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-04010 |
RN80 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34206 |
RN80,90 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-04020 |
RN80,90 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10198 |
RN80,90 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-04010 |
RN80 |
1 | ||
| 47322-04020 |
RN80 W(*66) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-04010 |
RN80,90 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-04010 |
RN80,90 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-04010 |
RN80,90 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-04010 |
RN80,90 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-04010 |
RN80,90 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-04010 |
RN80,90 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35180 |
RN80..STD |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35210 |
RN80..STD |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47352-35200 |
RN80,90 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-35060 |
RN80,90 RH |
1 | ||
| 47353-35070 |
RN80,90 LH |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-35060 |
RN80,90 RH |
1 | ||
| 47353-35070 |
RN80,90 LH |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35080 |
RN80,90 |
3 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-35130 |
RN80,90 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47372-35080 |
RN80,90 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35030 |
RN80,90 |
1 | ||
| 47372-35030 |
RN80,90 W(*66) |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-35090 |
RN80,90 |
1 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90468-08034 | ||||
| 90949-01457 | ||||
| 90949-01477 | ||||
| 90949-01478 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91611-F0812 | ||||
| 96221-34905 | ||||

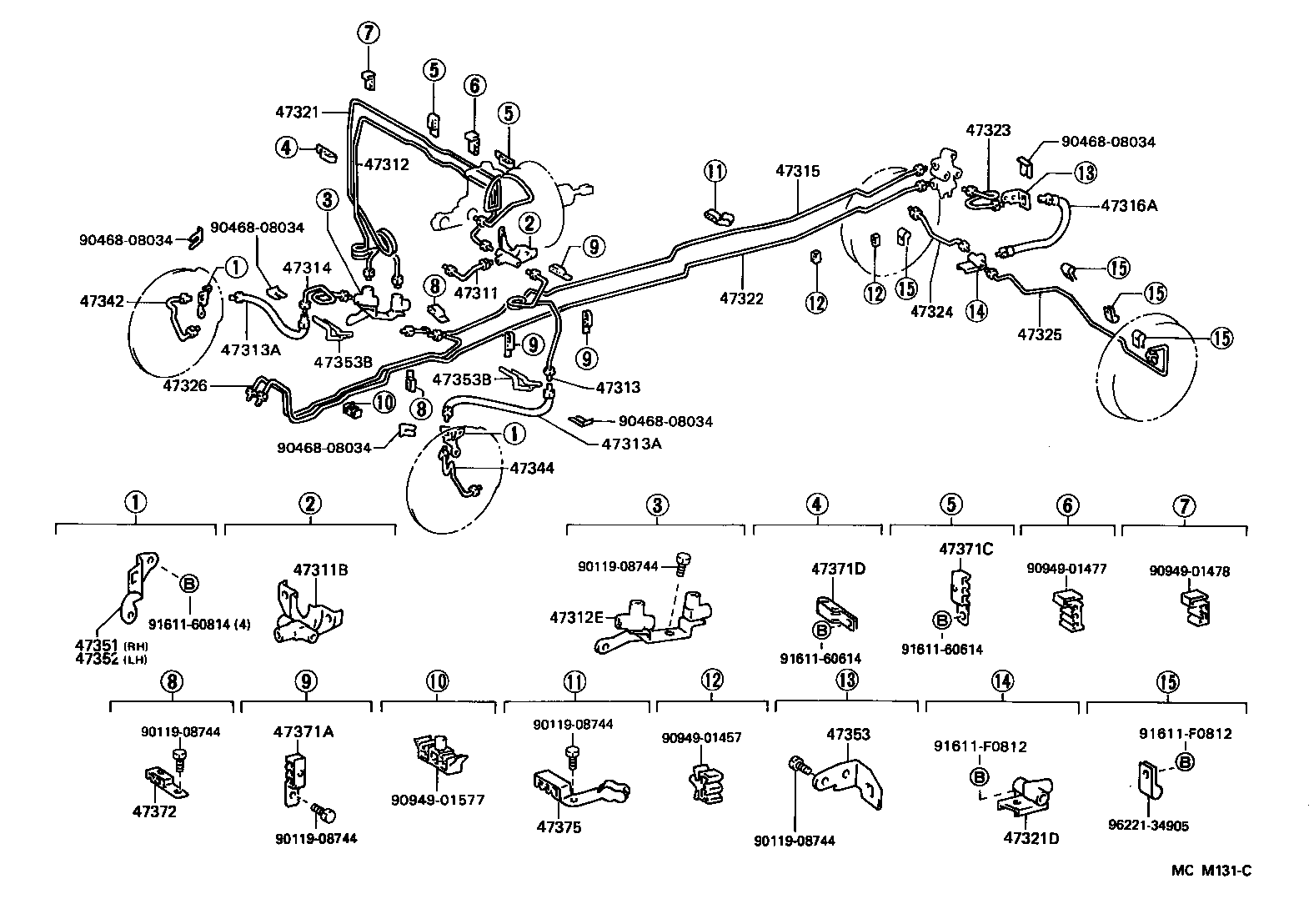

ILLUST NO. 1 OF 3(9109-9501)
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35440 |
RN80,90 |
1 | ||
| 47311-35440 |
RN80..STD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10111 |
RN80,90 |
1 | ||
| 90413-10111 |
RN80..STD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-04020 |
RN80,90 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90415-10006 |
RN80,90 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-04020 |
RN80,90 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02581 |
RN80,90 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02581 |
RN80,90 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-04010 |
RN80,90 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-04010 |
RN80 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34206 |
RN80,90 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-04020 |
RN80,90 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10198 |
RN80,90 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-04010 |
RN80 |
1 | ||
| 47322-04020 |
RN80 W(*66) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-04010 |
RN80,90 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-04010 |
RN80,90 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-04010 |
RN80,90 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-04010 |
RN80,90 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-04010 |
RN80,90 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-04010 |
RN80,90 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35180 |
RN80..STD |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35210 |
RN80..STD |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47352-35200 |
RN80,90 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-35060 |
RN80,90 RH |
1 | ||
| 47353-35070 |
RN80,90 LH |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-35060 |
RN80,90 RH |
1 | ||
| 47353-35070 |
RN80,90 LH |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35080 |
RN80,90 |
3 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-35130 |
RN80,90 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47372-35080 |
RN80,90 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35030 |
RN80,90 |
1 | ||
| 47372-35030 |
RN80,90 W(*66) |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-35090 |
RN80,90 |
1 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90468-08034 | ||||
| 90949-01457 | ||||
| 90949-01477 | ||||
| 90949-01478 | ||||
| 90949-01577 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91611-F0812 | ||||
| 96221-34905 | ||||
