RN80L-TRMDEAB (1991)

Toyota 4-Runner Truck (Nap)

Production Sep 1991 - Jan 1995
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )

Click highlighted areas on diagram

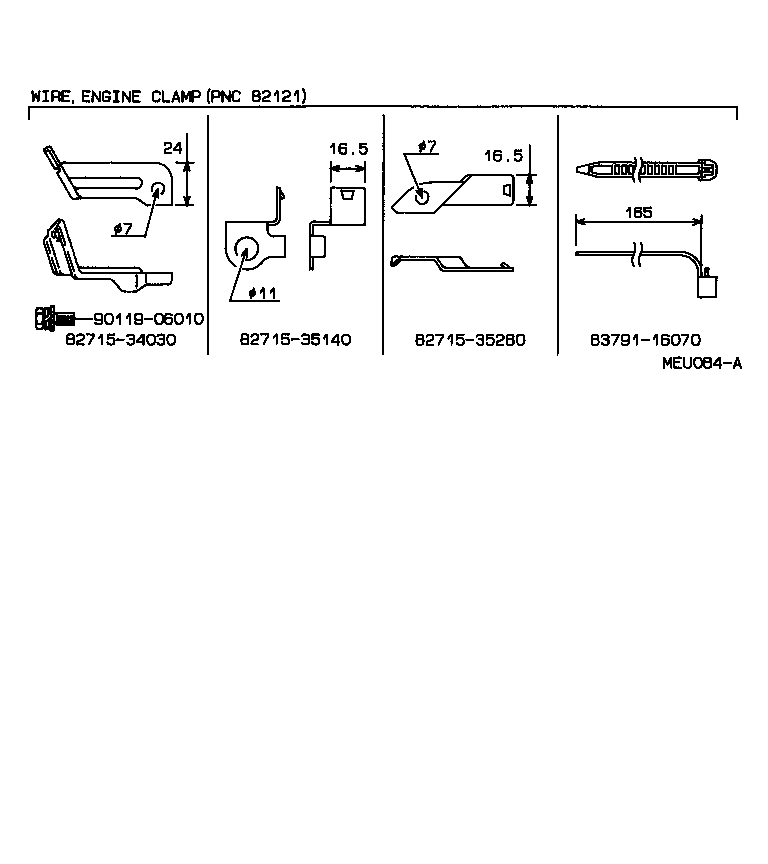

ENGINE WIRE CLAMP & BRACKETS

diagram 82121 8271534030 8271535140 8271535280 8379116070 9011906010
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-35120

RN80..W

CALIFORNIA SPEC

 1
82121-35121

RN80,90..W

CALIFORNIA SPEC

 1
82121-35112

RN80,90..W

 1
82121-35111

RN80,90..W

 1
82121-35110

RN80..W

 1
82121-35122

RN80,90..W

CALIFORNIA SPEC

 1
Common parts
82715-34030
82715-35140
82715-35280
83791-16070
90119-06010
