VZN95L-TWSREK6 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1993
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )VZN120,85,9#..JPP..ATM

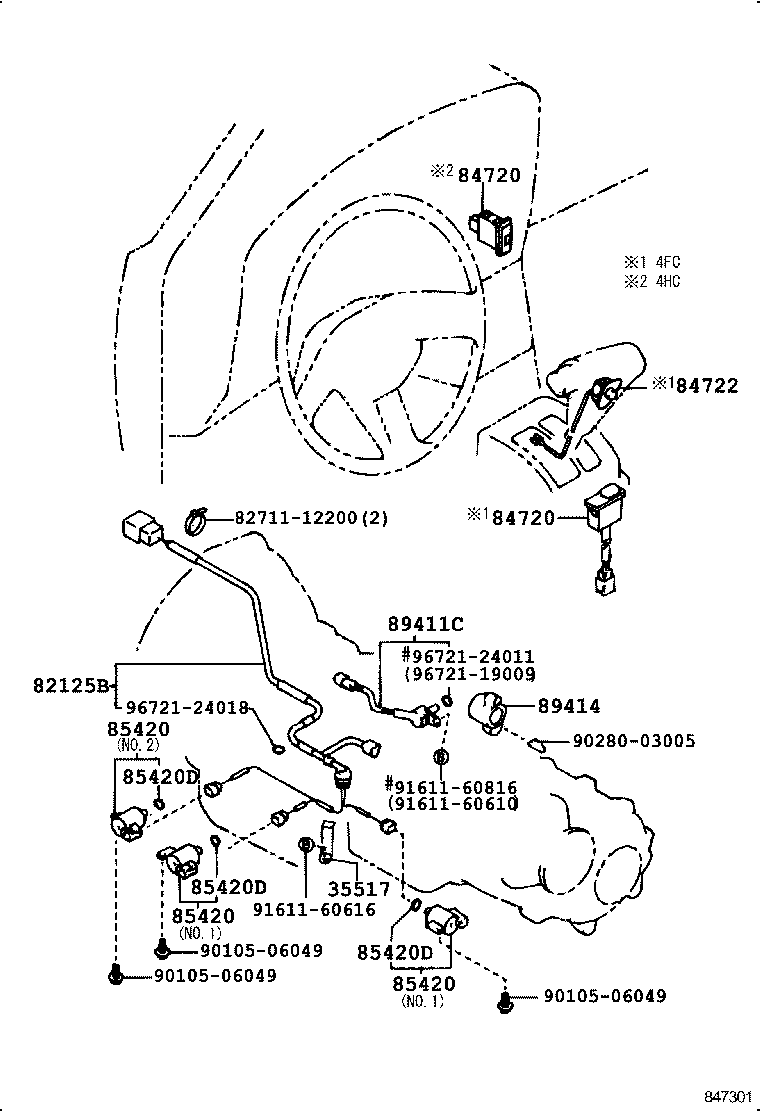

Click highlighted areas on diagram

diagram 35517 82125B 8271112200 84720 84720 84722 85420 85420 85420 85420D 85420D 85420D 89411C 89414 9010506049 9010506049 9010506049 9028003005 9161160610 9161160616 9161160816 9672119009 9672124011 9672124018
Part # Description Qty Price
35517 - PLATE, TRANSMISSION WIRE LOCK
35517-30010

VZN120,85,9#..ATM

 1
82125B - WIRE, TRANSMISSION
82125-35060

VZN120,85,9#..ATM

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-35030

VZN85,9#..4HC

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-35030

VZN85,9#..4HC

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-22080

VZN120,85,9#..ATM

NO.1,AISIN

 2
85420-30120

VZN120,85,9#..ATM

NO.2,NIPPONDENSO

 1
85420-30110

VZN120,85,9#..ATM

NO.2,AISIN

 1
85420-22080

VZN120,85,9#..ATM

NO.1

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-22080

VZN120,85,9#..ATM

NO.1,AISIN

 2
85420-30120

VZN120,85,9#..ATM

NO.2,NIPPONDENSO

 1
85420-30110

VZN120,85,9#..ATM

NO.2,AISIN

 1
85420-22080

VZN120,85,9#..ATM

NO.1

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-22080

VZN120,85,9#..ATM

NO.1,AISIN

 2
85420-30120

VZN120,85,9#..ATM

NO.2,NIPPONDENSO

 1
85420-30110

VZN120,85,9#..ATM

NO.2,AISIN

 1
85420-22080

VZN120,85,9#..ATM

NO.1

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

VZN120,85,9#..ATM

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

VZN120,85,9#..ATM

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

VZN120,85,9#..ATM

 3
89411C - SENSOR, SPEED
89411-22060

VZN85,9#..ATM

 1
89411-22061

VZN120,85,9#..ATM

 1
89414 - ROTOR, SENSOR
89414-30020

VZN85,9#..ATM

 1
Common parts
82711-12200
90105-06049
90280-03005
91611-60610
91611-60616
91611-60816
96721-19009
96721-24011
96721-24018
