VZN95L-TWSREK6 (1988)
Toyota 4-Runner Truck (Jpp)

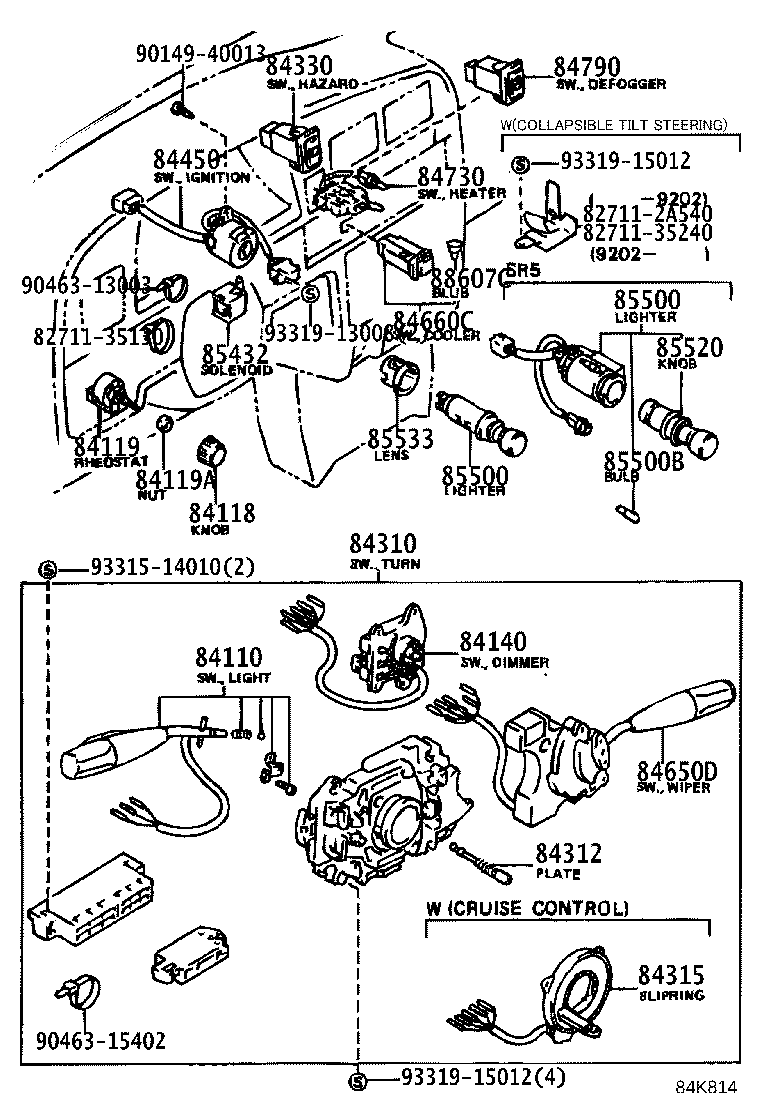

ILLUST NO. 3 OF 4(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39625 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 84112-39625 |
VZN85,95..4HC W(TILT STEERING & CRUISE CONTROL) |
1 | ||
| 84112-39625 |
VZN85,95..IV6 W(TILT STEERING & CRUISE CONTROL) |
1 | ||
| 84112-39625 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-2001101 |
RN12#,8#,90,VZN120,85,9# BLACK,BLACK,TRIM1#,8# |
1 | ||
| 84118-2001101 |
RN8#,90,VZN85,9# BLACK,TRIM1#,8# |
1 | ||
| 84118-2001101 |
RN12#,VZN120,9# BLACK,BLACK,TRIM1#,8# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-32090 |
VZN90..R..SR5;RN8#,90,VZN85,9#..ATM;RN12#,85,90,VZN120..(4FC,5F)..SR5 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 90170-09002 |
VZN85..WT;VZN85..10T;RN85,90..DLX..EFI;RN12#,80,VZN120,9#..(4FC,4HC,5F)..EFI |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-35100 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 84140-35100 |
VZN85,95..IV6 W(TILT STEERING & CRUISE CONTROL) |
1 | ||
| 84140-35100 |
VZN85,95..4HC W(TILT STEERING & CRUISE CONTROL) |
1 | ||
| 84140-35100 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35320 |
VZN90..DLX;RN12#,8#,90,VZN85,95..(4FC,4HC,5F)..EFI W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 84310-35330 |
RN12#,85,90,VZN120,85,9#..SR5,STD W(CRUISE CONTROL) |
1 | ||
| 84310-35300 |
VZN90..DLX;RN12#,8#,90,VZN85,95 |
1 | ||
| 84310-35480 |
VZN95;VZN90..SR5..CND;RN85,90,VZN85,90..USA;RN12#,80,VZN120..DLX,SR5 W(CRUISE CONTROL) |
1 | ||
| 84310-35480 |
VZN85,95..IV6 W(COLLAPSIBLE TILT STEERING & CRUISE CONTROL) |
1 | ||
| 84310-35470 |
RN85,90..4HC;RN85,90..W..USA;RN12#,80..DLX,SR5;VZN85,9#..DLX,STD W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 84310-35480 |
VZN85,95..4HC W(COLLAPSIBLE TILT STEERING & CRUISE CONTROL) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 84312-12040 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 84315 - SLIPRING, HORN CONTACT | ||||
| 84315-35020 |
VZN95;VZN90..SR5..CND;RN85,90,VZN85,90..USA;RN12#,80,VZN120..DLX,SR5 |
1 | ||
| 84315-35020 |
RN12#,85,90,VZN120,85,9#..SR5,STD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-89110 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 84332-89110 |
VZN85..WT;VZN85..10T;RN85,90..DLX..EFI;RN12#,80,VZN120,9#..(4FC,4HC,5F)..EFI |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-35080 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-35230 |
RN12#,85,90,VZN120,85,9#..SR5,STD W(CRUISE CONTROL) |
1 | ||
| 84652-35370 |
RN85,90..4HC;RN85,90..W..USA;RN12#,80..DLX,SR5;VZN85,9#..DLX,STD W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 84652-35220 |
VZN90..DLX;RN12#,8#,90,VZN85,95..(4FC,4HC,5F)..EFI W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 84652-35380 |
VZN95;VZN90..SR5..CND;RN85,90,VZN85,90..USA;RN12#,80,VZN120..DLX,SR5 W(CRUISE CONTROL) |
1 | ||
| 84652-35200 |
VZN90..DLX;RN12#,8#,90,VZN85,95 |
1 | ||
| 84652-35380 |
VZN85,95..4HC W(COLLAPSIBLE TILT STEERING & CRUISE CONTROL) |
1 | ||
| 84652-35380 |
VZN85,95..IV6 W(COLLAPSIBLE TILT STEERING & CRUISE CONTROL) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-89105 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89113 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
RN8#,90,VZN85,9#..DLX,STD |
1 | ||
| 85500-12250 |
VZN85..WT;VZN85..10T;RN8#,90,VZN9#..(4HC,5F)..(DLX,STD)..EFI |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
RN8#,90,VZN85,9#..DLX,STD |
1 | ||
| 85500-12250 |
VZN85..WT;VZN85..10T;RN8#,90,VZN9#..(4HC,5F)..(DLX,STD)..EFI |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 85520-20080 |
VZN85..WT;VZN85..10T;RN12#,8#,90,VZN120,9#..(4FC,4HC,5F)..EFI |
1 | ||
| 85520-20080 |
RN8#,90,VZN120,85,9# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
RN8#,90,VZN85,9#..DLX,STD |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
RN12#,8#,90,VZN120,85,9# 14V 0.065A,14V 0.91W |
1 | ||
| Common parts | ||||
| 82711-2A540 | ||||
| 82711-35130 | ||||
| 82711-35240 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||

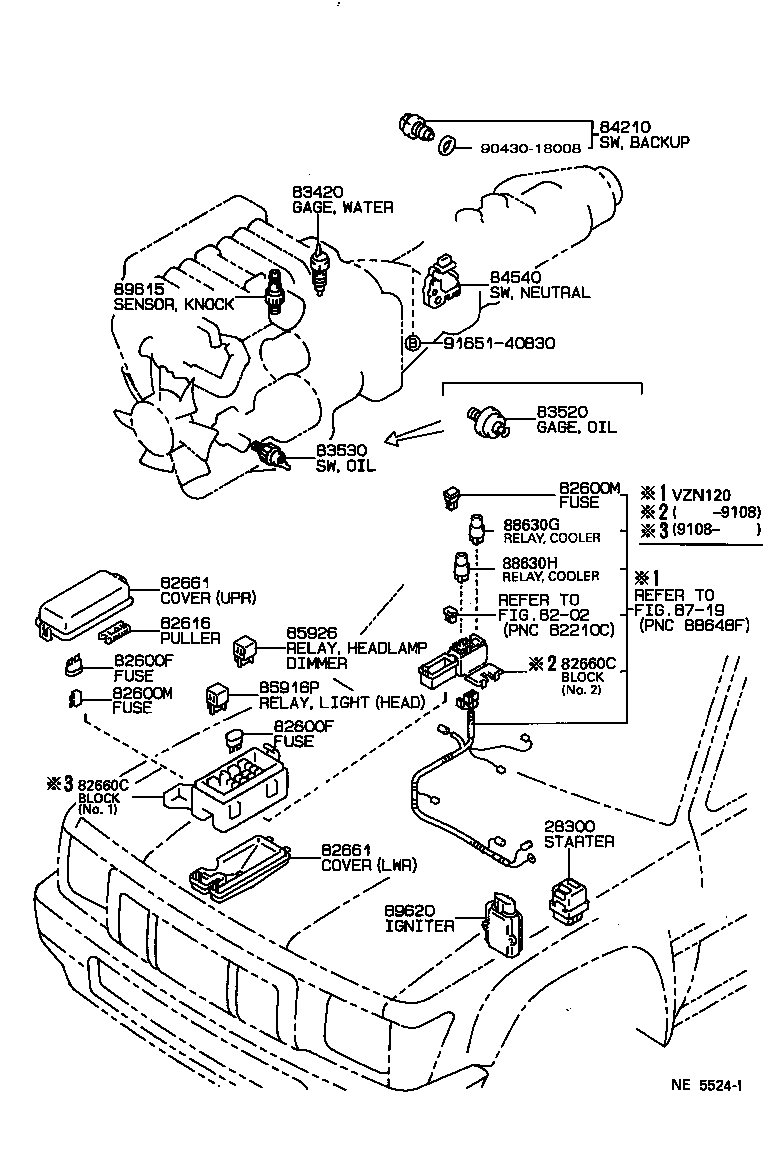

ILLUST NO. 1 OF 4(8808- )VZN120,85,9#..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02009 |
22RE,3VZE..RN8#,90,VZN120,85,9# |
1 | ||
| 28300-10020 |
22RE,3VZE..RN8#,90,VZN120,85,9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
RN12#,8#,90,VZN120,85,9# 7.5A |
1 | ||
| 90982-09003 |
RN12#,8#,90,VZN120,85,9# 15A |
1 | ||
| 90982-09002 |
RN12#,8#,90,VZN120,85,9# 10A |
1 | ||
| 90982-09004 |
RN12#,8#,90,VZN120,85,9# 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
RN12#,8#,90,VZN120,85,9# 7.5A |
1 | ||
| 90982-09003 |
RN12#,8#,90,VZN120,85,9# 15A |
1 | ||
| 90982-09002 |
RN12#,8#,90,VZN120,85,9# 10A |
1 | ||
| 90982-09004 |
RN12#,8#,90,VZN120,85,9# 20A,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-89102 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
RN8#,90,VZN120,85,9# |
1 | ||
| 82660-35090 |
RN8#,90,VZN120,85,9# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-35030 |
RN8#,90,VZN120,85,9# |
1 | ||
| 82660-35090 |
RN8#,90,VZN120,85,9# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-89108 |
RN121,8#,90,VZN85,9#..(4HC,5F)..CND UPR |
1 | ||
| 82662-89101 |
VZN120,90;RN8#,90..CND;RN85,90..EFI..USA;RN121,80,VZN85,95..(4HC,5F)..EFI UPR |
1 | ||
| 82662-35200 |
RN121,8#,90,VZN9#..(4HC,5F)..CND UPR |
1 | ||
| 82663-35010 |
RN8#,90,VZN120,85,9# LWR |
1 | ||
| 82662-35320 |
VZN9#..CND UPR |
1 | ||
| 82663-89101 |
RN12#,8#,90,VZN120,85,9# LWR |
1 | ||
| 82663-35010 |
VZN9#;RN8#,90,VZN120,85..USA LWR |
1 | ||
| 82663-35010 |
VZN90..DLX;VZN120,85,95 LWR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-89108 |
RN121,8#,90,VZN85,9#..(4HC,5F)..CND UPR |
1 | ||
| 82662-89101 |
VZN120,90;RN8#,90..CND;RN85,90..EFI..USA;RN121,80,VZN85,95..(4HC,5F)..EFI UPR |
1 | ||
| 82662-35200 |
RN121,8#,90,VZN9#..(4HC,5F)..CND UPR |
1 | ||
| 82663-35010 |
RN8#,90,VZN120,85,9# LWR |
1 | ||
| 82662-35320 |
VZN9#..CND UPR |
1 | ||
| 82663-89101 |
RN12#,8#,90,VZN120,85,9# LWR |
1 | ||
| 82663-35010 |
VZN9#;RN8#,90,VZN120,85..USA LWR |
1 | ||
| 82663-35010 |
VZN90..DLX;VZN120,85,95 LWR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
RN8#,90,VZN85,9#..DLX,STD |
1 | ||
| 83530-30080 |
VZN85,9#..DLX,STD |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-35040 |
VZN120,85,9#..ATM |
1 | ||
| 84540-50010 |
VZN120,85,9#..ATM |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20010 |
VZN120,85,9# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-30010 |
VZN120,85,9# |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8719 | ||||

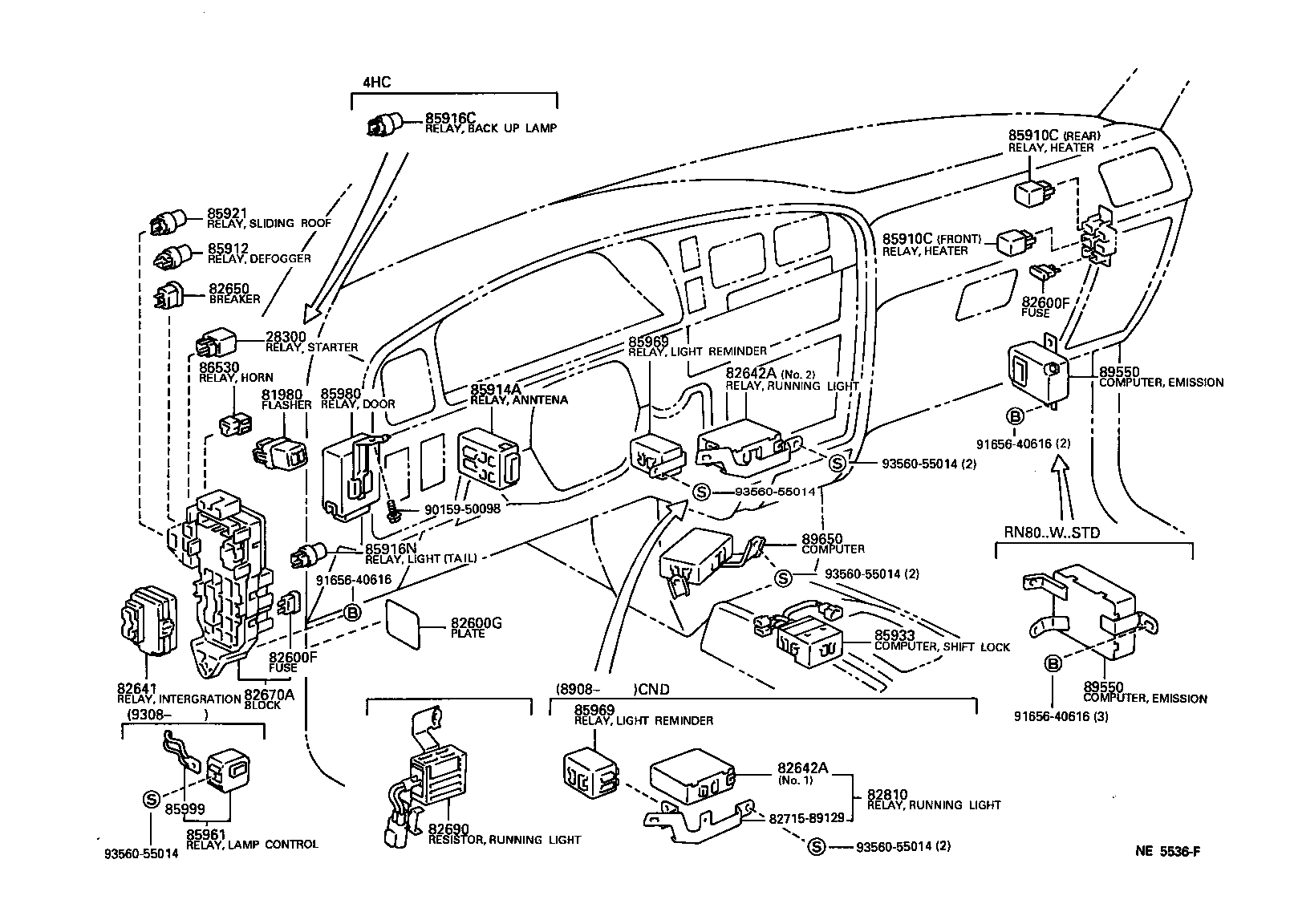

ILLUST NO. 2 OF 4(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02009 |
22RE,3VZE..RN8#,90,VZN120,85,9# |
1 | ||
| 28300-10020 |
22RE,3VZE..RN8#,90,VZN120,85,9# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
RN12#,8#,90,VZN120,85,9# 7.5A |
1 | ||
| 90982-09003 |
RN12#,8#,90,VZN120,85,9# 15A |
1 | ||
| 90982-09002 |
RN12#,8#,90,VZN120,85,9# 10A |
1 | ||
| 90982-09004 |
RN12#,8#,90,VZN120,85,9# 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
RN12#,8#,90,VZN120,85,9# 7.5A |
1 | ||
| 90982-09003 |
RN12#,8#,90,VZN120,85,9# 15A |
1 | ||
| 90982-09002 |
RN12#,8#,90,VZN120,85,9# 10A |
1 | ||
| 90982-09004 |
RN12#,8#,90,VZN120,85,9# 20A,YELLOW |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-89109 |
RN85,90,VZN90..SR5;RN8#,90,VZN85,9#..(DLX,STD)..CND |
1 | ||
| 82683-89101 |
RN8#,90,VZN85,9# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-89101 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
RN12#,8#,90,VZN120,85,9# 30A |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-89108 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-89102 |
RN121,8#,90,VZN85,9#..CND |
1 | ||
| 82810-89103 |
RN121,8#,90,VZN9#..CND |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90987-02004 |
RN8#,90,VZN85,9#..4HC |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-01003 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| Common parts | ||||
| 82715-89129 | ||||
| 90159-50098 | ||||
| 91656-40616 | ||||
| 93560-55014 | ||||

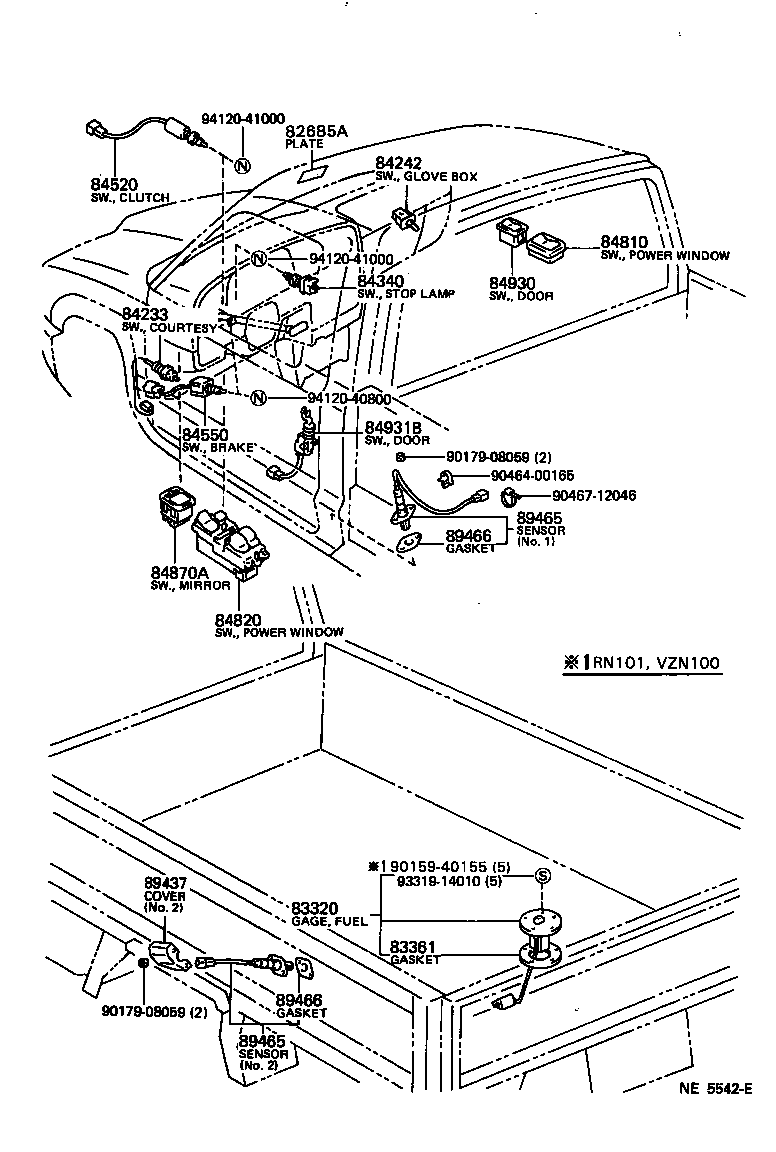

ILLUST NO. 4 OF 4(8808- )RN8#,90,VZN85,9#..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80122 |
RN85,90,VZN85,9#..(DLX,STD)..EFI |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
RN12#,8#,90,VZN120,85,9# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32070 |
VZN95;VZN90..SR5..CND;RN85,90,VZN85,90..USA;RN12#,80,VZN120..DLX,SR5 W(CRUISE CONTROL) |
1 | ||
| 84340-30030 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 84340-30050 |
RN12#,85,90,VZN120,85,9#..SR5,STD W(CRUISE CONTROL) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-35010 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39225 |
VZN85..IV6;RN8#,90,VZN95..EFI |
1 | ||
| 89465-39226 |
VZN85..IV6;RN8#,90,VZN95..(4HC,5F)..EFI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39225 |
VZN85..IV6;RN8#,90,VZN95..EFI |
1 | ||
| 89465-39226 |
VZN85..IV6;RN8#,90,VZN95..(4HC,5F)..EFI |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
RN80..4HC;VZN95..CND;RN80,VZN95..R,W;RN85,90,VZN85,90..EFI |
1 | ||
| 89466-20020 |
RN80..4HC;VZN95..CND;RN80,VZN95..R,W;RN12#,85,90,VZN120,85,90..EFI |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
RN80..4HC;VZN95..CND;RN80,VZN95..R,W;RN85,90,VZN85,90..EFI |
1 | ||
| 89466-20020 |
RN80..4HC;VZN95..CND;RN80,VZN95..R,W;RN12#,85,90,VZN120,85,90..EFI |
1 | ||
| Common parts | ||||
| 90159-40155 | ||||
| 90179-08059 | ||||
| 90464-00165 | ||||
| 90467-12046 | ||||
| 93319-14010 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
