VZN95L-TWSREK6 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1993
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN8#,90,VZN85,9#..JPP

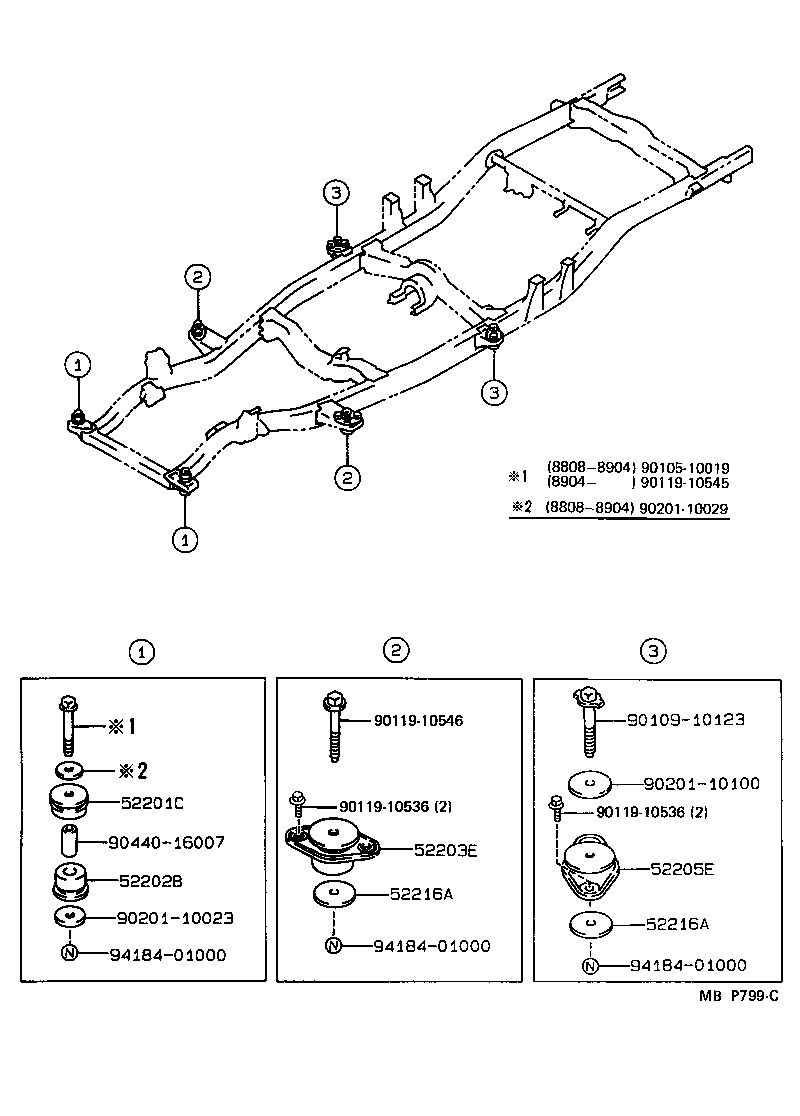

Click highlighted areas on diagram

diagram 52201C 52202B 52203E 52205E 52216A 52216A 9010510019 9010910123 9011910536 9011910536 9011910545 9011910546 9020110023 9020110029 9020110100 9044016007 9418401000 9418401000 9418401000
Part # Description Qty Price
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-35050

RN8#,90,VZN85,9#

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-35050

RN8#,90,VZN85,9#

 2
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-35110

RN8#,VZN85,95

 2
52205E - CUSHION SUB-ASSY, CAB MOUNTING, NO.3
52205-35030

RN8#,VZN85,95

 2
52205-35030

VZN85..10T..CBU;RN8#,VZN85,95..HLF;VZN85..10T..R..IV3

 2
52216A - STOPPER, CAB MOUNTING CUSHION
52216-35030

VZN85,9#

OD=65

 2
52216-35030

VZN85,9#..HLF;VZN85..10T..CBU;VZN85..10T..R..IV3

OD=65

 2
52216-35020

VZN85,9#

OD=55

 2
52216A - STOPPER, CAB MOUNTING CUSHION
52216-35030

VZN85,9#

OD=65

 2
52216-35030

VZN85,9#..HLF;VZN85..10T..CBU;VZN85..10T..R..IV3

OD=65

 2
52216-35020

VZN85,9#

OD=55

 2
Common parts
90105-10019
90109-10123
90119-10536
90119-10545
90119-10546
90201-10023
90201-10029
90201-10100
90440-16007
94184-01000
