VZN95L-TWSREA6 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1993
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

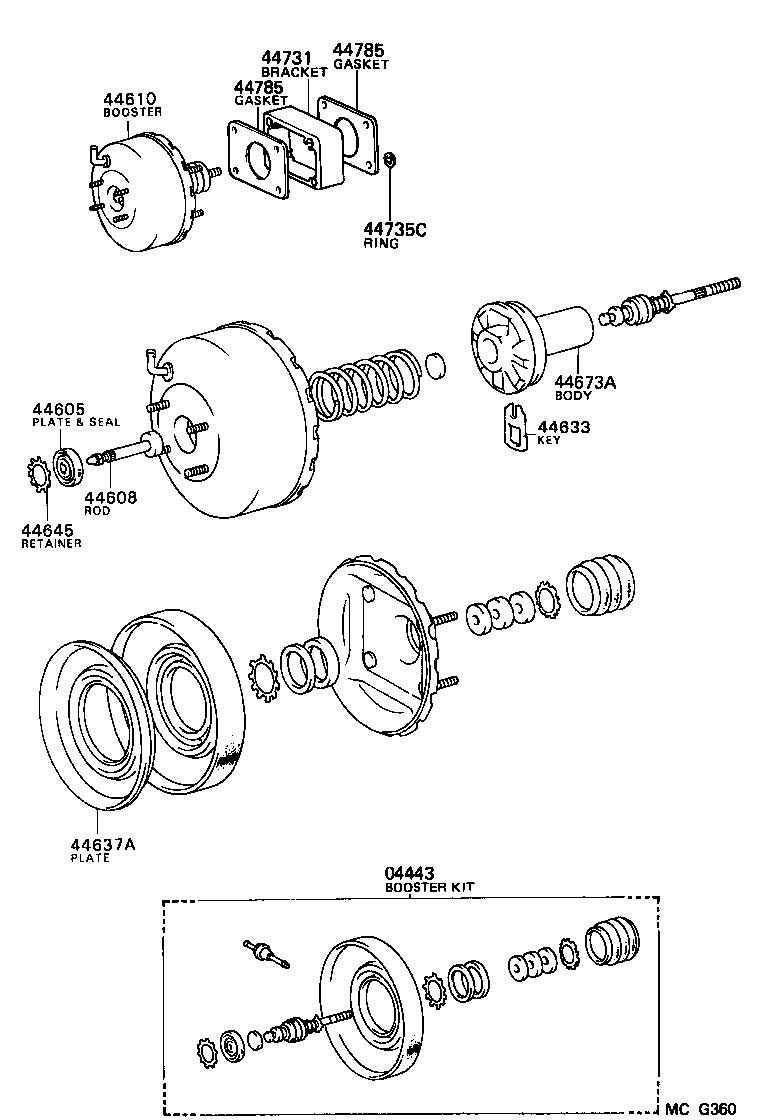

ILLUST NO. 1 OF 2(8808-9511)VZN85,9#..JPP ; (8808-9511)RN80..JPP..MTM..USA

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44731 44735C 44785 44785
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-35770

VZN85,9#

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-30350

RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#..EFI

 1
44605-30350

RN80..DLX;RN80..CND;RN85,90,VZN85,9#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-17090

RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#..EFI

 1
44608-17090

RN80..DLX;RN80..CND;RN85,90,VZN85,9#

 1
44610 - BOOSTER ASSY, BRAKE
44610-3D170

VZN85,9#

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-20811

RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#..EFI

 1
44633-20811

RN80..DLX;RN80..CND;RN85,90,VZN85,9#

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-28300

RN12#,VZN120,85,9#

 1
44637-28300

VZN85,9#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

RN12#,8#,90,VZN120,85,9#

 1
44645-10080

RN8#,90,VZN85,9#

 1
44673A - BODY, BOOSTER VALVE
44673-20810

RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#..EFI

 1
44673-20810

RN80..DLX;RN80..CND;RN85,90,VZN85,9#

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44731-35110

VZN85,9#;RN80..STD..USA

 1
44735C - RING, BOOSTER BRACKET STOPPER
44735-30010

VZN85,9#;RN8#,90..CBR;RN80..STD..EFI..USA

 2
44785 - GASKET, BRAKE BOOSTER
44785-35020

VZN85,9#;RN8#,90..CBR;RN80..STD..EFI..USA

 2
44785 - GASKET, BRAKE BOOSTER
44785-35020

VZN85,9#;RN8#,90..CBR;RN80..STD..EFI..USA

 2

ILLUST NO. 2 OF 2(8808-9511)VZN120,85,9#..JPP

Click highlighted areas on diagram

diagram 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44730F 44758 44772B 44773F 44773F 9046108110 91611A0614 91611A0614
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

VZN120,85,9#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

VZN120,85,9#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

VZN120,85,9#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

VZN120,85,9#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

VZN120,85,9#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

VZN120,85,9#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

VZN120,85,9#

 4
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RN12#,8#,90,VZN120,85,9#..EFI

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RN12#,8#,90,VZN120,85,9#..EFI

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-35090

VZN120,85,9#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-35240

VZN85,9#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-35340

VZN120,85,9#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-35340

VZN120,85,9#

 1
Common parts
90461-08110
91611-A0614
