VZN95L-TWMREA6 (1988)
Toyota 4-Runner Truck (Jpp)

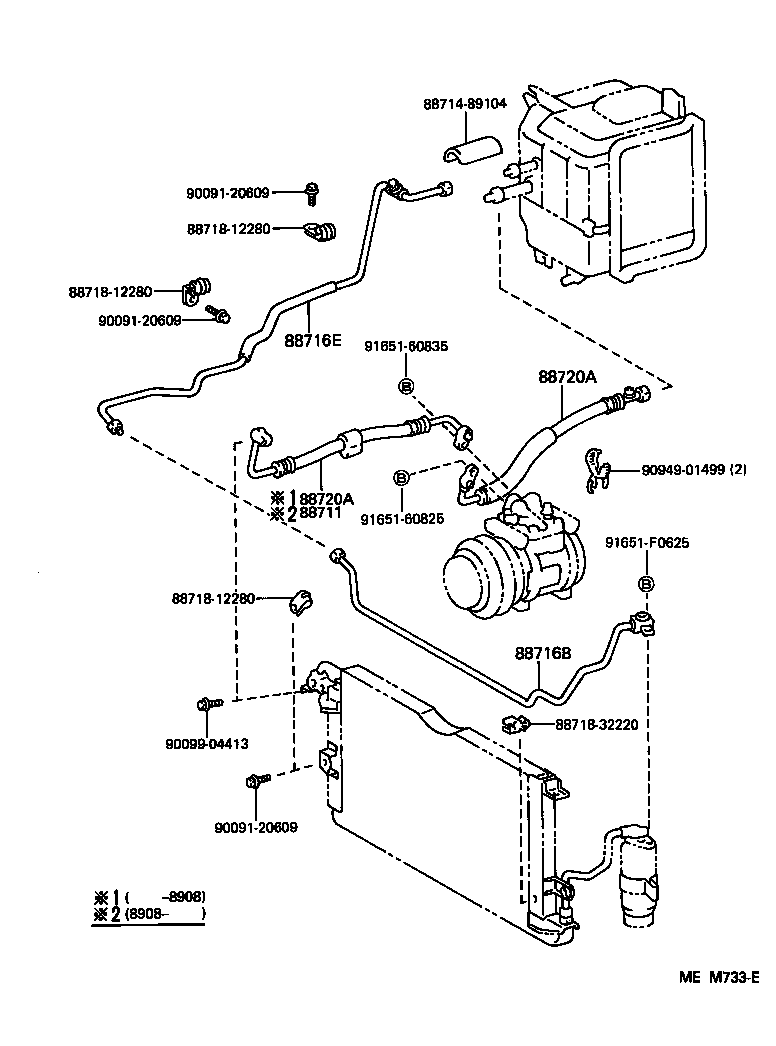

ILLUST NO. 2 OF 2(8808- )VZN85,9#..JPP
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-35060 |
VZN85,9#..USA DEALER OPTION |
1 | ||
| 88720-89135 |
VZN85,9#..USA MAKER OPTION |
1 | ||
| 88711-89153 |
VZN95 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-89162 |
RN8#,90,VZN85,9# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89170 |
VZN120,85,9# |
1 | ||
| 88716-89181 |
VZN120,85,9#;RN80..4F..EFI;RN8#,90..EFI..CND |
1 | ||
| 88716-89181 |
RN8#,90,VZN120,85,9# |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89126 |
VZN85,9#..USA DEALER OPT |
1 | ||
| 88720-89126 |
VZN85,9#..USA MAKER OPT,DISCHARGE |
1 | ||
| 88720-89123 |
VZN85,9#..USA MAKER OPT,SUCTION |
1 | ||
| 88720-89137 |
VZN120,85,9#..USA MAKER OPT |
1 | ||
| 88720-35170 |
VZN120,85,9# |
1 | ||
| 88720-35170 |
VZN120,85,9#..USA DEALER OPT |
1 | ||
| 88720-89137 |
VZN95 |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89126 |
VZN85,9#..USA DEALER OPT |
1 | ||
| 88720-89126 |
VZN85,9#..USA MAKER OPT,DISCHARGE |
1 | ||
| 88720-89123 |
VZN85,9#..USA MAKER OPT,SUCTION |
1 | ||
| 88720-89137 |
VZN120,85,9#..USA MAKER OPT |
1 | ||
| 88720-35170 |
VZN120,85,9# |
1 | ||
| 88720-35170 |
VZN120,85,9#..USA DEALER OPT |
1 | ||
| 88720-89137 |
VZN95 |
1 | ||
| Common parts | ||||
| 88714-89104 | ||||
| 88718-12280 | ||||
| 88718-32220 | ||||
| 90091-20609 | ||||
| 90099-04413 | ||||
| 90949-01499 | ||||
| 91651-60825 | ||||
| 91651-60835 | ||||
| 91651-F0625 | ||||
ILLUST NO. 1 OF 2(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-35020 |
VZN95 |
1 | ||
| 88460-89115 |
RN8#,90,VZN85,9# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-89120 |
RN8#,90,VZN85,9# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-89121 |
RN8#,90,VZN85,9# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 88471-16040 |
VZN120,85,95;RN8#,90,VZN90..CND |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89110 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
RN12#,VZN120,95 250G |
3 | ||
| 90986-02004 |
VZN95 250G |
3 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88723-12010 |
RN120,8#,90,VZN120,85,9# |
1 | ||
| 88723-12010 |
RN80..CBR;RN85,90..5F;RN85,90..4HC..USA;RN80,VZN120,85,9#..(4FC,4HC,5F)..EFI..USA |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-89163 |
RN8#,90,VZN85,9# |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN80..EFI;RN80..G..USA;RN85,90,VZN120,85,9#..USA |
2 | ||
| 88578-89103 |
RN120,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI..USA DEALER OPTION |
2 | ||
| 88578-89111 |
RN120,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI..USA W(AIR CONDITIONER) |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN80..EFI;RN80..G..USA;RN85,90,VZN120,85,9#..USA |
2 | ||
| 88578-89103 |
RN120,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI..USA DEALER OPTION |
2 | ||
| 88578-89111 |
RN120,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI..USA W(AIR CONDITIONER) |
2 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88892-89114 |
VZN95 |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-89119 |
RN80..G..USA;RN80..DLX..EFI;RN120,85,90,VZN85,9#..USA MAKER OPTION |
1 | ||
| 88578-89127 |
RN80..G..USA;RN80..DLX..EFI;RN85,90,VZN85,9#..USA DEALER OPTION |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89112 |
RN8#,90,VZN85,9# |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89123 |
RN8#,90,VZN85,9# RH |
1 | ||
| 88578-89122 |
RN8#,90,VZN85,9# LH |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89123 |
RN8#,90,VZN85,9# RH |
1 | ||
| 88578-89122 |
RN8#,90,VZN85,9# LH |
1 | ||
| 88891G - PACKING G (FOR COOLER) | ||||
| 88578-89107 |
RN12#,8#,90,VZN85,9# |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89114 |
RN8#,90,VZN85,9# RH |
1 | ||
| 88892-89115 |
RN8#,90,VZN85,9# LH |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89114 |
RN8#,90,VZN85,9# RH |
1 | ||
| 88892-89115 |
RN8#,90,VZN85,9# LH |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88467-95704 | ||||
| 88695-89102 | ||||
| 90091-20609 | ||||
| 90099-32128 | ||||
| 90119-06336 | ||||
| 90119-08671 | ||||
| 90119-90871 | ||||
| 90179-06026 | ||||
| 90179-06032 | ||||
| 90467-08011 | ||||
| 91651-60814 | ||||
| 91651-F0625 | ||||
| 91656-F0616 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 5353 | ||||
ILLUST NO. 2 OF 2(9109- )JPP
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-89162 |
RN8#,90,VZN85,9# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89170 |
VZN120,85,9# |
1 | ||
| 88716-89181 |
VZN120,85,9#;RN80..4F..EFI;RN8#,90..EFI..CND |
1 | ||
| 88716-89181 |
RN8#,90,VZN120,85,9# |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89126 |
VZN85,9#..USA DEALER OPT |
1 | ||
| 88720-89126 |
VZN85,9#..USA MAKER OPT,DISCHARGE |
1 | ||
| 88720-89123 |
VZN85,9#..USA MAKER OPT,SUCTION |
1 | ||
| 88720-89137 |
VZN120,85,9#..USA MAKER OPT |
1 | ||
| 88720-35170 |
VZN120,85,9# |
1 | ||
| 88720-35170 |
VZN120,85,9#..USA DEALER OPT |
1 | ||
| 88720-89137 |
VZN95 |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89126 |
VZN85,9#..USA DEALER OPT |
1 | ||
| 88720-89126 |
VZN85,9#..USA MAKER OPT,DISCHARGE |
1 | ||
| 88720-89123 |
VZN85,9#..USA MAKER OPT,SUCTION |
1 | ||
| 88720-89137 |
VZN120,85,9#..USA MAKER OPT |
1 | ||
| 88720-35170 |
VZN120,85,9# |
1 | ||
| 88720-35170 |
VZN120,85,9#..USA DEALER OPT |
1 | ||
| 88720-89137 |
VZN95 |
1 | ||
| Common parts | ||||
| 88714-89107 | ||||
| 88718-12280 | ||||
| 88718-32220 | ||||
| 90119-06159 | ||||
| 91651-B0835 | ||||
| 91651-F0625 | ||||
| 91651-G0845 | ||||
| 91656-F0616 | ||||
ILLUST NO. 2 OF 2(8808- )VZN85,9#..JPP..USA
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-35060 |
VZN85,9#..USA DEALER OPTION |
1 | ||
| 88720-89135 |
VZN85,9#..USA MAKER OPTION |
1 | ||
| 88711-89153 |
VZN95 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-89162 |
RN8#,90,VZN85,9# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89170 |
VZN120,85,9# |
1 | ||
| 88716-89181 |
VZN120,85,9#;RN80..4F..EFI;RN8#,90..EFI..CND |
1 | ||
| 88716-89181 |
RN8#,90,VZN120,85,9# |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89126 |
VZN85,9#..USA DEALER OPT |
1 | ||
| 88720-89126 |
VZN85,9#..USA MAKER OPT,DISCHARGE |
1 | ||
| 88720-89123 |
VZN85,9#..USA MAKER OPT,SUCTION |
1 | ||
| 88720-89137 |
VZN120,85,9#..USA MAKER OPT |
1 | ||
| 88720-35170 |
VZN120,85,9# |
1 | ||
| 88720-35170 |
VZN120,85,9#..USA DEALER OPT |
1 | ||
| 88720-89137 |
VZN95 |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89126 |
VZN85,9#..USA DEALER OPT |
1 | ||
| 88720-89126 |
VZN85,9#..USA MAKER OPT,DISCHARGE |
1 | ||
| 88720-89123 |
VZN85,9#..USA MAKER OPT,SUCTION |
1 | ||
| 88720-89137 |
VZN120,85,9#..USA MAKER OPT |
1 | ||
| 88720-35170 |
VZN120,85,9# |
1 | ||
| 88720-35170 |
VZN120,85,9#..USA DEALER OPT |
1 | ||
| 88720-89137 |
VZN95 |
1 | ||
| Common parts | ||||
| 88714-89107 | ||||
| 88718-12280 | ||||
| 88718-32220 | ||||
| 88718-89117 | ||||
| 90119-06159 | ||||
| 90949-01499 | ||||
| 91651-B0835 | ||||
| 91651-F0625 | ||||
| 91651-G0845 | ||||
| 91656-F0616 | ||||
