VZN95L-TWMREA6 (1988)
Toyota 4-Runner Truck (Jpp)
ILLUST NO. 1 OF 3(8808-9308)RN8#,90,VZN85,9#..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-35051 |
VZN85..10T;VZN85,95..IV6 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-35030 |
VZN85..10T;VZN85,95..IV6 |
2 | ||
| 04484-35060 |
VZN85,95 |
4 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-35150 |
VZN85,95..WT |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14056 |
VZN85,95..WT L=184 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-35150 |
VZN85,95..WT |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18012 |
RN8#,90,VZN85,9# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18012 |
RN8#,90,VZN85,9# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
VZN85..10T;VZN85,95..IV6 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
VZN85..10T;VZN85,95..IV6 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
RN8#,90,VZN85,9# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
RN8#,90,VZN85,9# |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-35050 |
VZN85..WT;RN8#,90,VZN9#;VZN85..HLF..DLX |
2 | ||
| 48382 - SPACER, BUMPER BLOCK | ||||
| 48382-35030 |
VZN95 |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-35160 |
VZN85..10T;VZN85,95..IV6 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-35160 |
VZN85..10T;VZN85,95..IV6 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-35070 |
RN8#,90,VZN85,9# |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-35030 |
RN8#,90,VZN85,9# |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48506-35030 |
RN8#,90,VZN85,9# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80034 |
VZN85,95..WT |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
RN8#,90,VZN85,9# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
RN8#,90,VZN85,9# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
RN8#,90,VZN85,9# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
RN8#,90,VZN85,9# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
RN8#,90,VZN85,9# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03012 |
RN8#,90,VZN85,9# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
RN8#,90,VZN85,9# |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
RN8#,90,VZN85,9# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80034 |
VZN85,95..WT |
1 | ||
| Common parts | ||||
| 90105-14025 | ||||
| 90119-08686 | ||||
| 90179-14039 | ||||
| 90201-14025 | ||||
| 90201-15012 | ||||
| 91611-60810 | ||||
| 91615-61025 | ||||
| 91616-61025 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||

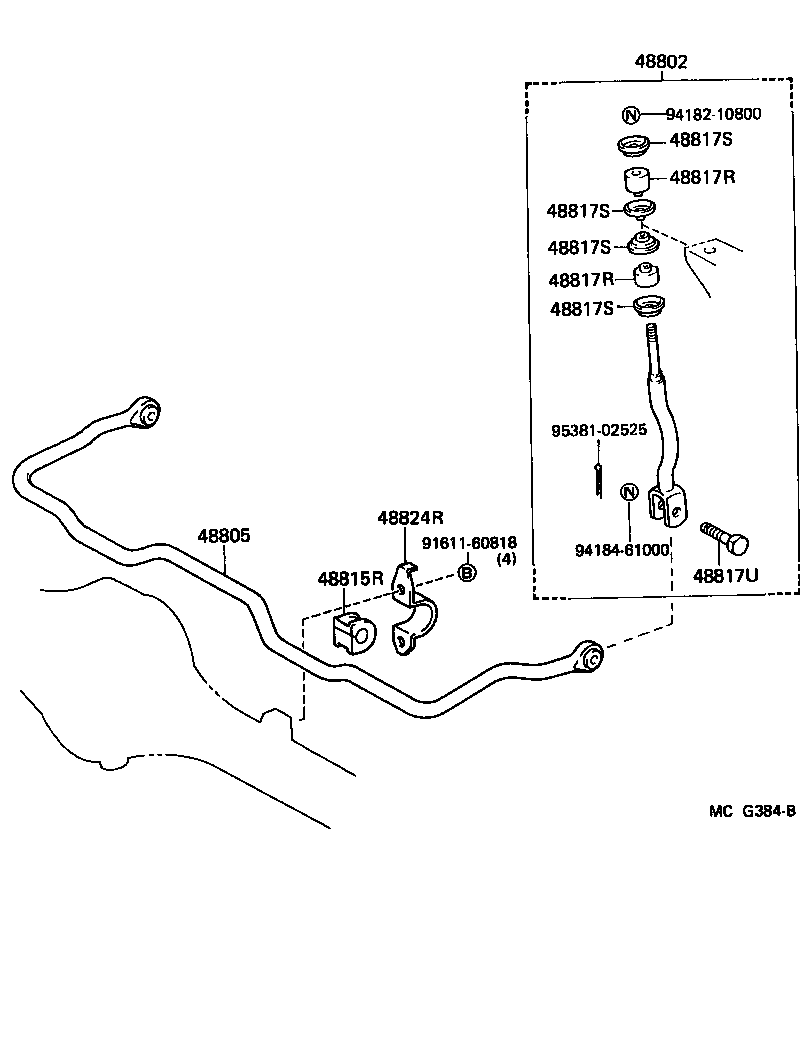

ILLUST NO. 2 OF 3(8808-9308)JPP..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-39025 |
VZN85,95..IV6 |
2 | ||
| 48802-39025 |
VZN85,95..WT |
1 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-35020 |
VZN85,95..WT |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-14160 |
VZN85,95..WT |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30010 |
VZN85,95..WT |
4 | ||
| 48817-30010 |
VZN85..WT;RN12#,VZN120,95 |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30010 |
VZN85,95..WT |
4 | ||
| 48817-30010 |
VZN85..WT;RN12#,VZN120,95 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
VZN85,95..IV6 LWR,ID=15.5 |
4 | ||
| 90948-02015 |
VZN85,95..WT LWR,ID=15.1 |
4 | ||
| 90948-02032 |
VZN85,95..WT UPR,ID=9.0 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
VZN85,95..IV6 LWR,ID=15.5 |
4 | ||
| 90948-02015 |
VZN85,95..WT LWR,ID=15.1 |
4 | ||
| 90948-02032 |
VZN85,95..WT UPR,ID=9.0 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
VZN85,95..IV6 LWR,ID=15.5 |
4 | ||
| 90948-02015 |
VZN85,95..WT LWR,ID=15.1 |
4 | ||
| 90948-02032 |
VZN85,95..WT UPR,ID=9.0 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
VZN85,95..IV6 LWR,ID=15.5 |
4 | ||
| 90948-02015 |
VZN85,95..WT LWR,ID=15.1 |
4 | ||
| 90948-02032 |
VZN85,95..WT UPR,ID=9.0 |
4 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90102-10015 |
VZN85,95..WT |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-35060 |
VZN85,95..WT |
2 | ||
| 48824-35061 |
VZN85,95..IV6 |
2 | ||
| Common parts | ||||
| 91611-60818 | ||||
| 94182-10800 | ||||
| 94184-61000 | ||||
| 95381-02525 | ||||
ILLUST NO. 3 OF 3(8808-9511)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35660 |
VZN95 5-LEAF |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-35660 |
VZN95 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35660 |
VZN95 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35660 |
VZN95 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35660 |
VZN95 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35290 |
VZN85,95..WT |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-35630 |
VZN85..10T;VZN85,95..IV6 |
8 | ||
| 48252-35630 |
RN8#,90,VZN85,9#..4FC,4HC,5F |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-35630 |
VZN85..10T;VZN85,95..IV6 |
8 | ||
| 48252-35630 |
RN8#,90,VZN85,9#..4FC,4HC,5F |
8 | ||
| Common parts | ||||
| 94110-41000 | ||||
ILLUST NO. 3 OF 3(8808-9308)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35660 |
VZN95 5-LEAF |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-35660 |
VZN95 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35660 |
VZN95 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35660 |
VZN95 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-35660 |
VZN95 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-35660 |
VZN95 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35660 |
VZN95 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35290 |
VZN85,95..WT |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
ILLUST NO. 3 OF 3(8808-9308)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35660 |
VZN95 5-LEAF |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-35660 |
VZN95 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35660 |
VZN95 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35660 |
VZN95 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-35660 |
VZN95 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-35660 |
VZN95 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35660 |
VZN95 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35290 |
VZN85,95..WT |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-35630 |
VZN85..10T;VZN85,95..IV6 |
8 | ||
| 48252-35630 |
RN8#,90,VZN85,9#..4FC,4HC,5F |
8 | ||
| Common parts | ||||
| 94110-41000 | ||||
