VZN95L-TWMREA6 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1993
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

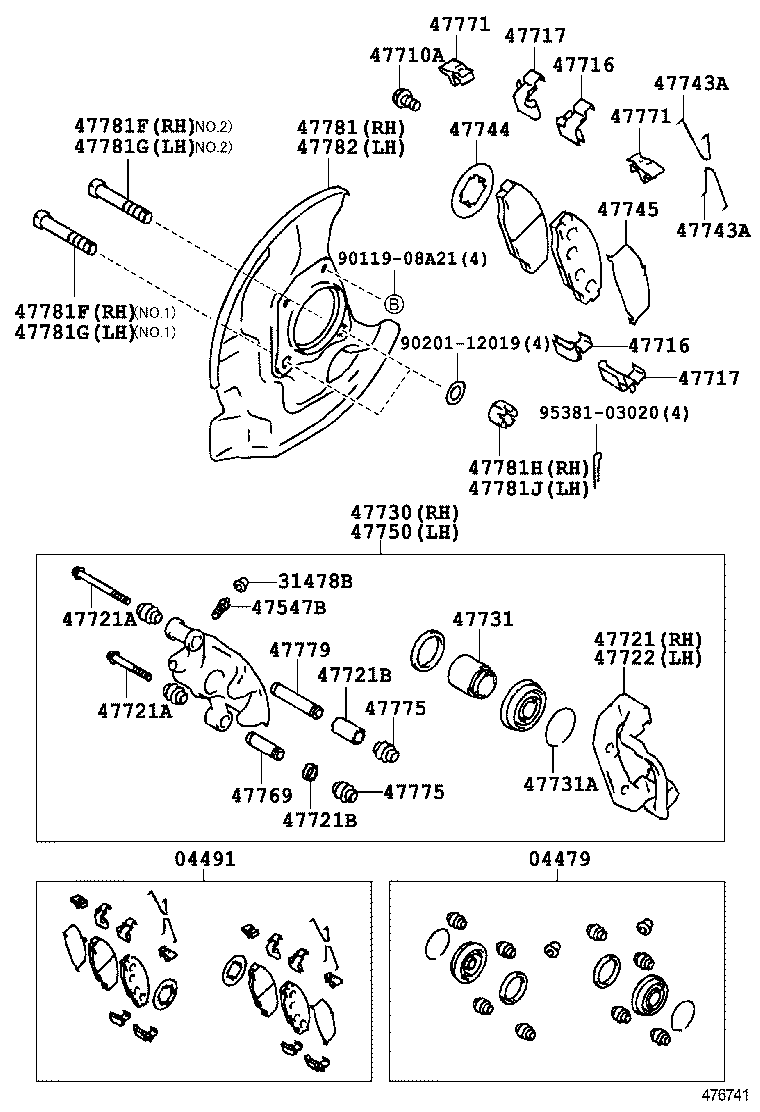

ILLUST NO. 1 OF 2(8808-9511)JPP..IV6 ; (8808-9511)JPP..10T

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47710A 47716 47716 47717 47717 47721 47721A 47721A 47721B 47721B 47722 47730 47731 47731A 47743A 47743A 47744 47745 47750 47769 47771 47771 47775 47775 47779 47781 47781F 47781F 47781G 47781G 47781H 47781J 47782 9011908A21 9020112019 9538103020
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-26030

VZN85,95..WT

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-35150

VZN85,95..WT

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

VZN85..10T;RN80..STD..USA;RN12#,VZN120,85,95..SR5,STD

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

VZN85..10T;VZN85,95..IV6

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12058

RN8#,90,VZN85,9#

*12-1.25PX31-20

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-40010

VZN85..10T;VZN85,95..IV6

 4
47716-26040

VZN85,95

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-40010

VZN85..10T;VZN85,95..IV6

 4
47716-26040

VZN85,95

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26010

VZN85,95

 4
47717-40010

VZN85..10T;VZN85,95..IV6

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26010

VZN85,95

 4
47717-40010

VZN85..10T;VZN85,95..IV6

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-35030

VZN85,95..WT

 1
47721-35030

VZN85,95..IV6

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10014

VZN85..10T;VZN85,95..IV6

*10-1.25PX65.5-30

 2
90119-10249

VZN85..10T;VZN85,95..IV6

*10-1.25PX95.5-30

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10014

VZN85..10T;VZN85,95..IV6

*10-1.25PX65.5-30

 2
90119-10249

VZN85..10T;VZN85,95..IV6

*10-1.25PX95.5-30

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-35030

VZN85,95..WT

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-35070

VZN85,95..WT

 1
47731 - PISTON, FRONT DISC BRAKE
47731-25010

VZN85,95..WT

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-76001

VZN85,95..WT

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-35020

VZN85,95..WT

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-35020

VZN85,95..WT

 4
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-35040

VZN85,95..WT

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-35040

VZN85,95..WT

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-35070

VZN85,95..WT

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-40010

VZN85..10T;VZN85,95..IV6

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-26040

VZN85,95..WT

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-26040

VZN85,95..WT

 4
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-40010

VZN85..10T;VZN85,95..IV6

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-35080

VZN85..10T;VZN85,95..IV6

 1
47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
90102-12011

RN8#,90,VZN85,9#

NO.2

 1
90102-12006

RN8#,90,VZN85,9#

NO.1

 1
47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
90102-12011

RN8#,90,VZN85,9#

NO.2

 1
90102-12006

RN8#,90,VZN85,9#

NO.1

 1
47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
90102-12011

RN8#,90,VZN85,9#

NO.2

 1
90102-12006

RN8#,90,VZN85,9#

NO.1

 1
47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
90102-12011

RN8#,90,VZN85,9#

NO.2

 1
90102-12006

RN8#,90,VZN85,9#

NO.1

 1
47781H - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
90171-12006

RN8#,90,VZN85,9#

 2
47781J - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
90171-12006

RN8#,90,VZN85,9#

 2
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-35080

VZN85..10T;VZN85,95..IV6

 1
Common parts
90119-08A21
90201-12019
95381-03020

ILLUST NO. 2 OF 2(8808-9511)JPP

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-35110

VZN85,95..WT

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-35010

VZN85,95..WT

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-26020

VZN85,95..WT

 1
