VZN95L-TWMREA6 (1988)
Toyota 4-Runner Truck (Jpp)
(8808-9511)RN12#,8#,90,VZN120,90..JPP ; (8808-9511)RN12#,8#,90,VZN120,90..JPP ; (88

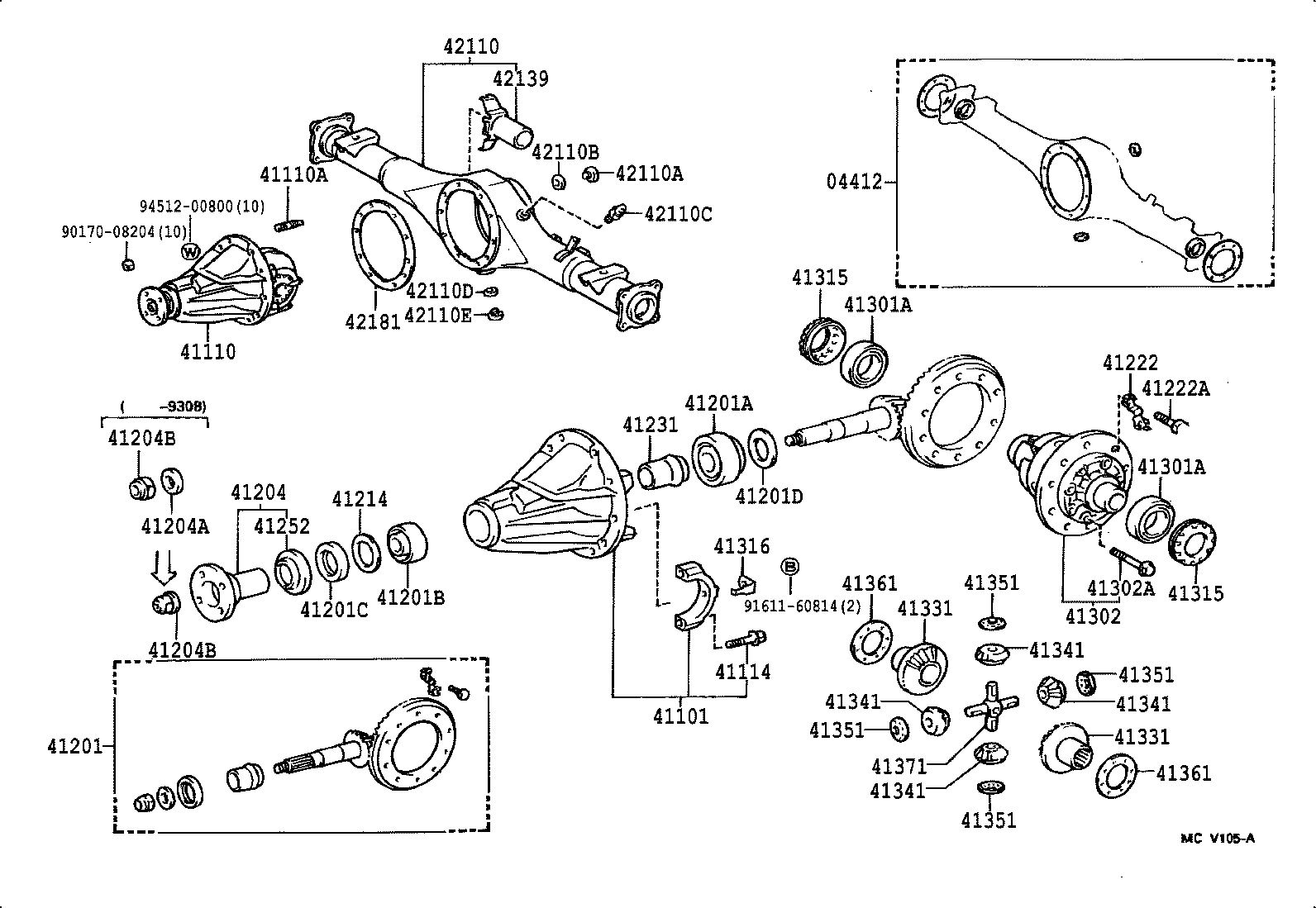

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-35110 |
VZN85,95..IV6 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35100 |
VZN85,95..IV6 W(2 WHEEL *66) |
1 | ||
| 41101-35070 |
VZN85,95..IV6 |
1 | ||
| 41101-35071 |
VZN85,95..IV6 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35390 |
VZN85,95..IV6 *FGR=41:10=4.100 |
1 | ||
| 41110-26161 |
VZN95 *FGR=43:10=4.300 |
1 | ||
| 41110-35391 |
VZN85,95..IV6 *FGR=41:10=4.100 |
1 | ||
| 41110-35660 |
VZN95 *FGR=43:10=4.300,W(2 WHEEL *66) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08285 |
VZN85,95..WT L=38 |
8 | ||
| 90116-08180 |
VZN85,95..WT L=44 |
2 | ||
| 90116-08334 |
VZN85,95..WT S=12 & 14,L=44 |
2 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08180 |
VZN85,95..WT L=44 |
2 | ||
| 90116-08334 |
VZN85,95..WT S=12 & 14,L=44 |
2 | ||
| 90116-08285 |
VZN85,95..WT L=38 |
8 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
RN80..4F;RN12#,VZN120,85,9# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29855 |
VZN95 *FGR=43:10=4.300 |
1 | ||
| 41201-29856 |
VZN95 *FGR=43:10=4.300 |
1 | ||
| 41201-39755 |
VZN85,95..IV6 *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35028 |
VZN85,95..IV6 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30025 |
VZN85,95..IV6 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
VZN85..IV6;RN8#,90,VZN95..4HC,5F |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35517 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35516 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35515 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35518 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35497 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.70 |
1 | ||
| 90201-35503 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.88 |
1 | ||
| 90201-35501 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.82 |
1 | ||
| 90201-35498 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.73 |
1 | ||
| 90201-35502 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.85 |
1 | ||
| 90201-35506 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.97 |
1 | ||
| 90201-35500 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.79 |
1 | ||
| 90201-35499 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.76 |
1 | ||
| 90201-35510 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.09 |
1 | ||
| 90201-35505 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.94 |
1 | ||
| 90201-35513 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.18 |
1 | ||
| 90201-35504 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.91 |
1 | ||
| 90201-35507 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.00 |
1 | ||
| 90201-35511 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.12 |
1 | ||
| 90201-35508 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.03 |
1 | ||
| 90201-35509 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.06 |
1 | ||
| 90201-35512 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.15 |
1 | ||
| 90201-35514 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.21 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
RN80..4F;RN12#,VZN120,85,9# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
RN12#,8#,90,VZN120,85,9# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
VZN85,95..IV6 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
VZN85,95..IV6 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
VZN85,95..IV6 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35020 |
VZN85,95..IV6 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
VZN85,95..IV6 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
VZN85,95..IV6 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
VZN85,95..IV6 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
VZN85,95..IV6 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
VZN85,95..IV6 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
VZN85,95..IV6 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
VZN85,95..IV6 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
VZN85,95..IV6 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
VZN85,95..IV6 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-24040 |
VZN85,95..IV6 T=1.20 |
2 | ||
| 41361-24020 |
VZN85,95..IV6 T=1.00 |
2 | ||
| 41361-24010 |
VZN85,95..IV6 T=0.90 |
2 | ||
| 41361-24050 |
VZN85,95..IV6 T=1.30 |
2 | ||
| 41361-24030 |
VZN85,95..IV6 T=1.10 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-24040 |
VZN85,95..IV6 T=1.20 |
2 | ||
| 41361-24020 |
VZN85,95..IV6 T=1.00 |
2 | ||
| 41361-24010 |
VZN85,95..IV6 T=0.90 |
2 | ||
| 41361-24050 |
VZN85,95..IV6 T=1.30 |
2 | ||
| 41361-24030 |
VZN85,95..IV6 T=1.10 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-35350 |
VZN85,95..WT |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
RN8#,90,VZN85,9# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18040 |
VZN85,95 |
1 | ||
| 90341-18057 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 90170-08204 | ||||
| 91111-50814 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
(8808-9511)JPP..IV6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-35110 |
VZN85,95..IV6 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35100 |
VZN85,95..IV6 W(2 WHEEL *66) |
1 | ||
| 41101-35070 |
VZN85,95..IV6 |
1 | ||
| 41101-35071 |
VZN85,95..IV6 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35390 |
VZN85,95..IV6 *FGR=41:10=4.100 |
1 | ||
| 41110-26161 |
VZN95 *FGR=43:10=4.300 |
1 | ||
| 41110-35391 |
VZN85,95..IV6 *FGR=41:10=4.100 |
1 | ||
| 41110-35660 |
VZN95 *FGR=43:10=4.300,W(2 WHEEL *66) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08285 |
VZN85,95..WT L=38 |
8 | ||
| 90116-08180 |
VZN85,95..WT L=44 |
2 | ||
| 90116-08334 |
VZN85,95..WT S=12 & 14,L=44 |
2 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
RN80..4F;RN12#,VZN120,85,9# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29855 |
VZN95 *FGR=43:10=4.300 |
1 | ||
| 41201-29856 |
VZN95 *FGR=43:10=4.300 |
1 | ||
| 41201-39755 |
VZN85,95..IV6 *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35028 |
VZN85,95..IV6 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30025 |
VZN85,95..IV6 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
VZN85..IV6;RN8#,90,VZN95..4HC,5F |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35517 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35516 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35515 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35518 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35497 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.70 |
1 | ||
| 90201-35503 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.88 |
1 | ||
| 90201-35501 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.82 |
1 | ||
| 90201-35498 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.73 |
1 | ||
| 90201-35502 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.85 |
1 | ||
| 90201-35506 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.97 |
1 | ||
| 90201-35500 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.79 |
1 | ||
| 90201-35499 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.76 |
1 | ||
| 90201-35510 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.09 |
1 | ||
| 90201-35505 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.94 |
1 | ||
| 90201-35513 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.18 |
1 | ||
| 90201-35504 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.91 |
1 | ||
| 90201-35507 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.00 |
1 | ||
| 90201-35511 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.12 |
1 | ||
| 90201-35508 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.03 |
1 | ||
| 90201-35509 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.06 |
1 | ||
| 90201-35512 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.15 |
1 | ||
| 90201-35514 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.21 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
RN80..4F;RN12#,VZN120,85,9# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
RN12#,8#,90,VZN120,85,9# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
VZN85,95..IV6 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
VZN85,95..IV6 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
VZN85,95..IV6 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35020 |
VZN85,95..IV6 |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10084 |
VZN85,95..IV6 |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
VZN85,95..IV6 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
VZN85,95..IV6 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
VZN85,95..IV6 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
VZN85,95..IV6 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
VZN85,95..IV6 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
VZN85,95..IV6 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
VZN85,95..IV6 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
VZN85,95..IV6 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
VZN85,95..IV6 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
VZN85,95..IV6 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
VZN85,95..IV6 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
VZN85,95..IV6 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
VZN85,95..IV6 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-24040 |
VZN85,95..IV6 T=1.20 |
2 | ||
| 41361-24020 |
VZN85,95..IV6 T=1.00 |
2 | ||
| 41361-24010 |
VZN85,95..IV6 T=0.90 |
2 | ||
| 41361-24050 |
VZN85,95..IV6 T=1.30 |
2 | ||
| 41361-24030 |
VZN85,95..IV6 T=1.10 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-24040 |
VZN85,95..IV6 T=1.20 |
2 | ||
| 41361-24020 |
VZN85,95..IV6 T=1.00 |
2 | ||
| 41361-24010 |
VZN85,95..IV6 T=0.90 |
2 | ||
| 41361-24050 |
VZN85,95..IV6 T=1.30 |
2 | ||
| 41361-24030 |
VZN85,95..IV6 T=1.10 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-35020 |
VZN85,95..IV6 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-35350 |
VZN85,95..WT |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
RN8#,90,VZN85,9# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18040 |
VZN85,95 |
1 | ||
| 90341-18057 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
