VZN95L-TWMREA6 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1993
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108)3VZE..JPP

Click highlighted areas on diagram

diagram 19100P 19500 19539 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 1994135010 1994165010 1994165020 19965 9011906033 9046312011 9046400059 9046400144 9046400144 9046400288 9046400303 9046400303
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01176

3VZE..VZN120,85,9#

K16R-U

 6
19500 - COIL ASSY, IGNITION
90919-02197

3VZE..VZN120,85,9#

 1
90919-02185

3VZE..VZN120,85,9#

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-65010

3VZE..VZN120,85,9#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21453

3VZE..VZN120,85,9#

 1
90919-21528

3VZE..VZN120,85,9#

 1
90919-21501

3VZE..VZN120,85,9#

 1
90919-21430

3VZE..VZN85,9#

 1
19901A - CORD, COIL RESISTIVE
90919-13419

3VZE..VZN120,85,9#

SUMITOMO

 1
19590-65021

3VZE..VZN120,85,9#

 1
90919-13420

3VZE..VZN120,85,9#

YAZAKI

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12761

3VZE..VZN85,9#

 1
90919-15026

3VZE..VZN120,85,9#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12762

3VZE..VZN85,9#

 1
90919-15027

3VZE..VZN120,85,9#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12763

3VZE..VZN85,9#

 1
90919-15028

3VZE..VZN120,85,9#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12764

3VZE..VZN85,9#

 1
90919-15029

3VZE..VZN120,85,9#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12765

3VZE..VZN85,9#

 1
90919-15030

3VZE..VZN120,85,9#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12766

3VZE..VZN85,9#

 1
90919-15031

3VZE..VZN120,85,9#

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03112

3VZE..VZN120,85,9#

 1
Common parts
19941-35010
19941-65010
19941-65020
90119-06033
90463-12011
90464-00059
90464-00144
90464-00288
90464-00303

(9108- )3VZE..JPP

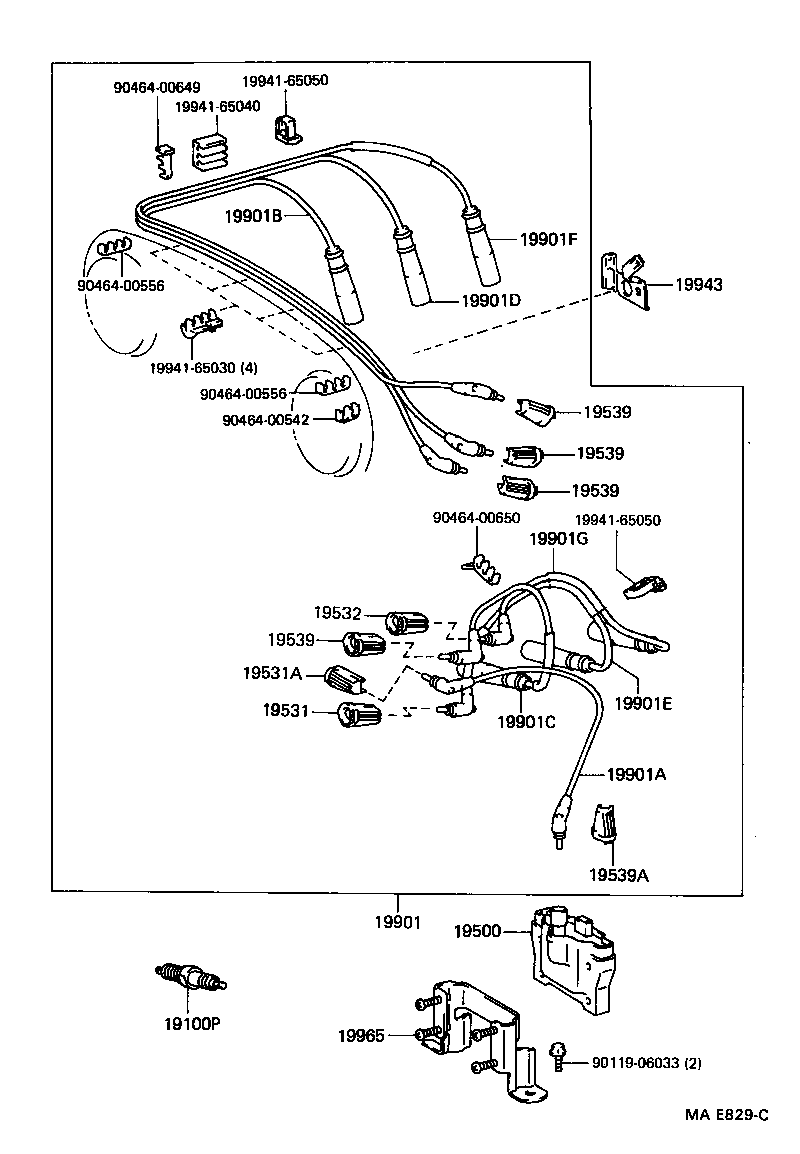

Click highlighted areas on diagram

diagram 19100P 19500 19531 19531A 19532 19539 19539 19539 19539 19539A 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 1994165030 1994165040 1994165050 1994165050 19943 19965 9011906033 9046400542 9046400556 9046400556 9046400649 9046400650
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01176

3VZE..VZN120,85,9#

K16R-U

 6
19500 - COIL ASSY, IGNITION
90919-02197

3VZE..VZN120,85,9#

 1
90919-02185

3VZE..VZN120,85,9#

 1
19531A - HOLDER, RESISTIVE CODE, NO.3
19531-74010

3VZE..VZN120,85,9#

 1
19531-74010

3VZE..VZN120,85,9#

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

3VZE..VZN120,85,9#

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-65010

3VZE..VZN120,85,9#

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-65010

3VZE..VZN120,85,9#

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-65010

3VZE..VZN120,85,9#

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-65010

3VZE..VZN120,85,9#

 1
19539A - HOLDER, RESISTIVE CODE, NO.5
19539-16010

3VZE..VZN120,85,9#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21453

3VZE..VZN120,85,9#

 1
90919-21528

3VZE..VZN120,85,9#

 1
90919-21501

3VZE..VZN120,85,9#

 1
90919-21430

3VZE..VZN85,9#

 1
19901A - CORD, COIL RESISTIVE
90919-13419

3VZE..VZN120,85,9#

SUMITOMO

 1
19590-65021

3VZE..VZN120,85,9#

 1
90919-13420

3VZE..VZN120,85,9#

YAZAKI

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12761

3VZE..VZN85,9#

 1
90919-15026

3VZE..VZN120,85,9#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12762

3VZE..VZN85,9#

 1
90919-15027

3VZE..VZN120,85,9#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12763

3VZE..VZN85,9#

 1
90919-15028

3VZE..VZN120,85,9#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12764

3VZE..VZN85,9#

 1
90919-15029

3VZE..VZN120,85,9#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12765

3VZE..VZN85,9#

 1
90919-15030

3VZE..VZN120,85,9#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12766

3VZE..VZN85,9#

 1
90919-15031

3VZE..VZN120,85,9#

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03112

3VZE..VZN120,85,9#

 1
Common parts
19941-65030
19941-65040
19941-65050
90119-06033
90464-00542
90464-00556
90464-00649
90464-00650
