Toyota 4-runner truck (jpp) VZN90 HEATING & AIR CONDITIONING - COMPRESSOR

VZN90L-CRSDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995

Engine 3VZE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

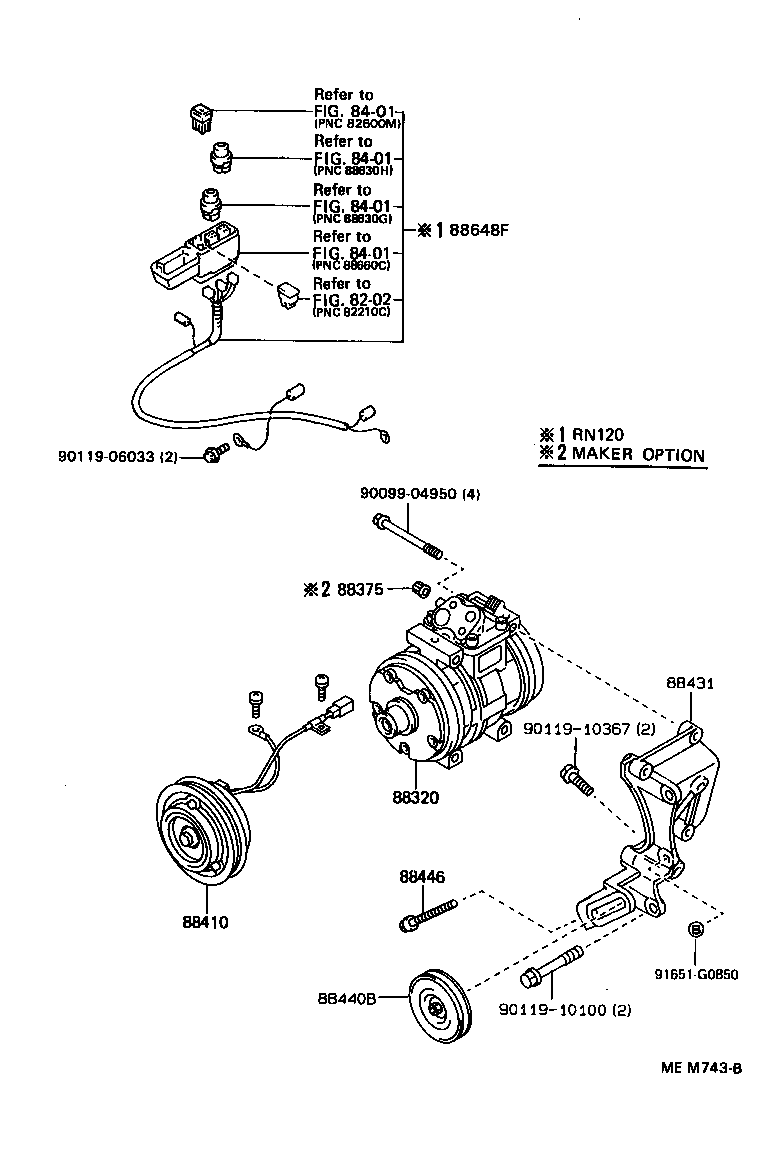

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-35300	VZN85,9#	08/1988 - 08/1990	1
88320-34010	VZN90	01/1994 - 01/1995	1
88320-35270	RN80..W;RN80..4HC;RN85,90..EFI	08/1988 - 01/1994	1
88320-35530	RN8#,90	01/1994 - 01/1995	1
88320-35300	VZN85,9#	08/1990 - 01/1994	1
88410 - CLUTCH ASSY, MAGNET
88410-35120	RN8#,90..EFI	08/1989 - 01/1994	1
88410-35110	VZN90..CND;VZN120,85..SR5,STD	08/1990 - 08/1991	1
88410-34010	VZN90	01/1994 - 01/1995	1
88410-35110	VZN120,85,90	08/1991 - 08/1993	1
88410-35110	VZN90	08/1993 - 01/1994	1
88410-35110	VZN120;VZN85,9#..CND	08/1989 - 08/1990	1
88410-60310	RN8#,90	01/1994 - 01/1995	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35180	VZN85,9#	08/1988 - 08/1989	1
88431-35181	VZN85,9#..CND	08/1989 - 09/1989	1
88431-35150	RN80..W;RN80..4HC;RN12#,85,90..EFI	08/1988 - 01/1995	1
88431-35181	VZN85,90	08/1990 - 01/1995	1
88431-35181	VZN85,9#	09/1989 - 08/1990	1
88440B - PULLEY ASSY, IDLE
88440-35030	RN80..W;RN80..4HC;RN12#,85,90..EFI	08/1988 - 01/1995	1
88440-35040	VZN120,85,9#	08/1988 - 08/1990	1
88446 - BOLT, IDLE PULLEY
88446-35030	RN80..W;RN80..4HC;RN12#,85,90,VZN120,85,9#..EFI	08/1988 - 11/1995	1
Common parts
90099-04950
90119-06033
90119-10100
90119-10367
91651-G0850
Linked diagrams
8202
8401

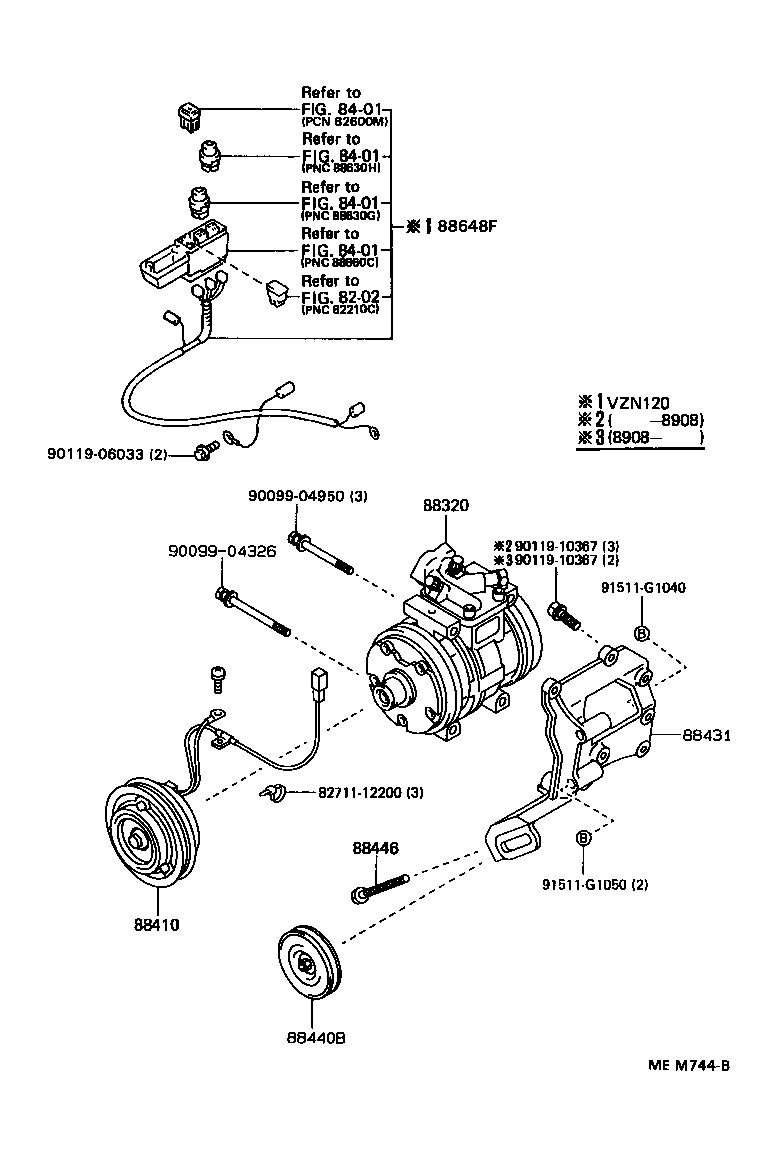

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-35300	VZN85,9#	08/1988 - 08/1990	1
88320-34010	VZN90	01/1994 - 01/1995	1
88320-35270	RN80..W;RN80..4HC;RN85,90..EFI	08/1988 - 01/1994	1
88320-35530	RN8#,90	01/1994 - 01/1995	1
88320-35300	VZN85,9#	08/1990 - 01/1994	1
88410 - CLUTCH ASSY, MAGNET
88410-35120	RN8#,90..EFI	08/1989 - 01/1994	1
88410-35110	VZN90..CND;VZN120,85..SR5,STD	08/1990 - 08/1991	1
88410-34010	VZN90	01/1994 - 01/1995	1
88410-35110	VZN120,85,90	08/1991 - 08/1993	1
88410-35110	VZN90	08/1993 - 01/1994	1
88410-35110	VZN120;VZN85,9#..CND	08/1989 - 08/1990	1
88410-60310	RN8#,90	01/1994 - 01/1995	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35180	VZN85,9#	08/1988 - 08/1989	1
88431-35181	VZN85,9#..CND	08/1989 - 09/1989	1
88431-35150	RN80..W;RN80..4HC;RN12#,85,90..EFI	08/1988 - 01/1995	1
88431-35181	VZN85,90	08/1990 - 01/1995	1
88431-35181	VZN85,9#	09/1989 - 08/1990	1
88440B - PULLEY ASSY, IDLE
88440-35030	RN80..W;RN80..4HC;RN12#,85,90..EFI	08/1988 - 01/1995	1
88440-35040	VZN120,85,9#	08/1988 - 08/1990	1
88446 - BOLT, IDLE PULLEY
88446-35030	RN80..W;RN80..4HC;RN12#,85,90,VZN120,85,9#..EFI	08/1988 - 11/1995	1
Common parts
82711-12200
90099-04326
90099-04950
90119-06033
90119-10367
91511-G1040
91511-G1050
Linked diagrams
8202
8401
