VZN90L-CRSDEK (1988)
Toyota 4-Runner Truck (Jpp)

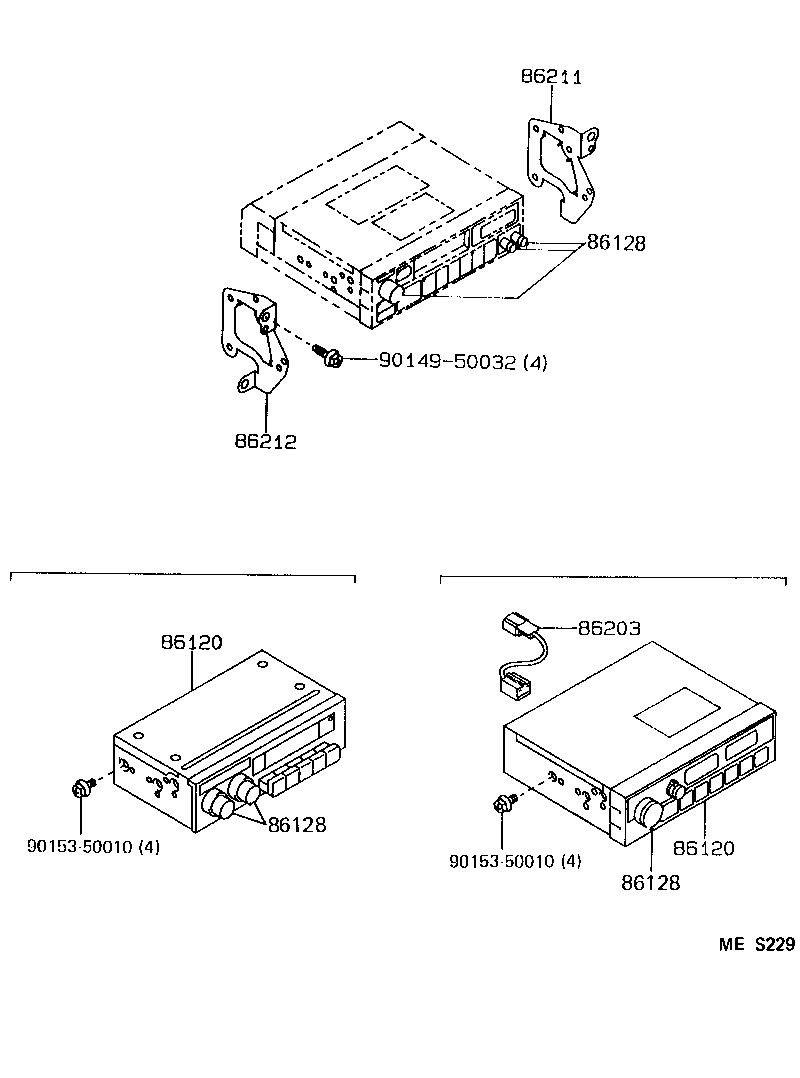

ILLUST NO. 1 OF 2(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32380 |
RN12#,90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER |
1 | ||
| 86120-89141 |
RN90,VZN90;RN8#,VZN85,95..DLX,STD MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER |
1 | ||
| 86120-32330 |
VZN90..DLX;RN12#,8#,90,VZN85,95 MATSUSHITA,AM/FM MPX ETR 1DIN,2-SPEAKER |
1 | ||
| 86120-89150 |
VZN90..DLX;RN12#,8#,90,VZN85,95 PANASONIC,AM/FM MPX ETR,2-SPEAKER |
1 | ||
| 86120-32331 |
VZN90..DLX;RN12#,8#,90,VZN85,95 AM/FM MPX ETR 1DIN,2-SPEAKER |
1 | ||
| 86120-89148 |
RN90,VZN90;RN8#,VZN85,95..DLX,STD MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER |
1 | ||
| 86120-32331 |
VZN90..DLX;RN12#,8#,90,VZN85,95 AM/FM MPX ETR,2-SPEAKER |
1 | ||
| 86120-32382 |
RN12#,90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER |
1 | ||
| 86120-89150 |
VZN90..DLX;RN121,8#,90,VZN85,95 PANASONIC,AM/FM MPX ETR,2-SPEAKER |
1 | ||
| 86120-32383 |
RN12#,90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER |
1 | ||
| 86120-32331 |
VZN90..DLX;RN121,8#,90,VZN85,95 AM/FM MPX ETR,2-SPEAKER |
1 | ||
| 86120-33080 |
RN90,VZN90 MATSUSHITA,*AFM,4-SPEAKER,MATSUSHITA |
1 | ||
| 86120-33080 |
RN90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER |
1 | ||
| 86120-02100 |
RN90,VZN90 AMERICA MATSUSHITA,*AFM,4-SPEAKER,AMERICA MATSUSHITA |
1 | ||
| 86120-35070 |
RN8#,VZN85,95;RN90,VZN90..CND AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER |
1 | ||
| 86120-02100 |
RN90,VZN120,90 AMERICA MATSUSHITA,*AFM,4-SPEAKER,AMERICA MATSUSHITA |
1 | ||
| 86120-12860 |
RN8#,90,VZN85,9#..DLX,STD MATSUSHITA,AM/FM MPX ETR 1DIN,2-SPEAKER |
1 | ||
| 86120-33080 |
RN90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER,MATSUSHITA |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32380 |
RN12#,90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER |
1 | ||
| 86120-89141 |
RN90,VZN90;RN8#,VZN85,95..DLX,STD MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER |
1 | ||
| 86120-32330 |
VZN90..DLX;RN12#,8#,90,VZN85,95 MATSUSHITA,AM/FM MPX ETR 1DIN,2-SPEAKER |
1 | ||
| 86120-89150 |
VZN90..DLX;RN12#,8#,90,VZN85,95 PANASONIC,AM/FM MPX ETR,2-SPEAKER |
1 | ||
| 86120-33080 |
RN90,VZN90 MATSUSHITA,*AFM,4-SPEAKER,MATSUSHITA |
1 | ||
| 86120-32331 |
VZN90..DLX;RN12#,8#,90,VZN85,95 AM/FM MPX ETR 1DIN,2-SPEAKER |
1 | ||
| 86120-89148 |
RN90,VZN90;RN8#,VZN85,95..DLX,STD MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER |
1 | ||
| 86120-32331 |
VZN90..DLX;RN12#,8#,90,VZN85,95 AM/FM MPX ETR,2-SPEAKER |
1 | ||
| 86120-32382 |
RN12#,90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER |
1 | ||
| 86120-89150 |
VZN90..DLX;RN121,8#,90,VZN85,95 PANASONIC,AM/FM MPX ETR,2-SPEAKER |
1 | ||
| 86120-32383 |
RN12#,90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER |
1 | ||
| 86120-32331 |
VZN90..DLX;RN121,8#,90,VZN85,95 AM/FM MPX ETR,2-SPEAKER |
1 | ||
| 86120-33080 |
RN90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER |
1 | ||
| 86120-02100 |
RN90,VZN90 AMERICA MATSUSHITA,*AFM,4-SPEAKER,AMERICA MATSUSHITA |
1 | ||
| 86120-35070 |
RN8#,VZN85,95;RN90,VZN90..CND AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER |
1 | ||
| 86120-02100 |
RN90,VZN120,90 AMERICA MATSUSHITA,*AFM,4-SPEAKER,AMERICA MATSUSHITA |
1 | ||
| 86120-12860 |
RN8#,90,VZN85,9#..DLX,STD MATSUSHITA,AM/FM MPX ETR 1DIN,2-SPEAKER |
1 | ||
| 86120-33080 |
RN90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER,MATSUSHITA |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-14150 |
VZN90..DLX;RN12#,8#,90,VZN85,95..4FC,4HC,5F PWR.VOL |
1 | ||
| 86128-17190 |
RN12#,90,VZN120,90 BAL,FADE,BASS,TREB |
2 | ||
| 86128-17170 |
RN90,VZN90;RN8#,VZN85,95..(4HC,5F)..(DLX,STD) BAL |
1 | ||
| 86128-14170 |
VZN90..DLX;RN12#,8#,90,VZN85,95 BAL |
1 | ||
| 86128-17190 |
RN90;VZN90..SR5..CND;RN8#,VZN85,9#..DLX,STD BAL,FADE,BASS,TREB |
4 | ||
| 86128-14190 |
VZN90..DLX;RN12#,8#,90,VZN85,95 TONE |
1 | ||
| 86128-17170 |
RN12#,90,VZN120,90 PWR,VOL |
1 | ||
| 86128-17170 |
RN121,8#,90,VZN85,9#..CND PWR/VOL |
1 | ||
| 86128-17190 |
RN121,8#,90,VZN85,9#..CND BAL/FADE,BASS/TREB |
2 | ||
| 86128-17310 |
RN90,VZN120,90 VOLUME |
1 | ||
| 86128-17290 |
RN90,VZN90..DLX;RN8#,VZN85,95..USA PWR/VOL |
1 | ||
| 86128-17330 |
RN90,VZN120,90 BASS/BAL |
2 | ||
| 86128-17310 |
RN90,VZN90 VOLUME |
1 | ||
| 86128-17330 |
RN90,VZN90 BASS/BAL |
2 | ||
| 86128-17410 |
RN90,VZN90..DLX;RN8#,VZN85,95..USA TONE |
1 | ||
| 86128-17430 |
RN90,VZN90..DLX;RN8#,VZN85,95..USA BAL |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-14150 |
VZN90..DLX;RN12#,8#,90,VZN85,95..4FC,4HC,5F PWR.VOL |
1 | ||
| 86128-17190 |
RN12#,90,VZN120,90 BAL,FADE,BASS,TREB |
2 | ||
| 86128-17170 |
RN90,VZN90;RN8#,VZN85,95..(4HC,5F)..(DLX,STD) BAL |
1 | ||
| 86128-14170 |
VZN90..DLX;RN12#,8#,90,VZN85,95 BAL |
1 | ||
| 86128-17190 |
RN90;VZN90..SR5..CND;RN8#,VZN85,9#..DLX,STD BAL,FADE,BASS,TREB |
4 | ||
| 86128-14190 |
VZN90..DLX;RN12#,8#,90,VZN85,95 TONE |
1 | ||
| 86128-17170 |
RN12#,90,VZN120,90 PWR,VOL |
1 | ||
| 86128-17170 |
RN121,8#,90,VZN85,9#..CND PWR/VOL |
1 | ||
| 86128-17190 |
RN121,8#,90,VZN85,9#..CND BAL/FADE,BASS/TREB |
2 | ||
| 86128-17310 |
RN90,VZN120,90 VOLUME |
1 | ||
| 86128-17290 |
RN90,VZN90..DLX;RN8#,VZN85,95..USA PWR/VOL |
1 | ||
| 86128-17330 |
RN90,VZN120,90 BASS/BAL |
2 | ||
| 86128-17310 |
RN90,VZN90 VOLUME |
1 | ||
| 86128-17330 |
RN90,VZN90 BASS/BAL |
2 | ||
| 86128-17410 |
RN90,VZN90..DLX;RN8#,VZN85,95..USA TONE |
1 | ||
| 86128-17430 |
RN90,VZN90..DLX;RN8#,VZN85,95..USA BAL |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-14150 |
VZN90..DLX;RN12#,8#,90,VZN85,95..4FC,4HC,5F PWR.VOL |
1 | ||
| 86128-17190 |
RN12#,90,VZN120,90 BAL,FADE,BASS,TREB |
2 | ||
| 86128-17170 |
RN90,VZN90;RN8#,VZN85,95..(4HC,5F)..(DLX,STD) BAL |
1 | ||
| 86128-14170 |
VZN90..DLX;RN12#,8#,90,VZN85,95 BAL |
1 | ||
| 86128-17190 |
RN90;VZN90..SR5..CND;RN8#,VZN85,9#..DLX,STD BAL,FADE,BASS,TREB |
4 | ||
| 86128-14190 |
VZN90..DLX;RN12#,8#,90,VZN85,95 TONE |
1 | ||
| 86128-17170 |
RN12#,90,VZN120,90 PWR,VOL |
1 | ||
| 86128-17170 |
RN121,8#,90,VZN85,9#..CND PWR/VOL |
1 | ||
| 86128-17190 |
RN121,8#,90,VZN85,9#..CND BAL/FADE,BASS/TREB |
2 | ||
| 86128-17310 |
RN90,VZN120,90 VOLUME |
1 | ||
| 86128-17290 |
RN90,VZN90..DLX;RN8#,VZN85,95..USA PWR/VOL |
1 | ||
| 86128-17330 |
RN90,VZN120,90 BASS/BAL |
2 | ||
| 86128-17310 |
RN90,VZN90 VOLUME |
1 | ||
| 86128-17330 |
RN90,VZN90 BASS/BAL |
2 | ||
| 86128-17410 |
RN90,VZN90..DLX;RN8#,VZN85,95..USA TONE |
1 | ||
| 86128-17430 |
RN90,VZN90..DLX;RN8#,VZN85,95..USA BAL |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-89105 |
RN12#,8#,90,VZN120,85,9# |
2 | ||
| 86203-89105 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 86203-89105 |
VZN90..DLX;RN8#,90,VZN85,95 |
1 | ||
| 86203-89105 |
RN121,8#,90,VZN85,9# |
1 | ||
| 86203-89105 |
RN80..DLX;RN80..CND;RN121,85,90,VZN85,9# |
2 | ||
| 86203-89105 |
RN80..DLX;RN80..CND;RN12#,85,90,VZN85,9# |
2 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-89111 |
RN80..DLX;RN80..CND;RN12#,85,90,VZN120,85,9# |
1 | ||
| 86211-89111 |
RN90,VZN120,90 |
1 | ||
| 86211-35020 |
RN8#,90,VZN90..DLX,STD |
1 | ||
| 86211-89111 |
RN12#,8#,90,VZN120,85,9#..4FC,4HC,5F |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-89111 |
RN90,VZN120,90 |
1 | ||
| 86212-89111 |
RN12#,8#,90,VZN120,85,9#..4FC,4HC,5F |
1 | ||
| 86212-89111 |
RN80..DLX;RN80..CND;RN12#,85,90,VZN120,85,9# |
1 | ||
| 86212-35020 |
RN8#,90,VZN90..DLX,STD |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||

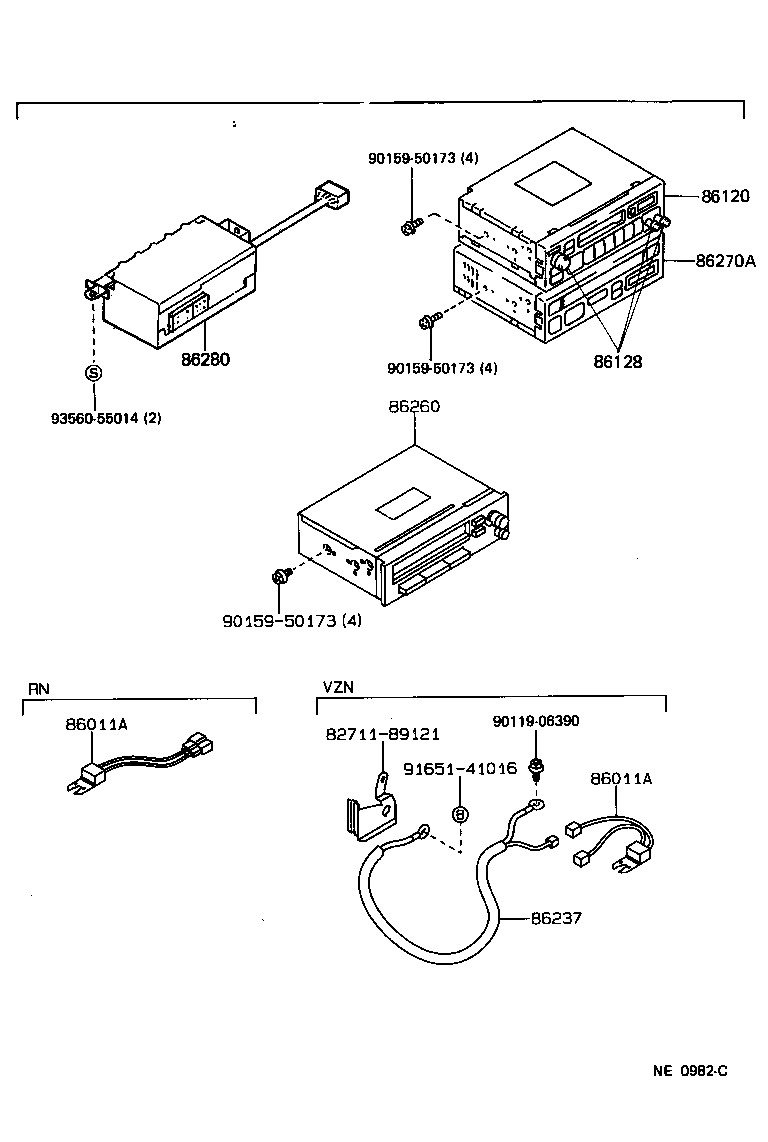

ILLUST NO. 2 OF 2(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04073 |
VZN85,9# |
1 | ||
| 90980-04074 |
RN8#,90 |
1 | ||
| 90980-04036 |
VZN120,85,9# |
1 | ||
| 90980-04041 |
RN8#,90 |
1 | ||
| 90980-04041 |
RN12#,8#,90 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04073 |
VZN85,9# |
1 | ||
| 90980-04074 |
RN8#,90 |
1 | ||
| 90980-04036 |
VZN120,85,9# |
1 | ||
| 90980-04041 |
RN8#,90 |
1 | ||
| 90980-04041 |
RN12#,8#,90 |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-32380 |
RN12#,90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER |
1 | ||
| 86120-89141 |
RN90,VZN90;RN8#,VZN85,95..DLX,STD MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER |
1 | ||
| 86120-32330 |
VZN90..DLX;RN12#,8#,90,VZN85,95 MATSUSHITA,AM/FM MPX ETR 1DIN,2-SPEAKER |
1 | ||
| 86120-89150 |
VZN90..DLX;RN12#,8#,90,VZN85,95 PANASONIC,AM/FM MPX ETR,2-SPEAKER |
1 | ||
| 86120-32331 |
VZN90..DLX;RN12#,8#,90,VZN85,95 AM/FM MPX ETR 1DIN,2-SPEAKER |
1 | ||
| 86120-89148 |
RN90,VZN90;RN8#,VZN85,95..DLX,STD MATSUSHITA,AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER |
1 | ||
| 86120-32331 |
VZN90..DLX;RN12#,8#,90,VZN85,95 AM/FM MPX ETR,2-SPEAKER |
1 | ||
| 86120-32382 |
RN12#,90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER |
1 | ||
| 86120-89150 |
VZN90..DLX;RN121,8#,90,VZN85,95 PANASONIC,AM/FM MPX ETR,2-SPEAKER |
1 | ||
| 86120-32383 |
RN12#,90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER |
1 | ||
| 86120-32331 |
VZN90..DLX;RN121,8#,90,VZN85,95 AM/FM MPX ETR,2-SPEAKER |
1 | ||
| 86120-33080 |
RN90,VZN90 MATSUSHITA,*AFM,4-SPEAKER,MATSUSHITA |
1 | ||
| 86120-33080 |
RN90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER |
1 | ||
| 86120-02100 |
RN90,VZN90 AMERICA MATSUSHITA,*AFM,4-SPEAKER,AMERICA MATSUSHITA |
1 | ||
| 86120-35070 |
RN8#,VZN85,95;RN90,VZN90..CND AM/FM MPX ETR CASSETTE 1DIN,2-SPEAKER |
1 | ||
| 86120-02100 |
RN90,VZN120,90 AMERICA MATSUSHITA,*AFM,4-SPEAKER,AMERICA MATSUSHITA |
1 | ||
| 86120-12860 |
RN8#,90,VZN85,9#..DLX,STD MATSUSHITA,AM/FM MPX ETR 1DIN,2-SPEAKER |
1 | ||
| 86120-33080 |
RN90,VZN120,90 MATSUSHITA,*AFM,4-SPEAKER,MATSUSHITA |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-14150 |
VZN90..DLX;RN12#,8#,90,VZN85,95..4FC,4HC,5F PWR.VOL |
1 | ||
| 86128-17190 |
RN12#,90,VZN120,90 BAL,FADE,BASS,TREB |
2 | ||
| 86128-17170 |
RN90,VZN90;RN8#,VZN85,95..(4HC,5F)..(DLX,STD) BAL |
1 | ||
| 86128-14170 |
VZN90..DLX;RN12#,8#,90,VZN85,95 BAL |
1 | ||
| 86128-17190 |
RN90;VZN90..SR5..CND;RN8#,VZN85,9#..DLX,STD BAL,FADE,BASS,TREB |
4 | ||
| 86128-14190 |
VZN90..DLX;RN12#,8#,90,VZN85,95 TONE |
1 | ||
| 86128-17170 |
RN12#,90,VZN120,90 PWR,VOL |
1 | ||
| 86128-17170 |
RN121,8#,90,VZN85,9#..CND PWR/VOL |
1 | ||
| 86128-17190 |
RN121,8#,90,VZN85,9#..CND BAL/FADE,BASS/TREB |
2 | ||
| 86128-17310 |
RN90,VZN120,90 VOLUME |
1 | ||
| 86128-17290 |
RN90,VZN90..DLX;RN8#,VZN85,95..USA PWR/VOL |
1 | ||
| 86128-17330 |
RN90,VZN120,90 BASS/BAL |
2 | ||
| 86128-17310 |
RN90,VZN90 VOLUME |
1 | ||
| 86128-17330 |
RN90,VZN90 BASS/BAL |
2 | ||
| 86128-17410 |
RN90,VZN90..DLX;RN8#,VZN85,95..USA TONE |
1 | ||
| 86128-17430 |
RN90,VZN90..DLX;RN8#,VZN85,95..USA BAL |
1 | ||
| 86237 - WIRE, CONDENSER | ||||
| 86237-89108 |
VZN85,9# |
1 | ||
| 86237-89111 |
VZN120,85,9# |
1 | ||
| 86237-89111 |
VZN90 |
1 | ||
| 86237-89111 |
VZN120,85,9# |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-16140 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9# |
1 | ||
| Common parts | ||||
| 82711-89121 | ||||
| 90119-06390 | ||||
| 90159-50173 | ||||
| 91651-41016 | ||||
| 93560-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
