VZN90L-CRSDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN8#,90,VZN85,9#..JPP

Click highlighted areas on diagram

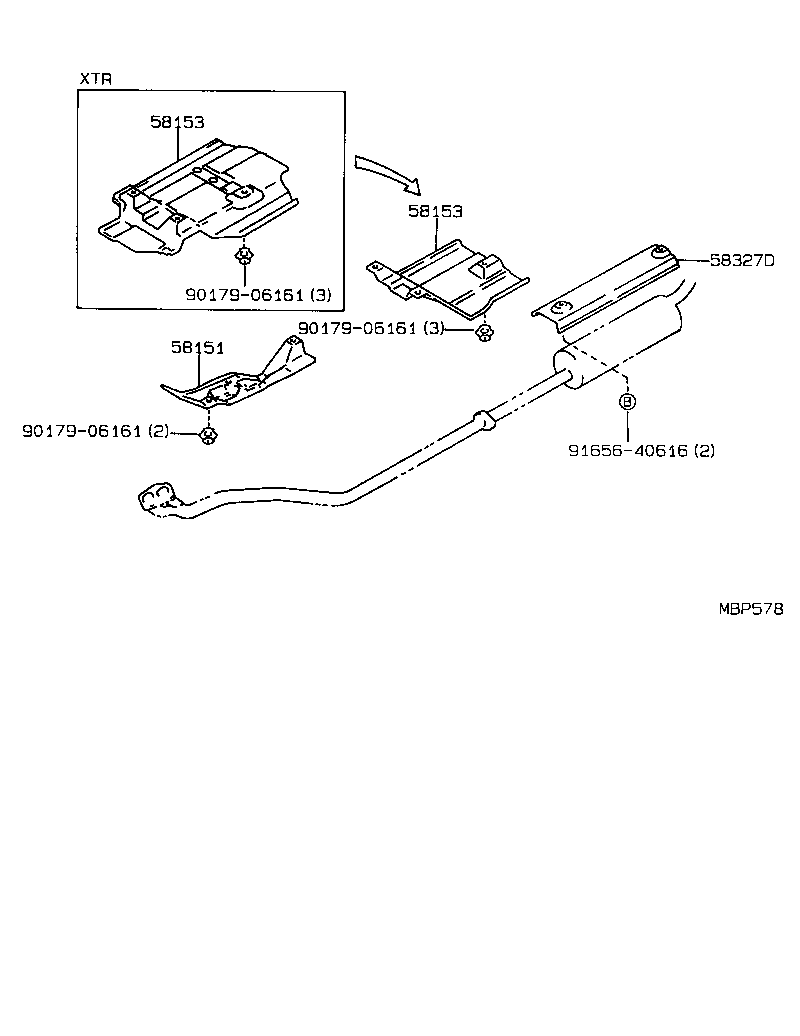

diagram 58151 58153 58153 58327D 9017906161 9017906161 9017906161 9165640616
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-89117

RN8#,90,VZN85,9#..4HC

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-89112

RN90,VZN90

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-89112

RN90,VZN90

 1
58327D - INSULATOR, MAIN MUFFLER HEAT, UPPER
58327-89106

RN8#,90,VZN85,90..CBU,IV3

 1
Common parts
90179-06161
91656-40616
