VZN90L-CRSDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9501)JPP..HLF..CBU,IV3

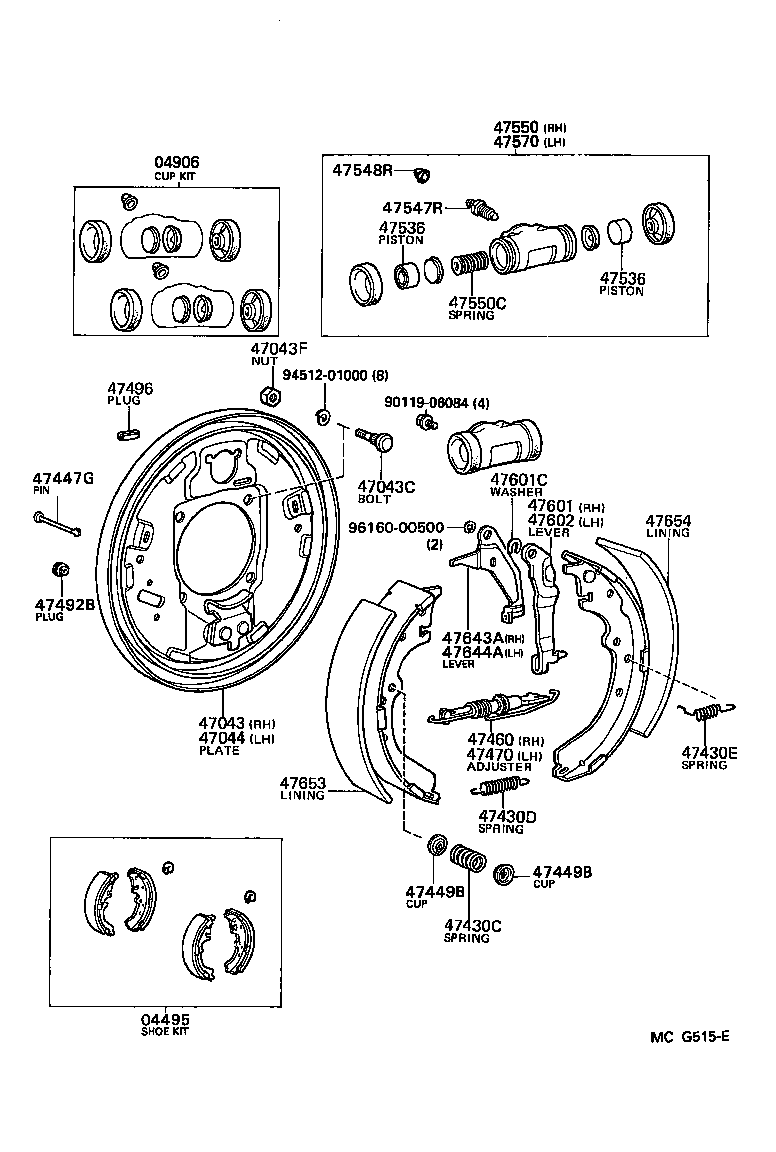

Click highlighted areas on diagram

diagram 04495 04906 47043 47043C 47043F 47044 47430C 47430D 47430E 47447G 47449B 47449B 47460 47470 47492B 47496 47536 47536 47547R 47548R 47550 47550C 47570 47601 47601C 47602 47643A 47644A 47653 47654 9011906084 9451201000 9616000500
Part # Description Qty Price
04495 - SHOE KIT, REAR BRAKE
04495-35060

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 1
04495-35061

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 1
04495-35170

RN8#,90,VZN90

MARK AK LA509

 1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-30060

RN85,90,VZN90

 1
04906-30060

RN90,VZN90

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-35061

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90114-10002

RN8#,90,VZN85,90..HLF..(CBU,IV3)

*10-1.25PX37-18.5

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90179-10067

VZN85..ST;RN12#,8#,90,VZN120,90

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-35051

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90501-20756

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-20005

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-12015

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 2
47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-30020

VZN85..HLF..DLX;RN12#,8#,90,VZN120,90

 4
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

RN12#,8#,90,VZN120,85,9#

 8
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

RN12#,8#,90,VZN120,85,9#

 8
47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47061-35020

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 1
47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47062-35020

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 1
47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47492-28010

RN12#,8#,90,VZN120,85,9#

 2
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-20011

VZN85..HLF..DLX;RN12#,8#,90,VZN120,90

 2
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47051-30030

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)

 4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47051-30030

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)

 4
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-20030

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

RN12#,8#,90,VZN120,85,9#

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-30100

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47509-35020

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)

 2
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-30100

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47611-35020

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 1
47601C - WASHER, C(FOR REAR BRAKE)
90213-07010

RN12#,8#,90,VZN120,85,9#

T=1.6

 2
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47612-35020

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 1
47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47643-35020

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 1
47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47644-35020

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 1
47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47655-30050

RN8#,90..CBR;RN85,90..4HC;RN85,90..W..USA;RN80,VZN85,90..HLF..(DLX,SR5)..EFI

 2
47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
47655-30050

RN8#,90..CBR;RN85,90..4HC;RN85,90..W..USA;RN80,VZN85,90..HLF..(DLX,SR5)..EFI

 2
Common parts
90119-06084
94512-01000
96160-00500
