VZN90L-CRSDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3VZE..JPP

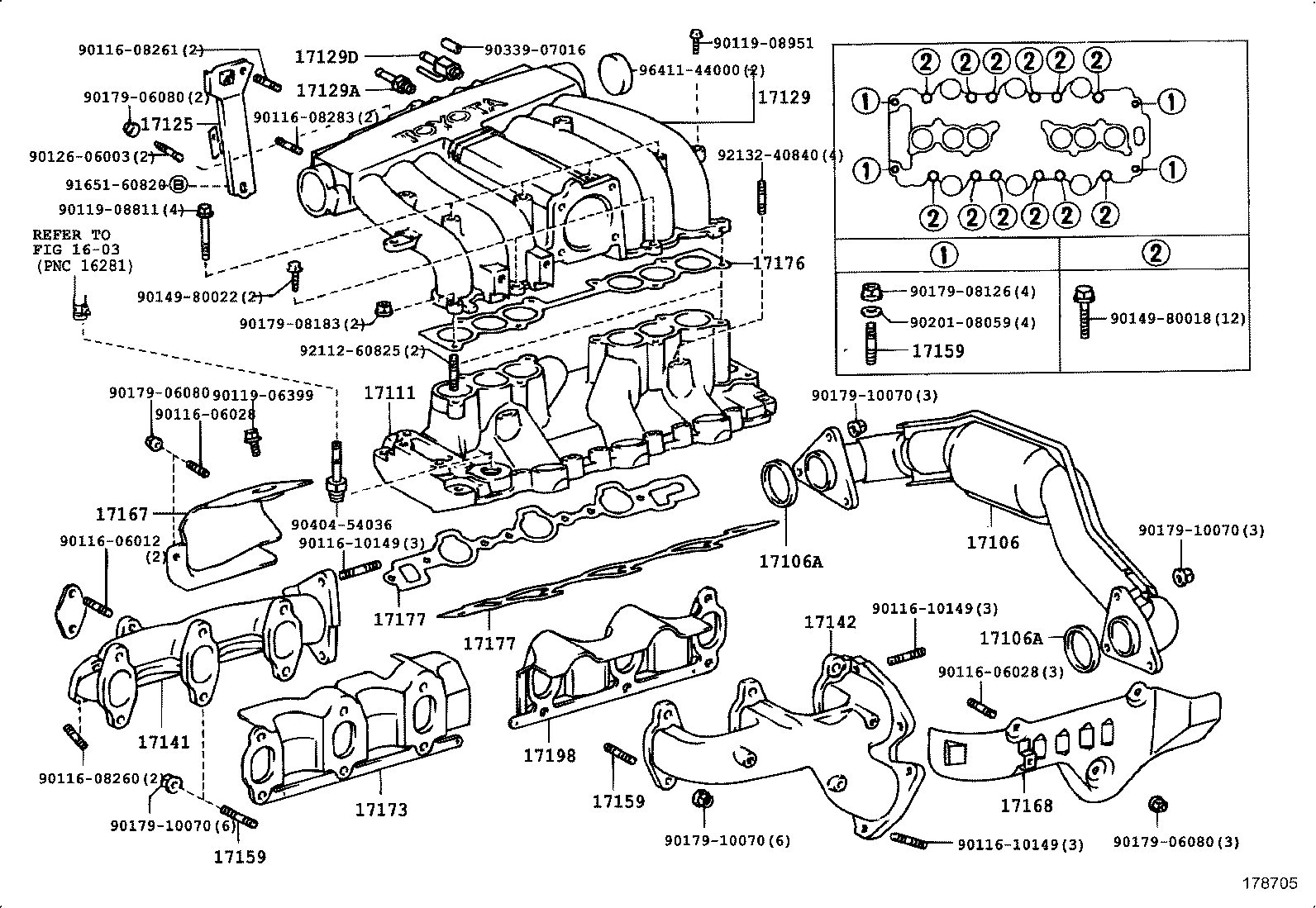

Click highlighted areas on diagram

diagram 1603 17106 17106A 17106A 17111 17125 17129 17129A 17129D 17141 17142 17159 17159 17159 17167 17168 17173 17176 17177 17177 17198 9011606012 9011606028 9011606028 9011608260 9011608261 9011608283 9011610149 9011610149 9011610149 9011906399 9011908811 9011908951 9012606003 9014980018 9014980022 9017906080 9017906080 9017906080 9017908126 9017908183 9017910070 9017910070 9017910070 9017910070 9020108059 9033907016 9040454036 9165160820 9211260825 9213240840 9641144000
Part # Description Qty Price
17106 - PIPE SUB-ASSY, EXHAUST CROSSOVER
17106-65010

3VZE..VZN120,85,9#

 1
17106A - GASKET, EXHAUST PIPE
90917-06048

3VZE..VZN120,85,9#

 2
17106A - GASKET, EXHAUST PIPE
90917-06048

3VZE..VZN120,85,9#

 2
17111 - MANIFOLD, INTAKE
17111-65900

3VZE..VZN120,85,9#

 1
17125 - STAY, SURGE TANK, NO.1
17125-65011

3VZE..VZN120,85,9#

 1
17129 - TANK, INTAKE AIR SURGE
17109-65012

3VZE..VZN120,85,9#

 1
17109-65014

3VZE..VZN120,85,9#

 1
17109-65013

3VZE..VZN120,85,9#

 1
17129A - UNION, NO.1
90404-51319

3VZE..VZN120,85,9#

 1
17129D - UNION, NO.2
90404-51058

3VZE..VZN120,85,9#

 1
17141 - MANIFOLD, EXHAUST
17141-65010

3VZE..VZN120,85,9#

 1
17142 - CASE, EXHAUST MANIFOLD, NO.2
17142-65011

3VZE..VZN120,85,9#

 1
17142-65011

3VZE..VZN120,85,9#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08262

3VZE..VZN120,85,9#

INTAKE MANIFOLD

 4
90116-10150

3VZE..VZN120,85,9#

EXHAUST MANIFOLD

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08262

3VZE..VZN120,85,9#

INTAKE MANIFOLD

 4
90116-10150

3VZE..VZN120,85,9#

EXHAUST MANIFOLD

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08262

3VZE..VZN120,85,9#

INTAKE MANIFOLD

 4
90116-10150

3VZE..VZN120,85,9#

EXHAUST MANIFOLD

 12
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-65010

3VZE..VZN120,85,9#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-65010

3VZE..VZN120,85,9#

 1
17168-65020

3VZE..VZN120,85,9#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-65020

3VZE..VZN120,85,9#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-65010

3VZE..VZN120,85,9#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-65010

3VZE..VZN120,85,9#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-65010

3VZE..VZN120,85,9#

 2
17198 - GASKET, EXHAUST MANIFOLD, NO.2
17198-65020

3VZE..VZN120,85,9#

 1
Common parts
90116-06012
90116-06028
90116-08260
90116-08261
90116-08283
90116-10149
90119-06399
90119-08811
90119-08951
90126-06003
90149-80018
90149-80022
90179-06080
90179-08126
90179-08183
90179-10070
90201-08059
90339-07016
90404-54036
91651-60820
92112-60825
92132-40840
96411-44000
Linked diagrams
1603
